HPE Aruba JL003A 5406R 44port POE+ Ethernet Switch

HPE JL003A Aruba 5406R 44GT PoE+ / 4 SFP+ v3 zl2 Switch

Overview

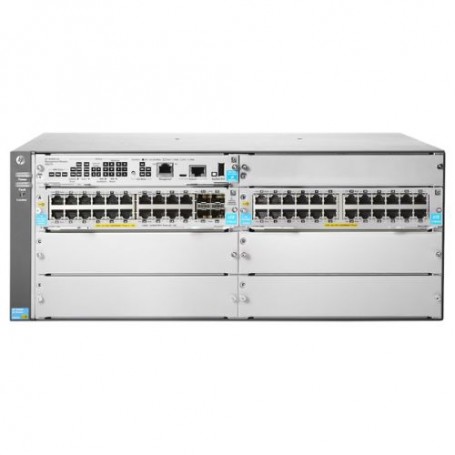

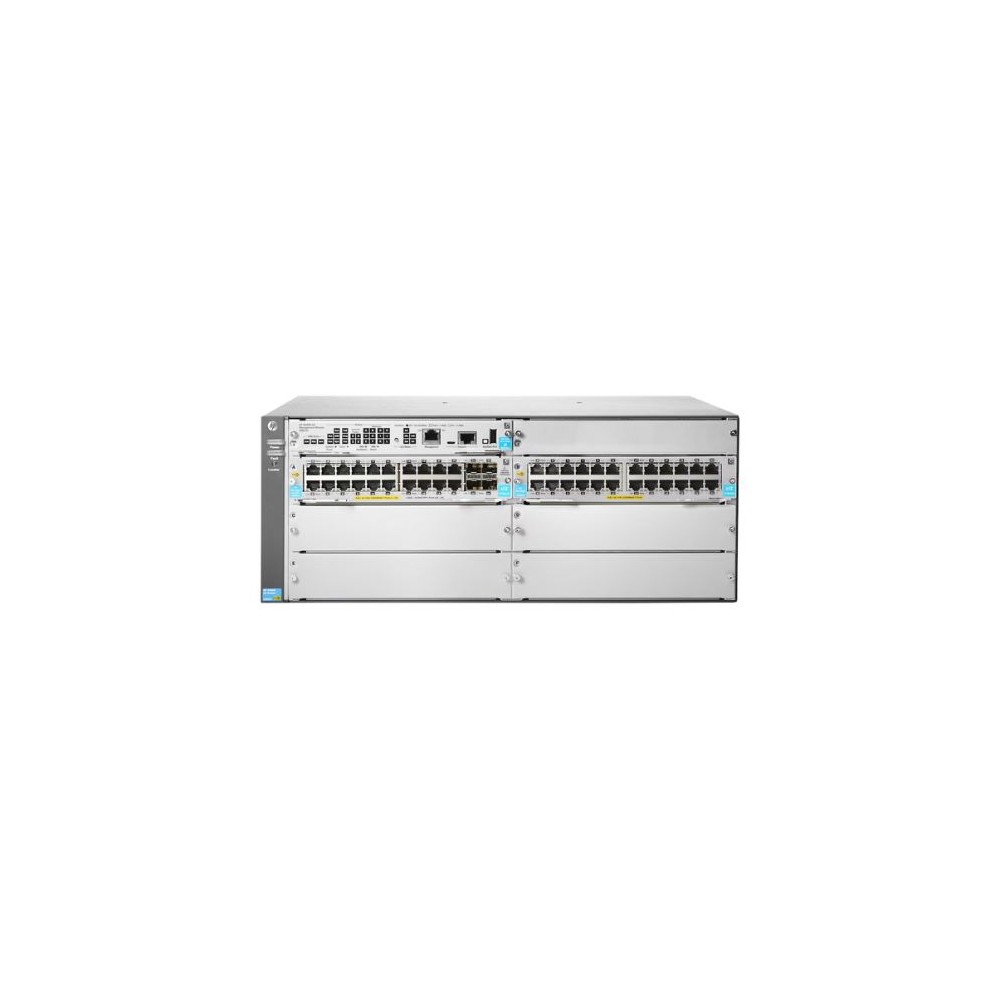

The HPE JL003A is a 4-rack-unit modular switch chassis designed for campus access or aggregation layers requiring high port density, PoE+ power, fibre uplinks and stacking capabilities. It includes 44 auto-sensing 10/100/1000 Mbps RJ-45 PoE+ ports, four 10 Gbps SFP+ uplink slots and four additional module slots for flexible expansion. With switching capacity up to 960 Gbps and packet forwarding rates up to 571.4 Mpps, it supports demanding mobile-first networks, high-density WLAN aggregation or converged wired-wireless infrastructures. The architecture enables stacking via Virtual Switching Framework (VSF) and supports advanced Layer 2/3 features including IPv4/IPv6 routing, QoS, ACLs and high-availability operation. This chassis fits standard 19-inch racks and is suitable for enterprise campus wiring closets or aggregation zones where modular flexibility and high performance are required.

Key Features

• 44 RJ-45 10/100/1000 PoE+ ports and 4 fixed 10 Gbps SFP+ uplink slots.

• Switching capacity of 960 Gbps and forwarding rate up to 571.4 Mpps.

• Four open module slots for future expansion (supports up to 144 ports or 12 40 GbE).

• Virtual Switching Framework (VSF) stacking and hitless failover for resiliency.

• Supports full Layer 2/3 feature set including IPv4/IPv6 routing, BGP/OSPF, MACsec-v3 modules.

Technical Specifications
