Detailed Specifications

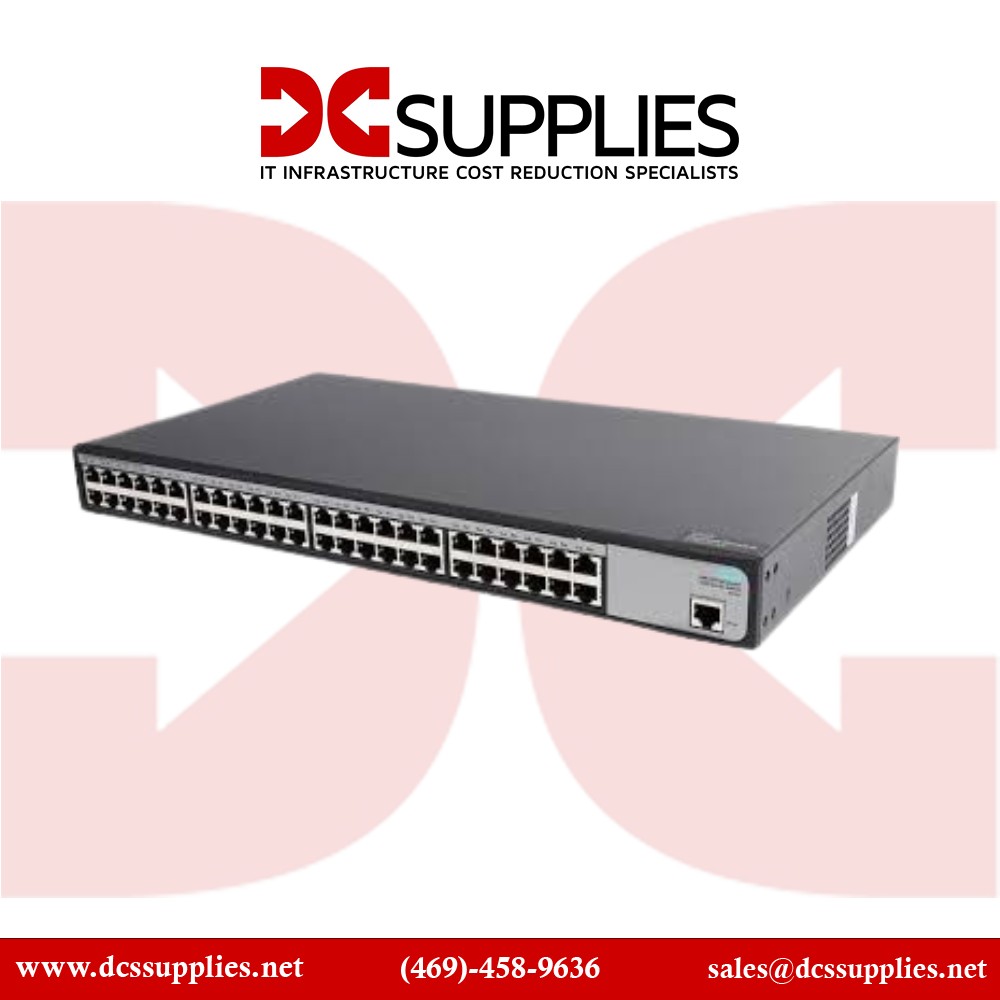

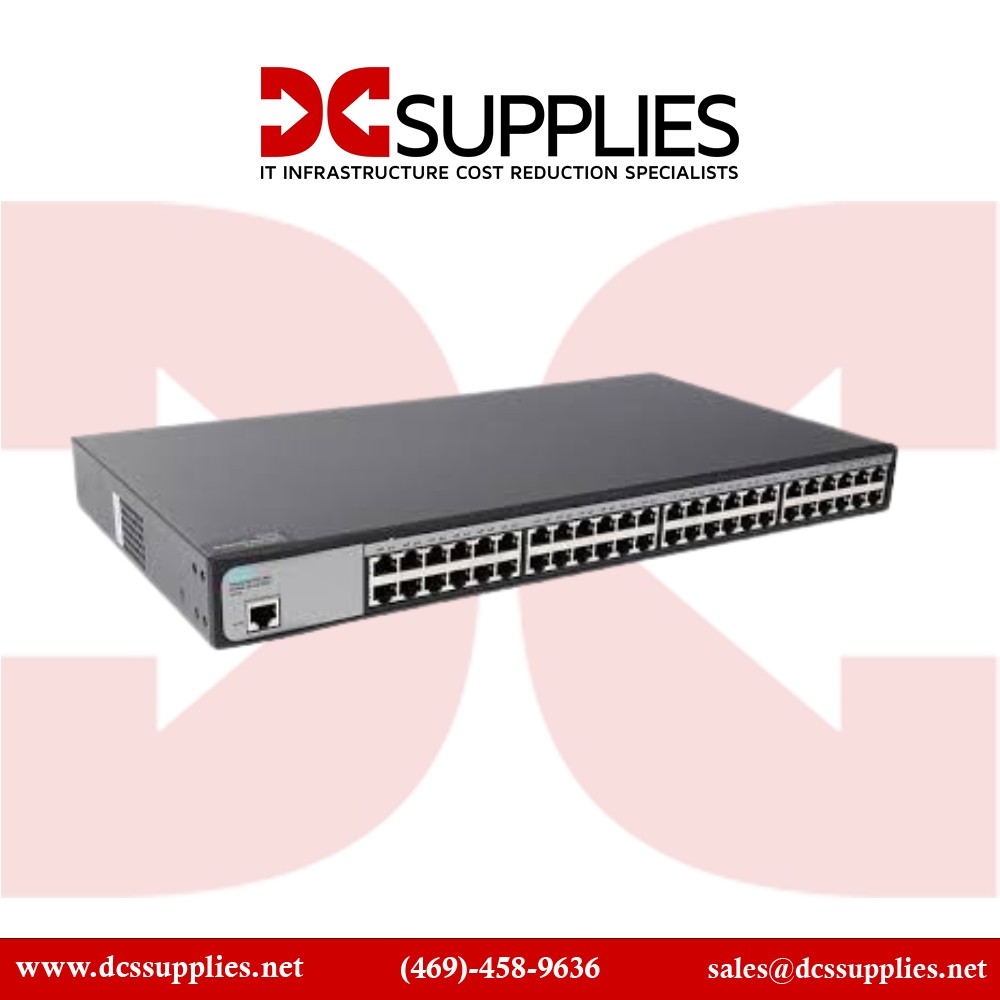

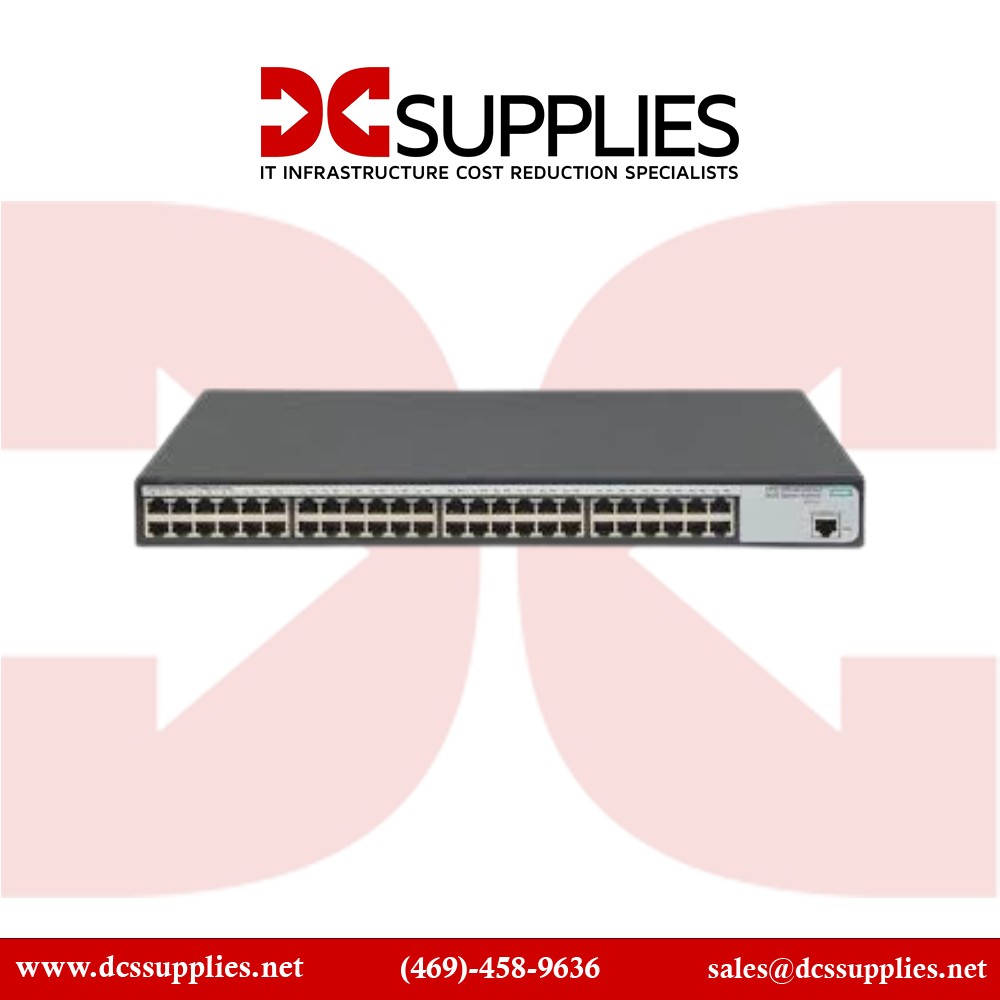

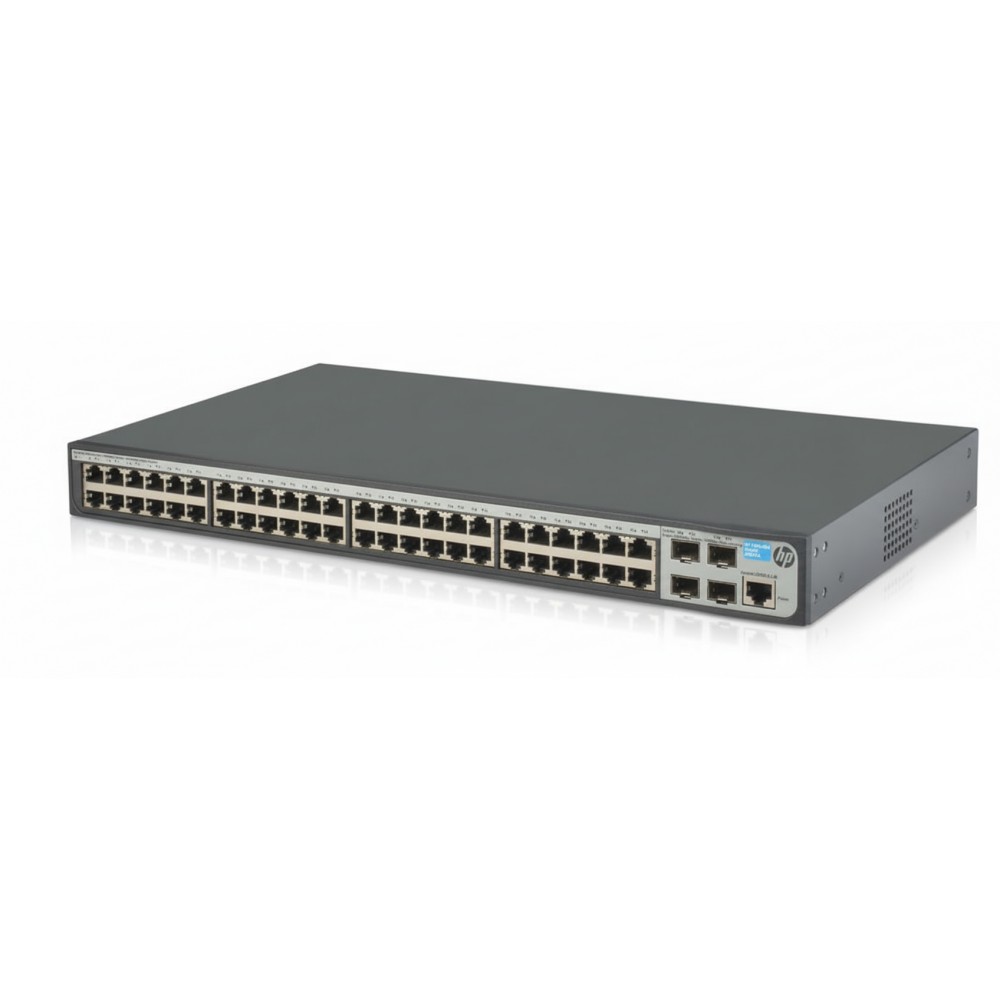

HPE JG914A OfficeConnect 1620 48G Switch
Overview
The HPE JG914A is a 48-port gigabit smart-managed switch designed for small-to-medium business networking environments that require greater control than unmanaged switches but without full enterprise complexity. Engineers use it to deploy high-density access switching with full 10/100/1000 Mbps RJ-45 connectivity and built-in Layer 2 features such as VLANs, link aggregation, QoS and IGMP snooping, which help optimise multi-device traffic and segmentation. It supports switching throughput up to 71.4 Mpps and a switching capacity of 96 Gb/s, making it suited for wiring-closet access layers or edge network racks. It fits standard 19-inch racks (1U height) and can also be wall mounted, making it practical for branch offices or campus access zones where cost-effective performance and manageability matter.
Key Features
48 × 10/100/1000 Mbps RJ-45 autosensing ports for full gigabit copper access.
Smart-managed layer-2 features including VLANs, QoS, link aggregation and IGMP snooping.
Switching capacity of 96 Gb/s and forwarding rate up to 71.4 Mpps for high-density access.
1U rack-mount chassis with included hardware supports wall or rack installation.
Energy Efficient Ethernet (IEEE 802.3az) and low power consumption (~28.2 W) for cost-sensitive deployments.
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JG914A |
| Product Type | Smart-Managed Gigabit Switch - 48 port |
| RJ-45 Ports | 48 × 10/100/1000 Mbps |
| Switching Capacity | 96 Gb/s |
| Forwarding Rate (64-byte packets) | Up to 71.4 Mpps |
| MAC Address Table Size | 16,384 entries |
| Packet Buffer Size | 12 Mb |
| Form Factor (H × W × D) | 1.73 in × 17.32 in × 9.37 in |
| Weight | ~7.28 lbs |
| Power Consumption (Max) | ~28.2 W |
| Operating Temperature | 0 °C to 40 °C |
| Management Interfaces | Web GUI, SNMP v1/v2c/v3, Console RJ-45 |
| Standards Supported | IEEE 802.3, 802.3u, 802.3ab, 802.1Q, 802.3az |
| Rack Units | 1U |
