Detailed Specifications

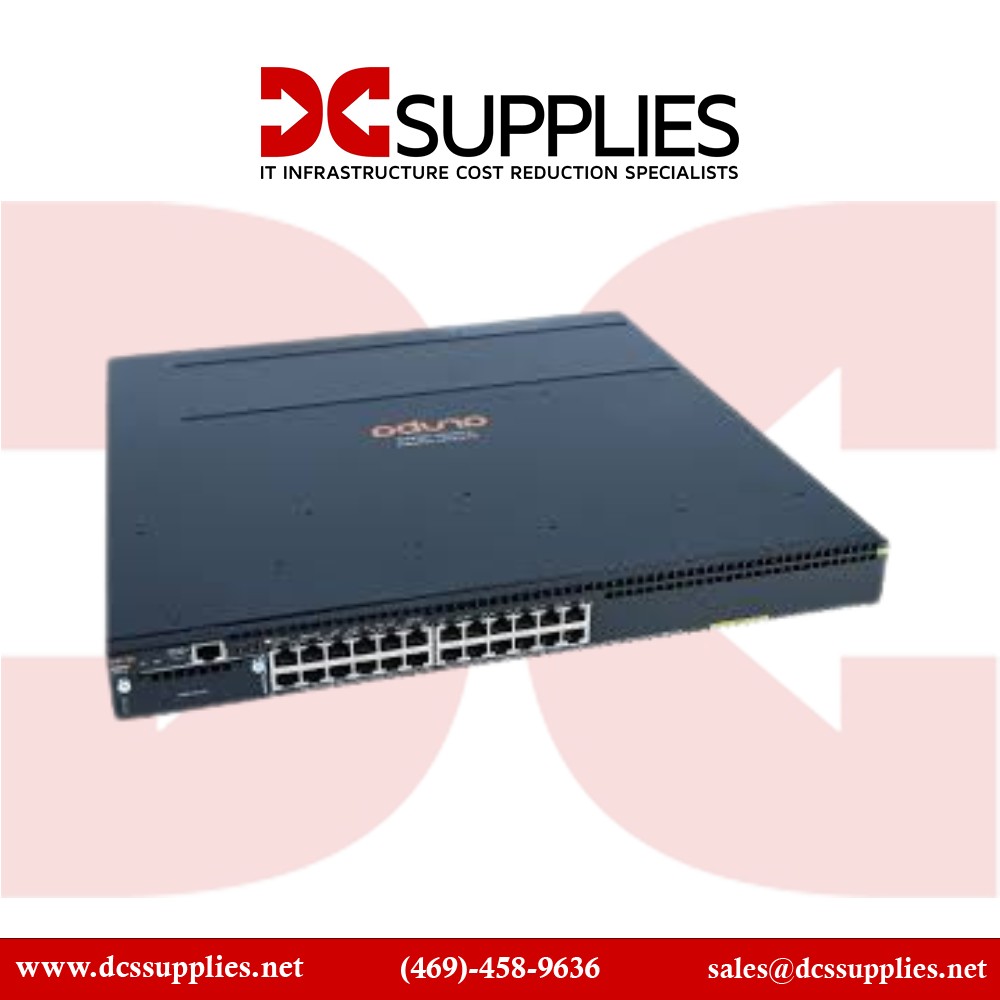

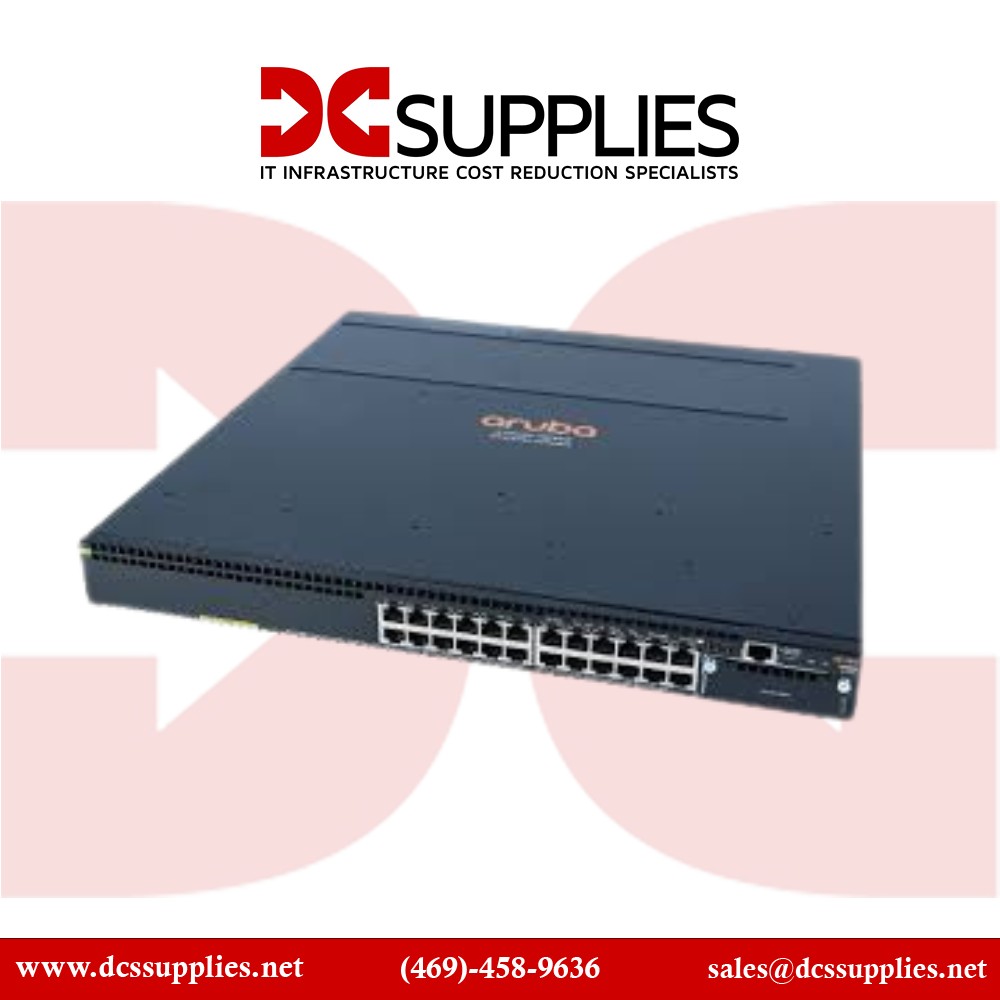

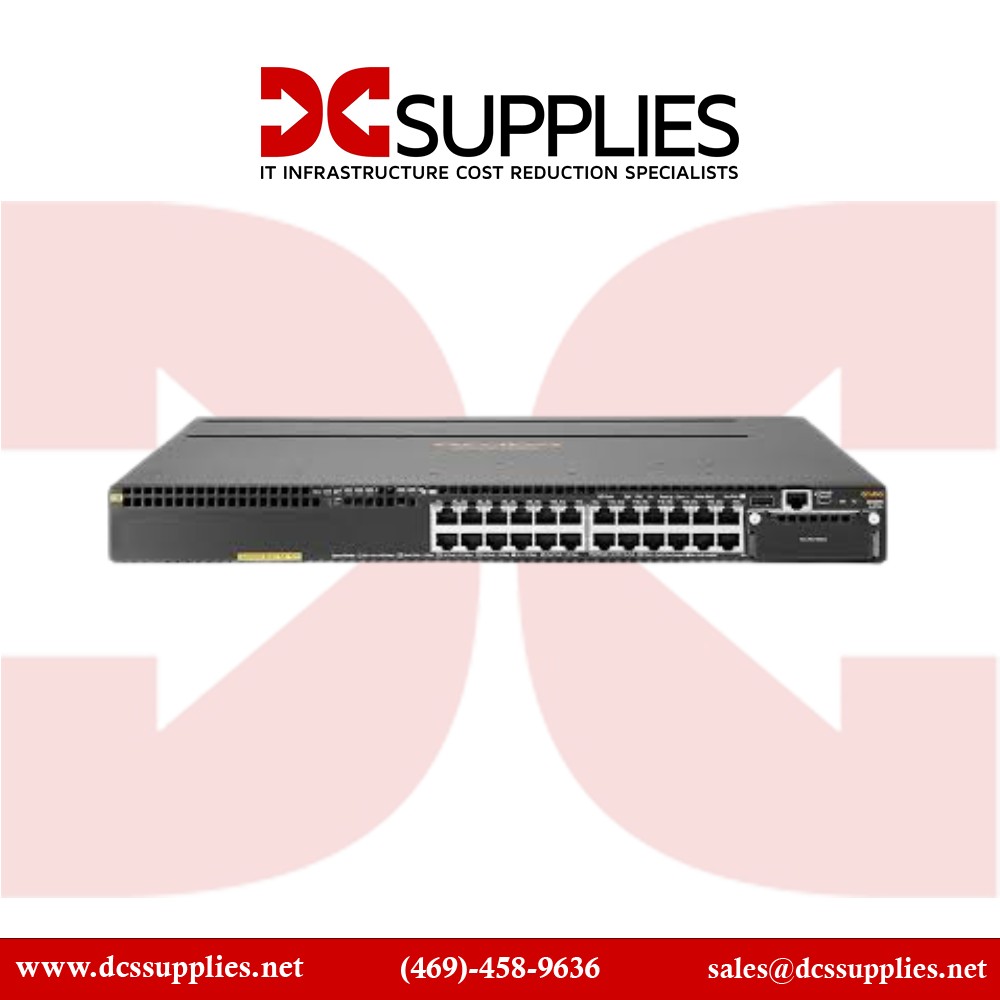

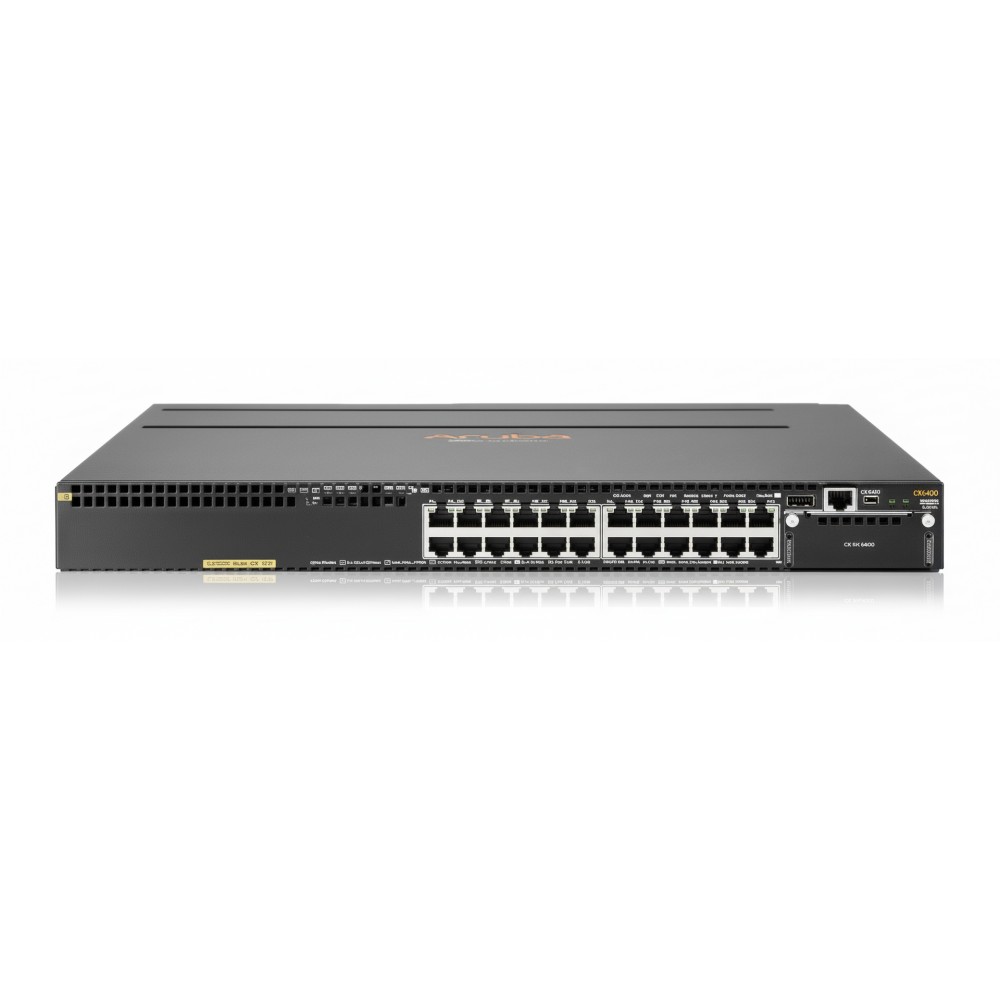

HPE JL073A Aruba 3810M 24G PoE+ 1-slot Switch
Overview
The HPE JL073A is a 1 U rack-mount Layer-3 switch engineered for campus access and enterprise distribution deployments where PoE+ for wireless access points, IP-phones or cameras is required alongside robust uplink and stacking capabilities. This model delivers 24 × 10/100/1000 Mbps PoE+ ports and supports a modular uplink expansion slot, enabling 10 GbE or 40 GbE uplinks as needed. It supports advanced networking features such as IPv4/IPv6 routing, high port bandwidth, resilient stacking and dual, redundant power supplies, making it well-suited for dense access racks, wiring closets or edge aggregation points. Integrated with HPE/Aruba management tools and SDN support, it fits into environments requiring lifecycle management, policy enforcement and unified wired-wireless fabric integration.
Key Features
24 autosensing RJ-45 10/100/1000 Mbps ports with PoE+ support.
Single modular uplink/stacking slot supporting 10/40 GbE modules.
Layer-3 routing capability (IPv4/IPv6, OSPF, BGP) in a fixed switch.
Redundant, hot-swappable power supplies for high availability.
Stacking support for up to 10 units and up to 336 Gbps stack throughput.
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JL073A |
| Product Type | Aruba 3810M 24G PoE+ 1-slot Switch |
| Port Count | 24 × 10/100/1000 Mbps RJ-45 (PoE+) |
| Uplink/Stack Slot | 1 × modular slot (10 GbE/40 GbE) |
| Switching Capacity | 176 Gbps |
| Maximum Forwarding Rate | ~131 Mpps |
| MAC Address Table Size | 16 k entries |
| Stacking Bandwidth | Up to 336 Gbps |
| Form Factor (H × W × D) | 1.7 in × 17.4 in × 17.0 in |
| Weight (approximate) | ~13.0 lbs |
| PoE Budget | Up to 370 W total |
| Routing Protocols Supported | OSPF, BGP, VRRP, static IPv4/IPv6 |
| Operating Temperature | 0 °C to 45 °C |
| Management Interfaces | Web GUI, CLI, SNMPv3, out-of-band Ethernet |
| Rack Units | 1 U |
