Detailed Specifications

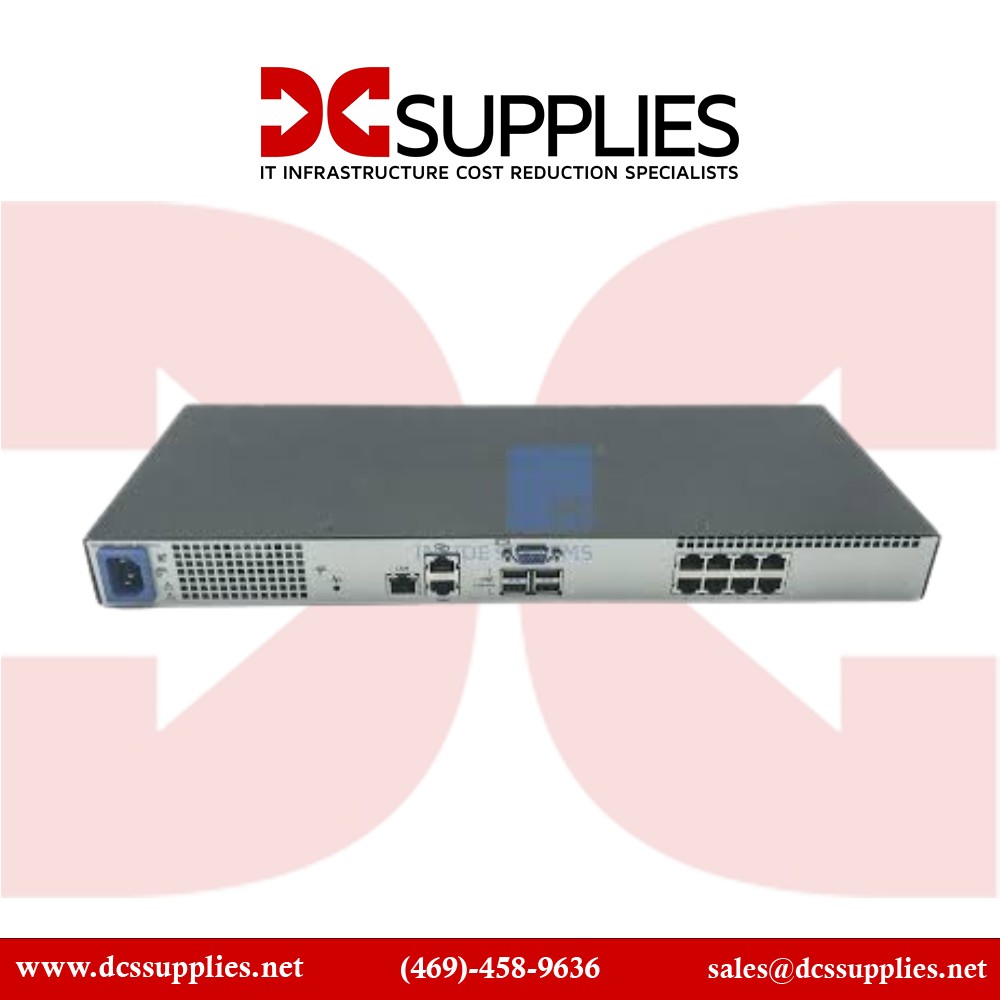

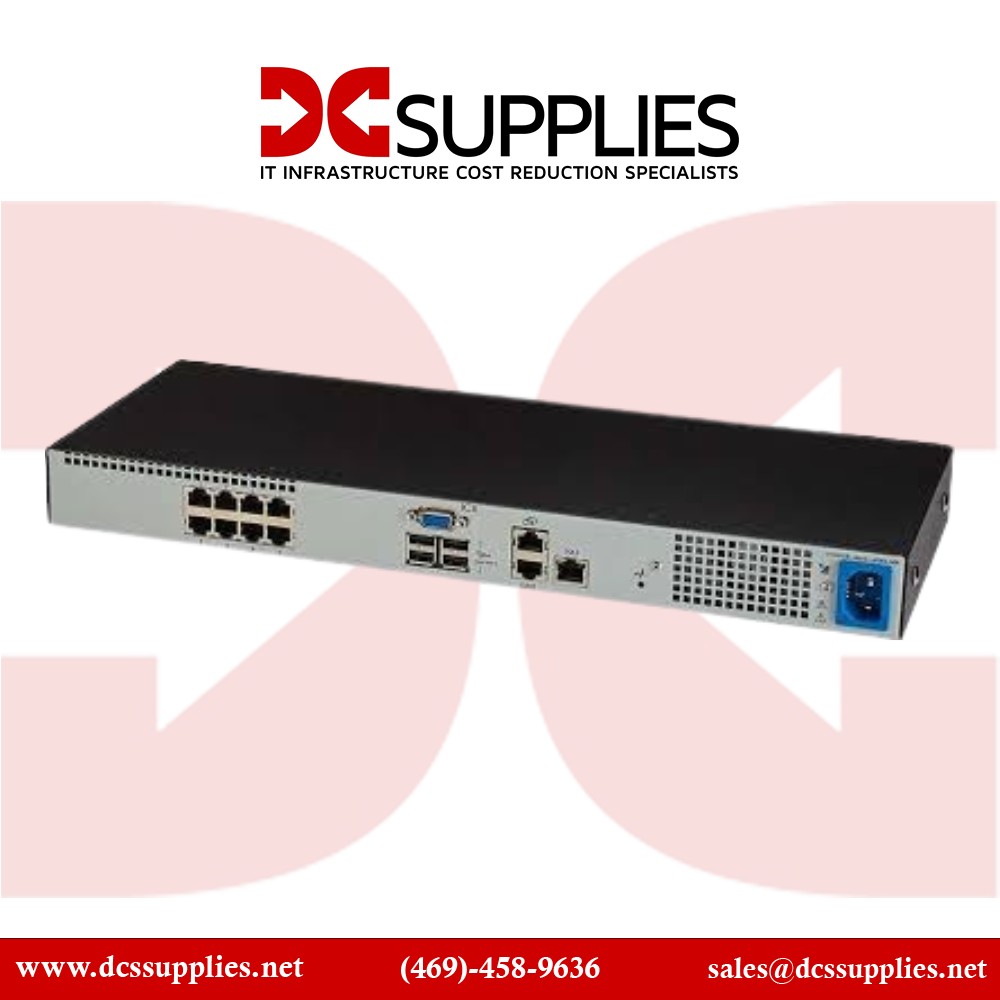

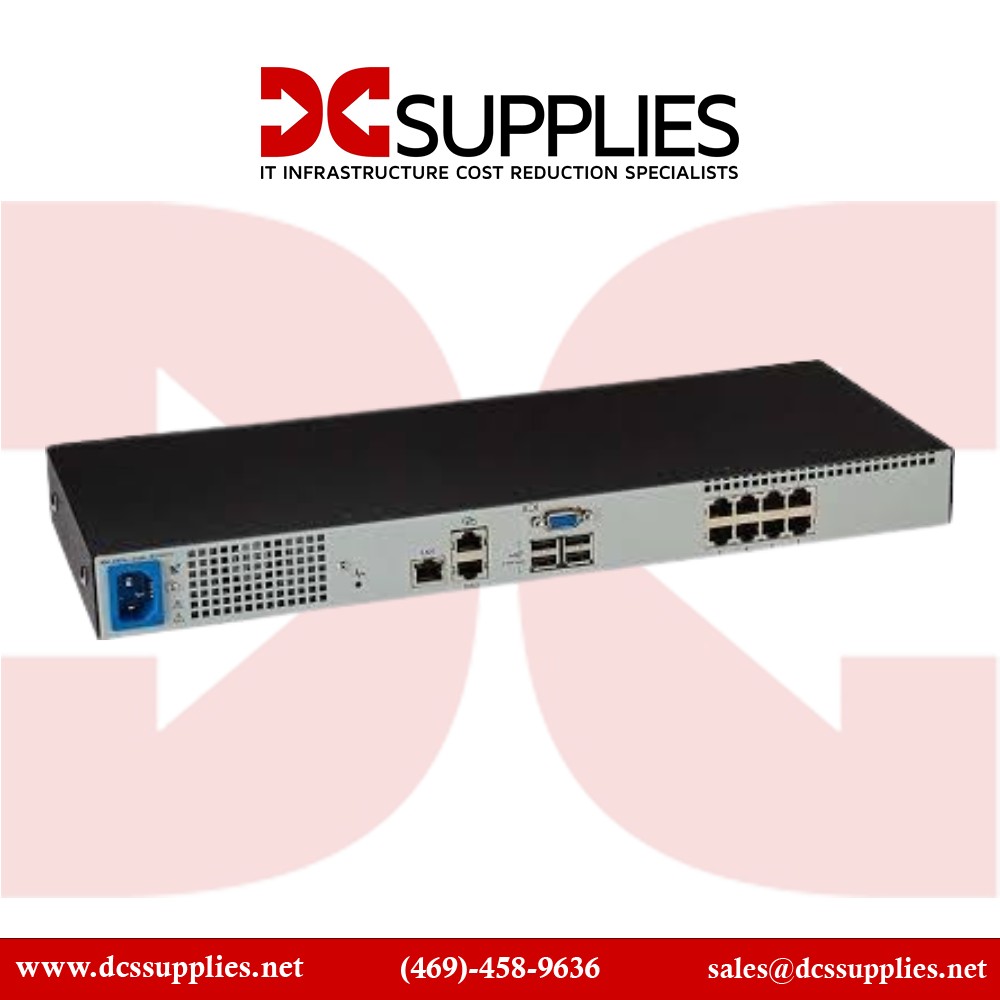

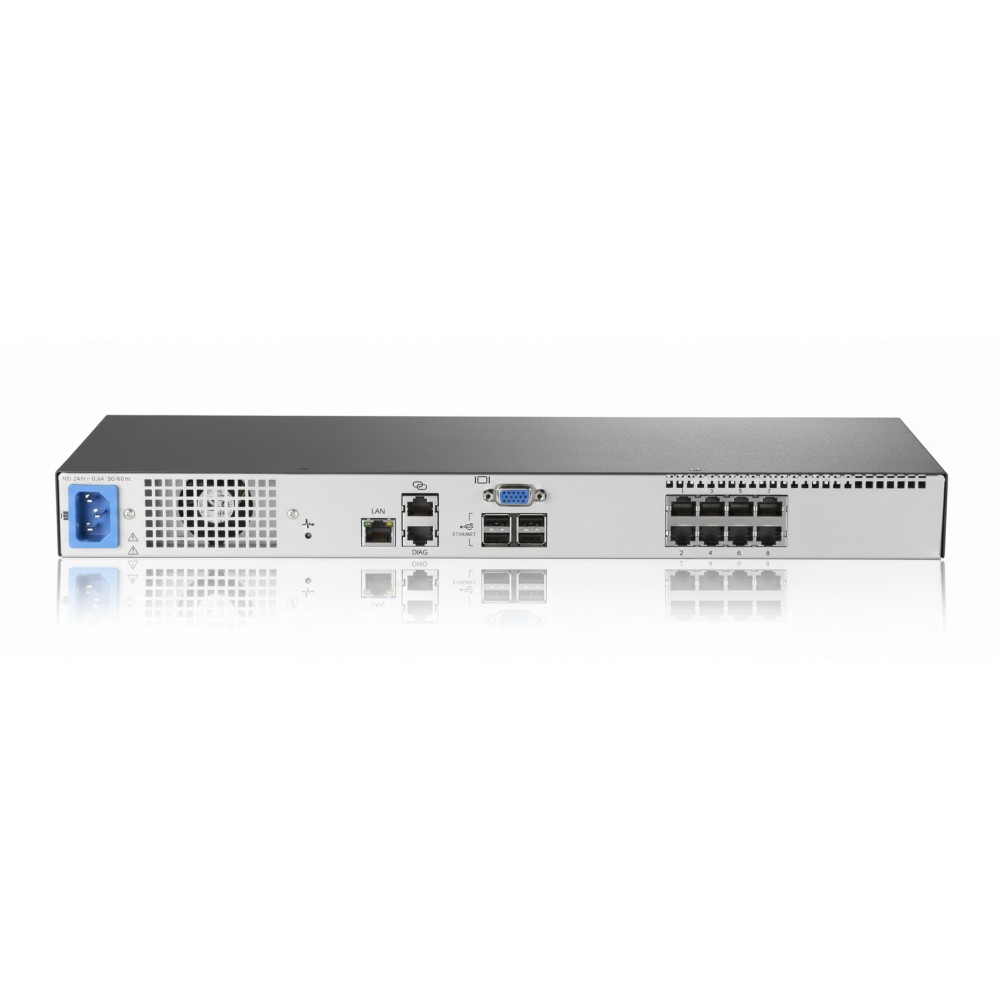

HPE AF651A 0x1x8 G3 KVM Console Switch
H3 Overview
The HPE AF651A is an analog console KVM switch designed for infrastructure engineers who need local management of multiple rack-mounted servers via a single keyboard, video and mouse interface. It supports up to 8 server ports and provides access to reduce rack-based console clutter while consolidating physical console access. The unit mounts in a standard 19-inch rack (1U height) and includes a rack-mount kit for zero-U side-rail or rear-rack mounting in addition to front-mount. It accepts USB keyboard/mouse interface and VGA monitor connection, and uses CAT5 cabling to each connected server. The control interface features On-Screen Display (OSD) menus, programmable server scanning and the option to upgrade to KVM-over-IP with a USB remote access key. The AF651A is suited for small to medium server-room installations, edge racks or dedicated management racks in data-centre environments where simple, cost-effective local console access is required.
H3 Key Features
8 RJ-45 CAT5 server ports for analog KVM access.
USB keyboard/mouse and VGA HD-15 video connections supported.
1 U rack-mount enclosure with zero-U side-rail or rear-mount option.
On-Screen Display (OSD) for server selection and status monitoring.
Upgradeable to KVM-over-IP with optional USB remote access key.
H3 Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | AF651A |
| Product Type | Analog Console KVM Switch (0x1x8 G3) |
| Number of Server Ports | 8 |
| Supported Users (Local) | 1 |
| Keyboard/Mouse Interface | USB |
| Video Connector | VGA (HD-15) |
| Server Connection Cabling | CAT5 twisted-pair |
| Form Factor (H × W × D) | 1.7 in × 17.2 in × 6.5 in |
| Weight (approx.) | 4.5 lbs |
| Input Voltage | 100-240 V AC |
| Power Consumption (typical) | 10 W |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | −20 °C to 60 °C |
