Detailed Specifications

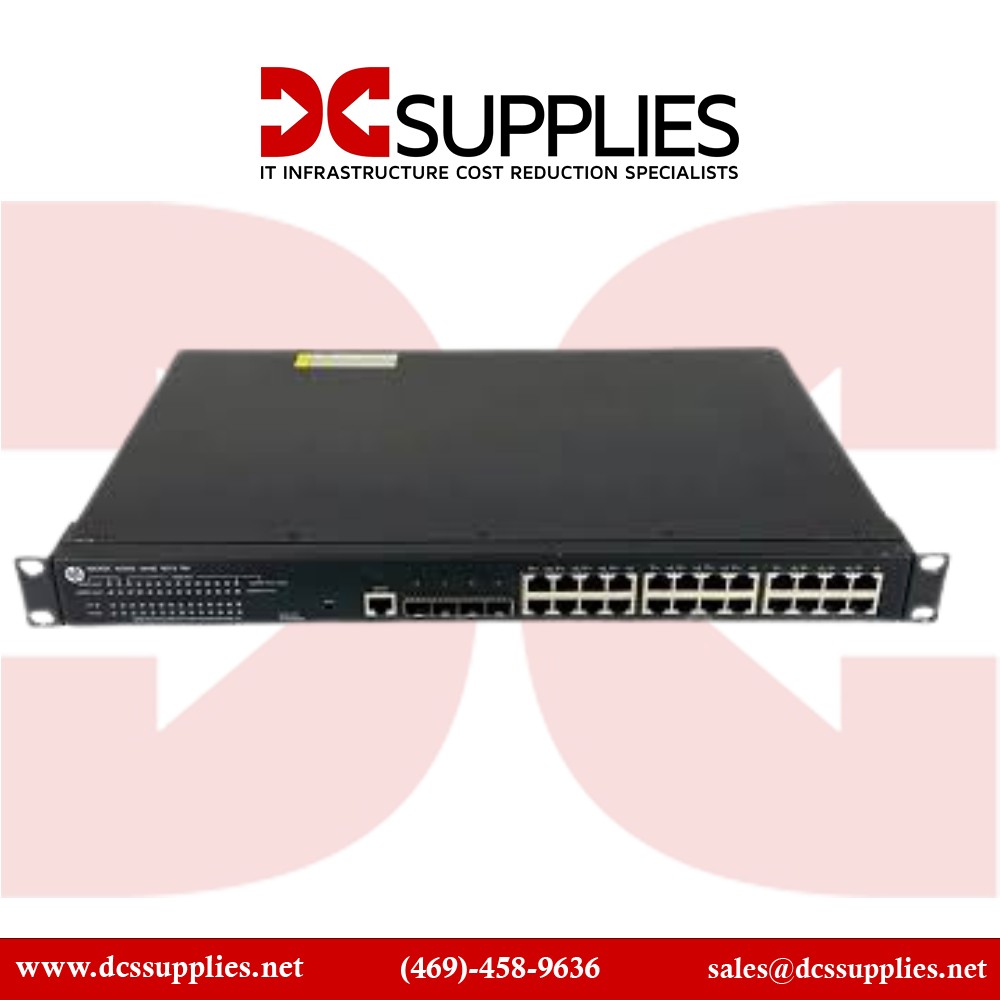

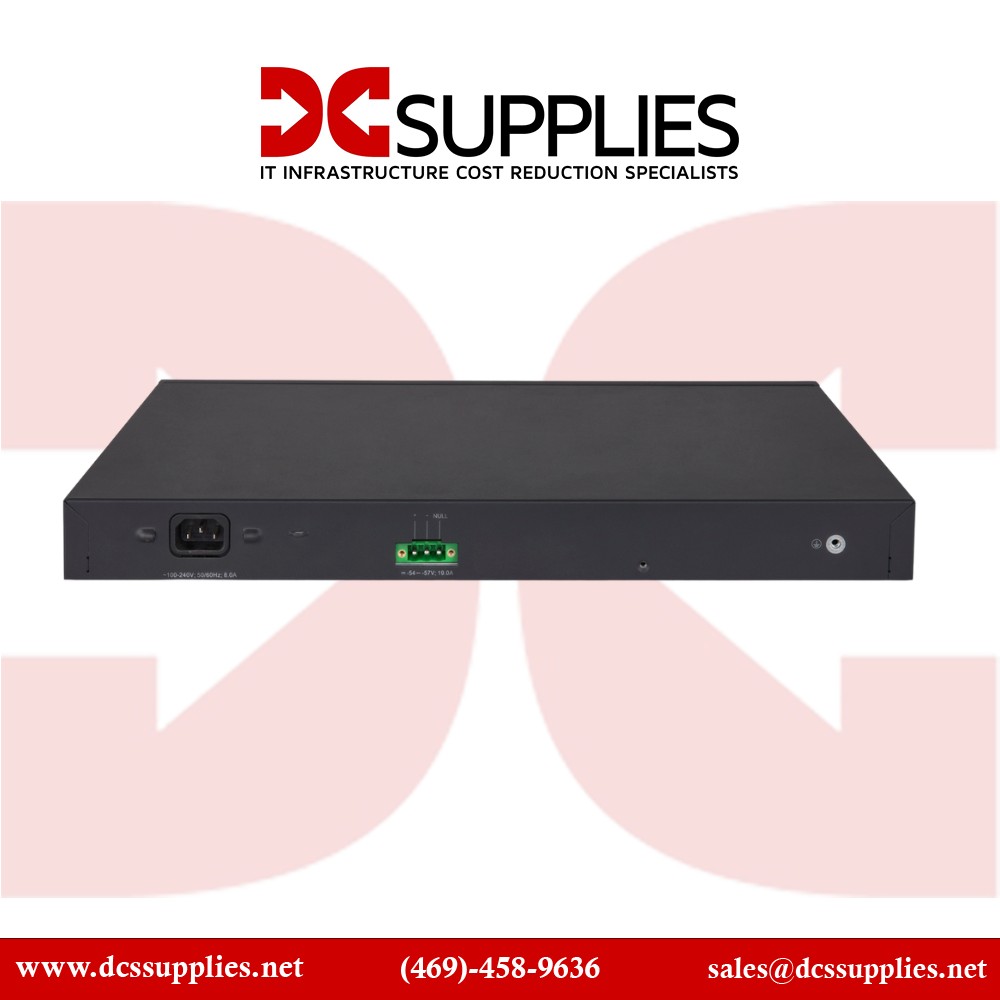

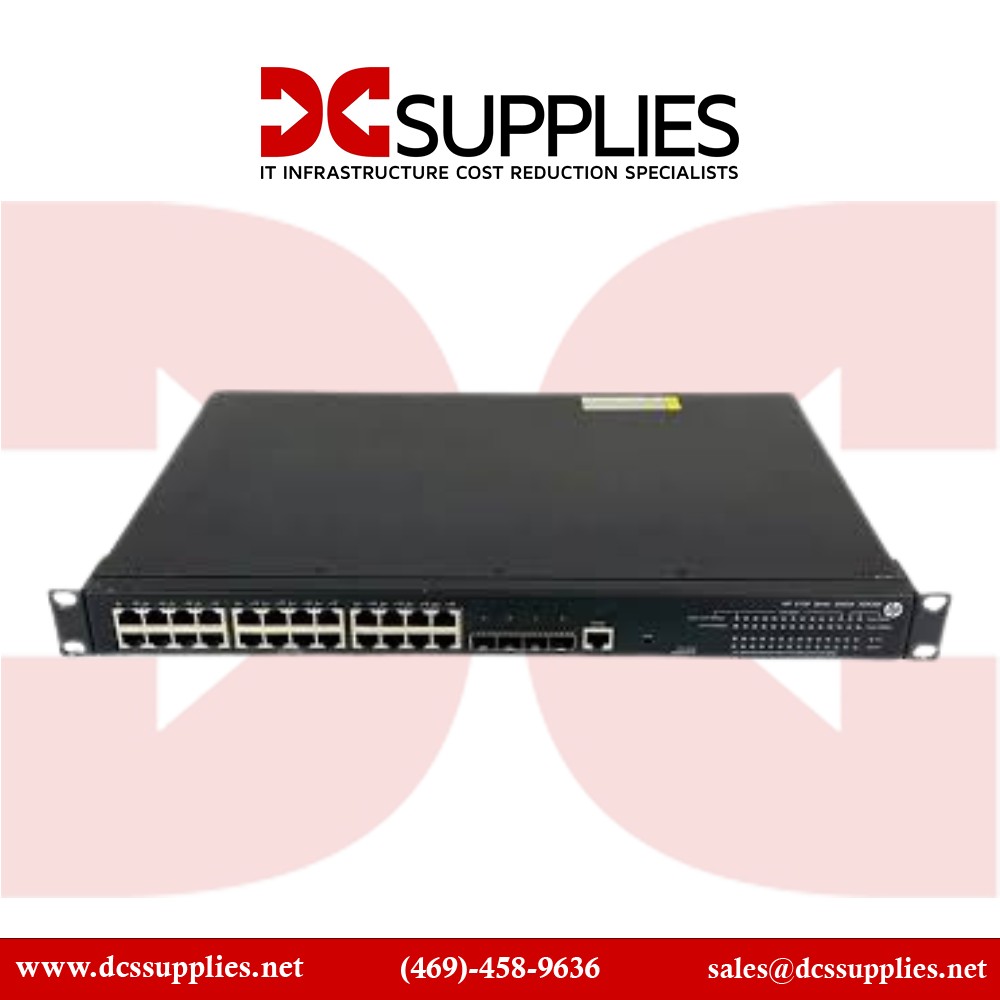

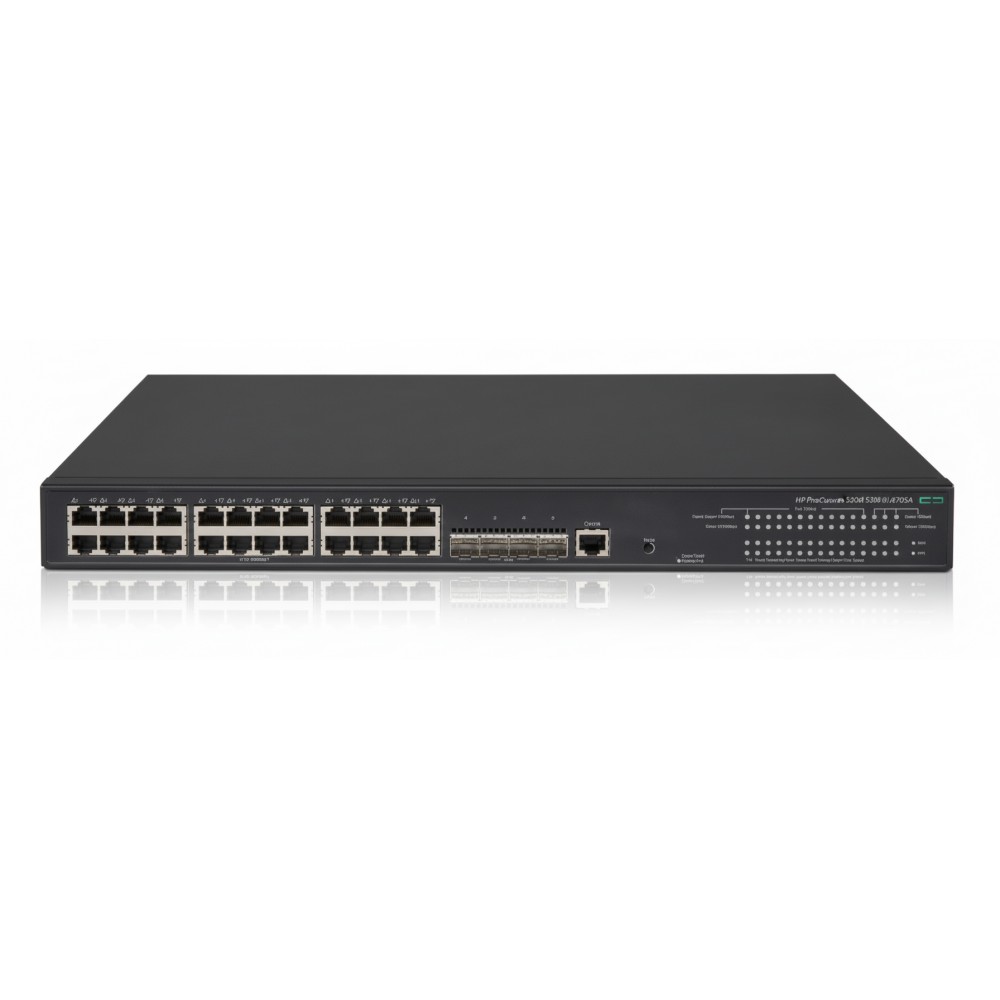

HPE JG936A FlexNetwork 5130-24G-PoE+-4SFP+ (370W) EI Switch
Overview
The HPE JG936A is a 1 RU rack-mount Layer 3 access switch intended for enterprise campus wiring closets and branch-site aggregation where PoE+ and 10 GbE uplinks are required. It provides 24 auto-sensing RJ-45 ports at 10/100/1000 Mbps with full PoE+ support and four fixed SFP+ fibre ports for 10 Gb/s or 1 Gb/s uplinks. The device supports static IPv4 routing, RIP routing, IPv6 host mode and stacking via IRF for up to nine units. Designed for high-density edge deployments, it offers a PoE+ budget of ~370 W, a maximum power rating of ~460 W and a compact 1.72″ × 17.32″ × 11.81″ footprint in the rack. Remote and local management are available through CLI, web browser, SNMP and integration with the HPE IMC platform.
Key Features
24 × 10/100/1000 Mbps RJ-45 ports with PoE+ budget ~370 W
4 × SFP+ ports for 10 Gb/s fibre uplinks
Layer 3 static routing and RIP support plus IPv6 host mode
Stackable up to nine units via IRF for simplified aggregation
Compact 1 RU chassis with ~17.64 lb weight for rack ease
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JG936A |
| Product Type | FlexNetwork 5130-24G-PoE+-4SFP+ (370W) EI Switch |
| Access Ports | 24 × RJ-45 10/100/1000 Mbps |
| Uplink Ports | 4 × SFP+ (1000/10000 Mbps) |
| PoE Budget | ~370 W |
| Maximum Power Rating | ~460 W |
| Switching Capacity | ~128 Gb/s |
| Form Factor (H × W × D) | 1.72 in × 17.32 in × 11.81 in |
| Weight (approximate) | ~17.64 lbs |
| Memory | 1 GB SDRAM |
| Flash Memory | 512 MB |
| Stacking | Up to 9 units via IRF |
| Operating Temperature | 0 °C to 45 °C |
| Management Interfaces | CLI, web GUI, SNMPv1/v2c/v3 |
