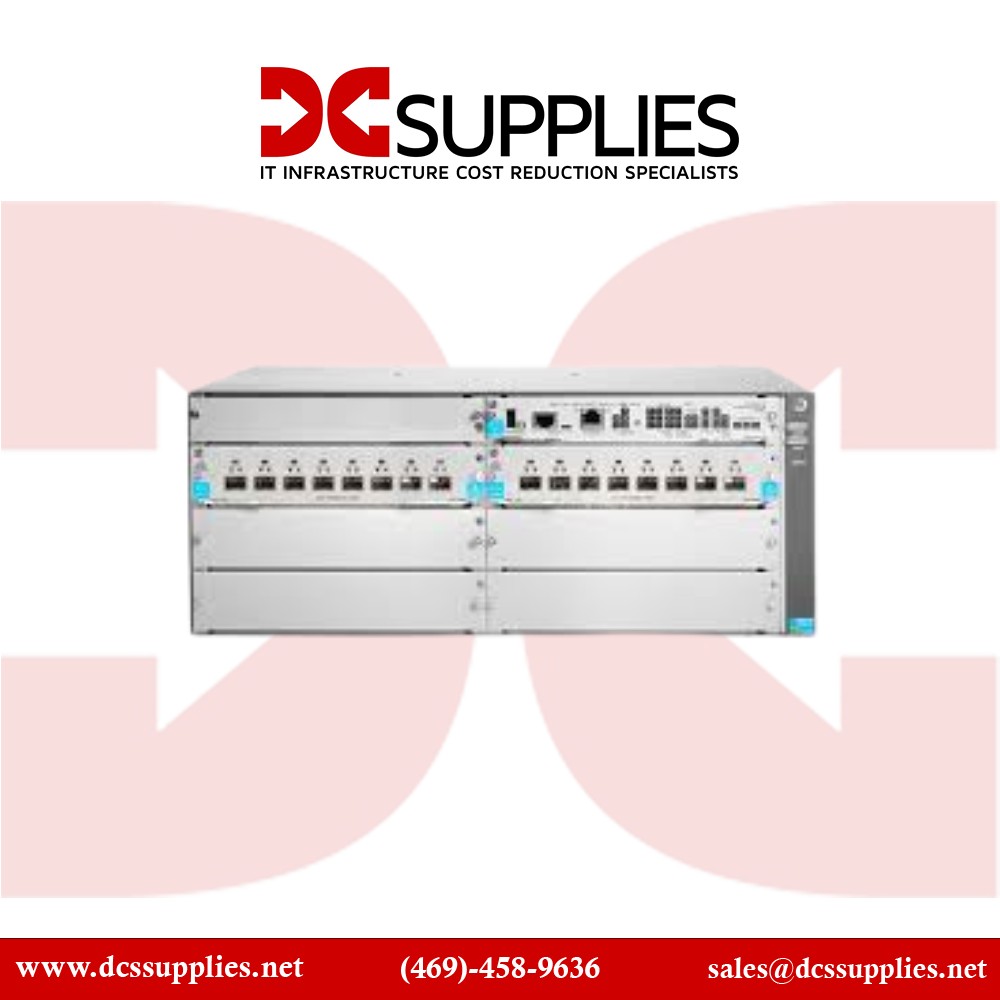

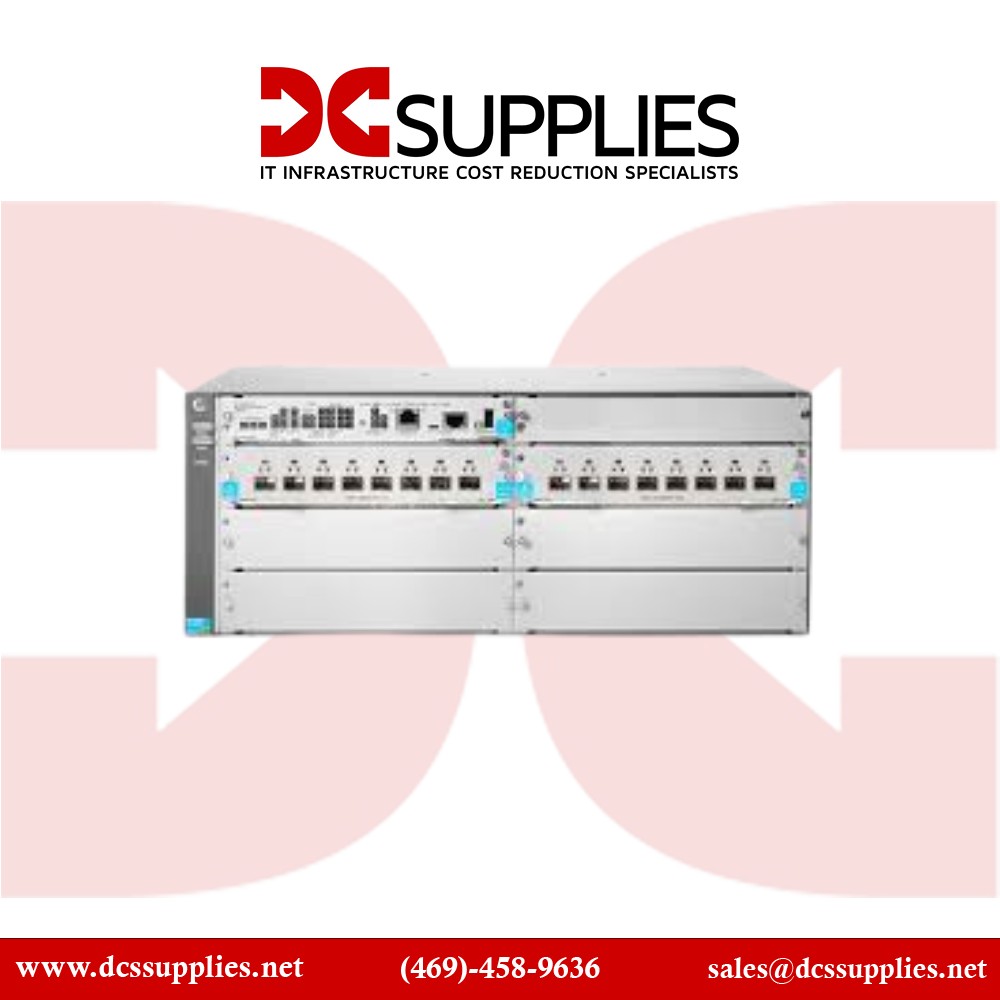

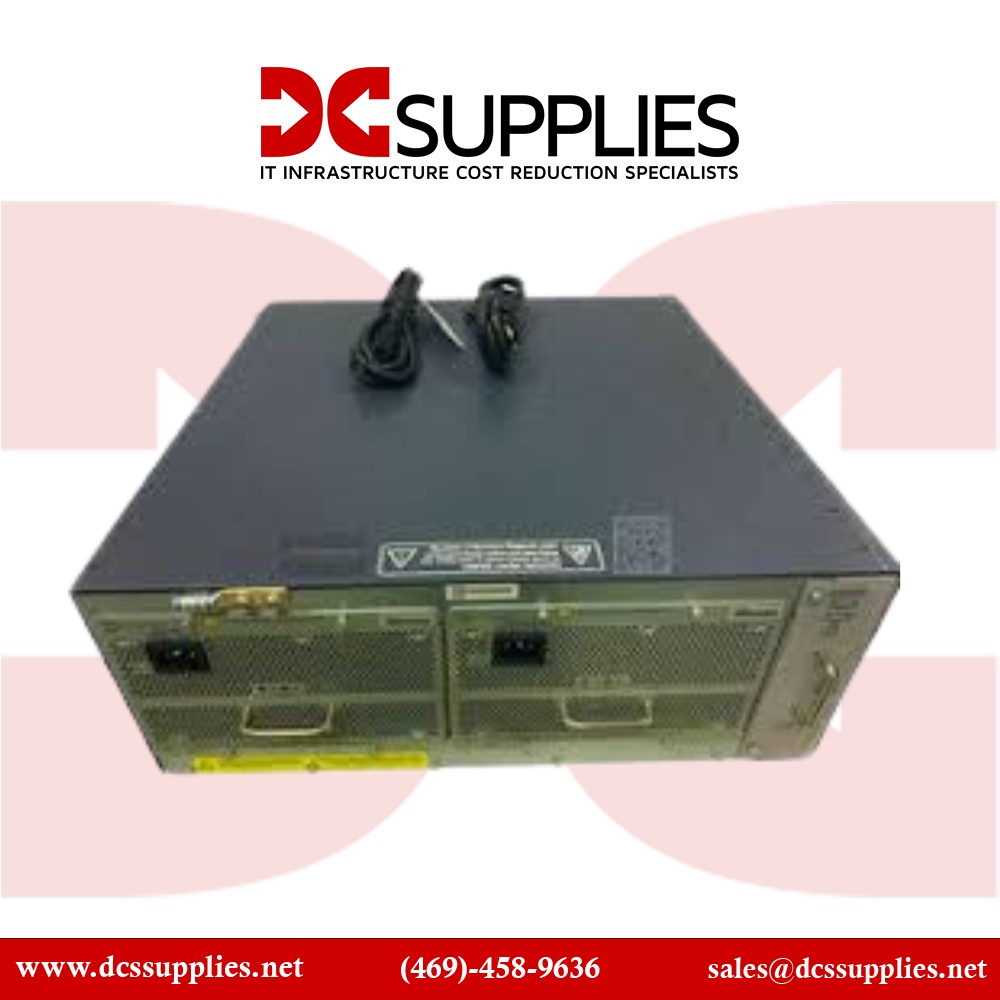

HPE Aruba 5406R 16-port SFP+ (No PSU) v3 zl2 - switch - 16 ports - managed - ra View larger
Previous Next

HPE Aruba JL095A 5406R 16-port SFP Managed Ethernet Switch

New

In Stock

HPE 5406R 16-port SFP+ Manageable - 10 Gigabit Ethernet Switch - 10GBase-X
×




$5,299.00

  • New

Detailed Specifications

HPE JL095A

Aruba 5406R 16‑port SFP⁺ Ethernet Switch

The HPE Aruba 5406R 16‑port SFP⁺ v3 zl2 (JL095A) is a high-performance, modular Layer 3 switch ideal for medium to large campus access or aggregation layers. With full 10 GbE SFP⁺ connectivity and enterprise-grade features, it serves IT teams needing flexible expansion, advanced routing, and seamless wired–wireless integration.

Features :

Equipped with a powerful ProVision ASIC and 2 Tbps crossbar fabric, the JL095A delivers ultra-low latency (≤1.8 µs at 10GbE) and supports robust Layer 2/3 services including OSPF, BGP, VRRP, and IPv6. Its modular design includes four additional slots for future expansion of SFP, multi‑gig, or 40 GbE uplinks. In campus deployments, it excels as a wireless aggregation switch, supporting line-rate 40 GbE uplinks and Smart Rate multi‑gigabit ports for powerful AP backhaul. Aruba VSF stacking provides seamless redundancy and zero-touch provisioning with Aruba Activate and AirWave management.

Advanced Options :

The switch is SDN-optimized: OpenFlow 1.0/1.3 and REST APIs allow fine-grained control and integration with software-defined architectures. MACsec-capable modules ensure encrypted secure transmission, making it suitable for sensitive environments.

Product Key Features

  • 16× 10 GbE SFP⁺ ports in a modular 6‑slot 4U chassis

  • Includes management module & fan tray; power supplies sold separately

  • 960 Gbps switching capacity, 571 Mpps throughput, and 1015 Gbps fabric

  • VSF stacking with hitless failover and Fast Software Upgrade support

  • Full Layer 3 support (OSPFv2/v3, BGP, VRRP, IPv4/IPv6 routing)

  • SDN-capable with OpenFlow 1.0/1.3, REST APIs, ClearPass/AirWave/Security

Reliability & Performance :

Manufactured with precision, the HP C5707A DDS-2 tape cartridge guarantees consistent performance across multiple backup sessions. Its robust media material ensures long-term data retention, while compatibility with DDS-2 drives ensures seamless integration into existing backup workflows. The tape’s design minimizes errors and supports high data integrity, making it suitable for critical data storage needs.

Key Features :

  • 16× 10 GbE SFP⁺ ports; modular chassis with 4 expansion slots
  • 960 Gbps switching capacity, 571 Mpps throughput, 1015 Gbps fabric
  • Enterprise Layer 3: OSPFv2/v3, BGP, VRRP, IPv4/IPv6 static/dynamic
  • VSF stacking with hitless upgrade and redundancy
  • Open Flow, REST API, Clear Pass, Air Wave, Aruba Central
  • MAC sec-ready, secure wired/wireless policy enforcement

Specifications :

SpecificationDetails
Model Number JL095A
Product Type Modular Layer 3 Ethernet Switch (5406R v3 zl2)
Chassis 6‑slot, 4U modular
Fixed Ports 16× 10GbE SFP⁺
Expansion Slots 4 additional zl2 module slots
Switching Capacity 960 Gbps
Throughput Up to 571.4 Mpps
Fabric Speed 1015 Gbps
MAC Table 64K entries
Routing Table 10K IPv4; 5K IPv6
CPU/Memory Freescale P2020 dual-core 1.2 GHz, 4 GB DDR3, 16 MB flash, 1 GB SD ([sources](https://serversupply.com), [buyrouterswitch.com], [securewirelessworks.com], [iosouth.com], [datadirectglobal.com], [provantage.com])
Rack Size 19″ rack‑mountable, 4U (44.45×45.09×17.53 cm)
Weight 12.75 kg (28.11 lb)
Power Two PSU slots (sold separately); 110–240 VAC; approximately 215 W idle
Cooling Hot‑swappable fan tray, redundant fans supported
Environmental 0–45 °C operating, up to 95% humidity non-condensing
Standards IEEE 802.3ab/q/p/x/ad/az/s/…; OpenFlow 1.0/1.3
