Detailed Specifications

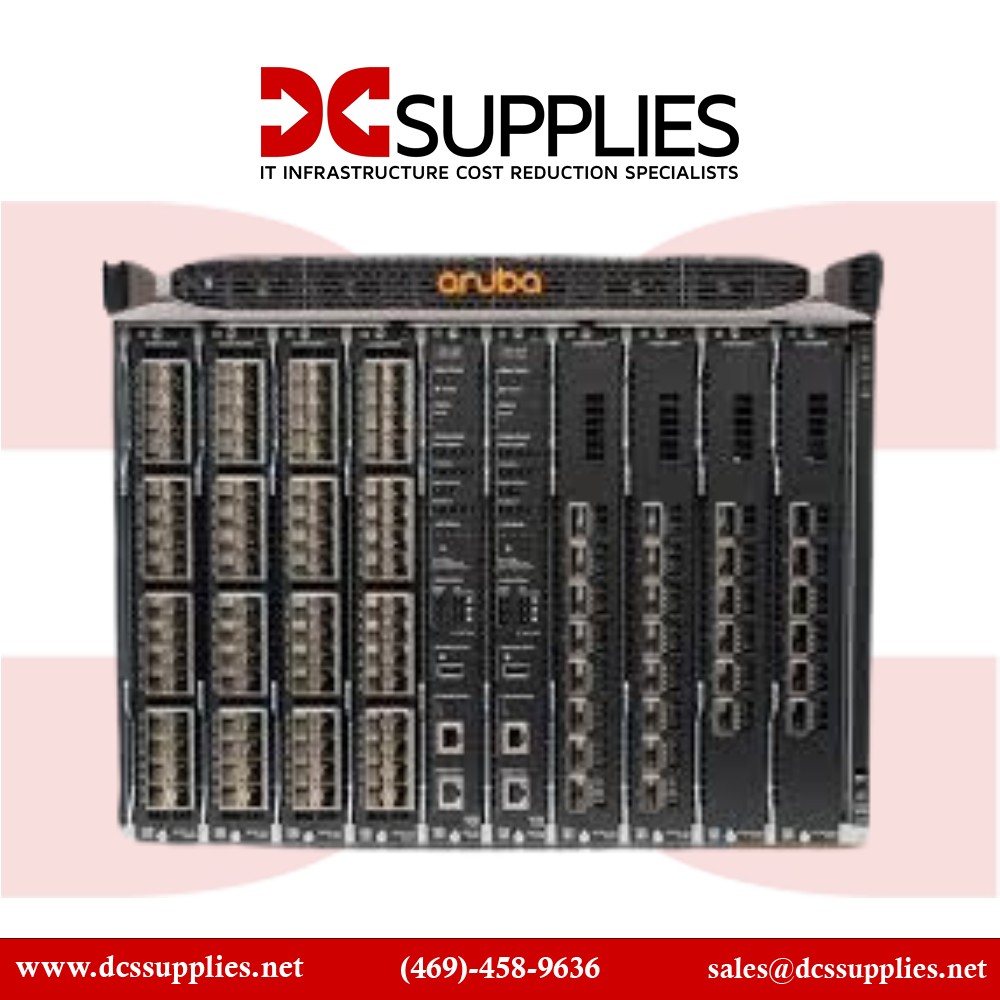

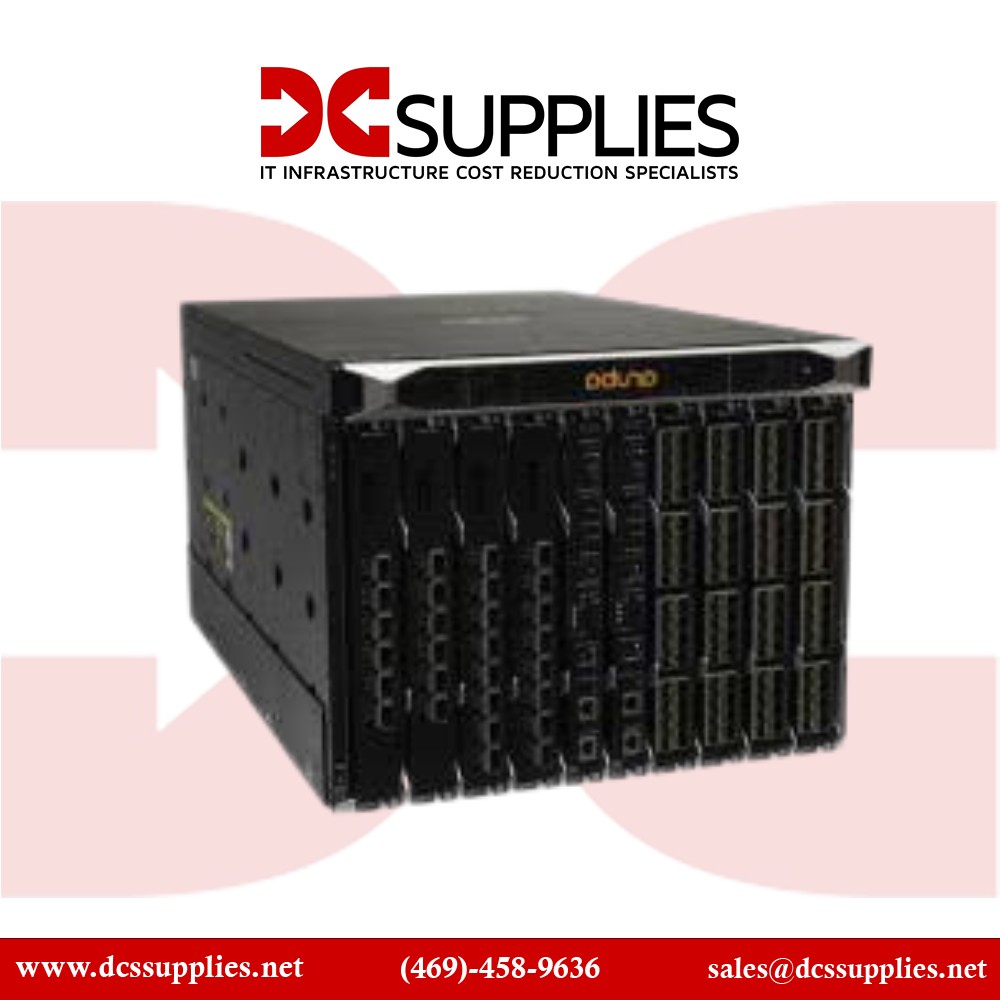

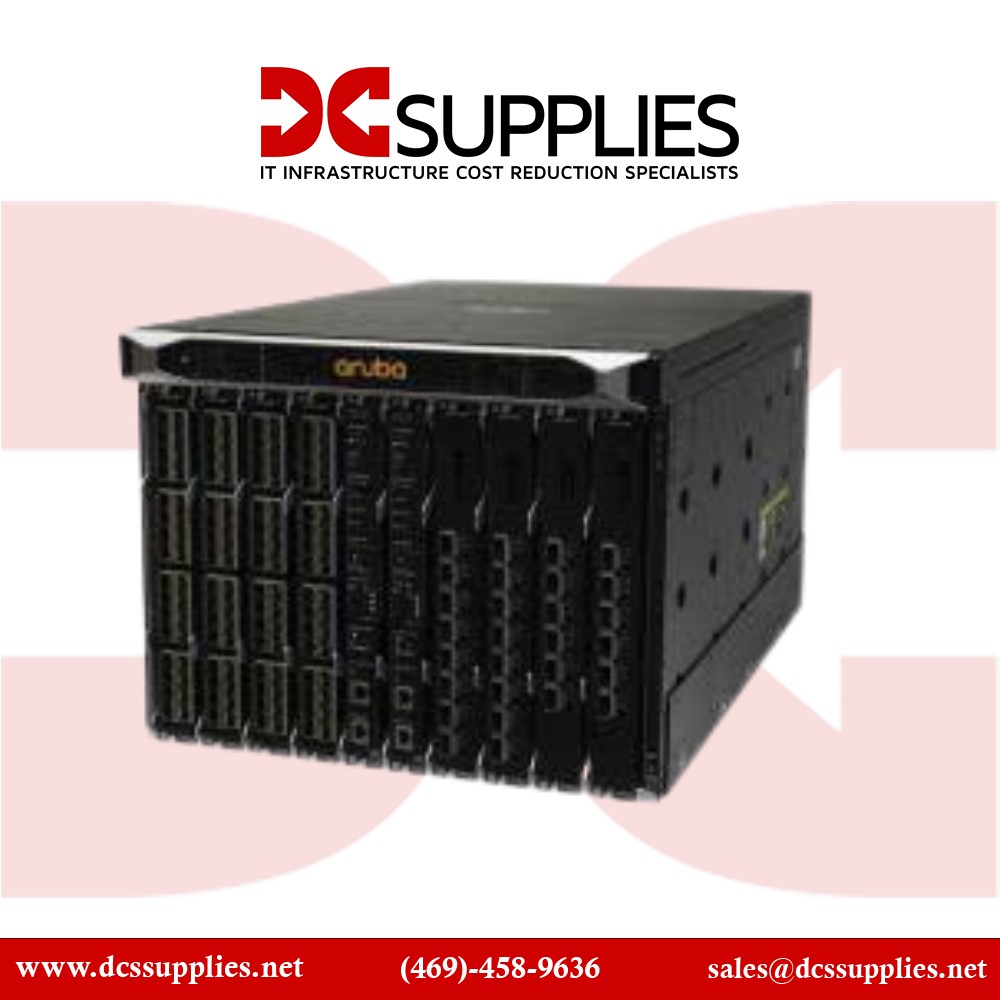

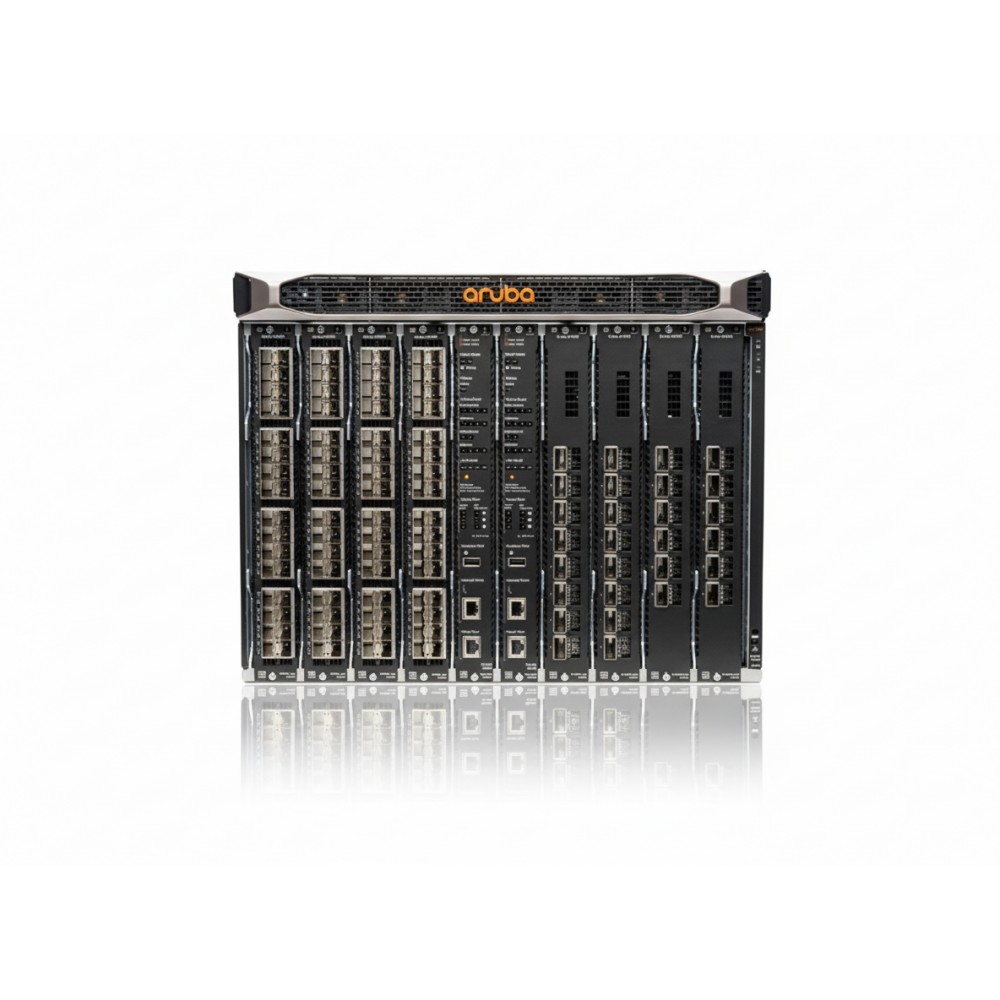

HPE JL375A Aruba 8400 8-Slot Chassis/Bundle
Overview
The HPE JL375A is a modular chassis designed for enterprise core and aggregation network deployments managed by infrastructure engineers requiring high throughput, scale and fault tolerance. It forms part of the Aruba 8400 series and supports line-rate 10 GbE, 25 GbE, 40 GbE and 100 GbE connectivity across a mix of I/O modules, enabling spine/leaf, campus core or data-centre topologies. The bundle version of this chassis includes the base 8-slot frame, three fan trays with 18 fans, a cable-management kit and rail kit, offering a pre-configured starting point. It is suitable for racks in data-centres, aggregation nodes or high-density campus core racks and integrates with the Aruba AOS-CX operating system to support advanced features like BGP, EVPN, OSPF, VRF and IPv6 for automation, telemetry and service-oriented routing.
Key Features
8-slot modular chassis with expansion for high-density I/O and fabrics.
Supports line-rate 10 Gb/25 Gb/40 Gb/100 Gb modules, enabling future-proof connectivity.
Includes three fan trays (18 fans) for redundant cooling in high-performance environments.
Modular architecture supports redundant management, fabric, power and high availability.
Compatible with AOS-CX for automation, APIs, telemetry and advanced Layer 2/3 protocols.
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JL375A |
| Product Type | Aruba 8400 8-Slot Chassis / Chassis Bundle |
| Number of I/O Slots | 8 slots |
| Fan Trays Included | 3 fan trays (18 fans total) |
| Cable Manager / Rail Kit | Included |
| Supported Fabric Connectivity | 10 GbE / 25 GbE / 40 GbE / 100 GbE |
| Switching Capacity (max) | Up to 19.2 Tbps (aggregate) |
| Form Factor (Height × Width × Depth) | 13.8 in × 17.4 in × 26.0 in approx |
| Weight (bundle approximate) | ~116.3 lbs (~52.8 kg) |
| Rack Units | 8 U |
| Redundant Power Supply Slots | 4 slots (power supplies not necessarily included) |
| Redundant Management Modules | 2 management module slots |
| Supported Protocols | BGP, EVPN, OSPF, VRF, IPv6 |
| Operating Environment | 0 °C to 40 °C |
