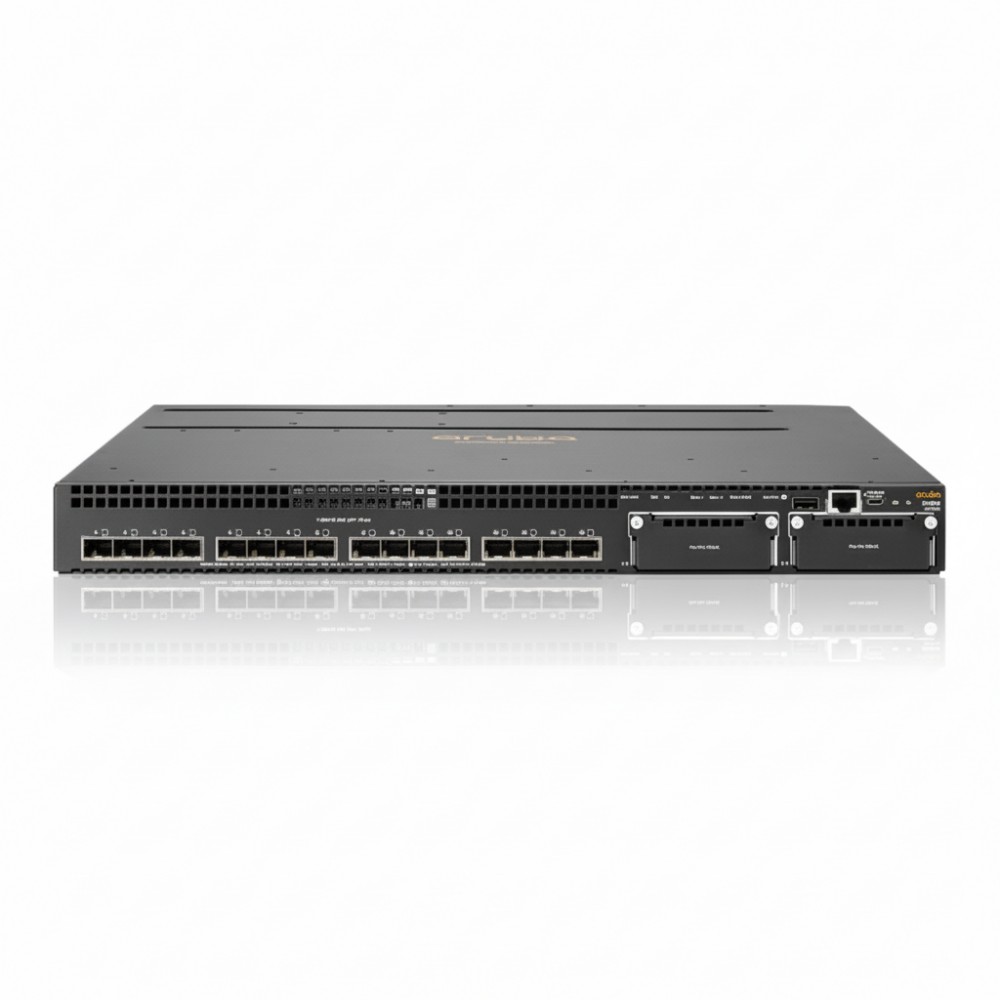

HPE Aruba JL075A 3810M 16SFP+ 2-slot Ethernet Switch

New

HPE Aruba JL075A is a 2-slot modular switch with 16 SFP+ ports for 10GbE connectivity

×




  • New

Detailed Specifications

HPE Aruba JL075A

3810M 16SFP+ 2-Slot Managed Ethernet Switch

The HPE Aruba JL075A 3810M 16SFP+ 2-Slot Switch is a high-performance, fully managed Layer 3 switch designed for enterprise access and aggregation environments. With 16 SFP+ 10GbE ports and two open module slots for stacking or uplinks, it delivers the scalability, resilience, and fiber density needed for demanding network infrastructures.

Features :

The Aruba 3810M 16SFP+ (JL075A) is part of HPE's advanced 3810M series, engineered for enterprise core and aggregation scenarios where performance, modularity, and reliability are essential. This model includes 16 fixed SFP+ ports that support 10 Gigabit fiber connectivity, making it ideal for high-speed uplinks to servers, storage, or aggregation switches.

Advanced Options :

The two available module slots provide flexible expansion capabilities, supporting interface modules for additional uplinks or stacking modules to create a highly available switch stack with up to 10 members. This makes the JL075A a future-ready choice for evolving infrastructure demands. Advanced Layer 3 capabilities—including static and dynamic routing, OSPF, PIM, and VRRP—enable dynamic network segmentation and high availability. Coupled with Aruba’s robust security, management, and monitoring toolset, this switch simplifies administration while securing traffic across complex environments.

Product Key Features

  • 16 high-performance SFP+ ports for 10 Gigabit fiber connectivity

  • Two modular slots for stacking and uplink expansion

  • Enterprise-class Layer 3 switching with advanced routing features

  • Redundant hot-swappable power and fan support

  • Robust security, QoS, and management tools

  • Ideal for data center, core, or aggregation layer deployment


Reliability & Performance :

Built with enterprise-grade hardware, the JL075A offers hot-swappable fan trays and optional redundant power supplies for maximum uptime. Its non-blocking architecture ensures wire-speed forwarding on all 16 SFP+ ports, with modular scalability and high stacking bandwidth. Energy-efficient design, along with intelligent power and traffic management, ensures consistent and efficient operation under full load.

Key Features :

  • 16× SFP+ 10GbE ports

  • 2 open module slots for stacking/uplink expansion

  • Layer 3 switching with OSPF, RIP, PIM, and VRRP

  • Modular, hot-swappable fan and power supply options

  • Stacking bandwidth up to 336 Gbps (with modules)

  • Advanced ACLs, DHCP protection, 802.1X, and MACsec

  • Centralized management with Aruba AirWave and CLI

  • Suitable for data centers, campus aggregation, or core

Specifications :

SpecificationDetails
Model Number JL075A
Product Series Aruba 3810M
Ports 16 × SFP+ (10GbE)
Expansion Slots 2 modular interface slots
Switching Capacity 480 Gbps
Forwarding Rate 357.1 Mpps
Layer Support Layer 2 and Layer 3
Stacking Support Yes (modular, up to 10 switches)
Cooling Hot-swappable fans
Redundancy Optional redundant power supply
Management Web GUI, CLI, SNMP, Aruba AirWave, IMC
Dimensions 17.42 × 12.12 × 1.73 in (44.25 × 30.78 × 4.4 cm)
Weight 10.4 lbs (4.7 kg)
Power Supply Internal (modular), sold separately
