Detailed Specifications

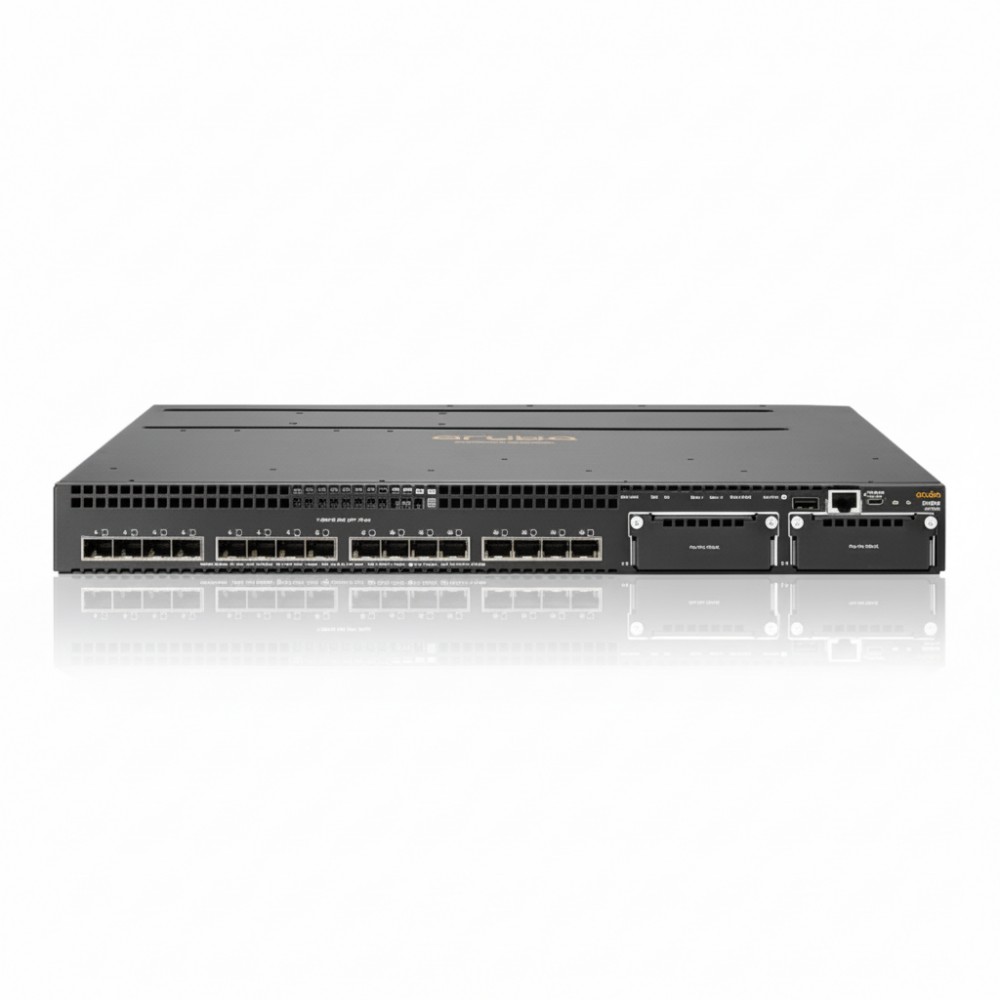

HPE JL075A Aruba 3810M 16SFP+ 2-slot Switch
Overview
The HPE JL075A is an enterprise-grade 1U rack switch designed for data-centre aggregation and high-performance campus networks. It provides 16 fixed SFP+ ports supporting 10 Gb/s fibre connectivity and two open module slots for uplink or stacking modules, enabling flexible expansion with 40 Gb/s QSFP+ or additional 10 Gb/s ports. With a switching fabric of up to 508 Gb/s and forwarding throughput of 285.7 Mpps at 64-byte packets, this unit supports high-density traffic and low-latency needs. It's suited for wiring closets, campus distribution layers or aggregation points in enterprise or ISP environments. Remote management, stacking, IPv6 support and MACsec encryption on SFP+ ports integrate it with advanced infrastructure and security ecosystems.
Key Features
Sixteen fixed 1000/10000 SFP+ ports with MACsec support.
Two modular uplink slots supporting up to two 40 GbE QSFP+ ports.
Switching capacity up to 508 Gb/s and throughput up to 285.7 Mpps.
1-U form factor (1.73 in × 17.42 in wide) suitable for rack deployment.
Supports dual hot-swappable power supplies and fan trays for resilience.
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JL075A |
| Product Type | Aruba 3810M 16SFP+ 2-slot Switch |
| Fixed Ports | 16 × SFP+ (1000/10000 Mbps) |
| Module Slots | 2 open uplink/fabric slots |
| Stacking Module Slot | 1 slot |
| Switching Capacity | Up to 508 Gb/s |
| Forwarding Throughput | Up to 285.7 Mpps (64-byte packets) |
| MAC Address Table Size | 64 K entries |
| Dimensions (H × W × D) | 1.73 in × 17.42 in × 16.98 in |
| Weight | ~13.28 lbs (6.02 kg) |
| Power Supply Slots | 2 (redundant capable) |
| Supported Latency | < 2.8 µs at 1 Gb/s; < 1.8 µs at 10 Gb/s |
| Routing Table Size | 10,000 IPv4 entries / 5,000 IPv6 entries |
| Operating Temperature | 0 °C to 45 °C |
| Supported Fabric Uplink | Up to two 40 GbE QSFP+ modules |
