Detailed Specifications

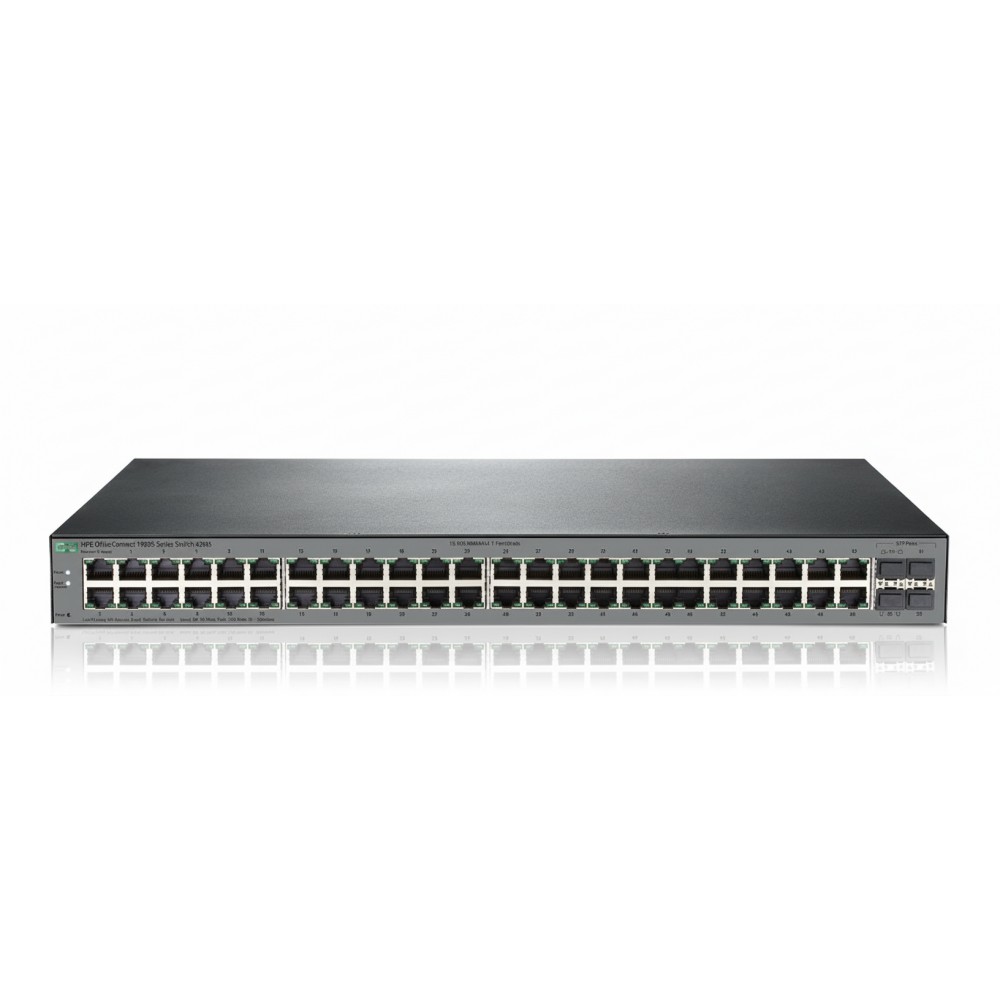

HPE JL386A OfficeConnect 1920S 48G 4SFP PoE+ Switch
Overview
The HPE JL386A is a fixed 48-port managed Gigabit switch designed for SMBs and branch offices that require a mix of powered and non-powered copper ports with uplink fibre connectivity. It includes 24 RJ-45 10/100/1000 PoE+ ports and 24 standard RJ-45 10/100/1000 ports, along with four SFP 100/1000 Mbps uplinks. With 104 Gbps switching capacity and 77.3 Mpps forwarding rate, it supports layer-2 switching plus layer-3 static routing (up to 32 routes), ACLs, VLANs, LACP and spanning tree protocols. The 1 U rack-mountable chassis, 370 W PoE budget and web/SNMP/CLI management make it suitable for office closets, campus networks, or branch locations where devices like wireless APs, IP phones, and cameras need inline power. Firmware upgrades and remote management ensure seamless integration with existing network monitoring systems.
Key Features
24 × RJ-45 10/100/1000 PoE+ ports + 24 × RJ-45 10/100/1000 ports
4 × SFP 100/1000 Mbps fibre uplink ports
370 W total PoE budget for powered devices
104 Gbps switching capacity, 77.3 Mpps forwarding rate
Layer-3 static routing (32 routes), VLANs, ACLs, LACP, SNMP management
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JL386A |
| Product Type | Managed Gigabit PoE+ Switch (48-port) |
| RJ-45 PoE+ Ports | 24 × 10/100/1000 Mbps |
| RJ-45 Non-PoE Ports | 24 × 10/100/1000 Mbps |
| SFP Fibre Uplink Ports | 4 × 100/1000 Mbps |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.3 Mpps |
| Latency | < 7 µs at 100 Mb/s; < 2 µs at 1 Gb/s |
| PoE Budget | 370 W |
| Dimensions (H × W × D) | 1.73 in × 17.42 in × 12.70 in |
| Weight | 9.7 lbs |
| Rack Units | 1 U |
| AC Input Voltage | 100-127 V / 200-240 V, 50/60 Hz |
| Jumbo Frame Support | Up to 9,216 bytes |
