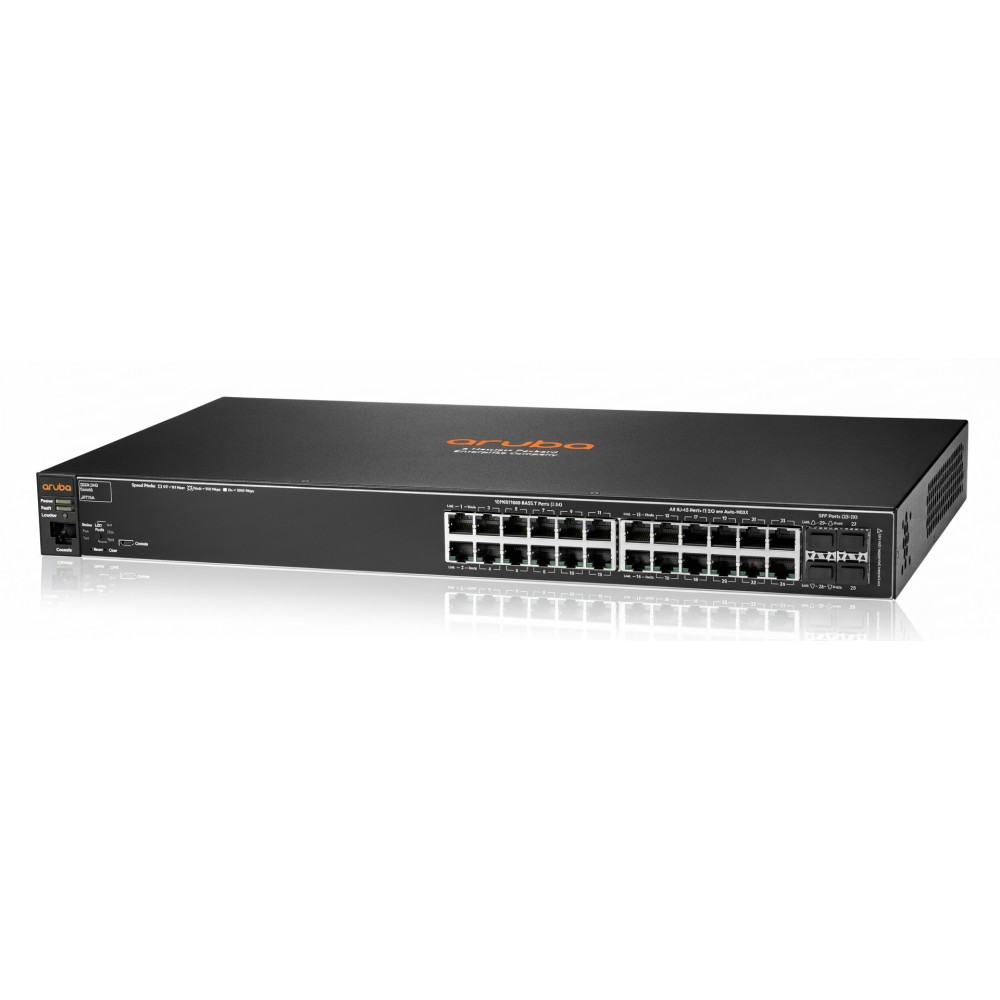

HPE Aruba J9776A 2530 24G 1U Non-PoE Managed Switch

New

HPE Aruba 2530 24G, 1U rack-mountable, 24 Gigabit ports, no PoE

×




  • New
  • Refurbished

Detailed Specifications

HPE J9776A

Aruba 2530 24G 1U Non-PoE Managed Switch

The HPE J9776A Aruba 2530-24G is a fully managed Layer 2 Ethernet switch designed to deliver reliable, secure, and efficient connectivity to small and medium-sized business networks. With 24 Gigabit ports and 4 dedicated Gigabit SFP uplinks, this switch offers a flexible and cost-effective way to support wired users, IP phones, and wireless APs without PoE requirements.

Features :

Ideal for enterprise edge, branch office, or classroom environments, the Aruba 2530-24G provides robust traffic control and policy enforcement through features like Access Control Lists (ACLs), traffic prioritization, and port security. It also integrates seamlessly with Aruba ClearPass Policy Manager, AirWave, and Aruba Central, enabling unified network management across wired and wireless infrastructure.

Advanced Options :

This switch is engineered for quiet environments with fanless operation and offers multiple deployment options—rack-mounted, wall-mounted, or desktop—to fit a wide range of spaces. It also supports Energy Efficient Ethernet (EEE), automatic port power down, and other power-saving technologies to help reduce operational costs. The Aruba J9776A is backed by a limited lifetime warranty, and delivers reliable performance with enterprise-grade features in a compact, versatile form factor—ideal for organizations seeking simple and secure Layer 2 switching without PoE requirements.

Product Key Features

  • 24 x Gigabit Ethernet ports for high-speed wired connectivity

  • 4 x dedicated Gigabit SFP uplink ports for fiber expansion

  • Advanced Layer 2 management with VLANs, QoS, and ACLs

  • Fanless 1U design supports desktop, rack, or wall mounting

  • Enhanced security features: 802.1X, RADIUS, DHCP Snooping

  • Energy-efficient with support for IEEE 802.3az and auto power down


Reliability & Performance :

The J9776A offers a switching capacity of 56 Gbps and a forwarding rate of 41.7 Mpps, ensuring smooth data flow for high-density edge environments. Its Layer 2 capabilities include support for up to 256 VLANs, jumbo frames, and a 16K MAC address table—enabling flexible segmentation and scalability. Security features such as 802.1X authentication, RADIUS, TACACS+, DHCP snooping, and DoS protection provide enterprise-level control to defend against unauthorized access and internal threats. The fanless design keeps operations silent and energy-efficient, making this switch perfect for noise-sensitive deployments.

Key Features :

  • 24 x 10/100/1000BASE-T Gigabit Ethernet ports

  • 4 x dedicated Gigabit SFP uplink ports

  • Managed Layer 2 switching with QoS and ACL support

  • Energy-efficient with IEEE 802.3az and auto power down

  • Silent, fanless 1U enclosure for flexible deployment

  • Advanced security: 802.1X, DHCP snooping, port security

  • VLAN support for up to 256 VLANs

  • Centralized management via Aruba ClearPass and AirWave

  • Internal power supply with no external power brick

  • Limited lifetime warranty from HPE Aruba

Specifications :

SpecificationDetails
Model Number J9776A
Product Type Managed Layer 2 Ethernet Switch
Ports 24 x 10/100/1000BASE-T
Uplink Ports 4 x SFP (Gigabit fiber)
PoE Support No
Switching Capacity 56 Gbps
Forwarding Rate 41.7 Mpps
Layer Support Layer 2
VLAN Support Up to 256 VLANs
MAC Address Table 16K entries
Management Web GUI, CLI, SNMP, Aruba Central
Security 802.1X, Port Security, RADIUS, TACACS+, ACLs
Mounting Options Rack, Wall, Desktop (1U)
Jumbo Frames Yes, up to 9,216 bytes
Energy Efficiency IEEE 802.3az (EEE), Auto Power Down
Operating Temp 0°C to 40°C (32°F to 104°F)
Power Supply Internal (non-PoE)
Weight Approx. 5.5 lb (2.5 kg)
