Detailed Specifications

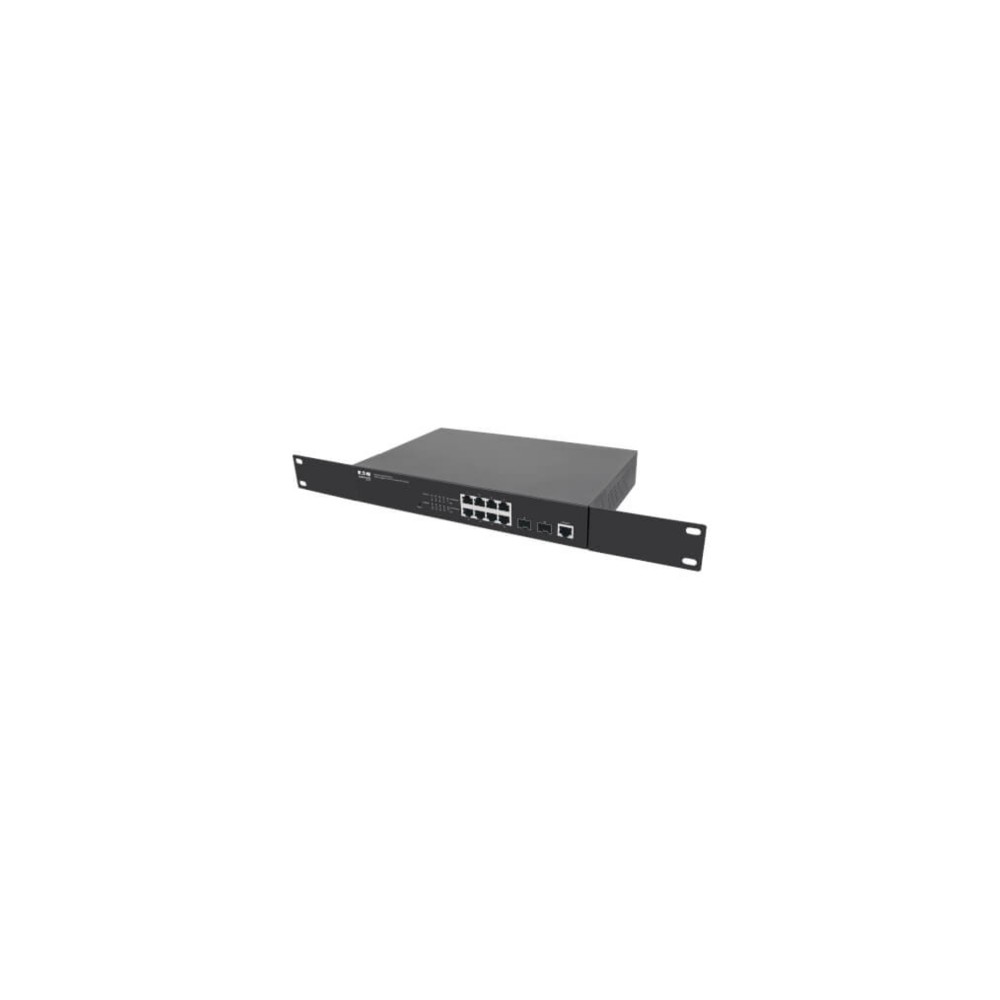

Eaton NGS8C2POE-1 managed 8-port Gigabit Ethernet switch
Overview :
The Eaton NGS8C2POE-1 is a Web-Smart Layer 2 managed Gigabit Ethernet switch featuring Power over Ethernet (PoE+) capability from the Tripp Lite series. Network administrators and infrastructure deployment engineers utilize this hardware to scale localized network connections while consolidating power distribution to edge devices. By integrating in-line power and granular traffic engineering tools, it simplifies cable architectures and isolates broadcast traffic within industrial or retail network closets.
The platform provides a total switching capacity of 20 Gbps, maintaining a 2 Gbps full-duplex transmission rate per interface. The physical layout consists of eight auto-negotiating 10/100/1000 Mbps RJ45 ports and two dedicated Gigabit SFP slots for fiber or copper backbone uplinks. Every RJ45 port supports up to 30W of Type 2 PoE+ across a total thermal and electrical budget of 140W.Configuration is managed via an embedded browser interface that handles VLAN segmentation, IGMP snooping, link aggregation, and web-smart quality of service (QoS) routing.
The heavy-duty metal chassis supports dual-use installation, adapting to a standard 1U horizontal orientation inside EIA 19-inch equipment racks using the provided brackets, or positioning on flat surfaces utilizing non-slip rubber feet.It operates with active thermal monitoring via a built-in internal cooling fan to dissipate heat under sustained maximum PoE delivery. The chassis is equipped with an integrated IEC C14 inlet and ships with a matching five-foot C13-to-C14 power cord for direct PDU coupling.
The switch interfaces natively with Cat5e, Cat6, Cat6a, and Cat8 twisted-pair cabling infrastructure, while its Mini-GBIC slots accept standard 1000BASE-SX/LX SFP transceivers. It incorporates automated device recovery logic that pings offline PoE endpoints and cycles power to restore them. This switch must not be used in architectures requiring higher Layer 3 dynamic routing protocols, non-standard high-density multi-gigabit copper speeds, or in fanless white-space deployments where active cooling acoustics would disturb operations.
Key Features :
Integrated 140W PoE+ budget supplies up to 30W per port to edge devices
Dual dedicated SFP transceiver slots facilitate fiber optic uplink trunks
Web-Smart software manages VLAN segregation, QoS, and IGMP tracking
Active device monitoring monitors endpoints and power-cycles frozen nodes
Versatile 1U rackmount framework adapts easily to space-constrained setups
Specifications :
| |
| Brand | Eaton |
| Part Number | NGS8C2POE-1 |
| Product Type | Managed PoE+ Switch |
| Switch Layer | Layer 2 |
| Total Port Count | 10 Ports |
| Base Interface Ports | (8) 10/100/1000 Mbps RJ45 PoE+ |
| Uplink Interface Slots | (2) Dedicated Gigabit SFP |
| PoE Budget | 140 Watts |
| PoE Standard | IEEE 802.3at (Type 2) / IEEE 802.3af (Type 1) |
| Switching Capacity | 20 Gbps (Full Duplex) |
| MAC Address Table | 8,000 Entries |
| Jumbo Frame Support | 10,000 Bytes |
| Power Inlet Type | IEC-320-C14 |
| Voltage Compatibility | 100-240V AC (50/60 Hz) |
| Max Power Consumption | 171 Watts |
| Operating Temperature | 32° to 115°F (0° to 45°C) |
| Certifications | UL 62368-1, CAN/CSA-C22.2 No. 62368-1, CE, FCC, UKCA |
