Detailed Specifications

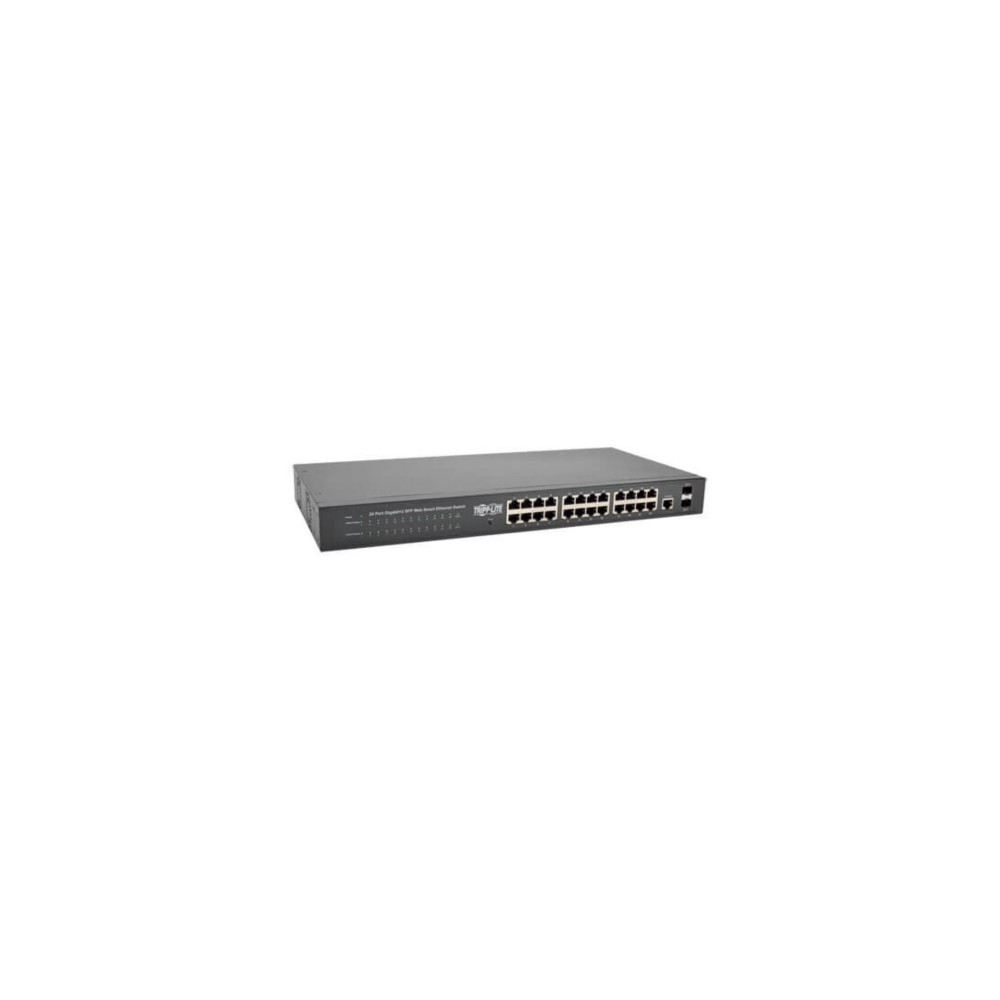

Eaton NGS24C2-1 Managed Gigabit Ethernet Switch Layer 2
Overview :
The Eaton NGS24C2-1 is a Web-Smart Layer 2 managed Gigabit Ethernet switch from the Tripp Lite series. Network administrators and enterprise IT procurement teams deploy this switch to expand local area network (LAN) capacity while maintaining data stream management and granular visibility. By incorporating dedicated administrative control mechanisms, it addresses data contention and isolation issues common to unmanaged network hardware in commercial deployments.
The platform delivers an aggregate switching capacity of 52 Gbps, providing full-duplex throughput of 2 Gbps per interface. The structural interface configuration includes 24 auto-negotiating 10/100/1000 Mbps RJ45 ports alongside 2 dedicated Gigabit SFP slots designed for fiber or copper uplink connections. System management is executed via a pre-loaded, browser-based Web-Smart interface that handles VLAN configuration, link aggregation, IGMP snooping, and basic Layer 3 server tracking without requiring proprietary host software.
Engineered with a fanless design for silent operation, the heavy-duty metal chassis is optimized for deployment in standard white space environments, edge closets, or desktop environments. It occupies 1U of standard EIA 19-inch rack enclosures and features a shallow mounting profile requiring minimal depth clearance. The unit utilizes an internal power supply equipped with a standard IEC C14 inlet, drawing line power from any protected uninterruptible power supply (UPS) or power distribution unit (PDU).
The NGS24C2-1 is compatible with standard Cat5e, Cat6, Cat6a, and Cat8 copper infrastructure, while the mini-GBIC SFP slots interface with standard 1000BASE-SX/LX transceiver modules. It conforms to IEEE 802.3az Energy Efficient Ethernet standards by scaling power consumption to idle ports dynamically. This switch must not be utilized in high-density installations requiring Power over Ethernet (PoE) delivery or where specialized multi-gigabit (2.5G/10G) line speeds are mandatory at the access layer.
Key Features :
Layer 2 Web-Smart interface simplifies remote VLAN and port configuration
Dedicated SFP slots support optical fiber uplinks over long building runs
Fanless metal housing optimizes silent operation and increases hardware MTBF
Integrated Energy Efficient Ethernet logic trims power waste on idle ports
Secure DHCP snooping and ACL profiles insulate the core network from attacks
Specifications :
| |
| Brand | Eaton |
| Part Number | NGS24C2-1 |
| Product Type | Managed Network Switch |
| Switch Layer | Layer 2 |
| Total Port Count | 26 Ports |
| Base Interface Ports | (24) 10/100/1000 Mbps RJ45 |
| Uplink Interface Slots | (2) Dedicated Gigabit SFP (1000BASE-SX/LX) |
| Switching Capacity | 52 Gbps (Full Duplex) |
| MAC Address Table | 8,000 Entries |
| Jumbo Frame Support | 9,216 Bytes |
| Management Protocol | Web Browser, SNMP, RMON, DHCP |
| Input Plug Configuration | IEC-320-C14 |
| Voltage Compatibility | 100-240V AC (50/60 Hz) |
| Max Power Consumption | 16.70 Watts |
| Operating Temperature | 32° to 115°F (0° to 45°C) |
| Standards Compliance | IEEE 802.3ab, 802.3x, 802.1q, UL 62368-1, CE, FCC |
