Detailed Specifications

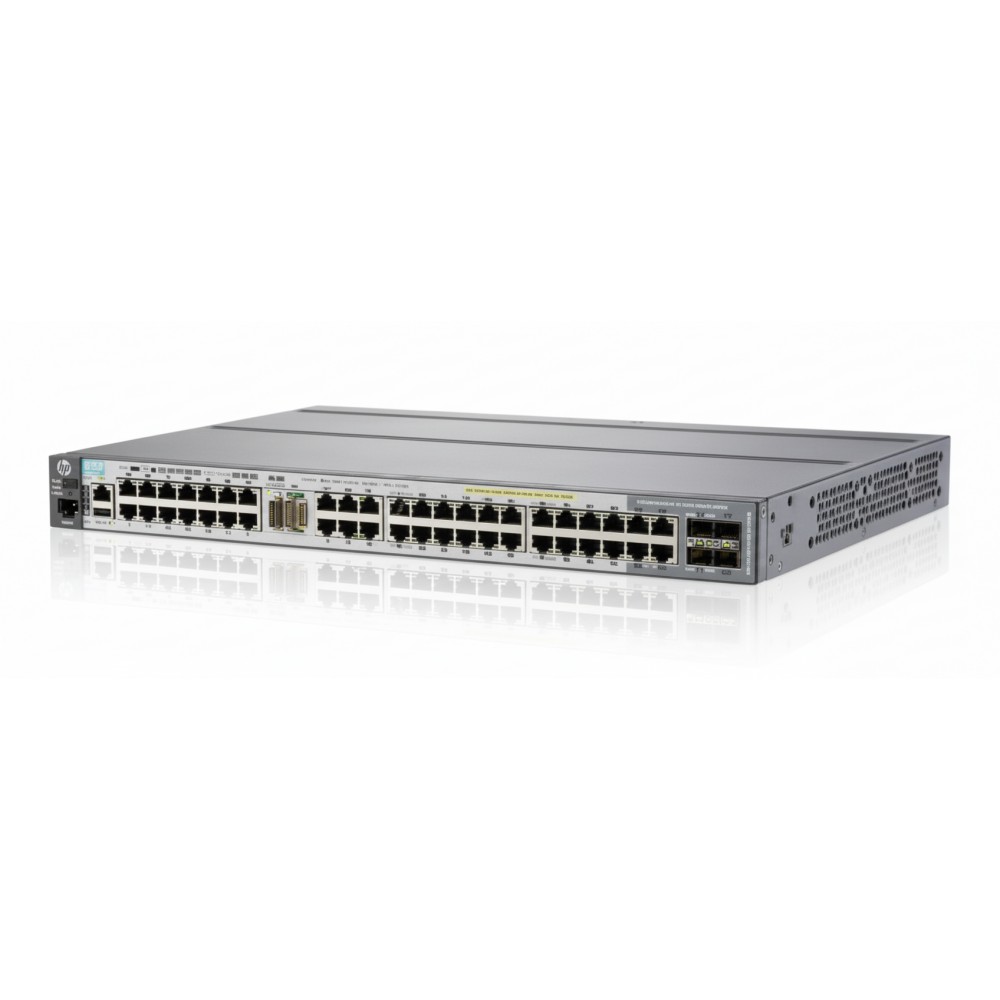

HPE J9729A Aruba 2920 48G PoE+ Switch
Overview
The HPE J9729A is a 1U rack-mount managed access switch from the Aruba 2920 series, designed for enterprise campus, branch office or wiring-closet deployments requiring both high-density connectivity and Power over Ethernet Plus (PoE+). It delivers 44 autosensing 10/100/1000 Mb/s PoE+ RJ-45 ports alongside 4 dual-personality 10/100/1000 Mb/s PoE+ ports (which also function as SFP fibre ports). The model supports a modular architecture with two uplink/expansion slots and a stacking module slot, enabling growth in throughput and resilience. With a switching capacity of 176 Gb/s and a throughput of up to 130.9 Mpps, this switch addresses demanding edge-network loads while its 370 W PoE+ power budget allows power delivery to access points, IP phones and other powered devices within the same chassis.
Key Features
48 × 10/100/1000 Mb/s PoE+ ports (44 regular + 4 dual-personality) in a 1U form-factor.
Up to 370 W total PoE+ power budget for edge-device power and data on same chassis.
Switching capacity of 176 Gb/s and packet throughput of up to 130.9 Mpps.
Modular uplink slots and stacking support let you add 10 GbE uplinks and stack multiple units.
Enterprise-grade features: Layer 2 switching, static/RIP routing, IPv6 host mode, ACLs, sFlow and stacking.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | J9729A |
| Product Type | Aruba 2920 48G PoE+ Switch |
| Processor Installed | Tri-core ARM1176 @ 625 MHz |
| Processor Supported (Max) | N/A |
| Memory Installed | 512 MB SDRAM |
| Memory Slots | N/A |
| Maximum Memory Supported | N/A |
| Drive Bays | N/A |
| Storage Controller | N/A |
| Network Adapter | 44 × 10/100/1000 Mb/s PoE+ + 4 × dual-personality 10/100/1000 Mb/s PoE+ ports |
| Form Factor (H × W × D) | 1.73 in × 17.42 in × 13.23 in |
| Weight (lbs) | Approx. 12.57 lbs |
| Power Supply | Internal AC 100-240 V PSU; PoE+ budget up to 370 W |
| Rack Units | 1U |
