Detailed Specifications
HPE JL356A Aruba 2540 24G PoE+ 4SFP+ Switch
Overview

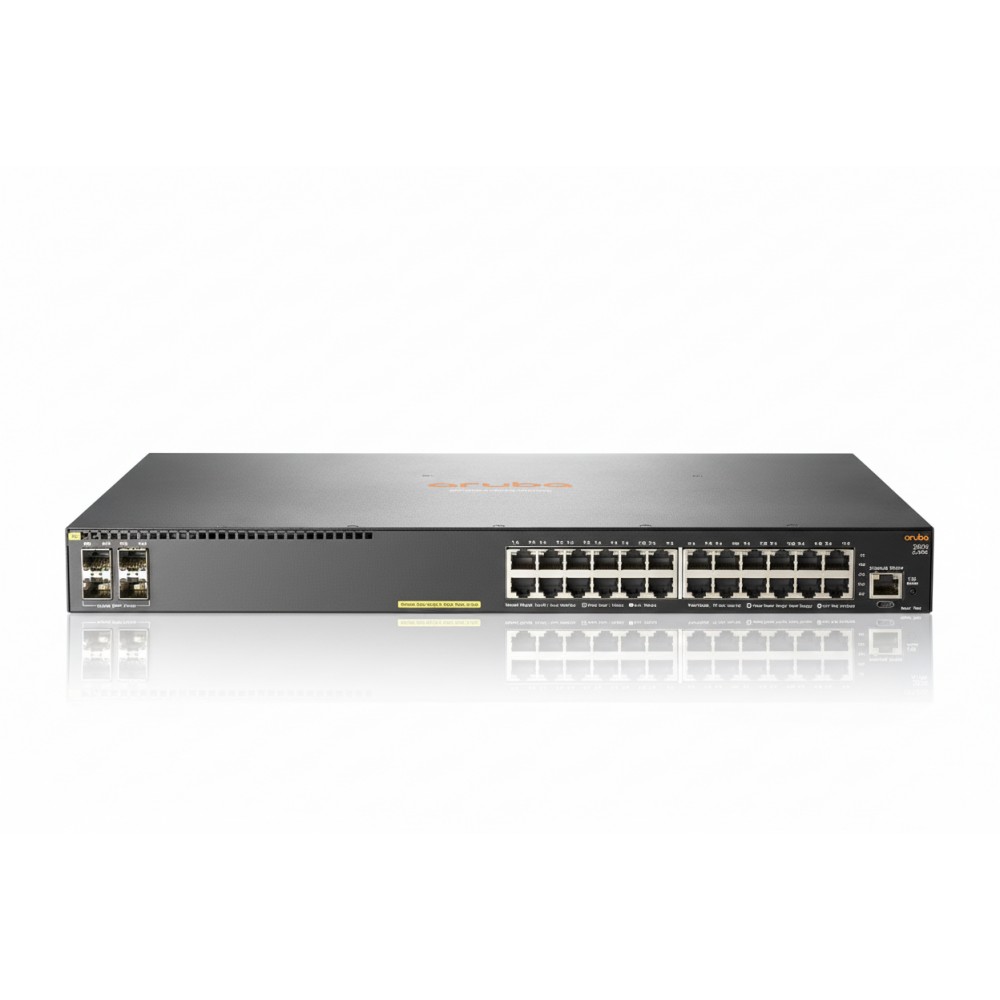

The HPE JL356A is a 1-rack-unit access switch designed for enterprise edge deployments such as campus floors, branch offices or IoT-dense zones. It supports 24 × 10/100/1000 Mb/s PoE+ ports and 4 × 1/10 Gb SFP+ uplinks, enabling both device power delivery and high-speed back-haul connectivity. With built-in static/RIP routing support, IPv6 host features, and cloud-ready management via Aruba Central, it suits scenarios where consolidation, remote-site deployment or unified wired-wireless policy enforcement are required. The PoE+ variant delivers up to approximately 370 W total port power budget, making it capable of powering access points, IP cameras and other PoE endpoints alongside standard switching functions.
It is sized for standard 19″ racks, with 1U height and front-access ports, facilitating structured-cabinet installation in enterprise wiring closets.
The JL356A integrates into HPE/Aruba switch infrastructures and can operate alongside other 2540-series models under the same management domain.
Key Features
24 autosensing Gigabit RJ-45 PoE+ access ports and 4 fixed 1/10 Gb SFP+ uplinks.
Up to ~370 W PoE+ budget across all access ports to power APs, cameras and IoT devices.
Static and RIP (IPv4) routing, IPv6 host and ACL support for convergence at the edge.
Zero-Touch Provisioning and cloud or on-premise unified management via Aruba Central.
1U rack-mount form-factor with front-facing connectivity and low noise operation.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | JL356A |
| Product Type | Aruba 2540 24G PoE+ 4SFP+ Switch |
| Ports Installed | 24 × 10/100/1000 Mb/s RJ-45 PoE+ + 4 × 1/10 Gb SFP+ |
| Uplink Port Configuration | 4 fixed SFP+ ports (1/10 Gb) |
| Switching Capacity | 128 Gb/s |
| Packet Throughput | Up to ~95.2 Mpps |
| PoE Budget | Up to ~370 W total |
| Form Factor (H × W × D) | 1.73 in × 17.42 in × 11.98 in |
| Weight (lbs) | Approx. 8.6 lbs |
| Power Supply | Internal fixed AC, 100-240 V input |
| Rack Units | 1U |
