Detailed Specifications

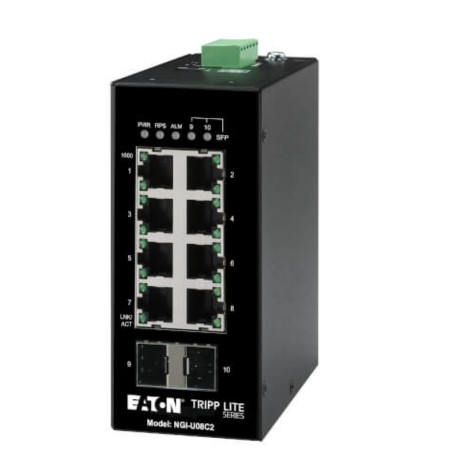

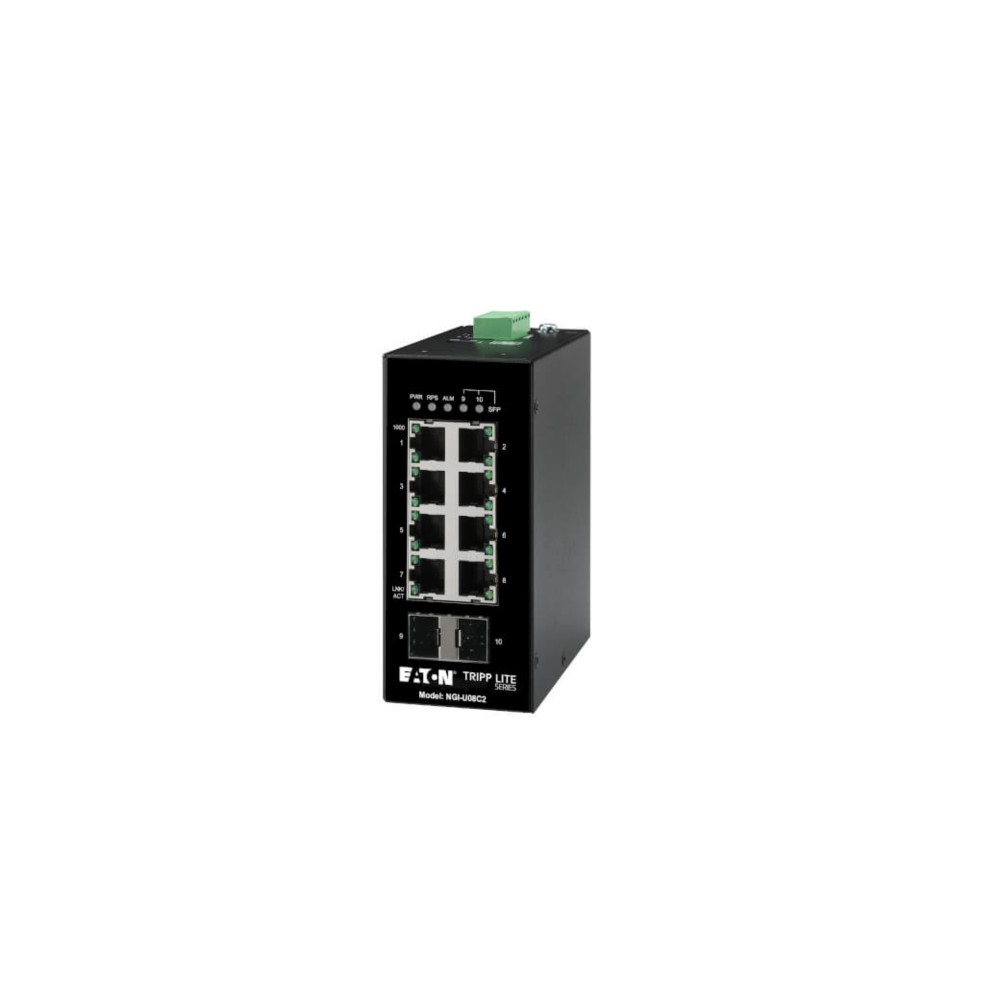

Eaton NGI-U08C2P8-4 8-port industrial Gigabit Ethernet unmanaged switch
Overview
The Eaton NGI-U08C2P8-4 is an unmanaged industrial Ethernet switch built for industrial automation, IP surveillance, transportation systems, and edge networking environments requiring Gigabit connectivity with Power over Ethernet support.
The switch features eight 10/100/1000 Mbps Gigabit Ethernet PoE+ ports for powering connected devices including IP cameras, wireless access points, VoIP equipment, and industrial sensors through standard Ethernet cabling. Two integrated Gigabit SFP uplink slots provide flexible fiber or copper backbone connectivity for extended industrial network deployments.
Its hardened fanless metal enclosure supports DIN-rail mounting in industrial control cabinets, utility infrastructure, factory automation systems, and outdoor network enclosures. The switch is designed for stable operation in vibration-prone and temperature-variable environments commonly found in industrial deployments.
The NGI-U08C2P8-4 supports IEEE 802.3af and IEEE 802.3at PoE standards and integrates with standard Gigabit Ethernet infrastructure. It is suited for plug-and-play industrial Ethernet deployments where unmanaged switching and powered device connectivity are required.
This model is not intended for advanced Layer 3 routing, enterprise core switching, or high-density managed network aggregation environments.
Key Features
- 8× Gigabit Ethernet PoE+ access ports
- Dual SFP uplinks for fiber backbone links
- Hardened DIN-rail industrial metal enclosure
- Supports IEEE 802.3af and 802.3at PoE
- Fanless design for industrial deployments
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | NGI-U08C2P8-4 |
| Product Type | Unmanaged Industrial Ethernet Switch |
| Ethernet Ports | 8 × 10/100/1000 Mbps RJ45 PoE+ |
| SFP Ports | 2 × Gigabit SFP |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Power Per Port | Up to 30 W |
| Switching Capacity | 20 Gbps |
| MAC Address Table | 8K MAC addresses |
| Mounting Type | DIN Rail |
| Enclosure Type | Industrial Metal Housing |
| Power Input | 24-57VDC Terminal Block |
| Operating Temperature | -10°C to 60°C |
| Network Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at |
| Compliance | CE, FCC, RoHS, REACH, TAA |
