Detailed Specifications

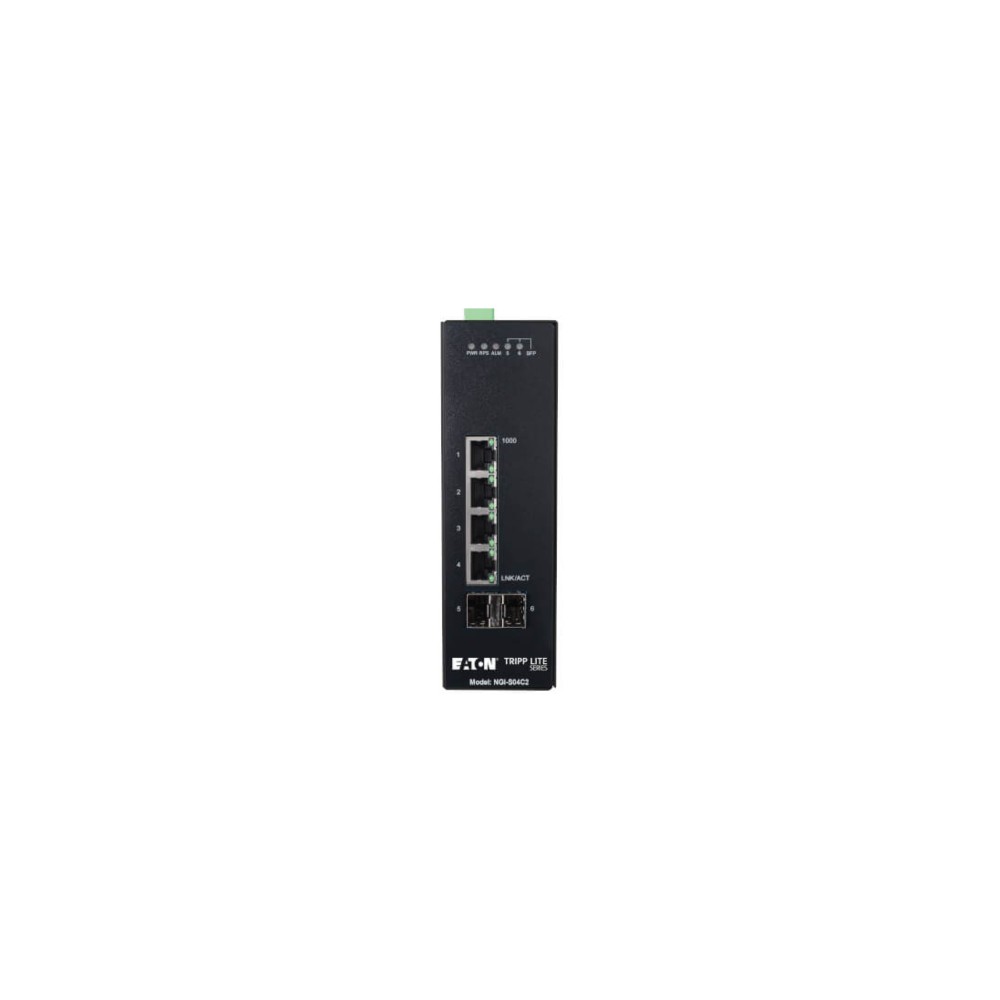

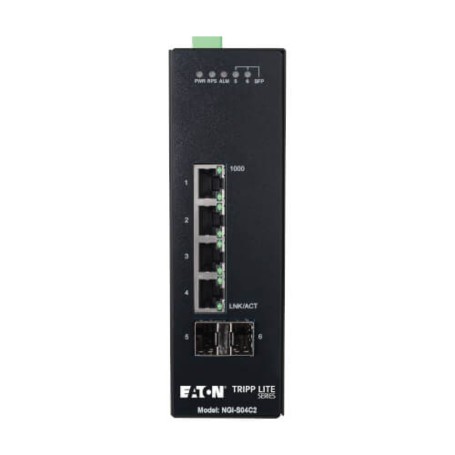

Eaton NGI-S04C2P4-4 Tripp Lite 4-port managed industrial Gigabit Ethernet switch
Overview
The Eaton NGI-S04C2-4 is a lite-managed industrial Gigabit Ethernet switch designed for industrial automation, edge networking, surveillance, and hardened network environments. It provides stable Layer 2 switching for deployments requiring DIN-rail mounting, extended temperature tolerance, and fiber uplink capability.
The switch includes four 10/100/1000 Mbps RJ45 Gigabit Ethernet ports and two dedicated GbE SFP uplink slots for copper or fiber connectivity. It supports MAC address auto-learning, QoS, IGMP snooping, DHCP snooping, and IEEE 802.3x flow control for controlled traffic handling in industrial LAN environments.
Its hardened IP30 metal enclosure is built for vibration-prone and temperature-variable deployments including manufacturing plants, oil and gas sites, transportation infrastructure, and outdoor cabinets. Dual redundant 20-60VDC terminal block power inputs help reduce downtime during power interruptions.
The unit is DIN-rail mountable and suitable for compact industrial cabinets and edge installations where fanless operation and low power consumption are required. It is compatible with standard Gigabit Ethernet infrastructure and SFP uplink modules supporting 100Base-FX and 1000Base-X connectivity.
This model is not intended for high-density enterprise core switching, Layer 3 routing, or PoE-powered device deployments.
Key Features
- 4× Gigabit RJ45 ports with 2× SFP uplinks
- DIN-rail hardened design for industrial sites
- Supports QoS, IGMP snooping, DHCP snooping
- Redundant 20-60VDC power input support
- Operates in -10°C to 60°C environments
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | NGI-S04C2-4 |
| Product Type | Lite Managed Industrial Ethernet Switch |
| RJ45 Ports | 4 × 10/100/1000 Mbps |
| SFP Ports | 2 × GbE SFP |
| Switching Capacity | 12 Gbps |
| MAC Address Table | 8000 entries |
| Network Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z |
| Management Features | QoS, IGMP Snooping, DHCP Snooping |
| Form Factor | DIN-Rail Mountable |
| Power Input | 20-60VDC Terminal Block |
| Power Consumption | 10 W |
| Operating Temperature | -10°C to 60°C |
| Housing Material | Industrial Metal Enclosure |
| Compliance | FCC, CE, RoHS, REACH, TAA |
