Detailed Specifications

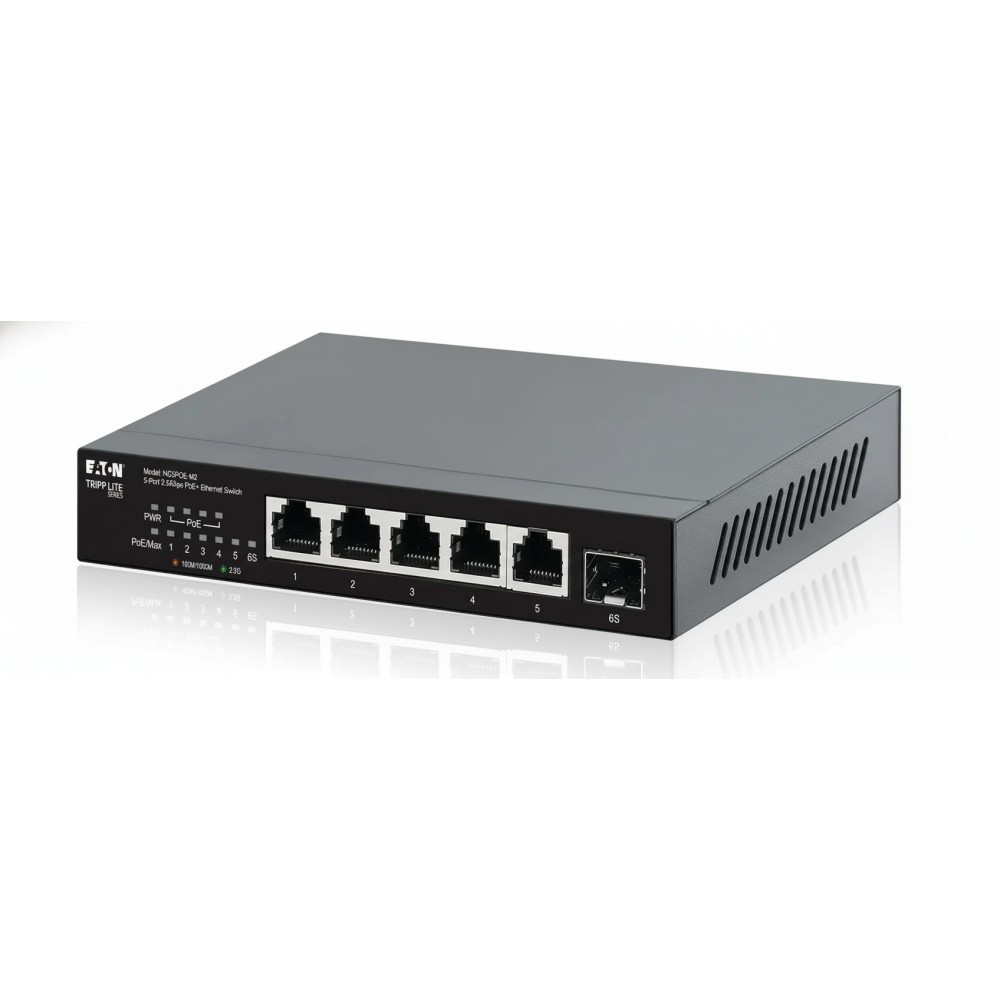

Eaton NG5POE-M2 - 2.5G PoE+ Desktop Switch
Overview :
The Eaton NG5POE-M2 is an unmanaged Ethernet switch that provides five 2.5 Gbps RJ45 ports plus one 10 Gbps SFP+ uplink, along with Power over Ethernet (PoE+) support. It is suited for small offices, workgroups, or edge deployments needing both network connectivity and PoE power on limited ports × for example powering IP cameras, VoIP phones, or wireless access points without separate adapters. The switch auto-negotiates link speed and supports auto MDI/MDIX, so you do not need crossover cables or manual configuration. The NG5POE-M2's compact desktop or wall-mountable metal enclosure makes it practical for cramped networking closets or small racks. With a 70 W total PoE power budget and support for IEEE 802.3af/at/bt standards, it can reliably deliver power and data over the same cables while remaining energy-efficient via IEEE 802.3az support. Its fanless design ensures silent operation × useful in office or recording environments.
Key Features
Five 2.5 Gbps RJ45 ports + one 10 Gbps SFP+ uplink
PoE+ on four ports, total budget 70 W
Auto MDI/MDIX and auto-negotiation on all ports
Fanless metal enclosure, desktop or wall-mount use
Energy-Efficient Ethernet (802.3az) compliant
Specifications :
| Specification | Value |
|---|
| Brand | Eaton (Tripp Lite series) |
| Part Number | NG5POE-M2 |
| Product Type | Unmanaged 2.5G PoE+ Ethernet Switch |
| RJ45 Ports | 5 × 2.5GBase-T (auto-negotiating) |
| Uplink Port | 1 × 10G SFP+ |
| PoE Support | IEEE 802.3af / 802.3at / 802.3bt on ports 1-4 |
| Total PoE Budget | 70 W |
| Power Consumption (max) | 90.2 W |
| Dimensions (L × W × H) | 6.3 × 4.3 × 1.0 in |
| Form Factor | Desktop / Wall-mountable |
| MAC Address Table Size | 4000 entries |
| Layer & Protocol Support | Layer 2; IEEE 802.3u / 802.3ab / 802.3at / 802.3bt / 802.3az / 802.3x |
| Jumbo Frame Support | Up to 12000 bytes |
| Operating Temperature | 0°C to 40°C |
| Warranty | 3-year limited |
