NETGEAR GS316-300NAS 16 Port Ge Unmanaged Ethernet Switch SOHO View larger

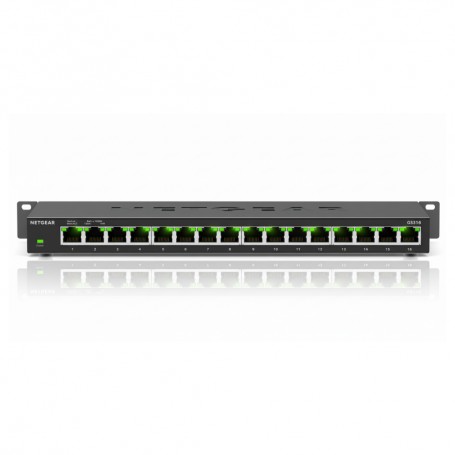

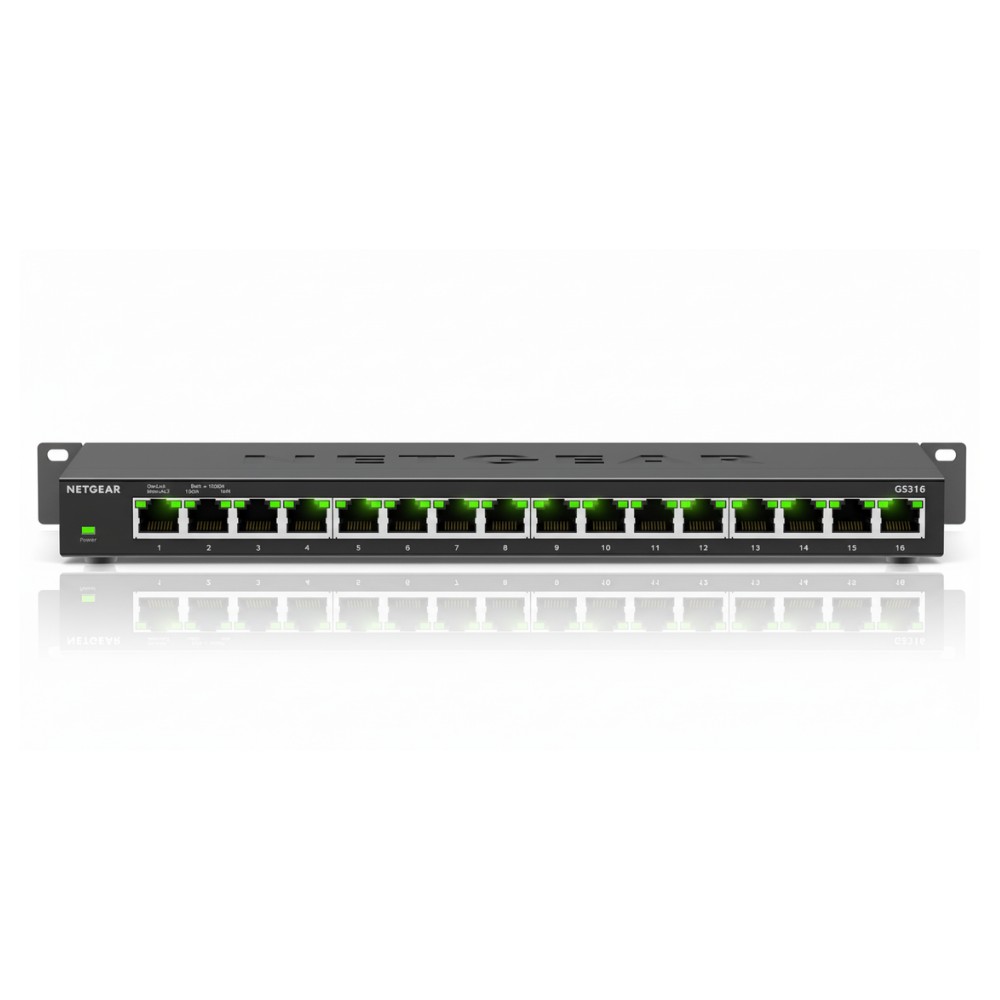

NETGEAR GS316-300NAS 16 Port Ge Unmanaged Ethernet Switch SOHO

GS316-300NAS

New

In Stock

16-Port Gigabit Unmanaged Metal Switch.
×




$93.00

Detailed Specifications

Netgear GS316-300NAS – 16-Port Gigabit Unmanaged Switch

Overview :

The Netgear GS316-300NAS is a high-density, unmanaged Gigabit Ethernet switch designed for small-to-medium businesses (SMBs) and home offices requiring immediate network expansion without configuration overhead. This 16-port unit provides a cost-effective solution for connecting workstations, NAS storage, and IP cameras at the network edge or within a dedicated branch office environment. Built with a rugged metal chassis, the GS316 is engineered for durability and heat dissipation, allowing for fanless, silent operation in noise-sensitive workspaces.

It supports a non-blocking switching architecture, ensuring maximum throughput across all ports simultaneously with a 32 Gbps capacity. Deployment is straightforward: the auto-negotiation and Auto-MDI/MDIX features eliminate the need for crossover cables or complex software setups. For organizations prioritizing energy efficiency, the switch adheres to the IEEE 802.3az standard, dynamically adjusting power consumption based on cable length and link status. This model is ideal for environments where reliability is paramount but managed features like VLANs or Link Aggregation are not required.

Key Features :

16 auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports.

Durable metal housing with desktop or wall-mount options.

Fanless design ensures silent operation in any workspace.

Energy Efficient Ethernet (IEEE 802.3az) reduces power cost.

Specifications :

Brand Netgear
Part Number GS316-300NAS
Product Type Unmanaged Gigabit Switch
Total Ports 16 x RJ45
Switching Capacity 32 Gbps
MAC Address Table 8,000 entries
Packet Buffer 768 KB
Jumbo Frame Support Up to 9,216 bytes
Power Supply External DC 12V / 1.0A
Max Power Consumption 8.4 W
Operating Temperature 0° to 40°C
Dimensions (WxDxH) 286 x 101 x 26 mm
Weight 0.84 kg
MTBF 9,343,641 hours

Frequently Asked Questions :

Does the GS316-300NAS support Power over Ethernet (PoE)?

No, the GS316 is a standard Gigabit Ethernet switch. If you require PoE for powering IP cameras or Access Points directly via the network cable, you should look at the GS316P or GS316PP models.

Can this switch be mounted in a standard 19-inch server rack?

The GS316 is designed primarily for desktop or wall-mount use. It does not include rack-mount ears and its compact width is significantly smaller than a standard 19-inch rack.

Is any configuration required for VLANs or link aggregation?

No, this is a strictly unmanaged switch. It is a plug-and-play device that does not support software configuration, VLAN tagging, or Link Aggregation Control Protocol (LACP).
