Detailed Specifications

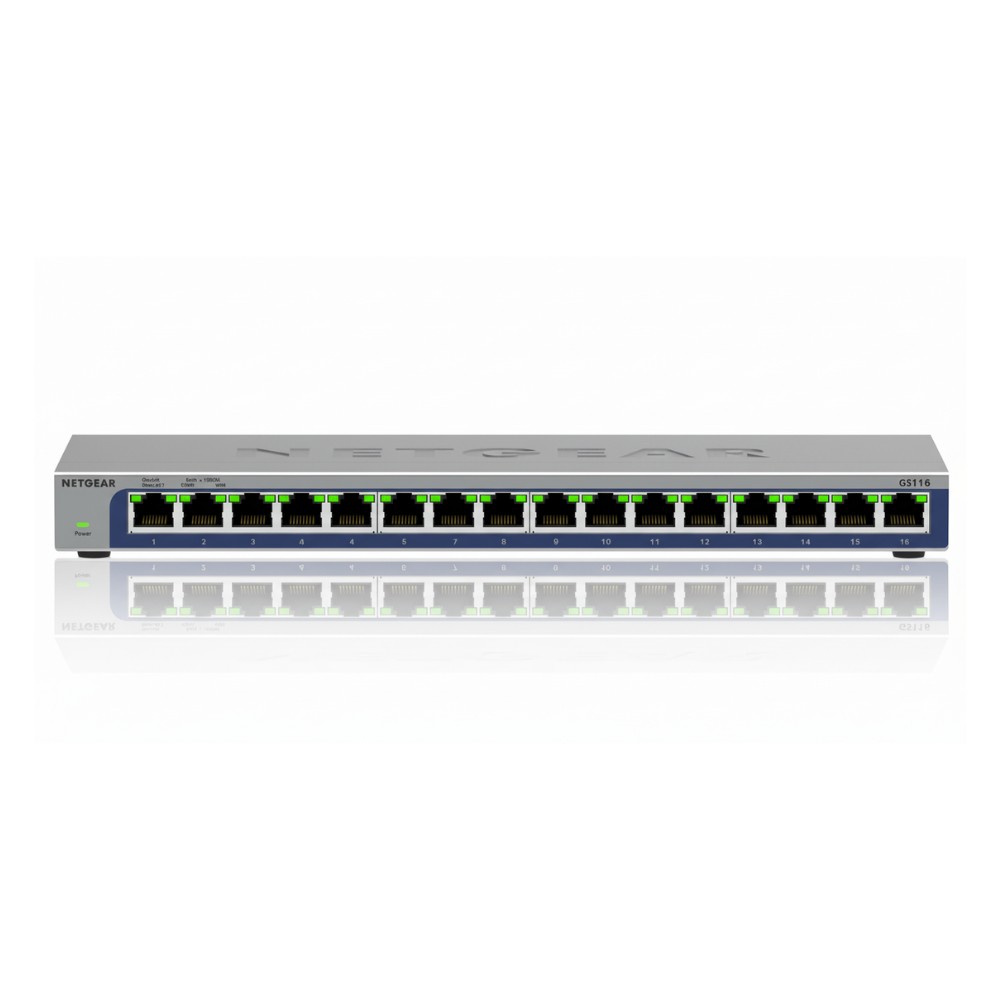

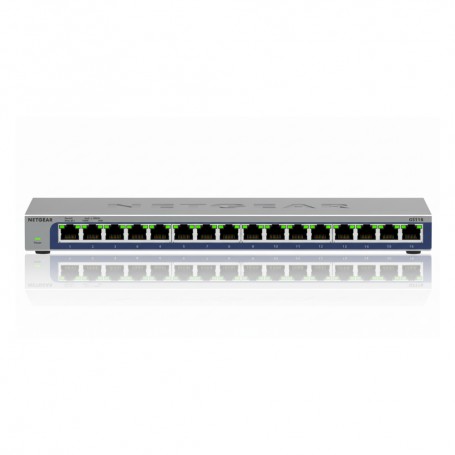

Netgear GS116-300NAS - 16-Port Gigabit Unmanaged Switch
Overview :
The Netgear GS116-300NAS is a high-density, unmanaged Gigabit Ethernet switch engineered for small-to-medium business (SMB) environments and remote office/branch office (ROBO) deployments. It provides a robust, plug-and-play solution for expanding network capacity without the complexity of software configuration or management overhead. Built with a rugged metal chassis, this switch is designed for longevity and reliability in demanding edge environments where silent operation is a priority.
This 16-port model addresses the need for immediate bandwidth scaling for high-traffic devices such as Network Attached Storage (NAS) units, IP cameras, and high-performance workstations. The GS116-300NAS supports IEEE 802.3az Energy Efficient Ethernet, which optimizes power consumption based on cable length and active link status. Its fanless design makes it an ideal choice for noise-sensitive areas, including conference rooms or open-plan offices. As a Layer 2 device, it integrates seamlessly into existing network infrastructures, providing wire-speed performance across all ports. For IT managers, it represents a cost-effective, durable solution for local network distribution at the campus or edge level.Key Features :
16 auto-sensing 10/100/1000 Mbps Gigabit ports.
Durable metal housing for desktop or wall mounting.
Fanless design ensures silent operation in offices.
Energy Efficient Ethernet (IEEE 802.3az) support.
Specifications :
| Brand | Netgear |
| Part Number | GS116-300NAS |
| Product Type | Unmanaged Gigabit Switch |
| Total Ports | 16 x RJ45 |
| Switching Capacity | 32 Gbps |
| MAC Address Table | 8,000 entries |
| Packet Buffer | 512 KB |
| MTBF | 3,421,047 hours |
| Power Supply | External 12V/1A DC |
| Power Consumption | 9.5W (Max) |
| Dimensions | 285 x 103 x 27 mm |
| Weight | 0.88 kg |
| Operating Temperature | 0° to 50°C |
| Compliance | IEEE 802.3az, 802.3x, 802.3ab |
