Detailed Specifications

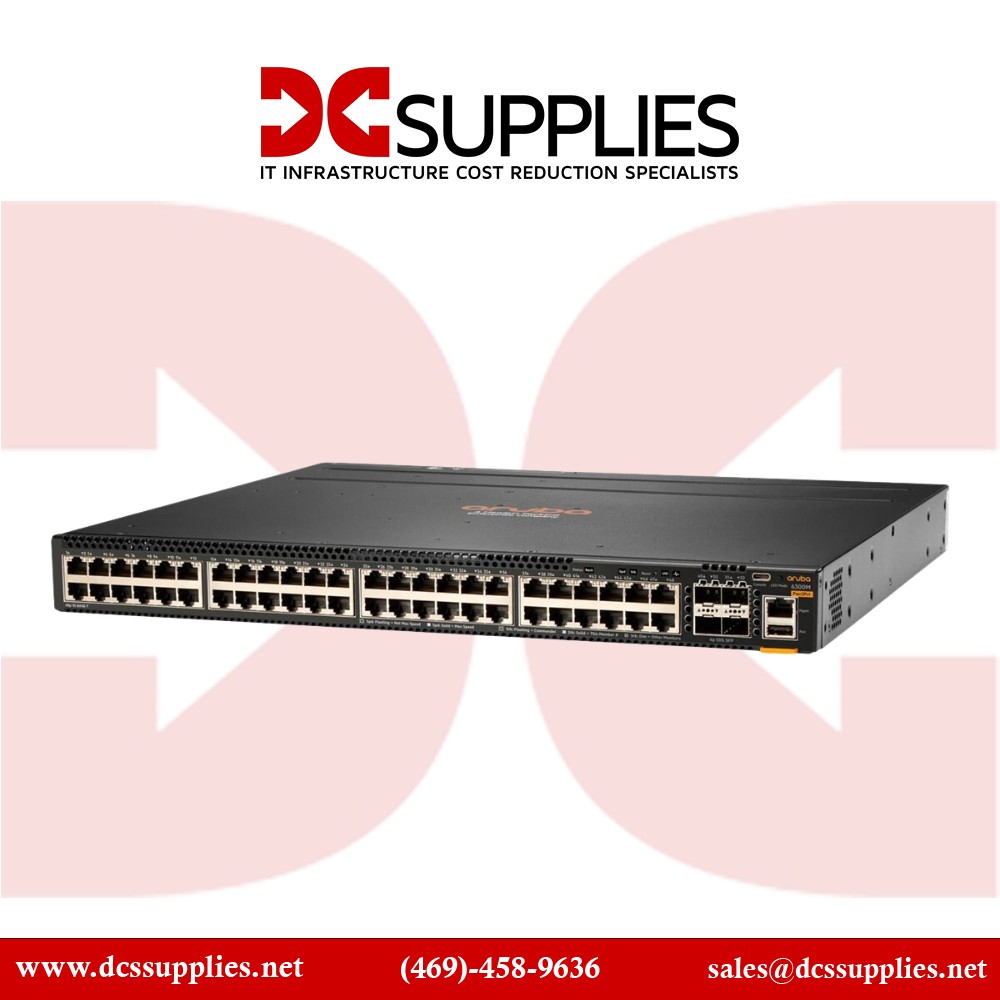

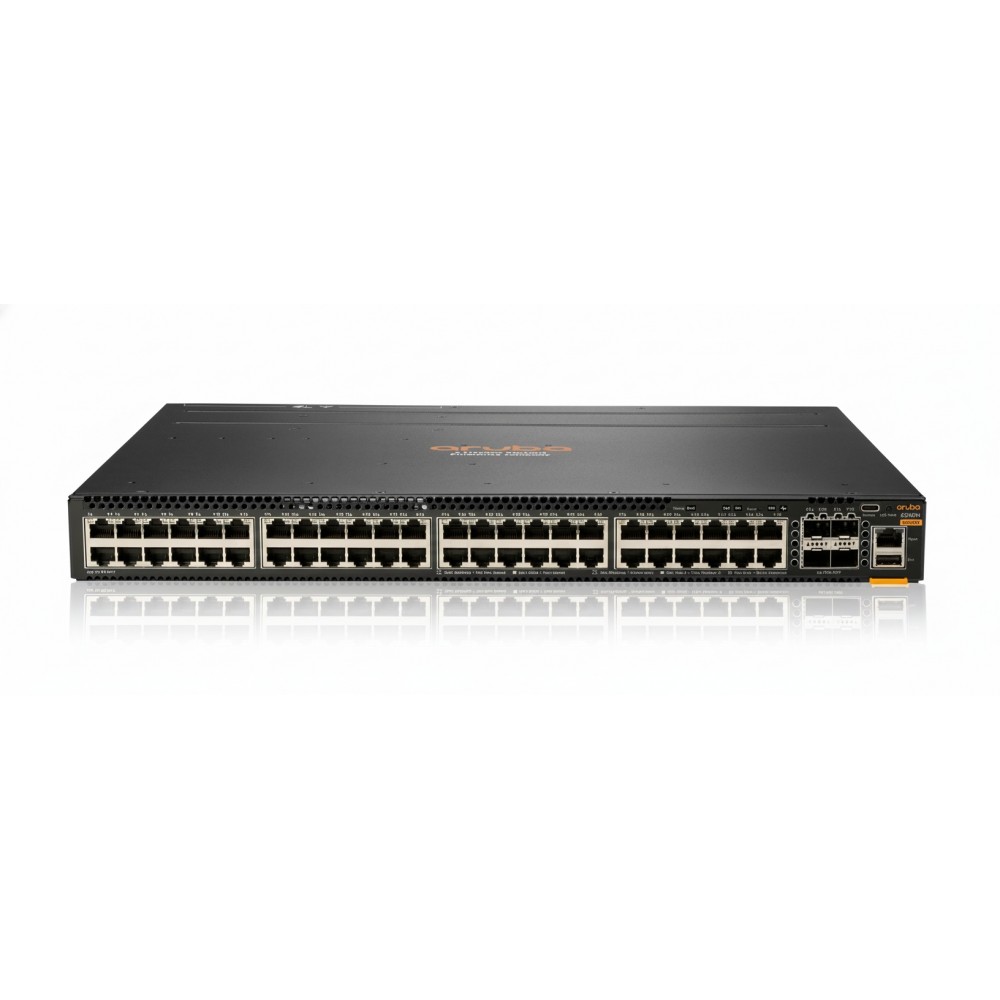

HPE R9F63A#ABA Aruba CX 6300M 48G Power-to-Port Bundle
Overview
The HPE R9F63A#ABA is a bundle built around the Aruba CX 6300M 48-port access switch with a power-to-port airflow profile. It includes two fan trays and a single hot-swappable power supply, providing a ready-to-deploy configuration for enterprise access and aggregation layers. The switch supports 48 Gigabit RJ-45 ports and four SFP56 uplink/stacking ports, offering flexible high-speed uplink options with full Layer-3 routing capability. Designed for campus and data center edge environments, it provides stable airflow, modular components, and integration with Aruba OS-CX and VSF stacking.
Key Features
48 × 1G RJ-45 ports with 4 × SFP56 uplinks
Power-to-port airflow direction for cooling control
496 Gb/s switching with wire-speed routing
VSF stacking for up to ten switches
Hot-swap power supply and fans included
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE / Aruba |
| Part Number | R9F63A#ABA |
| Product Type | Layer-3 Managed Ethernet Switch Bundle |
| RJ-45 Ports | 48 × 10/100/1000 |
| Uplink / Stacking Ports | 4 × SFP56 (1/10/25/50G) |
| Switching Capacity | 496 Gbps |
| Forwarding Rate | 369 Mpps |
| Stacking Support | VSF (up to 10 units) |
| Memory | 8 GB DDR4 |
| Flash Storage | 32 GB eMMC |
| Processor | Quad-core ARM Cortex-A72 |
| Power Supply | 1 × hot-swappable AC PSU |
| Airflow | Power-to-Port (back-to-front) |
| Dimensions (H × W × D) | 1.73″ × 17.40″ × 15.20″ |
| Weight | 12.57 lbs |
| Operating Temperature | 0 °C to 45 °C |
