Detailed Specifications

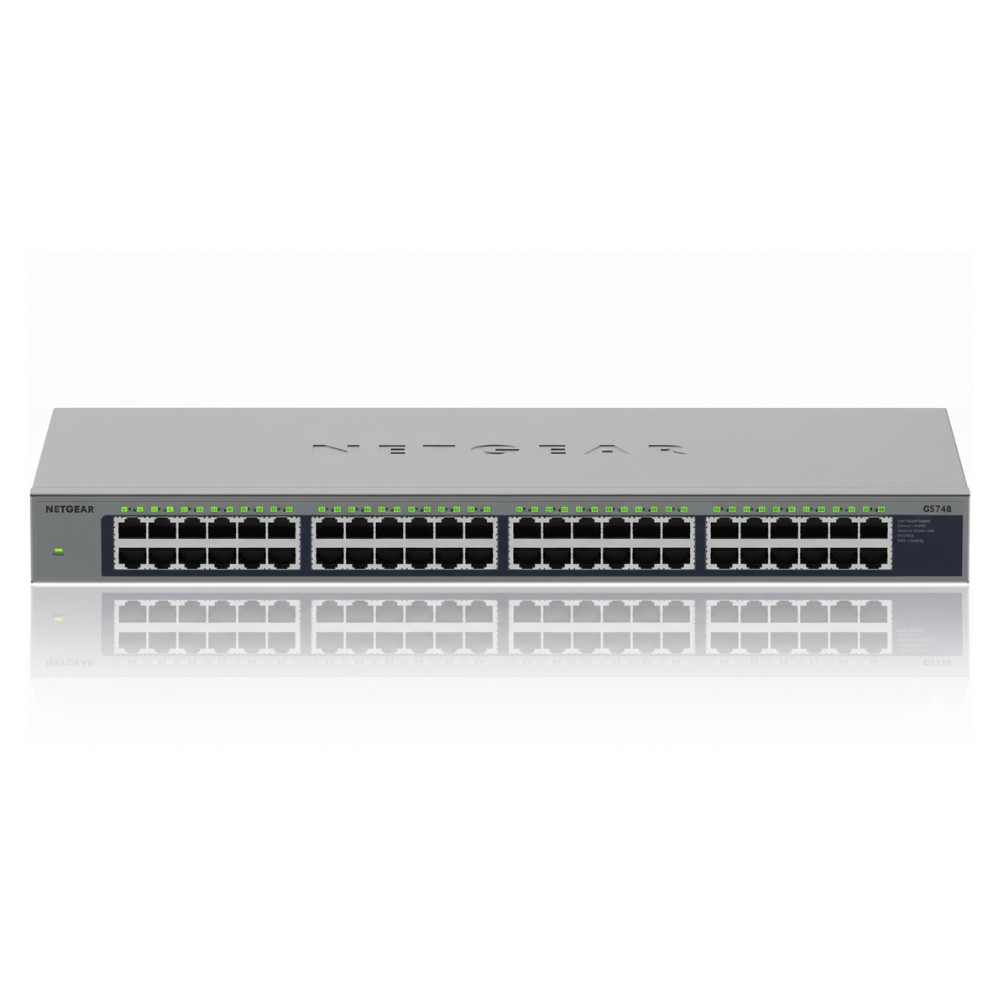

Netgear GS748-100NAS - 48-Port Gigabit Smart Managed Switch
Overview :
The Netgear GS748-100NAS is a high-density 48-port Gigabit Ethernet Smart Managed Switch engineered for small-to-medium businesses (SMBs) and branch offices that require a balance between performance and cost-effective management. Positioned within the ProSafe product line, this switch bridges the gap between unmanaged plug-and-play devices and complex, fully managed enterprise solutions. It provides 48 copper 10/100/1000 Mbps ports alongside four dedicated SFP slots for fiber uplinks, ensuring non-blocking throughput for bandwidth-intensive applications.
This hardware is typically deployed at the network edge or as a distribution switch in smaller campus environments. It addresses critical infrastructure needs such as traffic segmentation via VLANs, prioritization through Quality of Service (QoS), and network security via Access Control Lists (ACLs). The web-based management interface allows IT administrators to configure L2 and L2+ features, including static routing, without the steep learning curve of a CLI-only environment. Its rack-mountable 1U design and optimized thermal management make it suitable for both dedicated server rooms and open-office environments where space and acoustics are primary considerations.Key Features :
48 Gigabit copper ports for high-density edge connectivity.
Four dedicated SFP ports for long-distance fiber uplinks.
L2+ static routing for efficient internal traffic management.
Advanced QoS and VLAN support for network segmentation.
Specifications :
| Brand | Netgear |
| Part Number | GS748-100NAS |
| Product Type | Smart Managed Switch |
| Total Ports | 52 (48 RJ45 + 4 SFP) |
| Switching Capacity | 100 Gbps |
| Forwarding Rate | 74.4 Mpps |
| MAC Address Table | 16K entries |
| VLAN Support | Up to 256 VLANs |
| Form Factor | 1U Rackmount |
| Power Consumption | 41.1W (Max) |
| Operating Temperature | 0° to 50° C |
| Dimensions | 440 x 257 x 43 mmGS748-100NAS |
| Weight | 3.46 kg |
