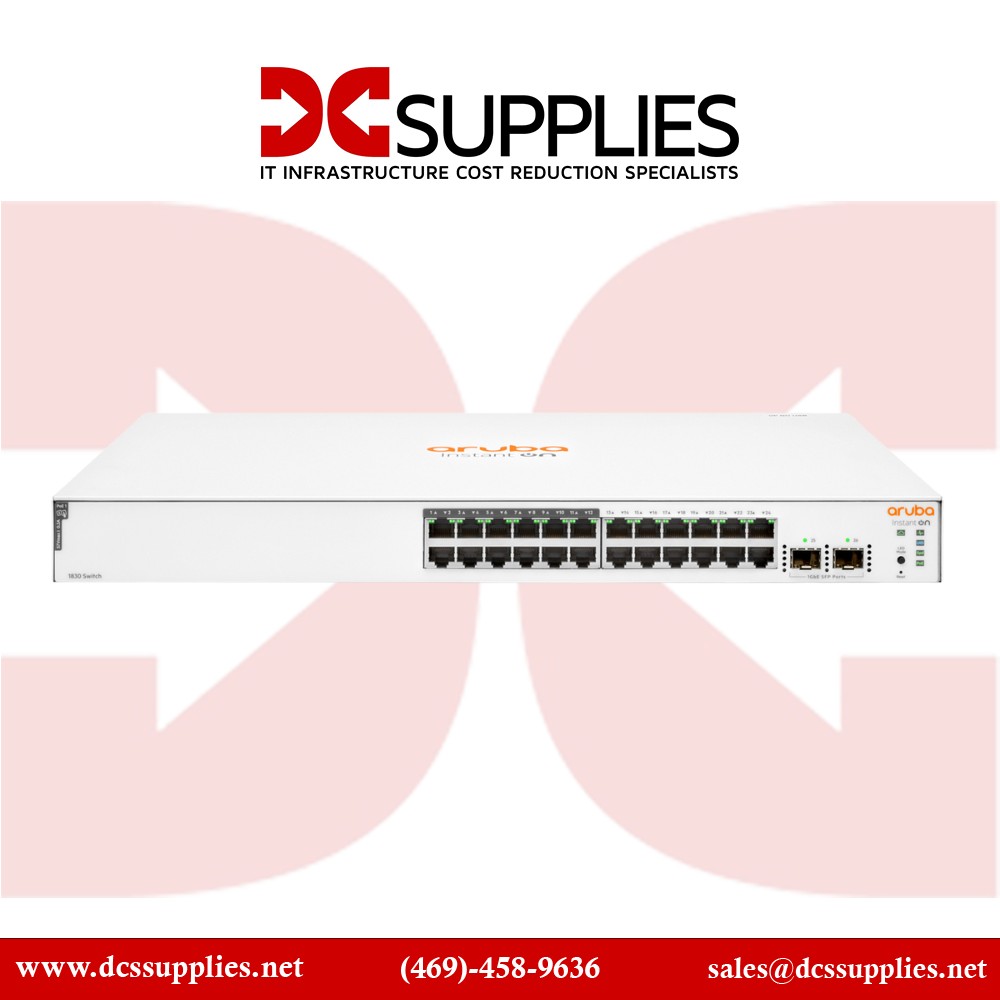

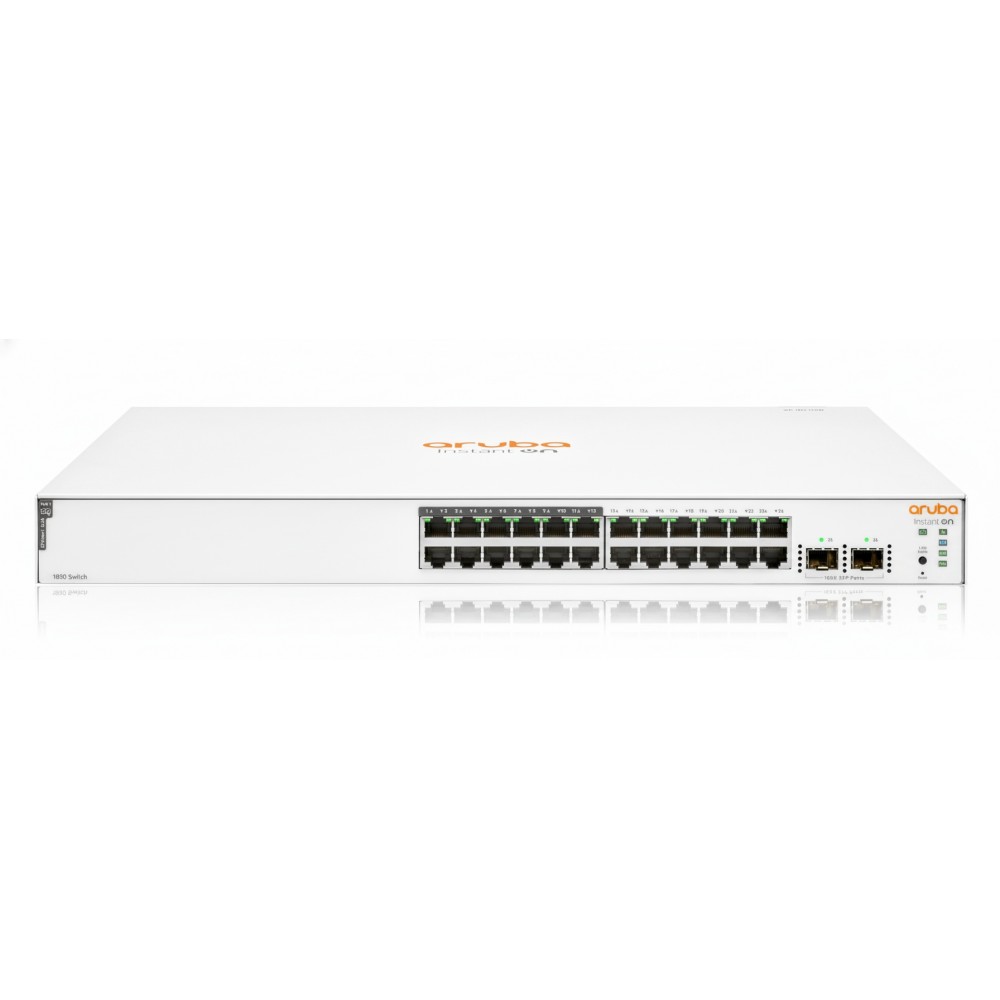

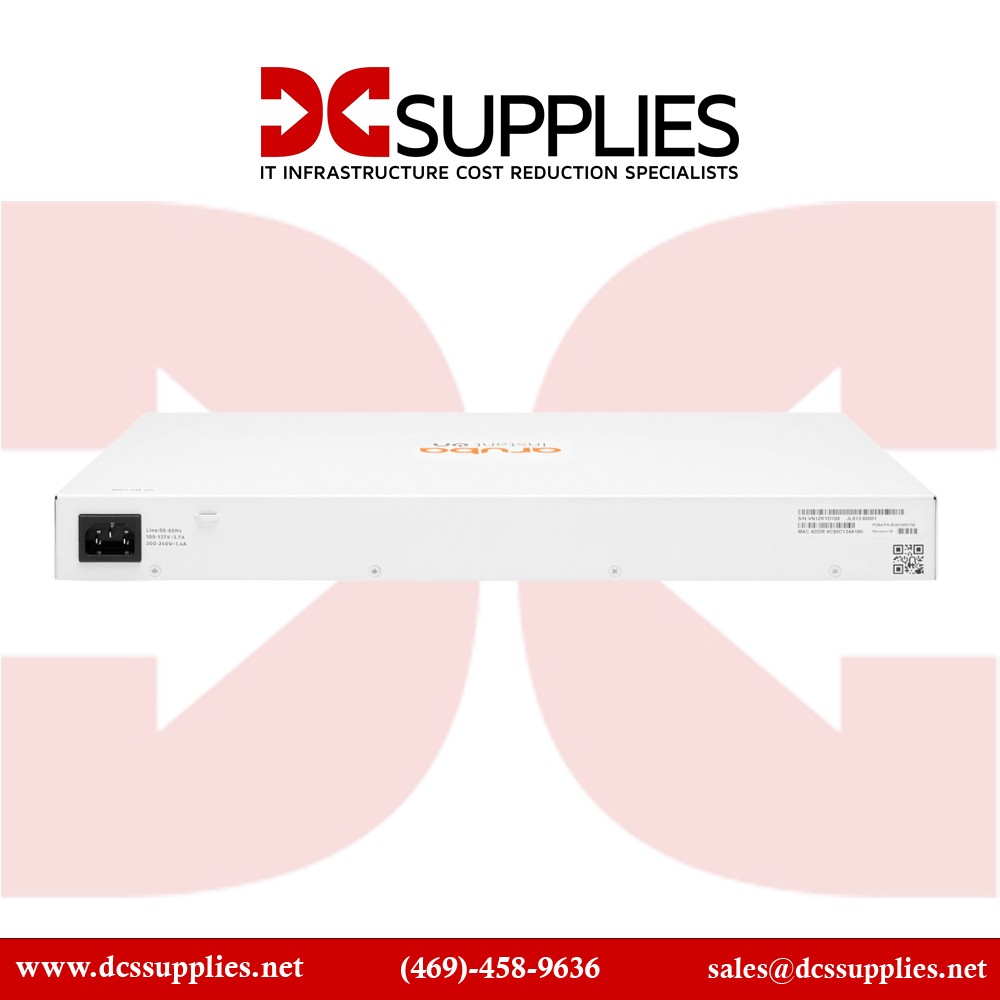

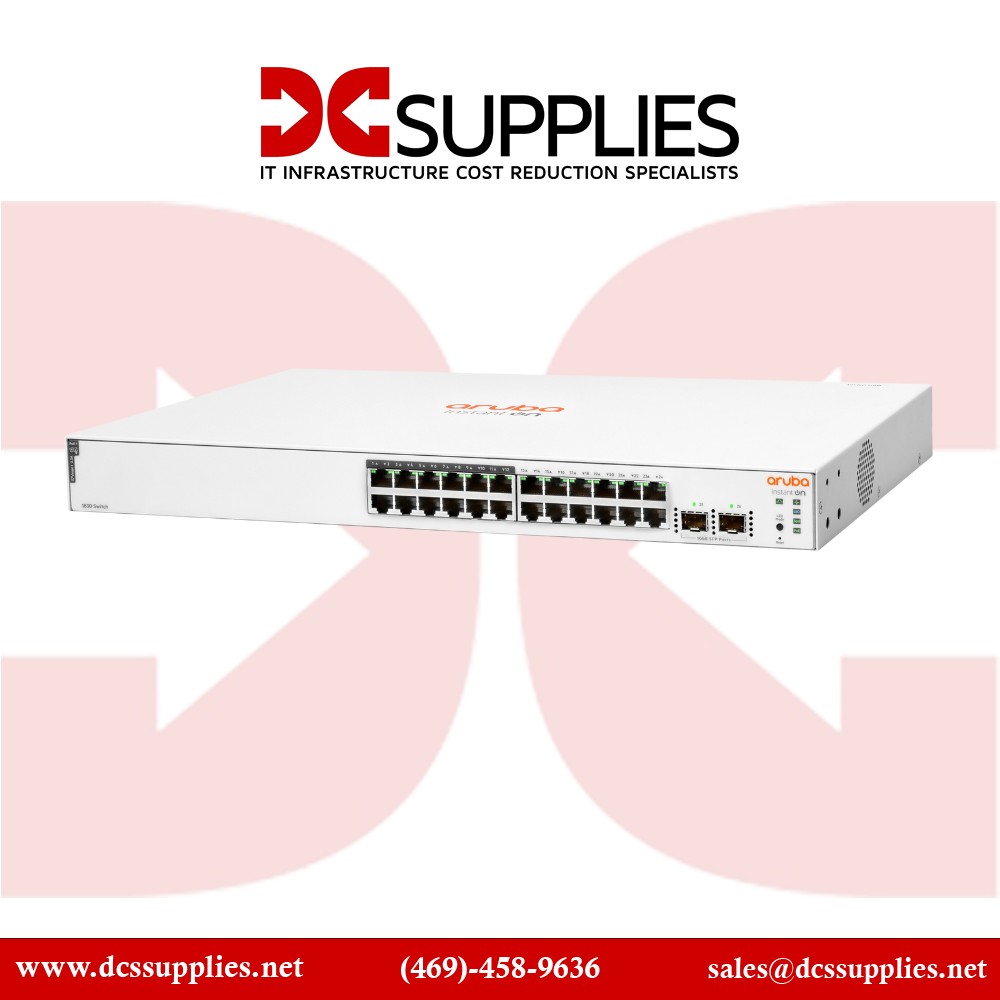

HPE JL813A B2E Aruba 1830 Ethernet Switch 24 ports

JL813A#B2E

New

High-performance Layer 3 managed gigabit switch for enterprise networks
×




Detailed Specifications

HPE JL813A B2E

Aruba 1830 Ethernet Switch 24 ports

A smart-managed gigabit switch with PoE+ and fiber uplinks for small and medium businesses.

Overview :

The HPE JL813A Aruba 1830 is a smart-managed Layer 2 gigabit Ethernet switch ideal for small to medium businesses. With 24 RJ-45 ports supporting PoE+ and 2 SFP fiber ports, it delivers flexible, secure, and high-performance networking with easy cloud or local management. This 24-port switch features 12 PoE+ enabled RJ-45 ports delivering up to 30W per port and 12 standard gigabit RJ-45 ports for diverse device connectivity including IP phones, cameras, and wireless access points.

Features :

The 2 fiber SFP ports support uplinks or long-distance connections. It offers versatile network management options ranging from the Instant On mobile app and cloud web portal to a traditional web interface, providing simple deployment and ongoing control. Designed with small business needs in mind, the Aruba 1830 series balances cost-effectiveness with enterprise-class reliability. It supports VLANs, Link Aggregation Control Protocol (LACP), Quality of Service (QoS), and basic Layer 3 static routing to efficiently handle traffic prioritization and segmentation. The switch’s 52 Gbps switching capacity and low latency enable smooth handling of business-critical traffic.

Product Key Features

  • 24 autosensing 10/100/1000 RJ-45 ports (12 PoE+, 12 non-PoE).
  • 2 x 1G SFP uplink ports for fiber connectivity.
  • Supports up to 195W Class 4 PoE power budget.
  • Switching capacity of 52 Gbps, throughput up to 38.68 Mpps.

Reliability & Performance :

The JL813A delivers consistent performance with a robust ARM Cortex-A9 processor and 512 MB of memory, ensuring efficient packet processing and switching throughput up to 38.68 Mpps. It consumes up to 244.6W at maximum load (including PoE) and operates under ambient temperatures from 0°C to 40°C. The unit supports in-band and out-of-band management with support for SNMP and Aruba AirWave integration, enhancing monitoring and troubleshooting. Its compact form factor fits standard racks, providing both convenience and durability.

Key Features :

  • 24 x 10/100/1000 RJ-45 ports (12 PoE+, 12 non-PoE).
  • 2 x 1G SFP uplink ports.
  • 195W Class 4 PoE budget.
  • Switching capacity: 52 Gbps, throughput: 38.68 Mpps.
  • Instant On cloud and local web management.
  • ARM Cortex-A9 800 MHz CPU, 512 MB RAM.

Specifications :

SpecificationDetails
Model Number JL813A
Product Type Smart-managed Layer 2 Gigabit Ethernet Switch
Ports 24 x RJ-45 10/100/1000 (12 PoE+, 12 non-PoE)
Uplink Ports 2 x SFP 1G
PoE Power Budget 195W (Class 4)
Switching Capacity 52 Gbps
Throughput 38.68 Mpps
Processor ARM Cortex-A9 800 MHz
Memory 512 MB RAM, 256 MB Flash
Management Instant On Cloud, Web GUI, SNMP
Power Consumption Max 244.6W (including PoE)
Operating Temperature 0°C to 40°C
