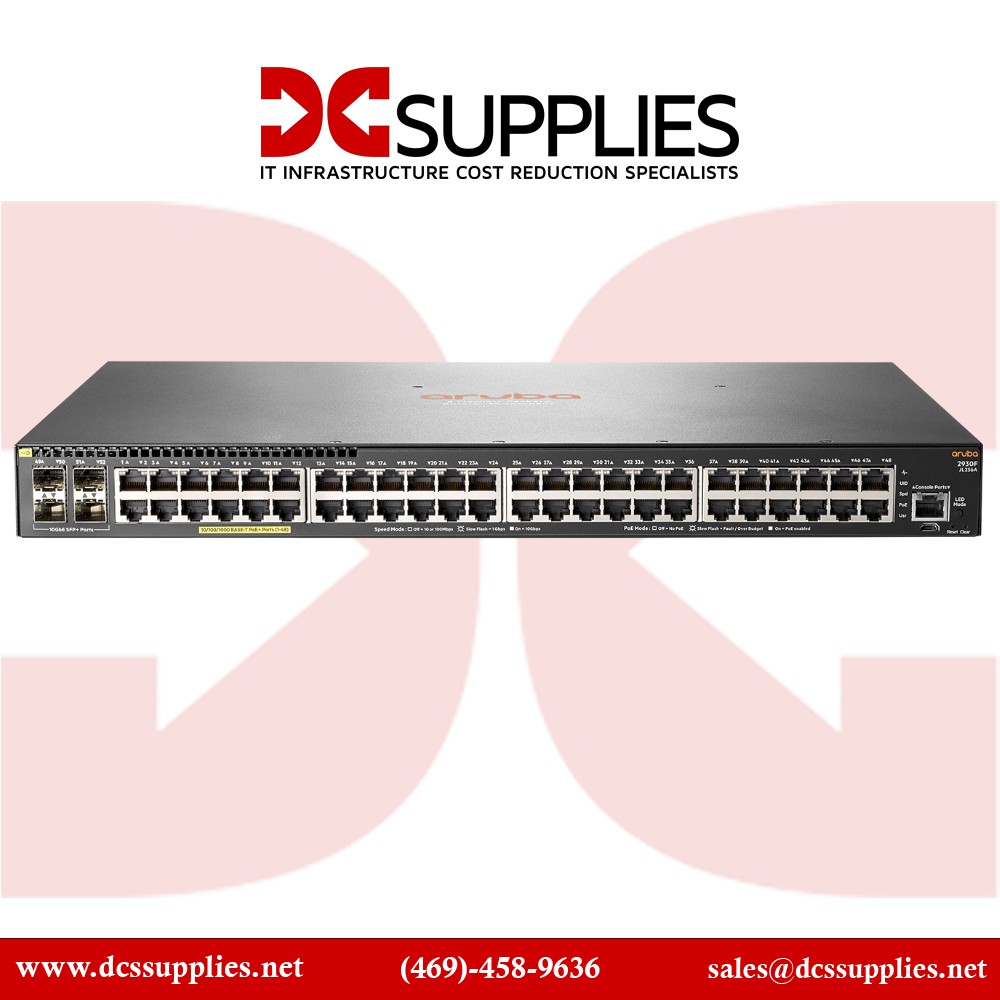

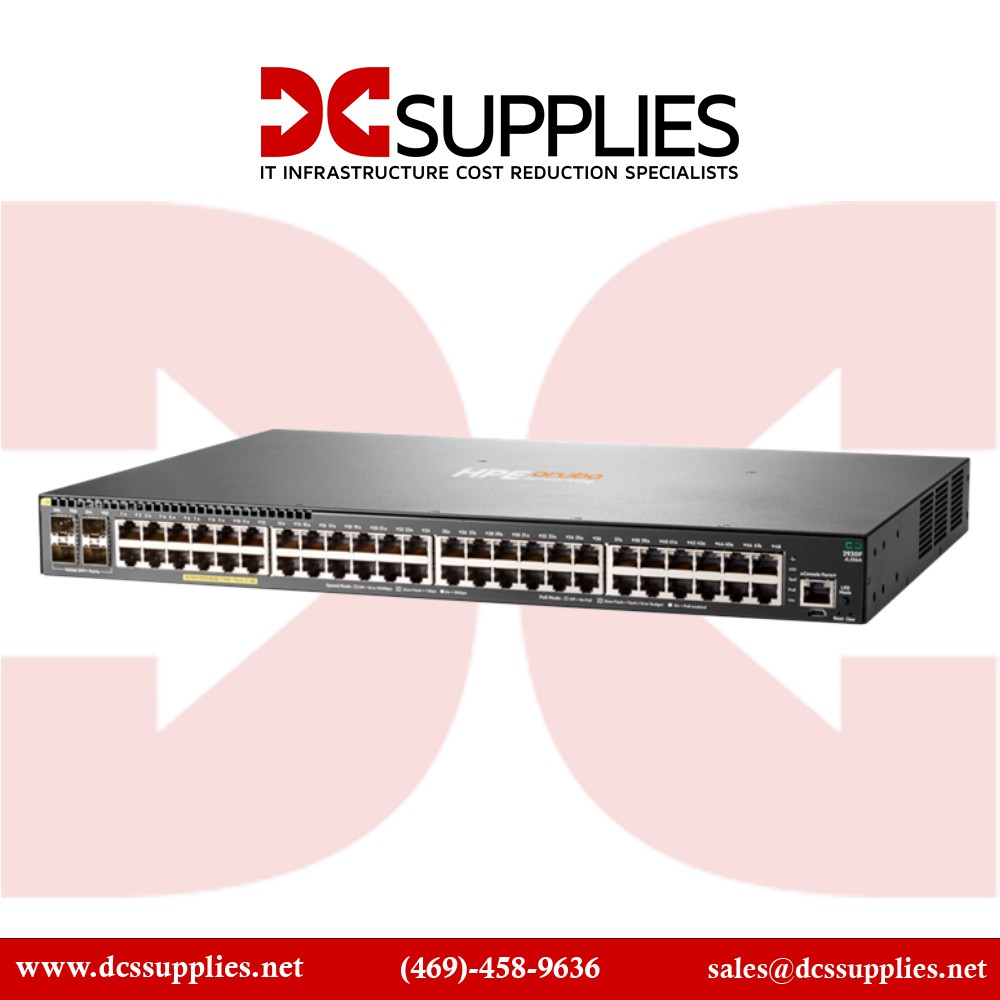

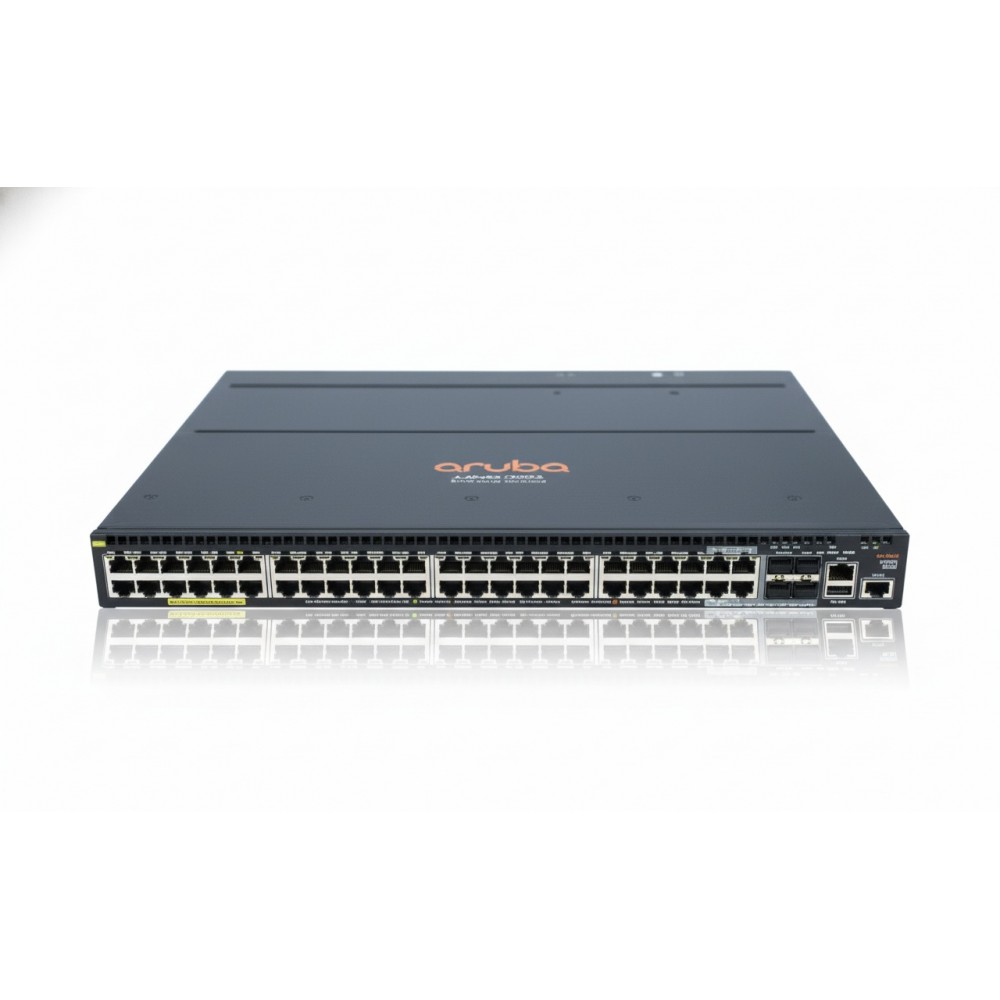

HPE JL262A ABA Aruba 2930F managed Ethernet switch 48 ports

JL262A#ABA

New

Managed 48-port Gigabit PoE+ switch with 4 SFP uplinks
×




Detailed Specifications

HPE JL262A ABA

Aruba 2930F managed Ethernet switch 48 ports

A managed Layer 3 switch with 48 Gigabit PoE+ ports and 4 10G SFP+ uplinks, delivering reliable performance and flexible management for enterprise and SMB networks.

Overview:

The HPE Aruba 2930F JL262A is a managed Layer 3 Ethernet switch designed for enterprise and SMB environments. It features 48 Gigabit PoE+ ports and 4 high-speed SFP+ uplinks. This switch provides 48 autosensing 10/100/1000 Mbps RJ45 ports that support PoE+ (IEEE 802.3at) with a 370W budget, ideal for powering devices like wireless access points, IP phones, and security cameras. Four 1G/10G SFP+ fiber uplink ports offer flexible, high-bandwidth connections for network scalability and performance.

The device is powered by a dual-core ARM Cortex A9 processor and 1GB DDR3 RAM, enabling efficient packet forwarding and low latency. It includes advanced Layer 3 features such as static routing, OSPF, and RIP. The switch supports Aruba’s Virtual Switching Framework (VSF) for stacking up to four devices, simplifying network expansion and centralized control. Integration with Aruba ClearPass and AirWave provides enhanced security and network visibility. Its energy-efficient design meets industry standards, and the compact 1U rack-mount form factor fits neatly into data center environments.

Product Key Features

Reliability & Performance:

Designed for dependable operation, the JL262A features robust hardware with an internal power supply and an optional redundant power supply to optimize uptime. Its 104 Gbps switching capacity combined with 77.4 Mpps forwarding rate ensures low latency and efficient traffic management for mission-critical applications. Aruba backs the product with a limited lifetime warranty to support long-term deployment assurance.

Key Features:

Technical Specification Table:

SpecificationDetails
Model Number JL262A
Product Type Managed Layer 3 PoE+ Ethernet Switch
Port Count 48 x 10/100/1000 Mbps RJ45 PoE+
Uplink Ports 4 x 1G/10G SFP+
Processor Dual-core ARM Cortex A9 @ 1016 MHz
Memory 1 GB DDR3 SDRAM
Switching Capacity 104 Gbps
Throughput Up to 77.4 Mpps
PoE Budget 370 Watts
Power Supply Single internal, optional redundant
Dimensions (HxWxD) 1.73 x 17.42 x 11.98 inches (4.39 x 44.25 x 30.42 cm)
Weight Approx. 5.31 lbs (2.41 kg)
Operating Temperature 0° to 55°C
Management Aruba ClearPass, Aruba AirWave, Aruba Central
