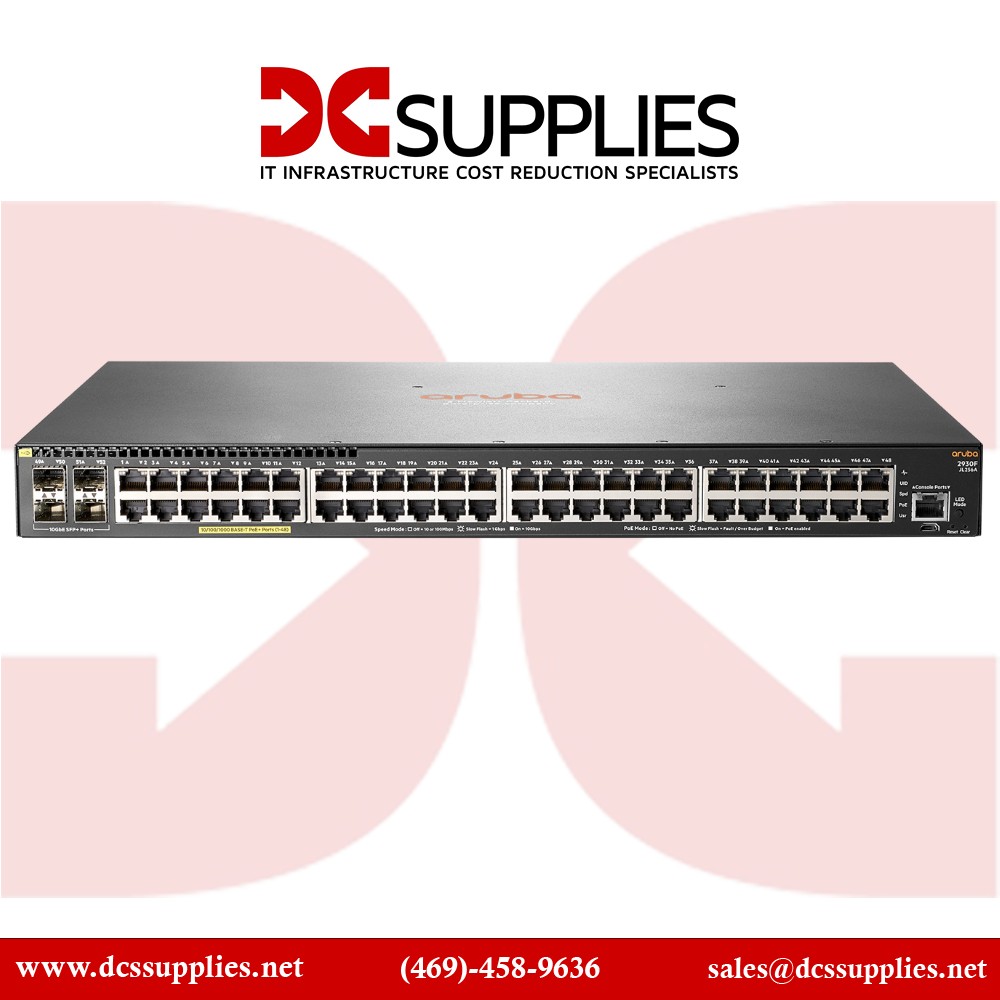

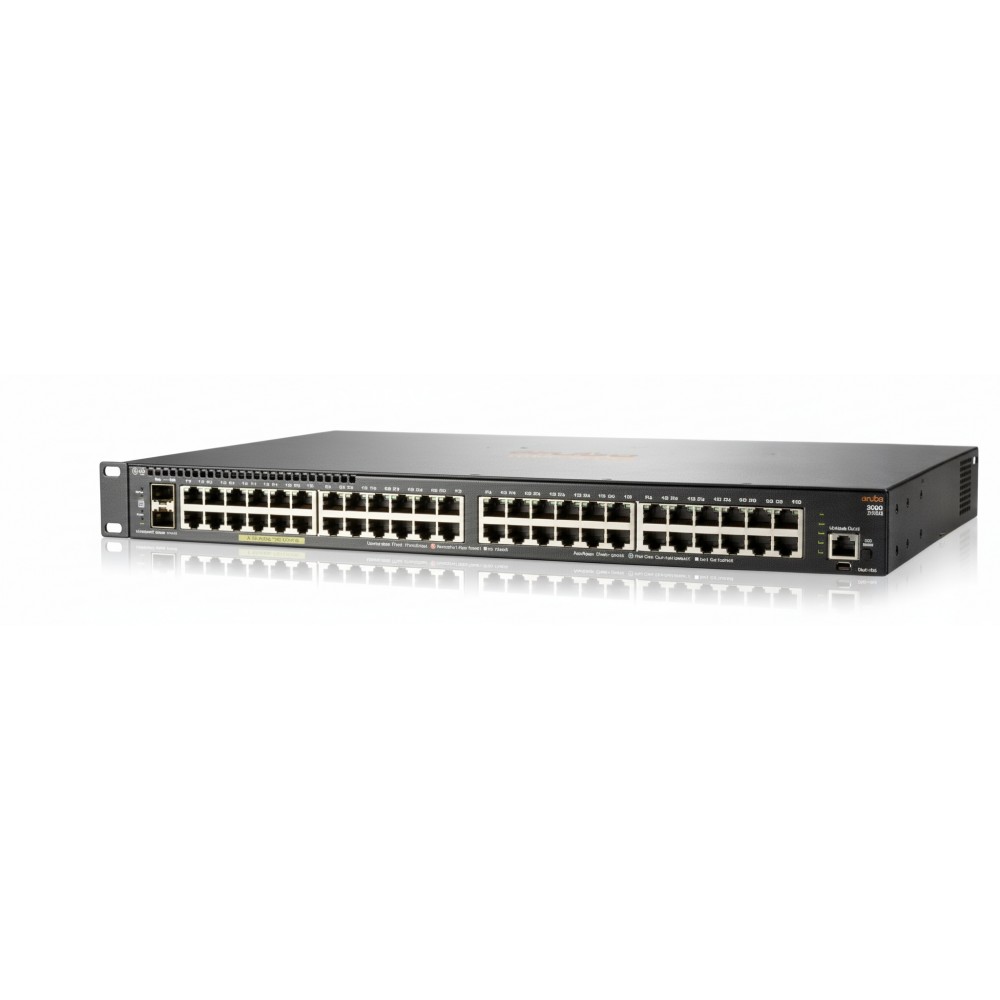

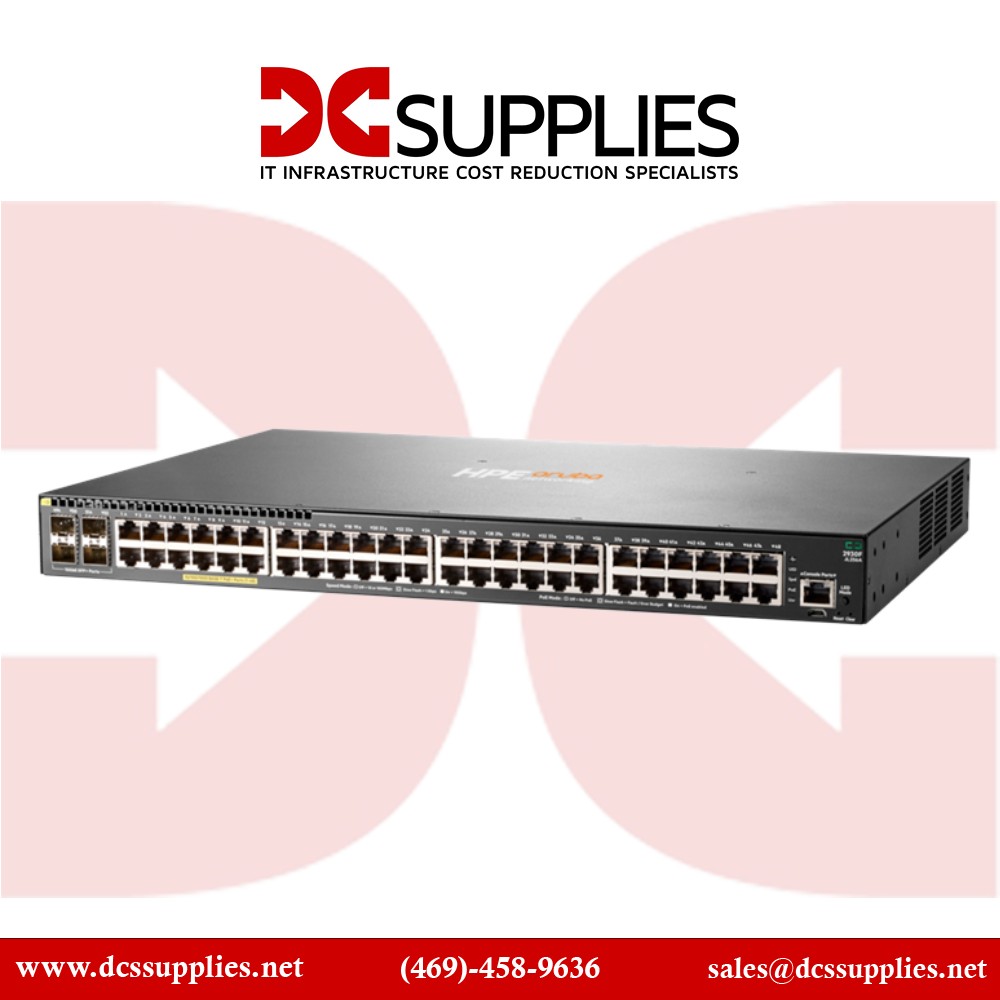

HPE JL256A ABA Aruba 2930F managed Ethernet switch 48 ports

JL256A#ABA

New

Managed 48-port Gigabit PoE+ switch with 370W power budget
×




Detailed Specifications

HPE JL256A ABA

Aruba 2930F managed Ethernet switch 48 ports

A managed Layer 3 switch with 48 Gigabit PoE+ ports and 4 10G SFP+ uplinks, delivering reliable performance and flexible management for enterprise and SMB networks.

Overview:

The HPE Aruba 2930F JL256A is a managed Layer 3 Ethernet switch designed for enterprise and SMB environments. It features 48 Gigabit PoE+ ports and 4 high-speed SFP+ uplinks. It provides 48 autosensing 10/100/1000 Mbps RJ45 ports that support PoE+ (IEEE 802.3at) with a 370W budget, ideal for powering devices like wireless access points, IP phones, and security cameras. The four 1G/10G SFP+ fiber uplink ports offer flexible, high-bandwidth connections for network scalability and performance.

The device is powered by a dual-core ARM Cortex A9 processor and 1GB DDR3 RAM, enabling efficient packet forwarding and low latency. It includes advanced Layer 3 features such as static routing, OSPF, and RIP. The switch supports Aruba’s Virtual Switching Framework (VSF) for stacking up to four devices, simplifying network expansion and centralized control. Integration with Aruba ClearPass and AirWave provides enhanced security and network visibility. Its energy-efficient design meets industry standards, and the compact 1U rack-mount form factor fits neatly into data center environments.

Product Key Features

Reliability & Performance:

The JL256A switch is engineered for long-term reliability and high performance with a switching capacity of 176 Gbps and throughput of up to 112 million packets per second. Its hardware architecture supports low-latency and efficient processing of demanding network workloads. The device is backed by Aruba’s limited lifetime warranty, ensuring support and confidence for network deployments.

Key Features:

Technical Specification Table:

SpecificationDetails
Model Number JL256A
Product Type Managed Layer 3 PoE+ Ethernet Switch
Port Count 48 x RJ-45 autosensing 10/100/1000 Mbps PoE+
Uplink Ports 4 x 1G/10G SFP+ fiber
Processor Dual-core ARM Cortex A9 @ 1016 MHz
Memory 1 GB DDR3 SDRAM
Switching Capacity 176 Gbps
Throughput Up to 112 Mpps
PoE Budget 370 Watts
Dimensions (WxDxH) 17.42 x 11.98 x 1.73 inches (44.25 x 30.42 x 4.39 cm)
Weight 4.46 kg (9.83 lbs)
Management Aruba ClearPass, AirWave, Aruba Central
