View larger

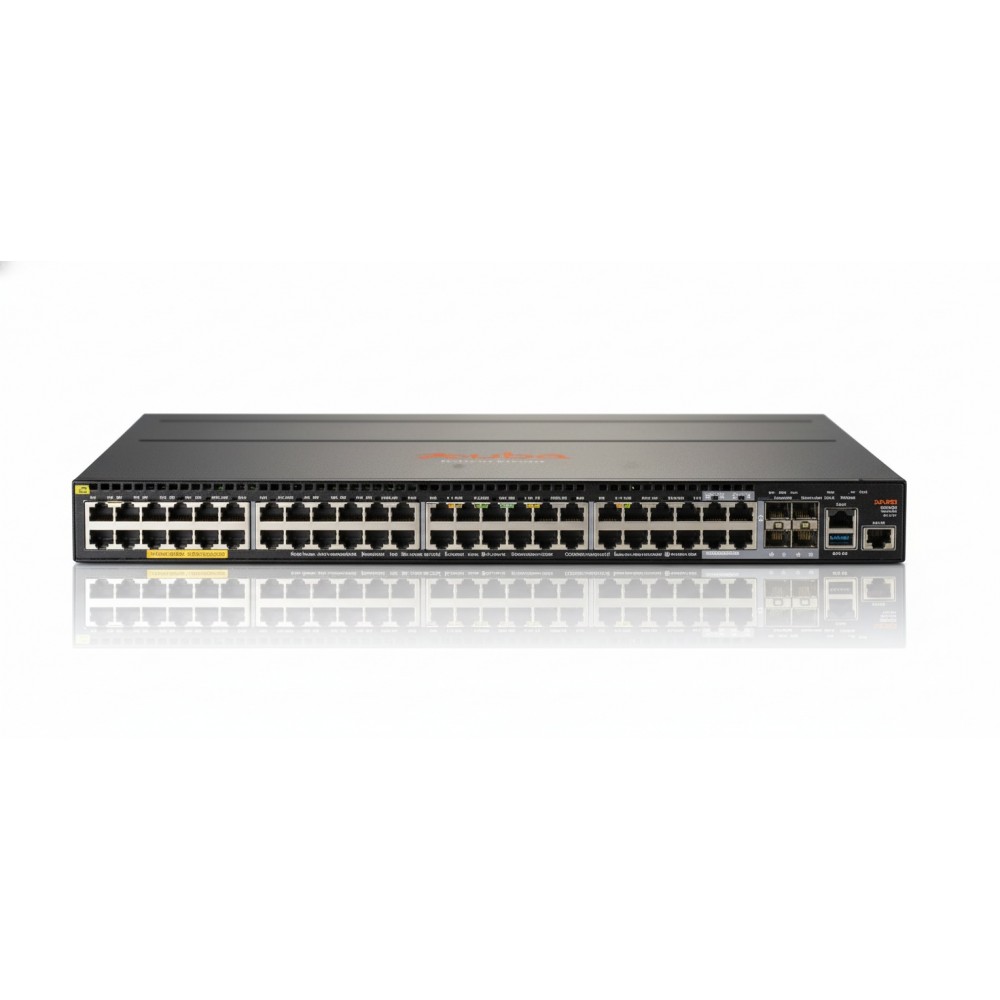

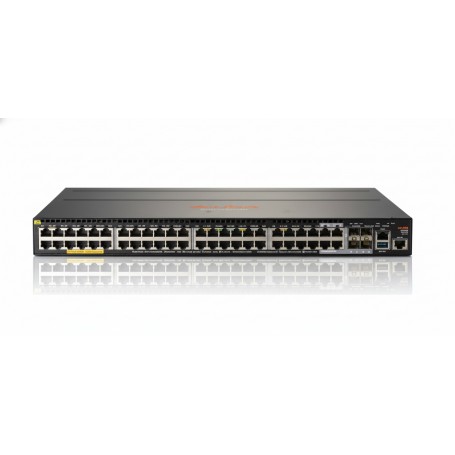

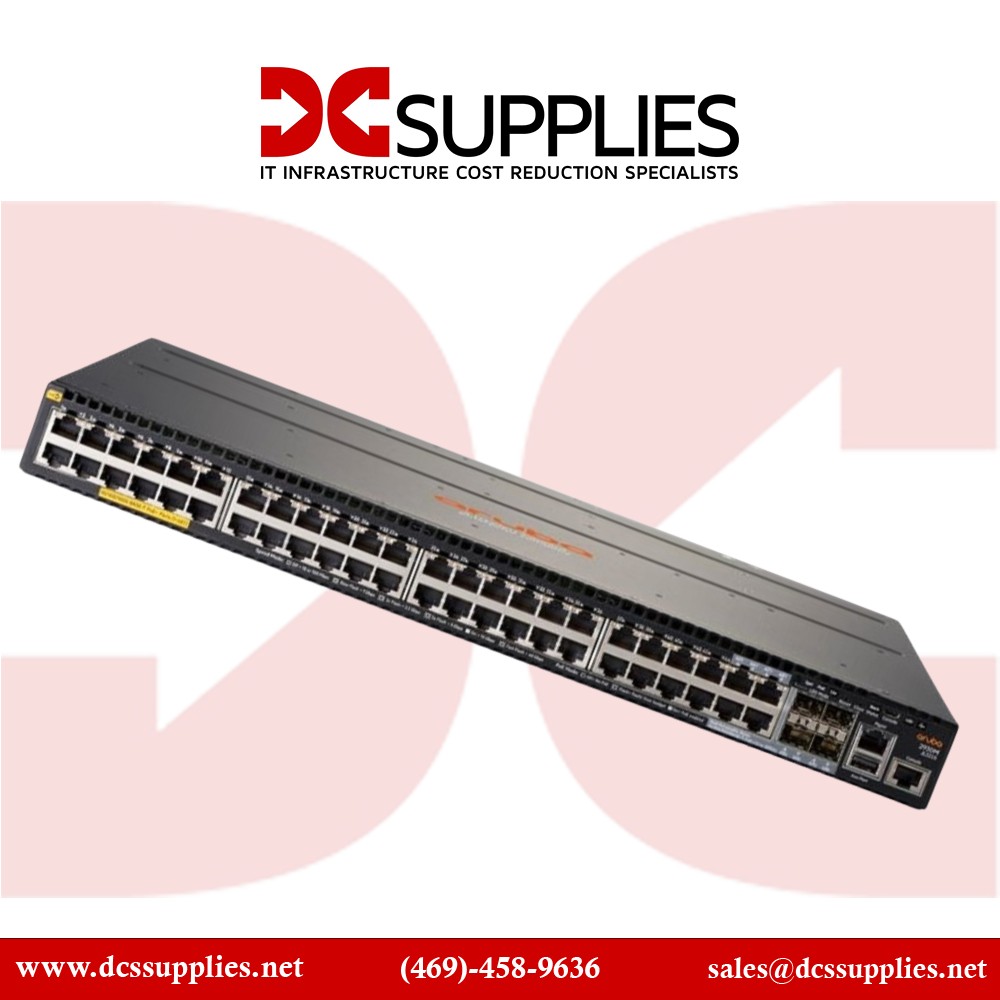

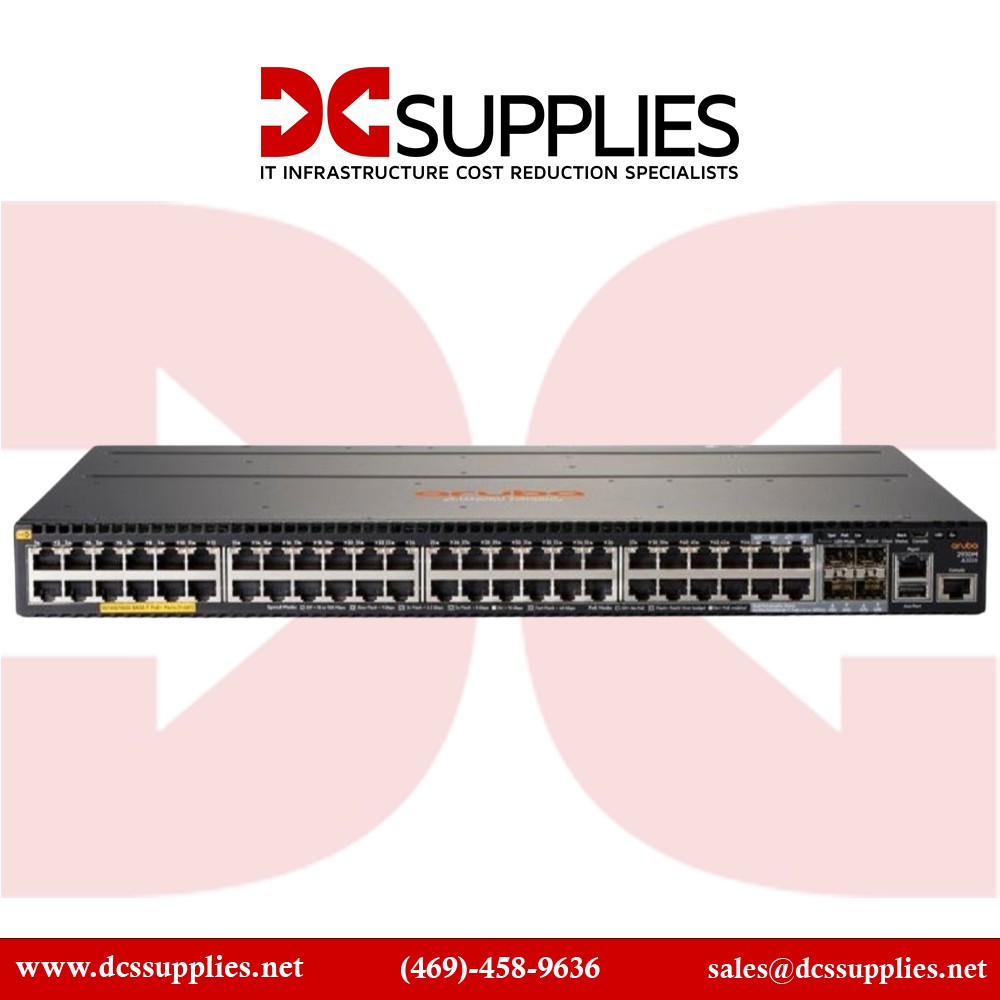

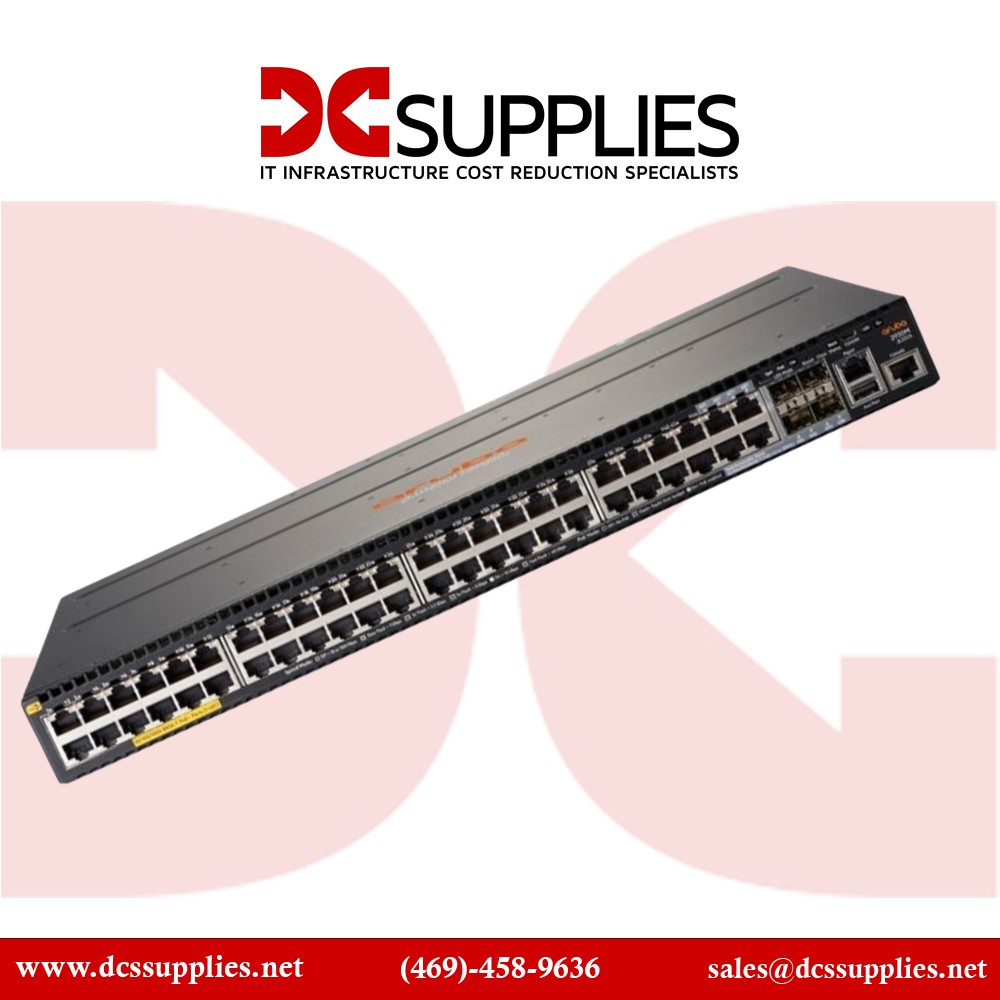

HPE JL558A ABA Aruba 2930F managed Ethernet Switch 48 ports

JL558A#ABA

New

Managed 48-port Gigabit PoE+ switch with 740W power budget
×




Detailed Specifications

HPE JL558A ABA

Aruba 2930F managed Ethernet Switch 48 ports

A managed Layer 3 Ethernet switch designed for enterprise and SMB networks, offering 48 Gigabit PoE+ ports and a substantial 740W power budget.

Overview:

The HPE Aruba 2930F JL558A is a managed Layer 3 Ethernet switch offering 48 Gigabit PoE+ ports and 4 SFP+ uplinks, providing reliable, high-speed connectivity for enterprise, SMB, and branch office networks. The switch features 48 autosensing 10/100/1000 Mbps RJ45 ports that support PoE+ (IEEE 802.3at), making it ideal for powering devices like IP phones, access points, and security cameras. Additionally, 4 uplink ports support 1G/10G SFP+ transceivers for flexible fiber connections to aggregation or core networks.

The integrated dual-core ARM Cortex A9 CPU and 1GB DDR3 SDRAM provide high switching performance and low latency for demanding network environments. The 2930F series includes advanced Layer 3 features like static routing, OSPF, and RIP protocols, facilitating versatile network segmentation and routing. Virtual Switching Framework (VSF) technology allows up to four switches to be stacked and managed as a single logical unit. This simplifies deployment and scaling. The switch also integrates with Aruba ClearPass and AirWave for comprehensive security and network monitoring. With a rack-mountable 1U design, the switch is suitable for data centers and wiring closets, ensuring secure, scalable, and efficient network infrastructure deployment.

Product Key Features

Reliability & Performance:

Built for enterprise-grade reliability, the JL558A switch is powered by a dual-core ARM Cortex A9 processor with 1GB DDR3 memory, delivering a robust 176 Gbps switching capacity and throughput of up to 112 million packets per second. The hardware architecture ensures stable operations and supports advanced QoS, security policies, and network segmentation. Aruba’s limited lifetime warranty guarantees long-term support and uptime assurance.

Key Features:

Technical Specification Table:

SpecificationDetails
Model Number JL558A
Product Type Managed Layer 3 PoE+ Ethernet Switch
Port Count 48 x 10/100/1000 Mbps RJ45 PoE+
Uplink Ports 4 x 1G/10G SFP+
Processor Dual-core ARM Cortex A9 @ 1016 MHz
Memory 1 GB DDR3 SDRAM
Switching Capacity 176 Gbps
Throughput Up to 112 Mpps
PoE Budget 740 Watts
Dimensions (WxDxH) 17.42 x 12.77 x 1.73 inches (44.25 x 32.42 x 4.39 cm)
Weight 10.56 lbs (4.8 kg)
Management Aruba ClearPass, Aruba AirWave, Aruba Central
