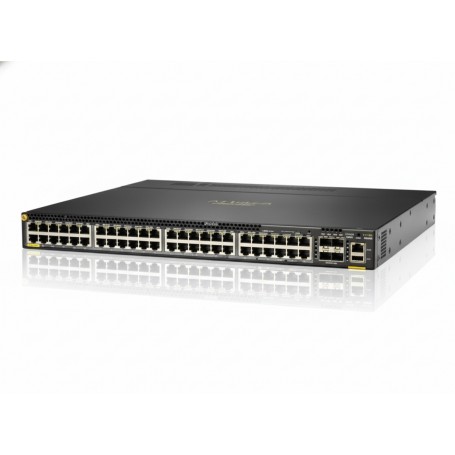

HPE JL260A ABA Aruba 2930F 48G 4SFP Ethernet switch 48 ports View larger

HPE JL260A ABA Aruba 2930F 48G 4SFP Ethernet switch 48 ports

JL260A#ABA

New

"48-Port Layer 3 switch with 4 SFP uplinks."

×




Detailed Specifications

HPE JL260A#ABA Aruba 2930F 48G 4SFP Access Switch

Overview

The HPE JL260A#ABA is a high-performance Layer 3 access switch from the Aruba 2930F series, engineered for the demands of the digital workplace. It is specifically designed for deployment at the enterprise edge, in small to medium-sized businesses (SMBs), and branch office environments. This switch addresses the need for a scalable and secure access layer that can handle integrated wired and wireless traffic, providing a seamless connectivity experience for mobile users and IoT devices. Powered by a robust Aruba ProVision ASIC, the device delivers low latency and high performance, ensuring efficient handling of network traffic. It supports Virtual Switching Framework (VSF) stacking, which allows up to eight switches to be virtualized into a single logical device for simplified management and increased network resiliency. The switch's comprehensive Layer 3 feature set, including static and RIP routing, Access OSPF, and robust QoS, provides the flexibility needed to build a modern, adaptable network without requiring additional software licenses. Designed for operational simplicity, the Aruba 2930F series supports zero-touch provisioning and can be managed through multiple platforms, including the cloud-based Aruba Central for streamlined remote site setup. Its 1U rack-mountable form factor and fixed configuration of 48 Gigabit Ethernet ports and 4 SFP uplinks offer a cost-effective and powerful solution for creating a reliable and future-ready network foundation.

Key Features

  • High-performance Layer 3 with VSF 8-member stacking.
  • Static, RIP, and Access OSPF routing for scalability.
  • Manageable via Aruba Central, AirWave, or ClearPass.
  • 48x Gig-T ports and 4x 1GbE SFP ports for uplinks.
  • Zero Touch Provisioning for rapid, simple deployment.

Specifications

SpecificationValue
Brand HPE
Part Number JL260A#ABA
Product Type Layer 3 Access Switch
Network Ports 48 x 10/100/1000 RJ-45
Uplink Ports 4 x 1G SFP
Switching Capacity 104 Gbps
Throughput Up to 77.4 Mpps
Processor Dual Core ARM Cortex A9 @ 1016 MHz
Memory 1 GB DDR3 SDRAM, 4 GB eMMC
MAC Address Table Size 32,768 entries
Latency < 3.8 µs (1000Mb)
Height 1.73 in
Width 17.42 in
Depth 9.70 in
