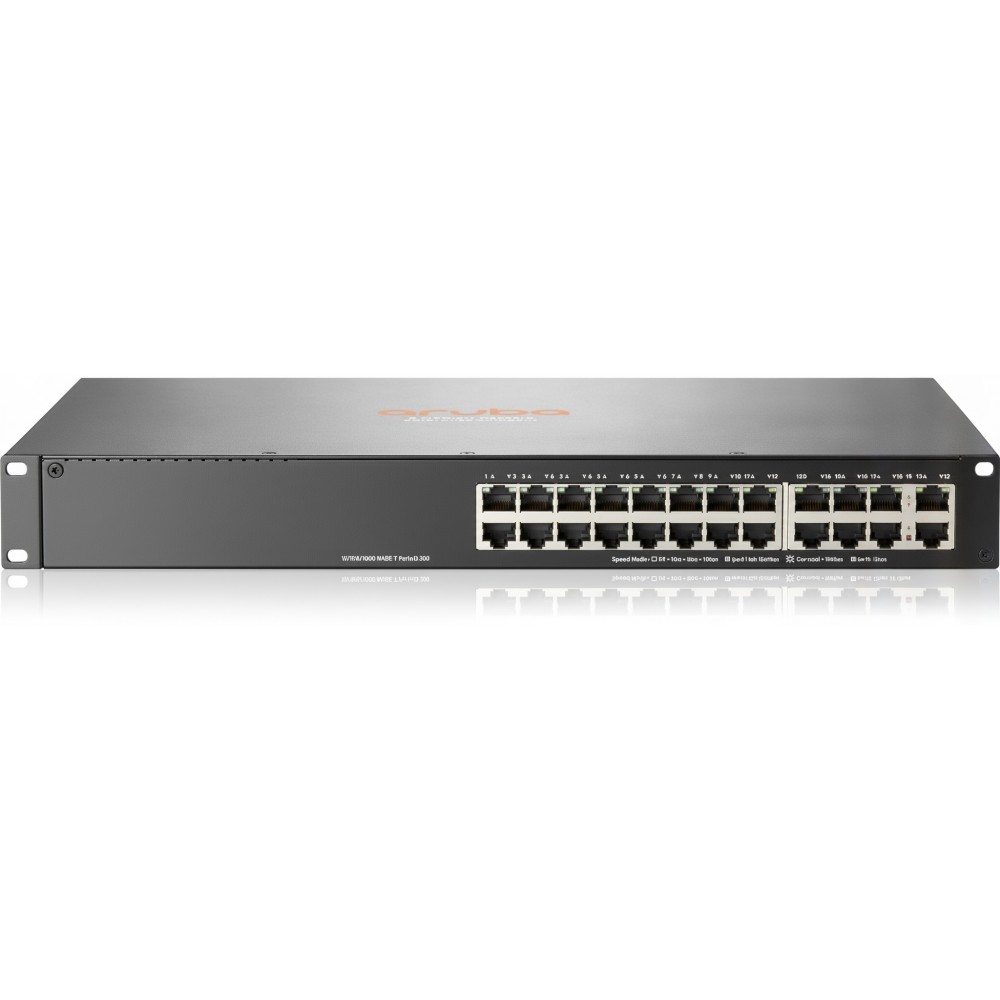

HPE JL253A ABA Aruba 2930F managed Ethernet switch 24 ports

JL253A#ABA

New

Reliable Layer 3 managed switch with 24 Gigabit Ethernet PoE+ ports and 4 SFP+ uplinks
×




Detailed Specifications

HPE JL253A ABA

Aruba 2930F managed Ethernet switch 24 ports

An enterprise-class Layer 3 switch with PoE+ capabilities and advanced routing, designed for campus edges, SMBs, and branch offices.

Overview :

The HPE Aruba 2930F 24G PoE+ 4SFP+ switch (JL253A#ABA) delivers enterprise-class Layer 3 switching performance with comprehensive network management and security features. Designed for enterprise edges, SMBs, and branch offices, it offers 24 PoE+ Gigabit Ethernet ports to power network devices like IP phones and wireless access points, plus 4 SFP+ uplink ports for high-speed connections. The switch supports advanced routing protocols, robust QoS, and integrated security to accommodate growing network demands.

Features :

Featuring a powerful Aruba ProVision ASIC with a dual-core ARM Cortex processor, the 2930F switch provides high throughput and low latency ideal for mobile and cloud-centric environments. Its extensive protocol support includes static routing, RIP, and Access OSPF, complemented by advanced security policies with Aruba ClearPass Policy Manager. The switch integrates with Aruba AirWave for comprehensive network monitoring and management. The 370W PoE power budget and four 10GbE uplinks support a range of connected devices and high-speed aggregation scenarios. Its compact 1U form factor fits easily in racks, while the dual-personality console port offers flexible management options.

Product Key Features

Reliability & Performance :

With a switching capacity of 128 Gbps and forwarding of up to 95.2 million packets per second, the Aruba 2930F ensures stable, efficient network performance under heavy loads. The product benefits from Aruba’s limited lifetime warranty and popular network management tools, ensuring ongoing reliability and smooth operation.

Key Features :

Specifications :

SpecificationDetails
Model Number JL253A#ABA
Product Name Aruba 2930F 24G PoE+ 4SFP+ Switch
Type Layer 3 Managed Ethernet Switch
Port Count 24 x 10/100/1000 PoE+ RJ-45, 4 x 1/10G SFP+
PoE Power Budget 370 Watts
Switching Capacity 128 Gbps
Forwarding Rate 95.2 Mpps
CPU Dual-core ARM Cortex 1.016 GHz
Dimensions (HxWxD) 4.39" x 17.42" x 11.98" (111.5 x 442.5 x 304.2 mm)
Console Port RJ-45 or USB micro-B dual personality
