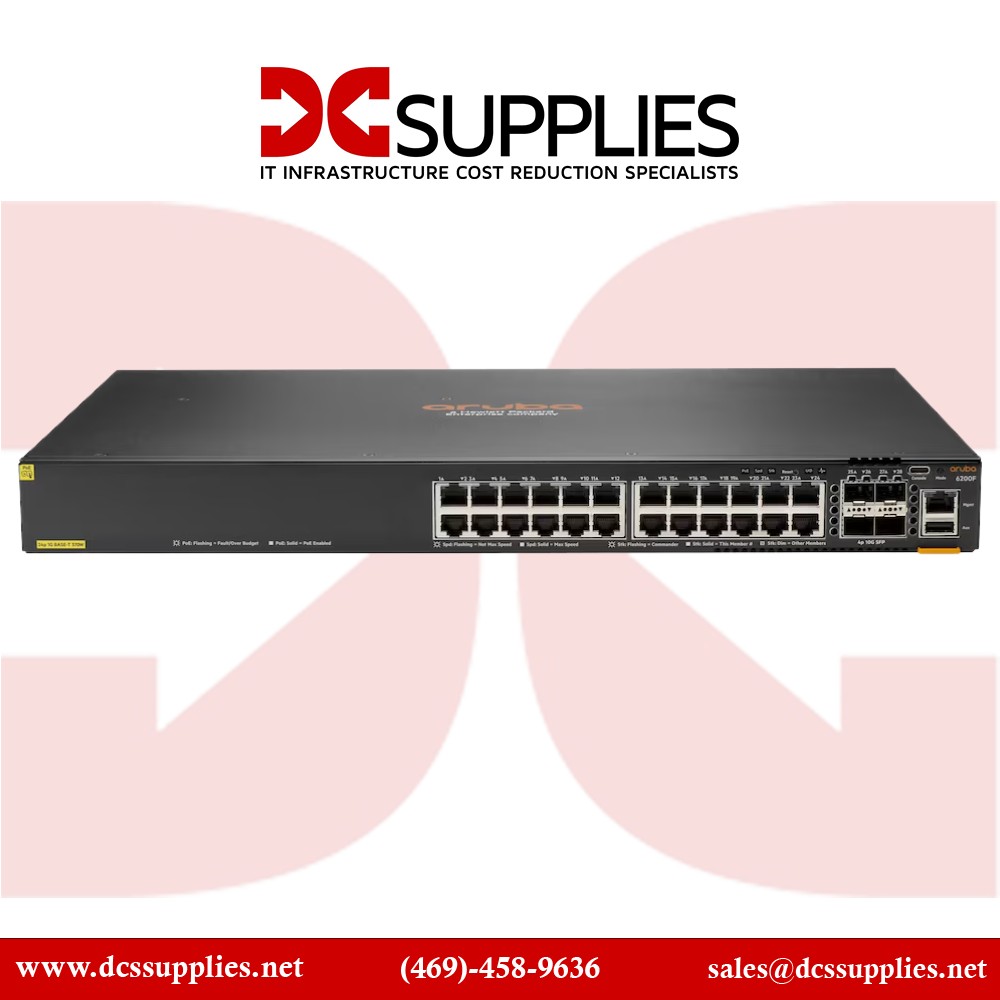

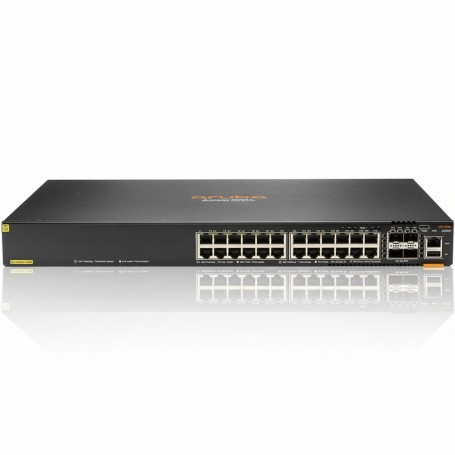

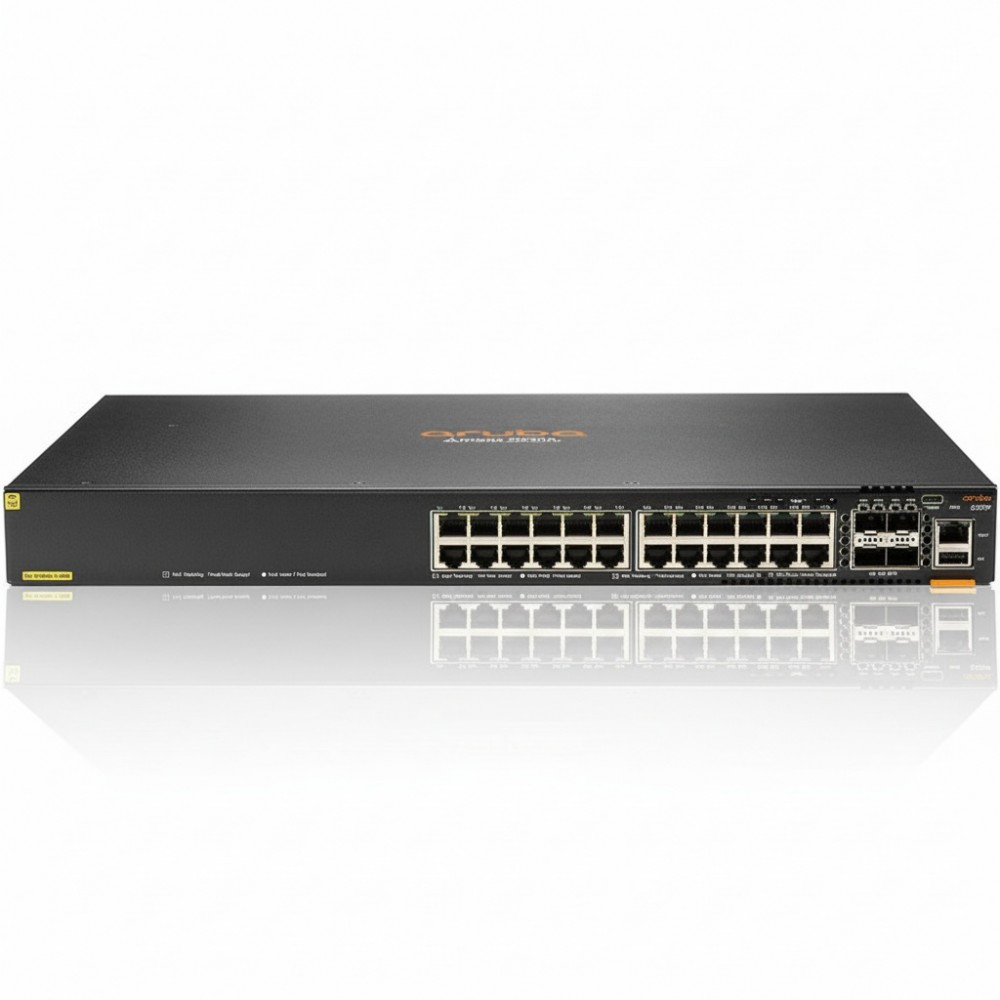

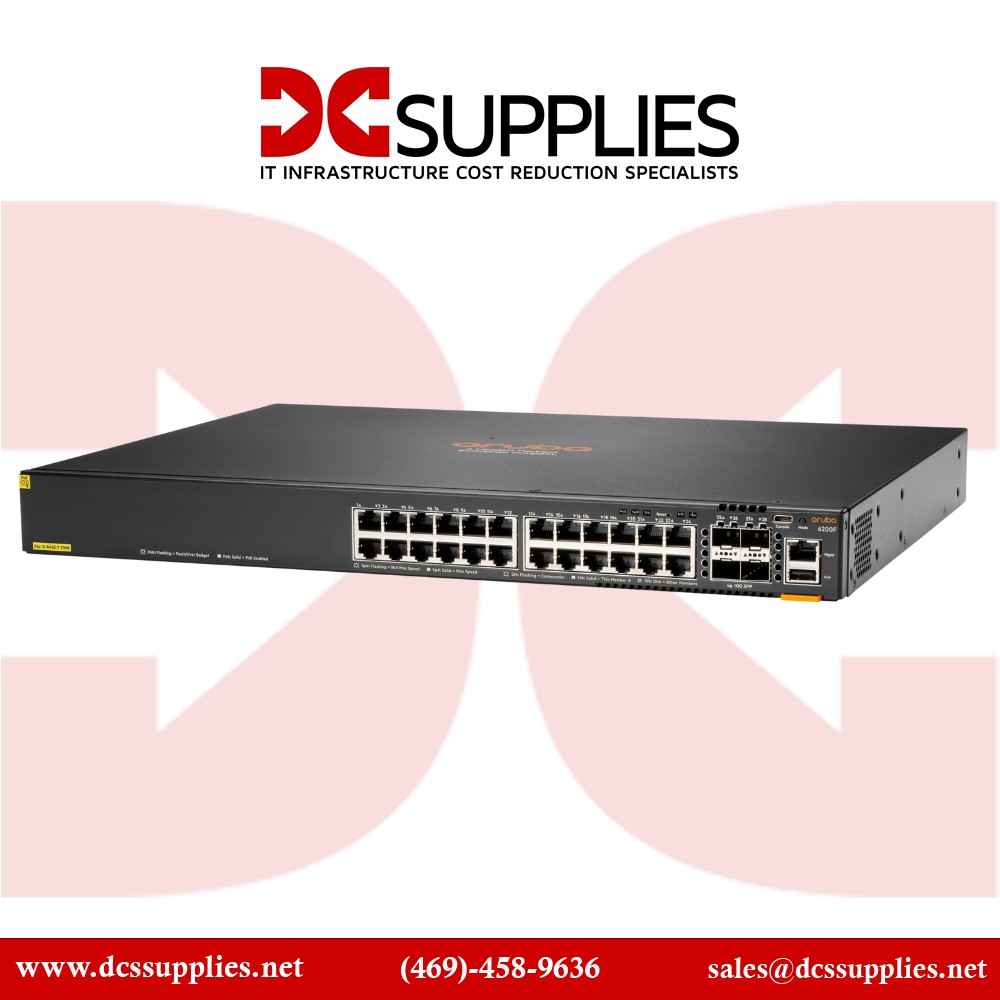

HPE JL725B ABA Aruba 6200F 24G Class4 PoE Ethernet switch 24 ports

JL725B#ABA

New

Managed Layer 3 switch with 24 Gigabit PoE+ Ethernet ports
×




Detailed Specifications

HPE JL725B ABA

Aruba 6200F 24G Class4 PoE Ethernet switch 24 ports

A reliable and scalable Layer 3 managed switch with PoE+ ports, ideal for enterprise branch offices and SMB networks.

Overview :

The HPE Aruba CX 6200F 24G Class 4 PoE switch (JL725B#ABA) offers enterprise-grade Layer 3 switching with 24 Gigabit PoE+ ports and 4 high-speed SFP+ uplinks. It delivers robust performance and flexible connectivity ideal for the needs of branch, campus, and SMB networks. Built on an ARM Cortex A72 CPU platform and running ArubaOS-CX, the switch supports industry-standard protocols and advanced network automation features.

Features :

With a switching capacity of 128 Gbps and a forwarding rate of 95.2 Mpps, the CX 6200F provides efficient traffic handling and low latency. The device supports rich routing protocols like OSPF and RIP to enable flexible Layer 3 network design. PoE+ Class 4 ports supply up to 30W per port with a total of 370W, accommodating power-hungry devices such as wireless access points and VoIP phones. VSF stacking enables up to 8 switches to be managed as a single logical unit, enhancing scalability and simplifying network operations. The switch features multiple console and management ports as well as Aruba’s analytics tools for enhanced visibility and troubleshooting. Front and side-to-back airflow ensures reliable cooling even in dense rack configurations.

Product Key Features

Reliability & Performance :

Powered by a quad-core ARM Cortex A72 1.8 GHz processor, the CX 6200F ensures smooth network processing and security enforcement. The switch operates quietly with efficient cooling, delivering consistent uptime and performance. Aruba provides a limited lifetime warranty for this product, suitable for enterprise-grade network deployments.

Key Features :

Specifications :

SpecificationDetails
Model Number JL725B#ABA
Product Name Aruba Networking CX 6200F 24G Class 4 PoE 4 SFP+ Switch
Type Managed Layer 3 Ethernet Switch
Port Count 24 x 10/100/1000 PoE+ RJ-45, 4 x 1/10 Gbps SFP+
PoE Power Budget 370 Watts
Switching Capacity 128 Gbps
Forwarding Rate 95.2 Mpps
CPU Quad-core ARM Cortex A72 1.8 GHz
Cooling Front and side-to-back airflow
Power Supply Fixed power supply
Stack Size Up to 8 members
Console Ports USB-C, RJ-45, OOBM
Form Factor 1U Rack-mountable
