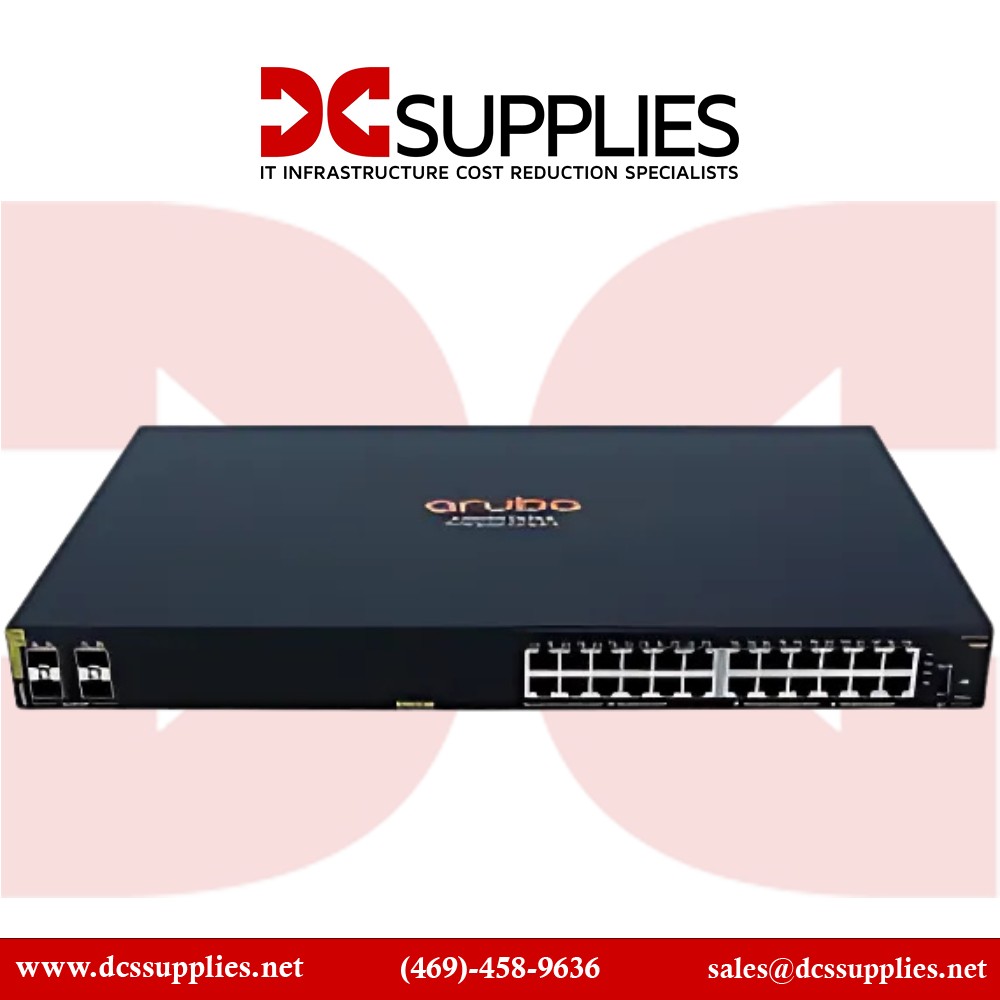

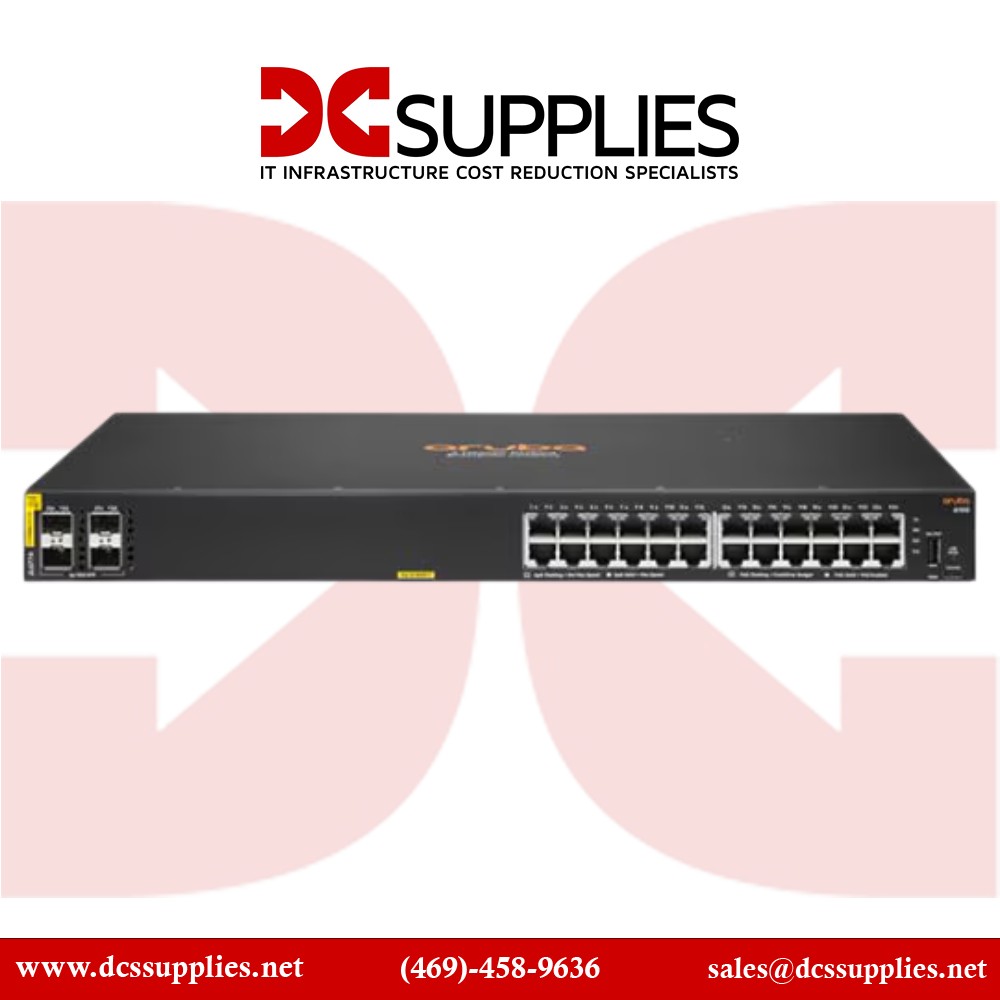

HPE Aruba JL677A ABA Networking 6100 managed Ethernet Switch 28 ports

JL677A#ABA

New

Compact 28-port PoE+ managed Layer 2 switch
×




Detailed Specifications

HPE Aruba JL677A ABA

Fanless Managed 28-Port Ethernet Switch with PoE+

Entry-level managed Layer 2 switch optimized for quiet office environments.

Overview :

The HPE Aruba 6100 24G Class4 PoE 4SFP+ switch (JL677A#ABA) is an entry-level managed Layer 2 Ethernet switch optimized for enterprise branch offices, SMBs, and IoT deployments. It provides 24 PoE+ Gigabit RJ-45 ports to power edge devices such as wireless access points, cameras, and phones, along with 4 high-speed 10G SFP+ uplinks for flexible connectivity. Its compact, fanless design makes it ideal for quiet spaces while delivering reliable, secure wired networks..

Features :

Built on Aruba’s advanced ASIC architecture and programmable AOS-CX operating system, the 6100 series combines hardware performance with modern, simplified network management. This switch supports Layer 2 connectivity with ACLs, static routing, and robust QoS, enabling efficient traffic prioritization and security for business-critical applications. With a 370W Class 4 PoE budget, the switch simplifies deployments of powered devices such as IP phones and cameras, supporting the growing needs in IoT and mobile offices. The 4 SFP+ uplinks enable seamless high-speed connectivity to aggregation or core switches, ensuring scalable network expansion..

Product Key Features

Reliability & Performance :

The fanless compact design ensures noise-free operation without compromising on airflow or device longevity. Aruba’s ASIC technology provides low latency and increased packet buffering for smooth network performance. The switch’s power-efficient design minimizes energy use while delivering up to 370W of PoE to support multiple powered edge devices simultaneously. Aruba backs the switch with a lifetime warranty and no software licensing fees, providing enterprise reliability and cost-effectiveness..

Key Features :

Specifications :

SpecificationDetails
Model Number JL677A#ABA
Product Name Aruba 6100 24G Class4 PoE 4SFP+ Switch
Type Managed Layer 2 Ethernet Switch
Port Count 24 x 10/100/1000BASE-T PoE+ RJ-45, 4 x 1G/10G SFP+
PoE Standards Supported IEEE 802.3af, 802.3at Class 4
PoE Power Budget Up to 370 Watts
Network Technology Gigabit Ethernet, 10 Gigabit Ethernet
Switching Capacity 128 Gbps
Form Factor 1U Rack-mountable
Power Consumption Approx. 33 Watts
Cooling Fanless
Dimensions (HxWxD) 1.7" x 17.4" x 10.6" (43.18 x 441 x 269 mm)
Weight Approx. 7.3 lbs (3.31 kg)
Management Aruba Central, CLI, Web GUI
