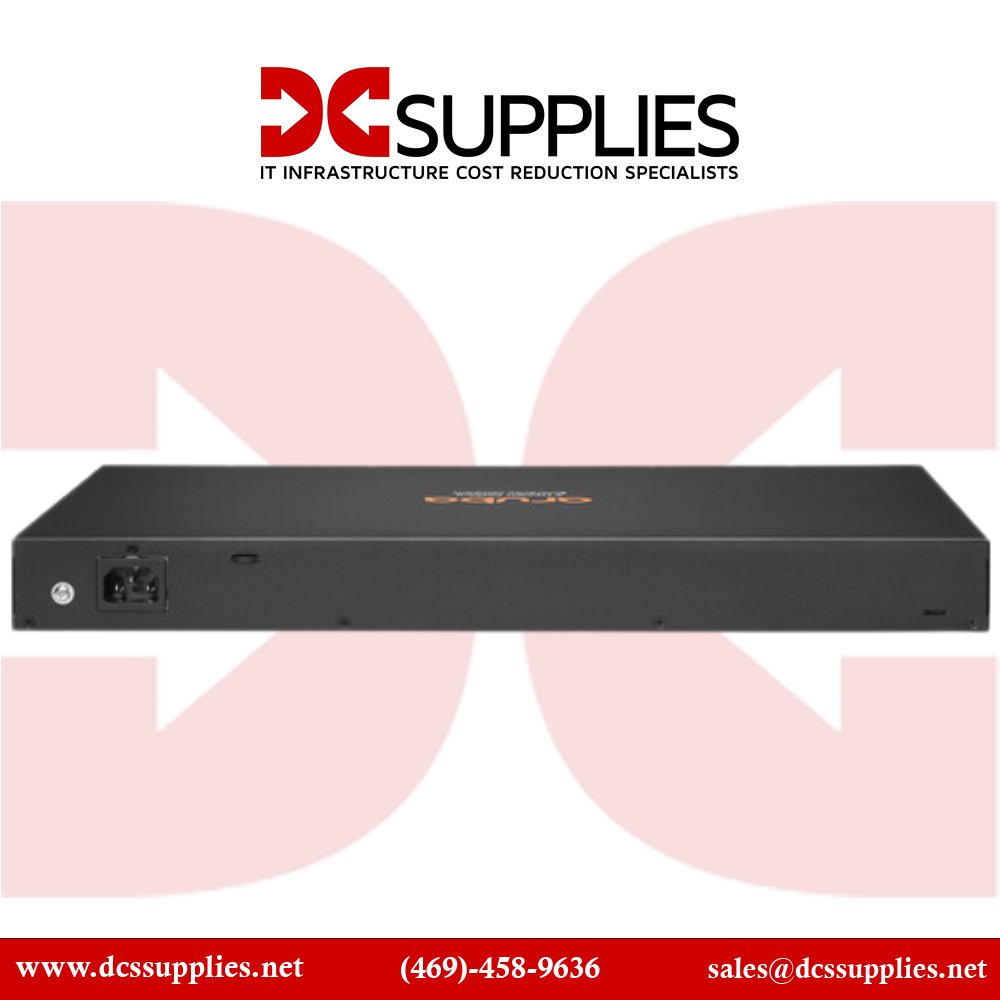

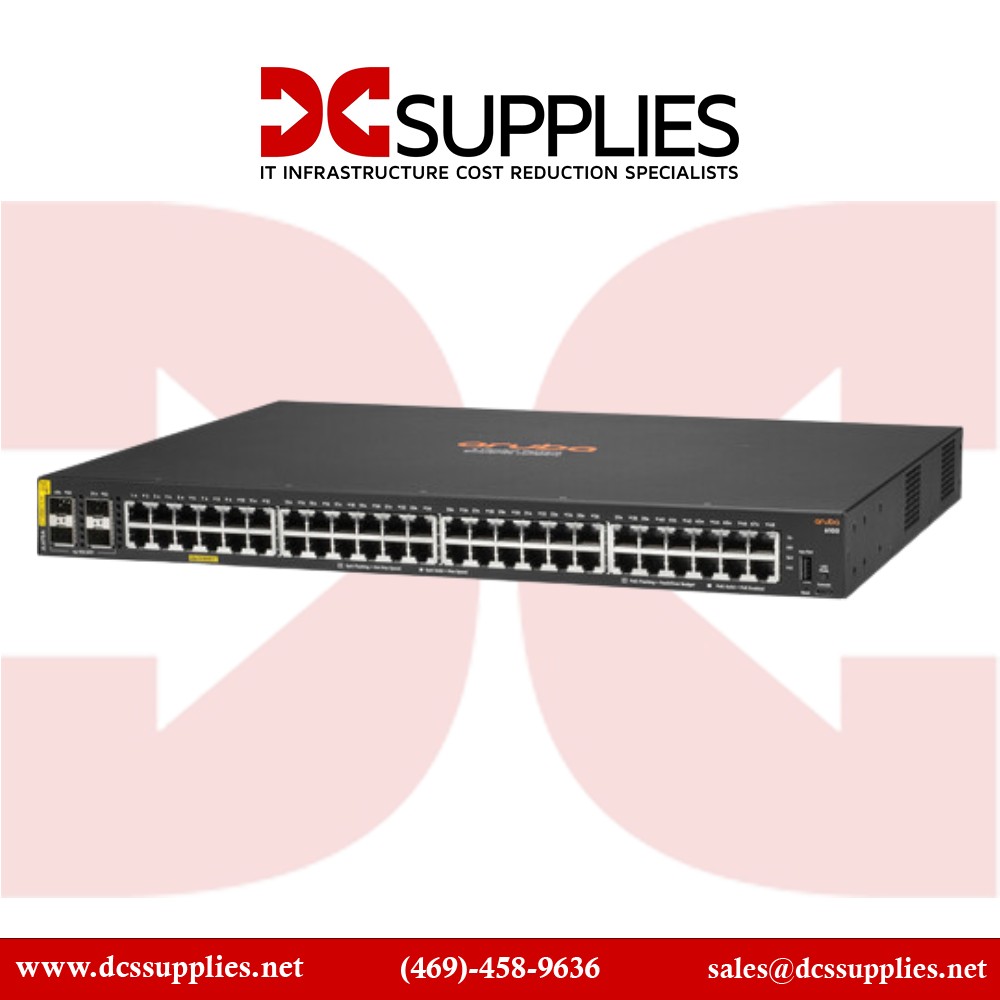

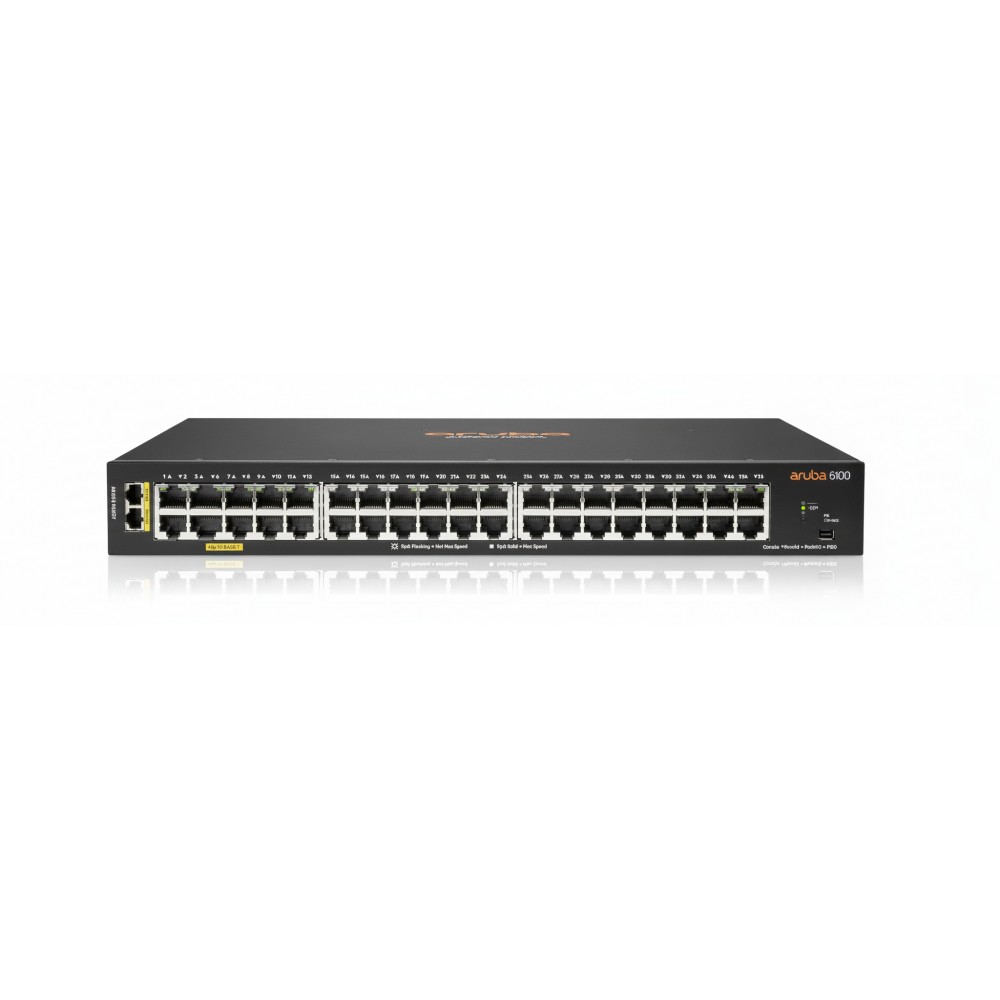

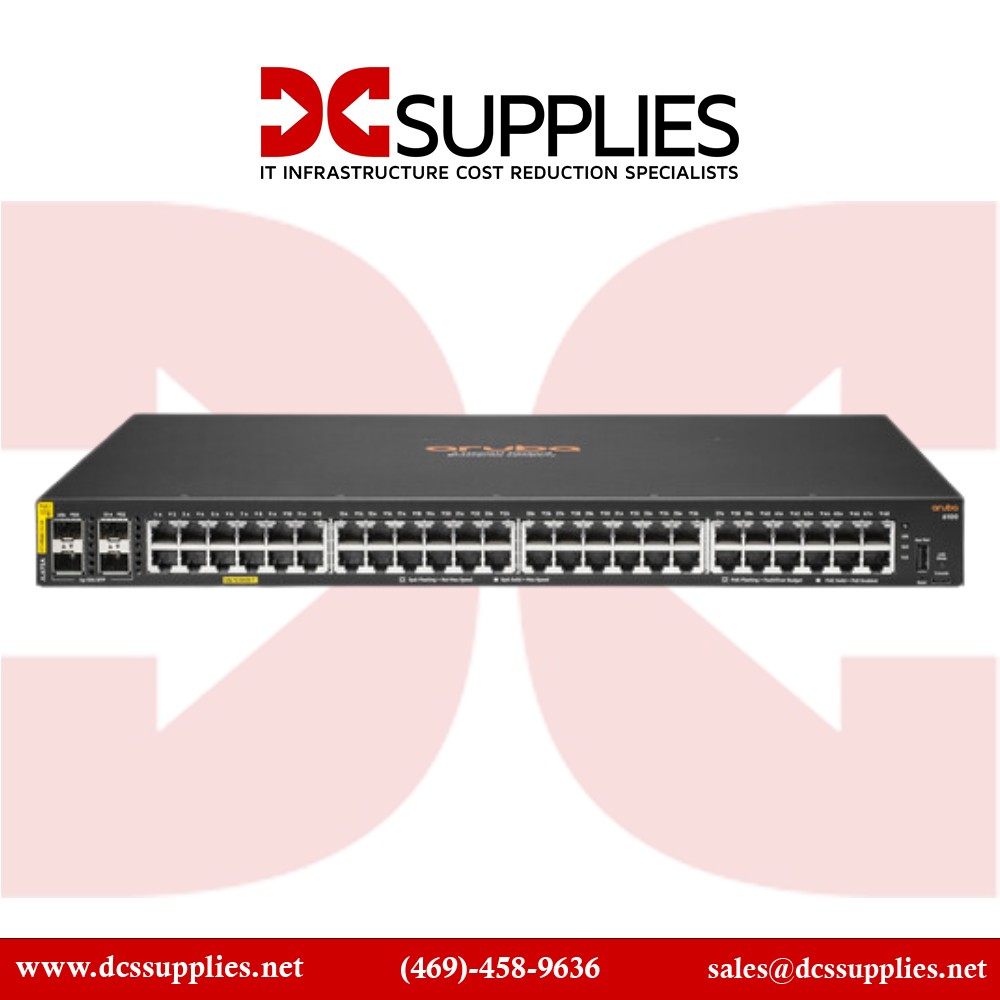

HPE JL675A ABA managed rack mountable Ethernet switch 32 ports

JL675A#ABA

New

Enterprise-grade 48-port Gigabit PoE+ Layer 3 switch
×




Detailed Specifications

HPE Aruba JL675A ABA

Managed Rack-Mountable Ethernet Switch with 32 Ports

High-performance managed PoE switch for enterprise networks.

Overview :

The HPE Aruba 6100 48G Class4 PoE switch is designed to deliver enterprise-grade network connectivity for branch offices and mid-market businesses. It provides 48 Gigabit PoE+ ports to power network devices such as wireless access points and IP cameras, along with 4 high-speed 10G SFP+ uplink ports. This manageable Layer 3 switch offers scalability, reliability, and security for modern distributed IT environments..

Features :

Built on Aruba's ASIC architecture and running the AOS-CX operating system, the 6100 series combines powerful hardware with intelligent software to ensure consistent network performance. The switch supports standard Layer 2 features alongside robust Layer 3 capabilities like static routing and IPv6 to meet growing enterprise networking demands. With a PoE budget of up to 370W, this switch can power multiple high-demand devices simultaneously, simplifying deployments for digital workplaces and IoT applications. Its 48 RJ-45 ports provide versatile connectivity options suitable for wired network access in various environments..

Product Key Features

Reliability & Performance :

The HPE Aruba 6100 switch is designed for continuous, reliable operation in business-critical networks. Its fixed power supply and fan design deliver energy-efficient cooling while ensuring operational stability. The switch supports advanced QoS and security protocols to optimize network traffic flow and protect against threats. Aruba’s lifetime warranty coupled with no software licensing fees enhances its cost-effectiveness over time..

Key Features :

Specifications :

SpecificationDetails
Model Number JL675A#ABA
Product Name Aruba 6100 48G Class4 PoE 4SFP+ Switch
Brand HPE
Type Managed Layer 3 Ethernet Switch
Port Count 48 x 10/100/1000BASE-T PoE RJ-45, 4 x 1G/10G SFP+
PoE Standards Supported IEEE 802.3af, 802.3at
PoE Power Budget Up to 370 Watts
Network Technology Gigabit Ethernet, 10 Gigabit Ethernet
Switching Capacity 176 Gbps
Form Factor 1U Rack-mountable
Power Consumption Approximately 45 Watts
Cooling Fixed fans
Dimensions (HxWxD) 1.7" x 17.4" x 12" (43.18 mm x 441 mm x 304.8 mm)
Weight Approx. 10 lbs (4.54 kg)
Management CLI, Web GUI, Aruba Central Cloud
