Detailed Specifications

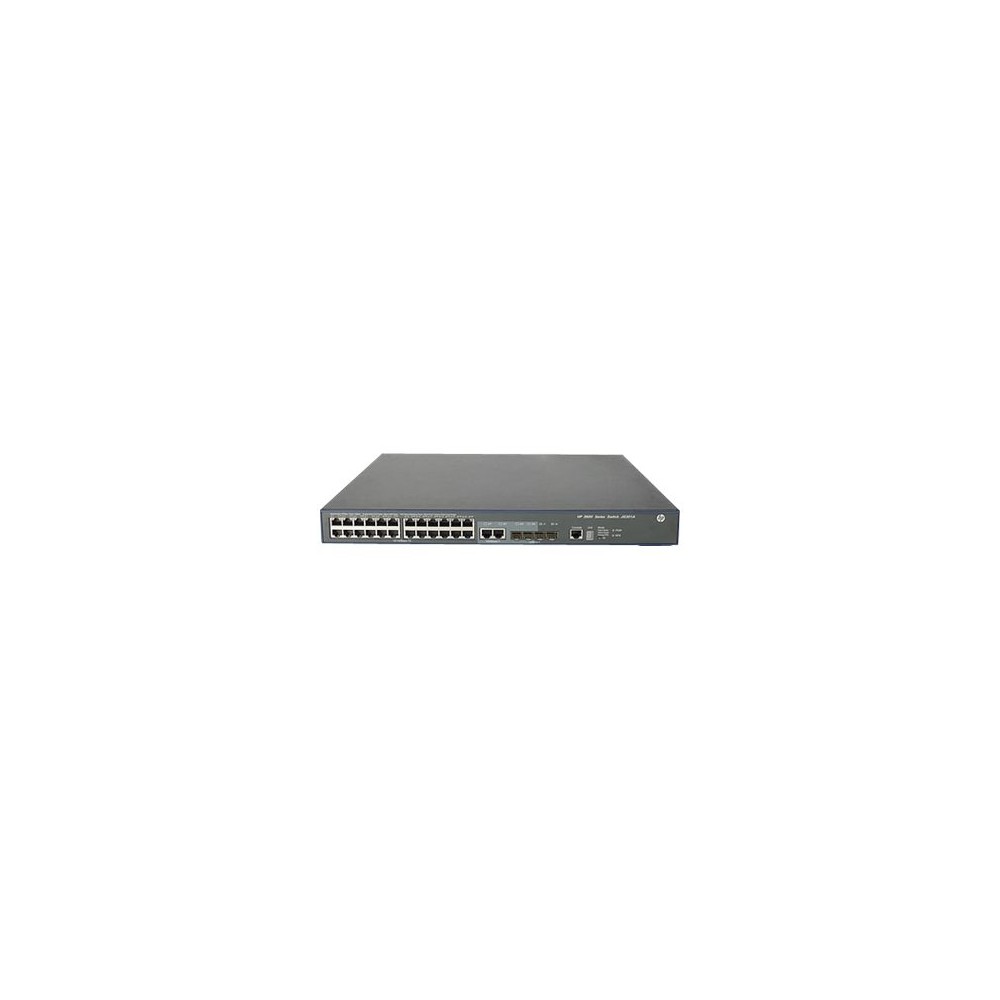

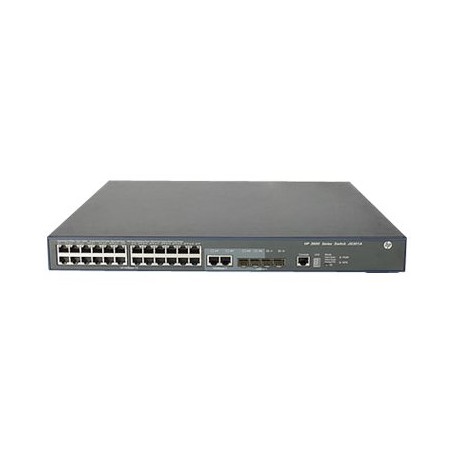

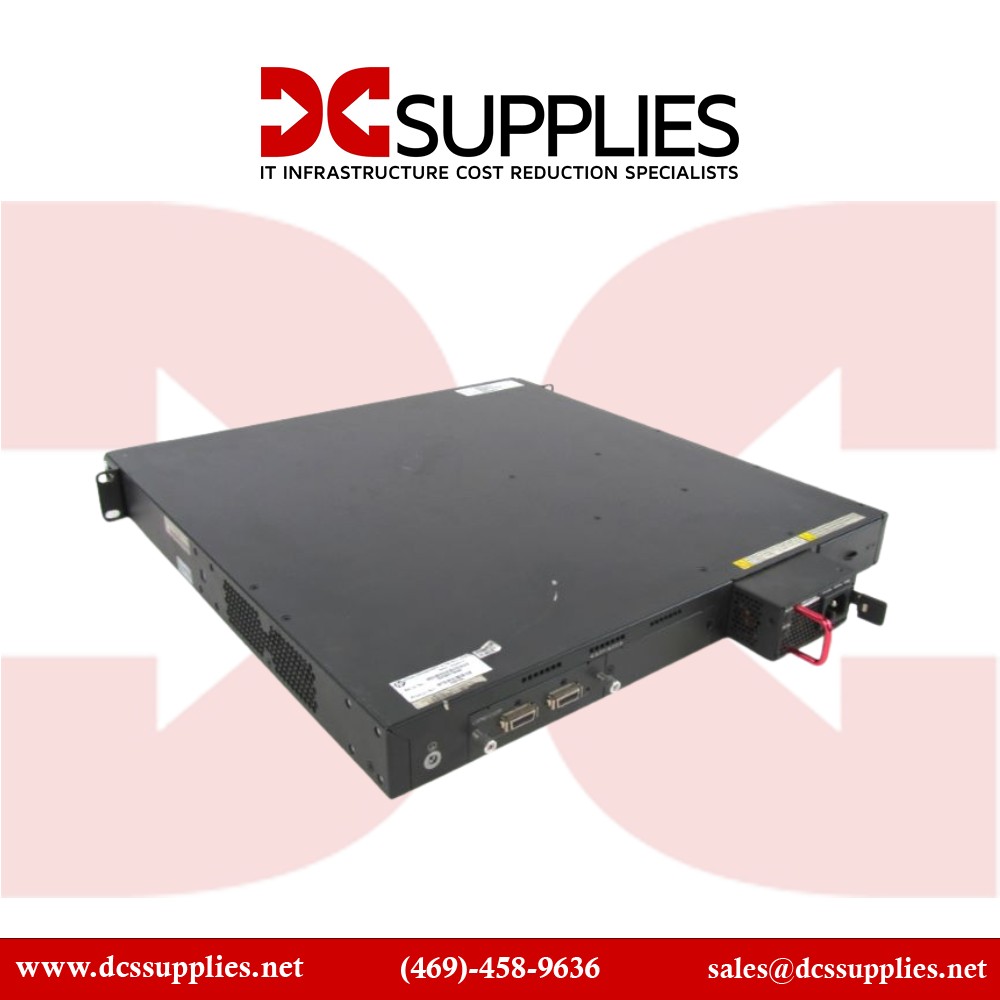

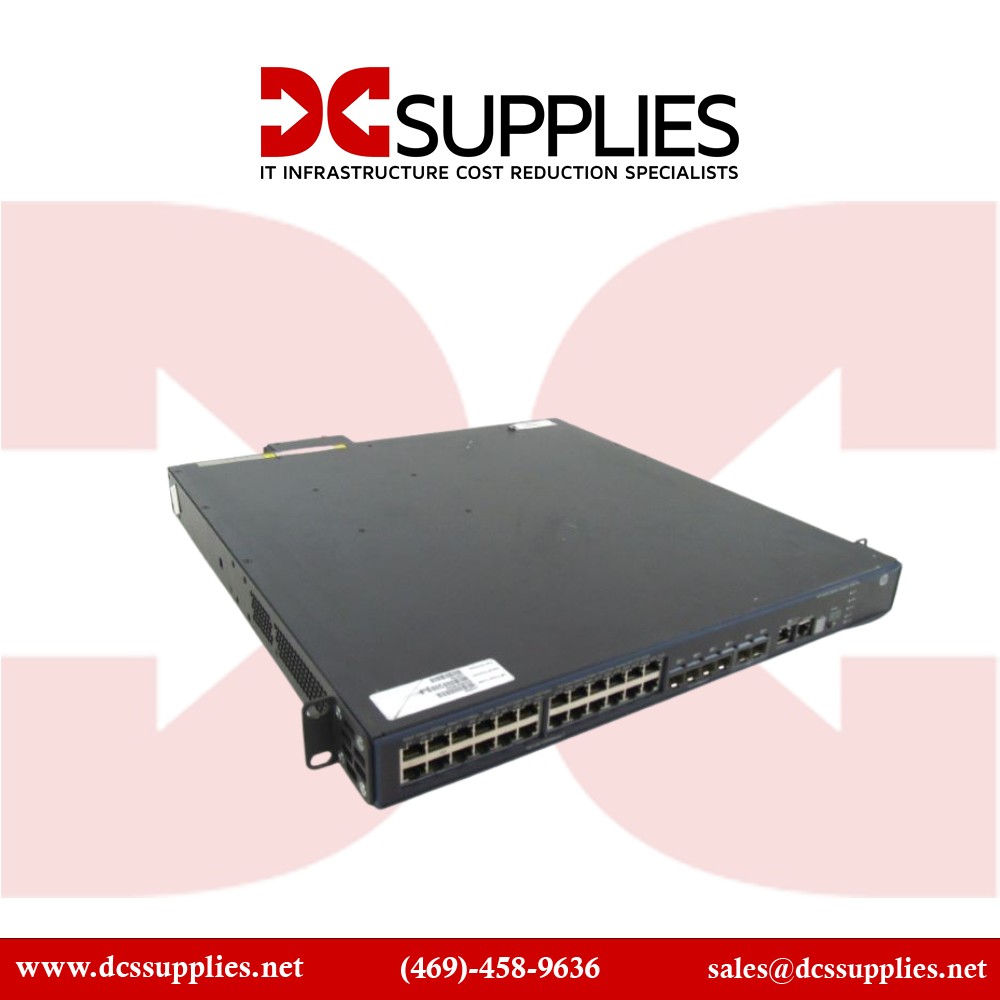

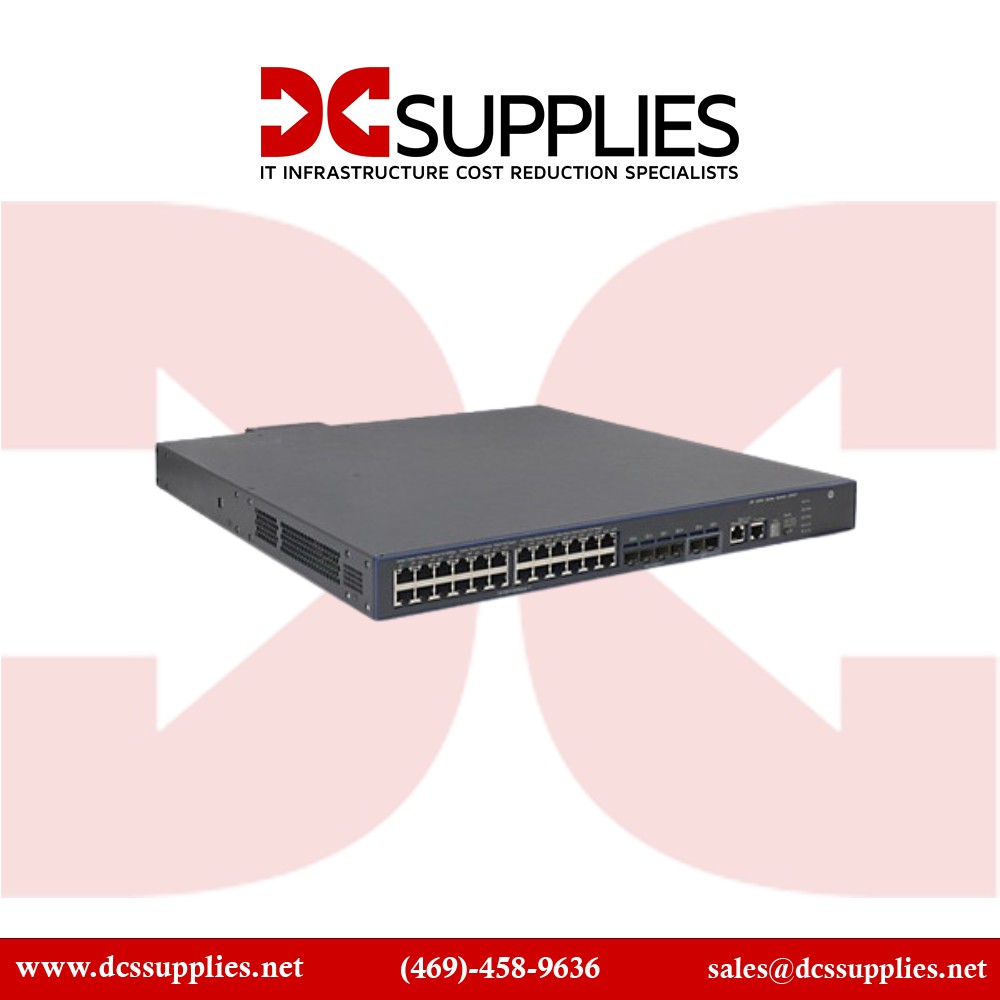

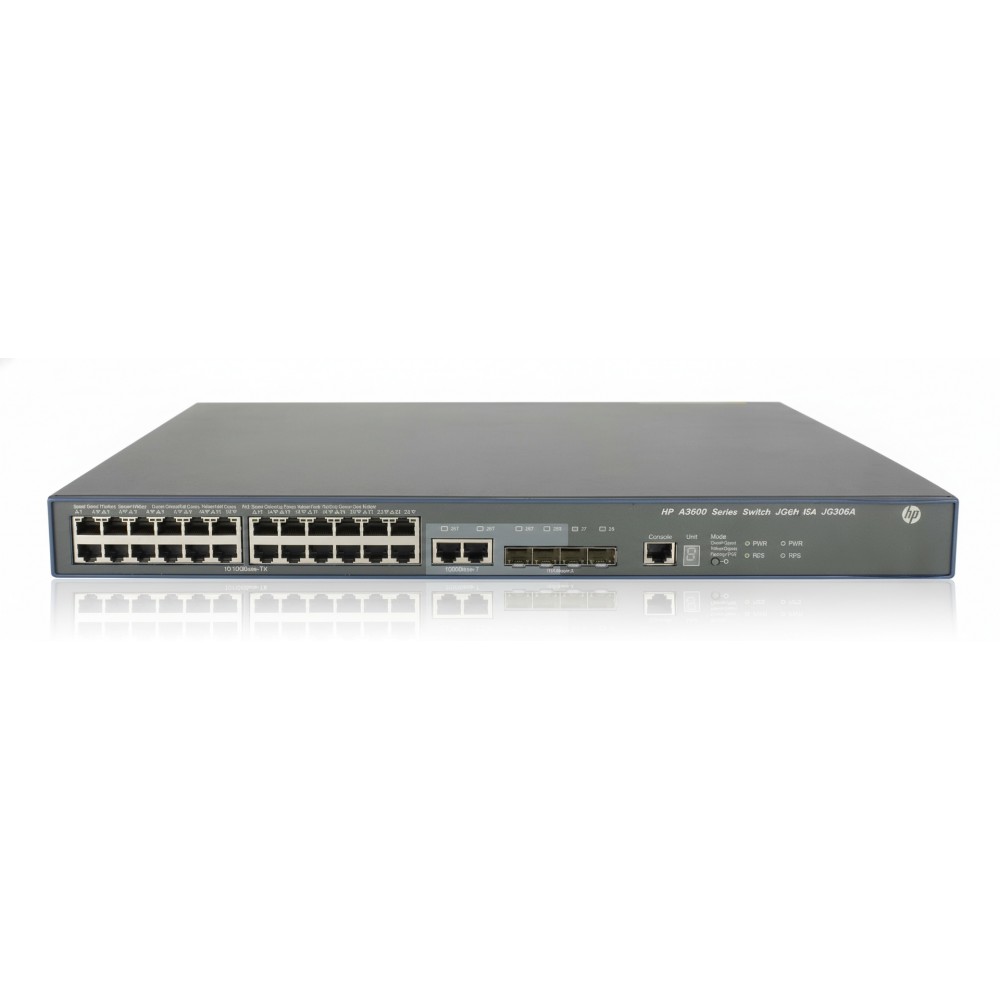

HPE JG306A 3600-24-PoE+ v2 SI Managed Switch
Overview
The HPE JG306A is a managed switch built for small to medium business networks, offering 24 10/100Base-T PoE+ ports and 4 Gigabit SFP uplink slots, along with 2 shared Gigabit RJ-45 ports. It provides flexible PoE deployment for devices like APs and IP phones, with Layer 2+ routing support (including static IPv4/IPv6 and RIP). It's designed for resilient edge or access-layer infrastructures, supporting advanced security and QoS. The chassis is rack-mountable (1U) and integrates power redundancy options.
Key Features
24 × 10/100 PoE+ RJ-45 ports
4 × 1 Gb SFP uplink ports + 2 shared 1 Gb RJ-45/SFP
Layer-2+ features: Static IPv4/IPv6 routing, RIP, ACLs
QoS shaping and traffic prioritization
Advanced security: 802.1X, RADIUS, TACACS+
9K-byte jumbo-frame support
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | JG306A |
| Product Type | Managed PoE+ Switch |
| Access Ports | 24 × 10/100Base-T (PoE+) |
| Uplink Ports | 4 × 1 Gb SFP + 2 × Shared 1 Gb RJ-45/SFP |
| Switching Capacity | 12.8 Gb/s |
| Forwarding Rate | ~9.5 Mpps |
| Layer Support | L2 / L3-Lite / Layer 4 |
| MAC Address Table | 8,000 entries |
| VLANs Supported | Up to 256 VLANs |
| PoE Power Budget | ~720 W (PoE+ total) |
| Routing Protocols | Static IPv4/IPv6, RIP-1, RIP-2 |
| Jumbo Frame Support | Up to 9,216 bytes |
| Memory | 256 MB SDRAM |
| Flash | 128 MB |
| Management Interfaces | Web GUI, SNMP, CLI, RMON |
| Redundancy | Supports redundant power supply |
| Operating Temp | 0 °C to 45 °C |
| Form Factor | 1U Rack Mount |
| Dimensions | Approx. 17.3″ × 16.5″ × 1.7″ |
| Weight | ~12.1 kg |
