Detailed Specifications
HPE JC105A A5800-48G FlexFabric Layer-3 Switch
Overview

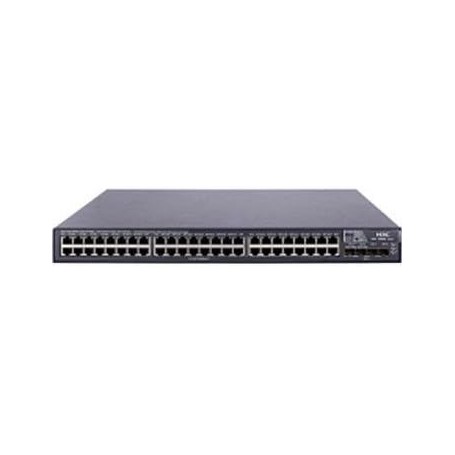

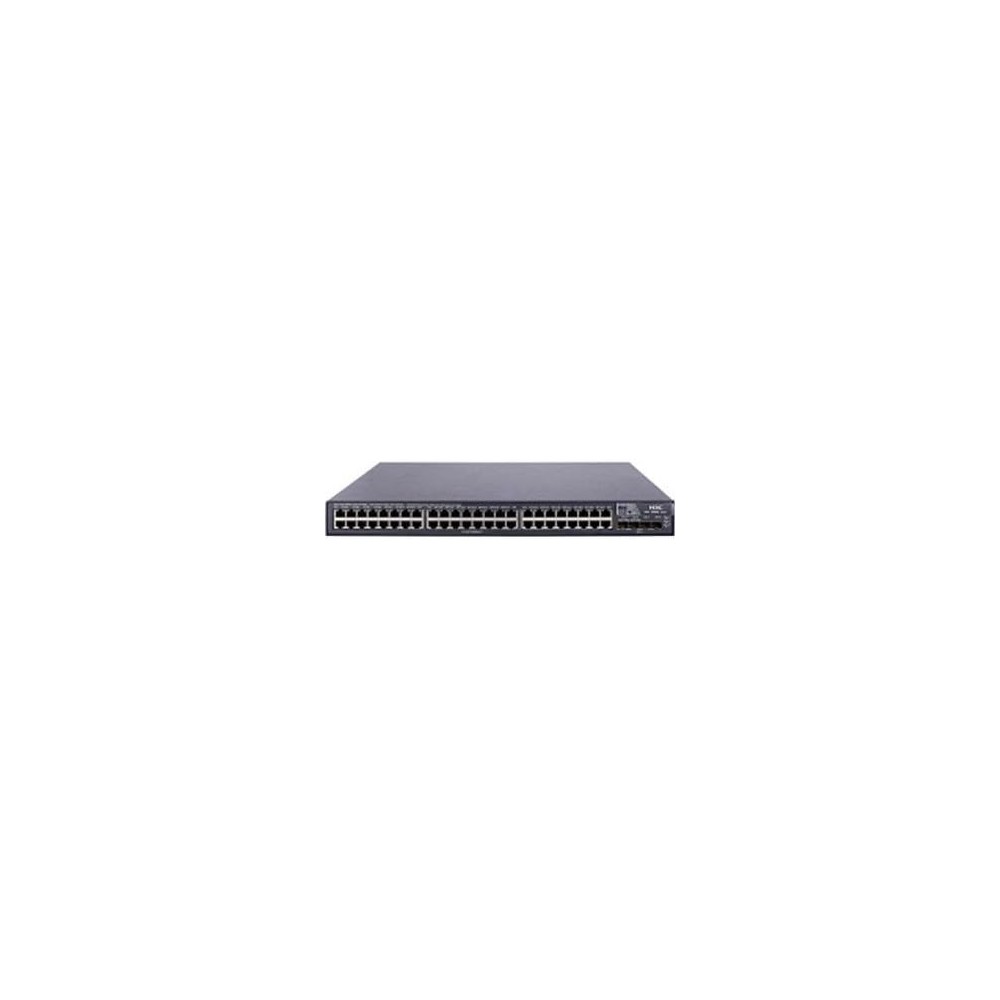

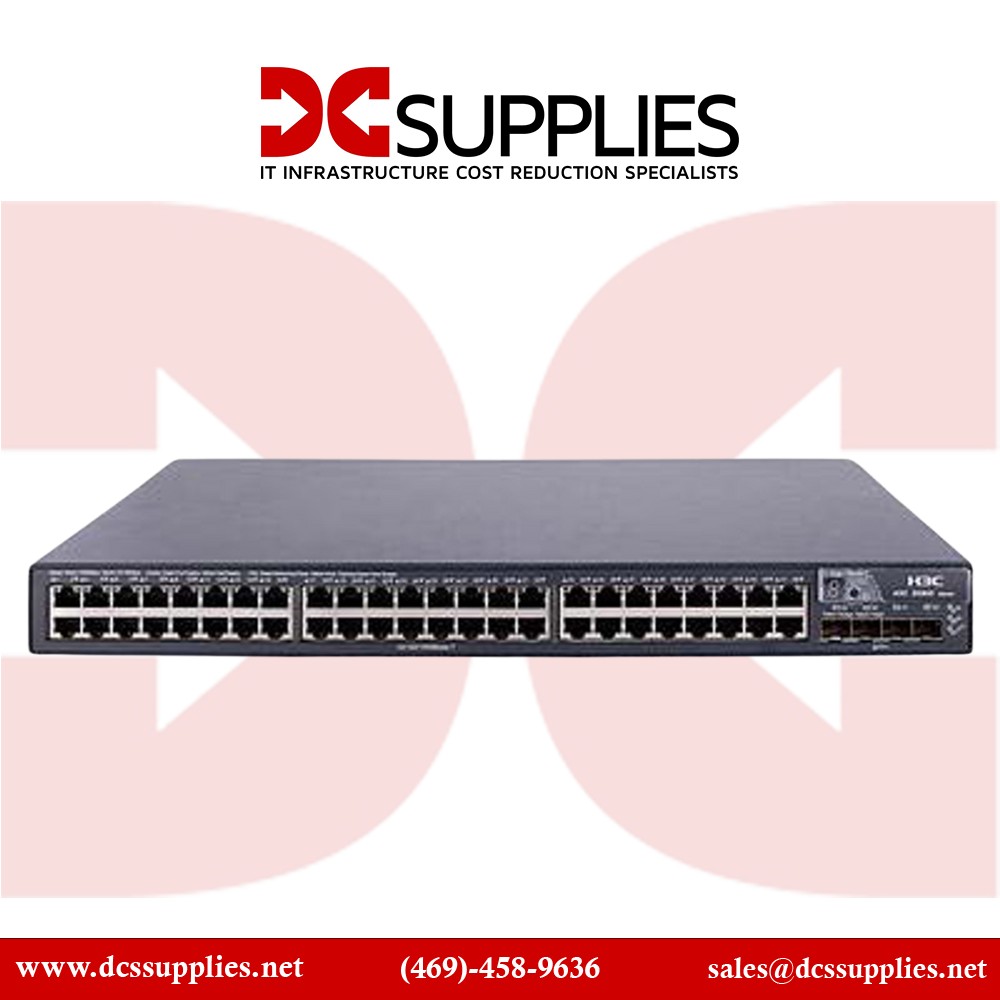

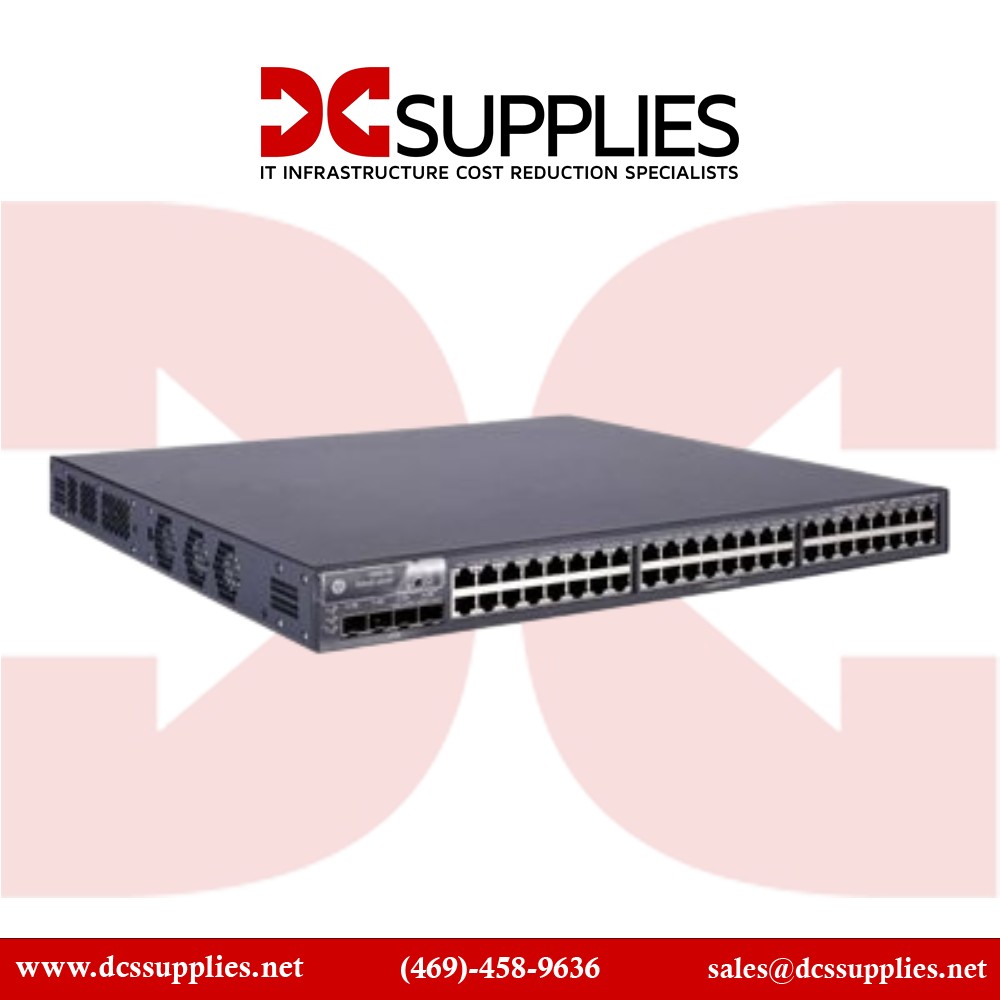

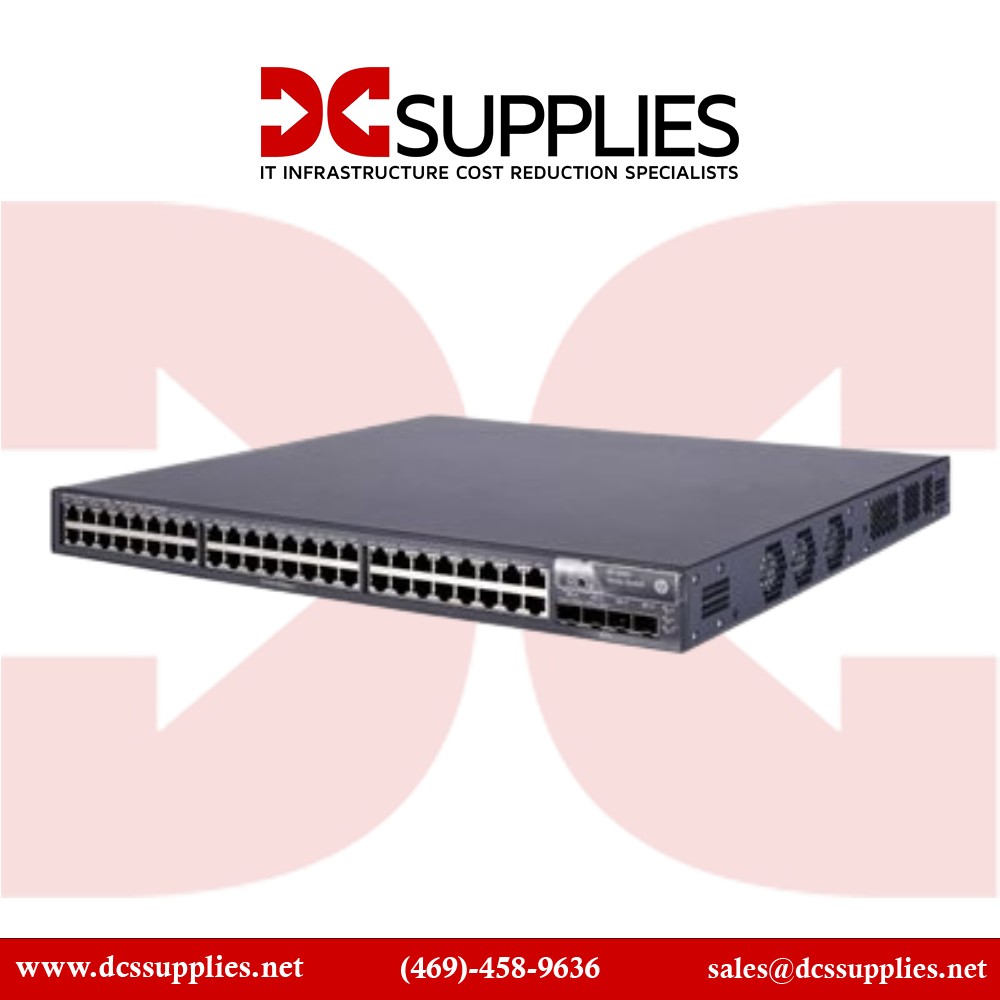

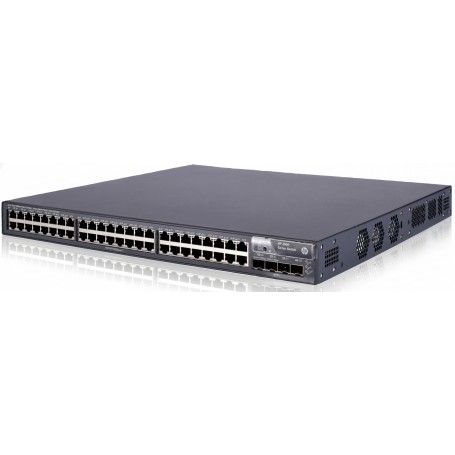

The HPE JC105A (A5800-48G) is a 1U Layer-3 managed switch optimized for enterprise networks, offering 48 Gigabit RJ-45 ports and 4 fixed 10 Gb SFP+ uplink ports. It supports IPv4/IPv6 dual-stack routing, link aggregation, ACLs, and QoS to handle converged data and voice traffic reliably. Redundant power options make it suitable for high-availability deployments. It integrates with HPE's FlexFabric architecture for simplified management and scalability.
Key Features
48 × 10/100/1000 Mb/s RJ-45 ports
4 × 10 Gb SFP+ uplink ports
Layer-3 routing: OSPF, BGP, RIP, PIM, VRRP, policy-based routing
High-performance switching: 256 Gb/s capacity, 190 Mpps forwarding
Web GUI, CLI, SNMP v1/v2c/v3 for management
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | JC105A |
| Product Type | FlexFabric Layer-3 Switch |
| Access Ports | 48 × Gigabit RJ-45 |
| Uplink Ports | 4 × 10 Gb SFP+ |
| Switching Capacity | 256 Gb/s |
| Forwarding Rate | 190 million packets per second |
| MAC Address Table | 32,000 entries |
| IPv4 Routing Table Capacity | 16,000 entries |
| Latency | ~4.02 µs for 64-byte packets (store-and-forward) |
| Memory | 1 GB SDRAM, 512 MB flash |
| Power Input | 100-240 V AC, 50/60 Hz |
| Form Factor | 1U, rack-mountable |
| Operating Temperature | 0 °C to 45 °C |
| Management Interface | Web GUI, SNMP, CLI, RMON |
