Detailed Specifications

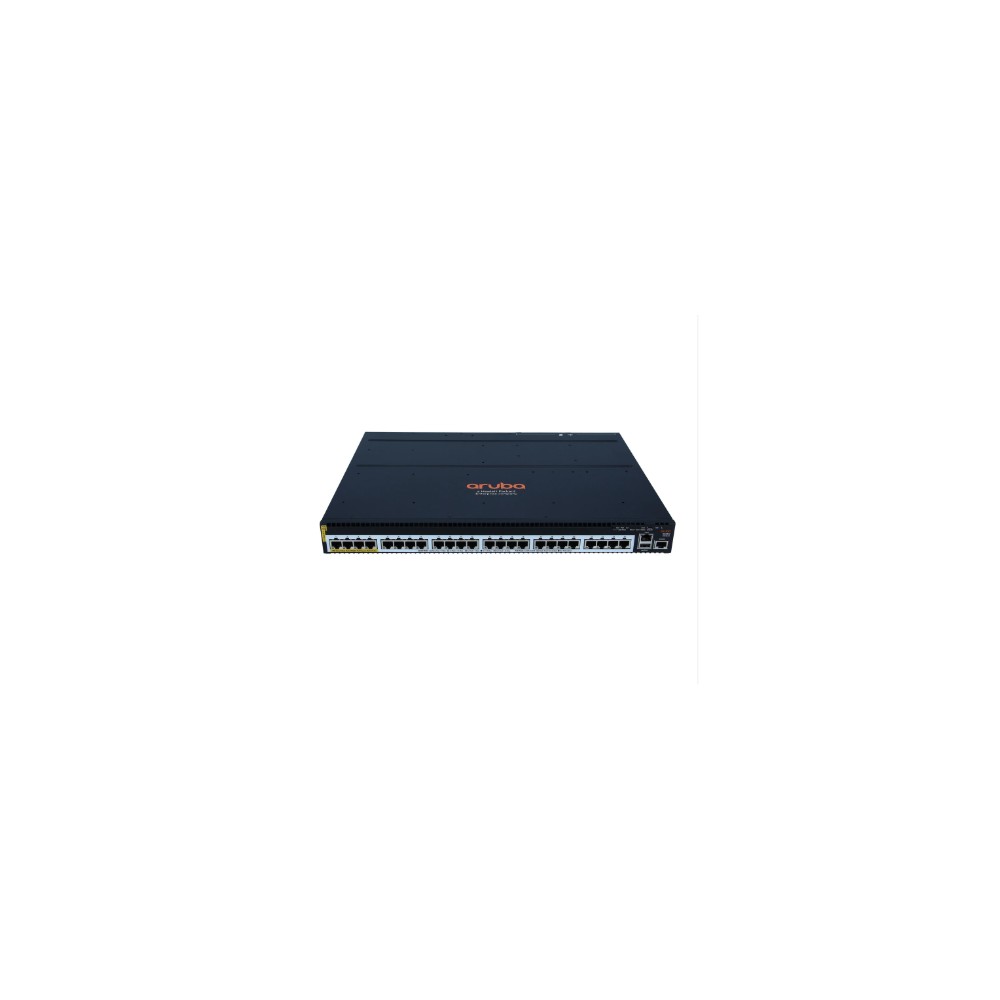

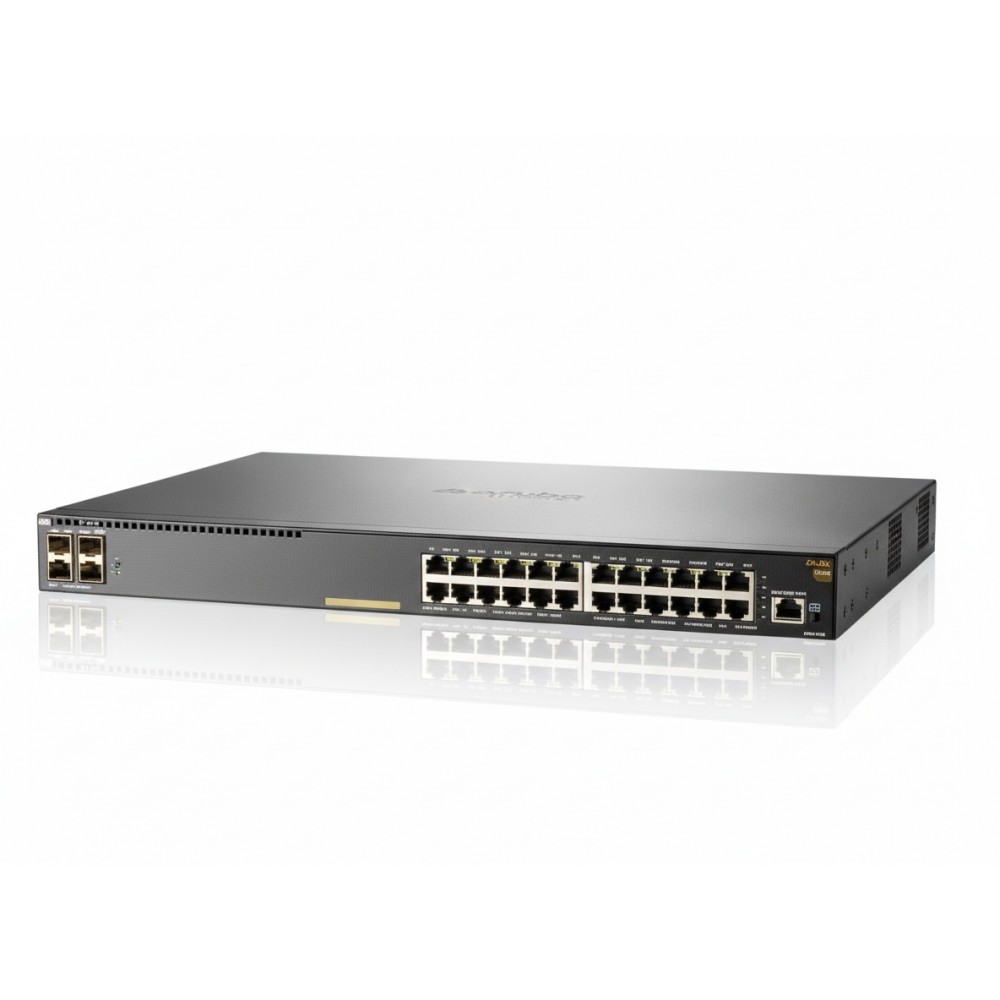

HPE R0M68-61101 Aruba 2930M 24P Smart-Rate PoE+ Switch
Overview
The HPE R0M68-61101 is a managed 1U switch in the Aruba 2930M family, providing 24 Smart-Rate PoE+ ports that support 1 / 2.5 / 5 Gb/s speeds on each access port. Designed for enterprise edge, branch, or campus deployments, it supports Layer-3 routing (static, RIP, OSPF), high PoE budget, and advanced security features. The switch integrates with Aruba's network management stack, enabling scalable deployments with dynamic segmentation and zero-touch provisioning.
Key Features
24 Smart-Rate PoE+ ports (1/2.5/5 Gb per port)
High PoE+ budget for powered devices (e.g. APs, cameras)
Layer-3 static routing, RIP, OSPF
Stackable chassis for scale-out deployments
Advanced security: ACLs, 802.1X, DHCP Snooping, etc.
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE / Aruba |
| Part Number | R0M68-61101 |
| Product Type | Managed Smart-Rate PoE+ Switch |
| Access Ports | 24 × 1/2.5/5 Gb Smart-Rate PoE+ RJ-45 |
| Uplink Options | Modular uplinks (10 / 40 Gb) |
| PoE Budget | Very high (designed for PoE+ Class-6 devices) |
| Switching Capacity | 320 Gb/s |
| Forwarding Performance | ~112 Mpps |
| Routing Protocols | Static routing, RIP, OSPF |
| VLAN / Security | VLANs, ACLs, QoS, 802.1X, DHCP Snooping |
| Management | Web GUI, CLI, SNMP, SSH |
| Stacking | Supports stacking of up to 10 units |
| Power Input | Dual AC (internal PSUs) |
| Rack-Mount | 1U standard rack form factor |
| Operating Temperature | Typical data-center range |
