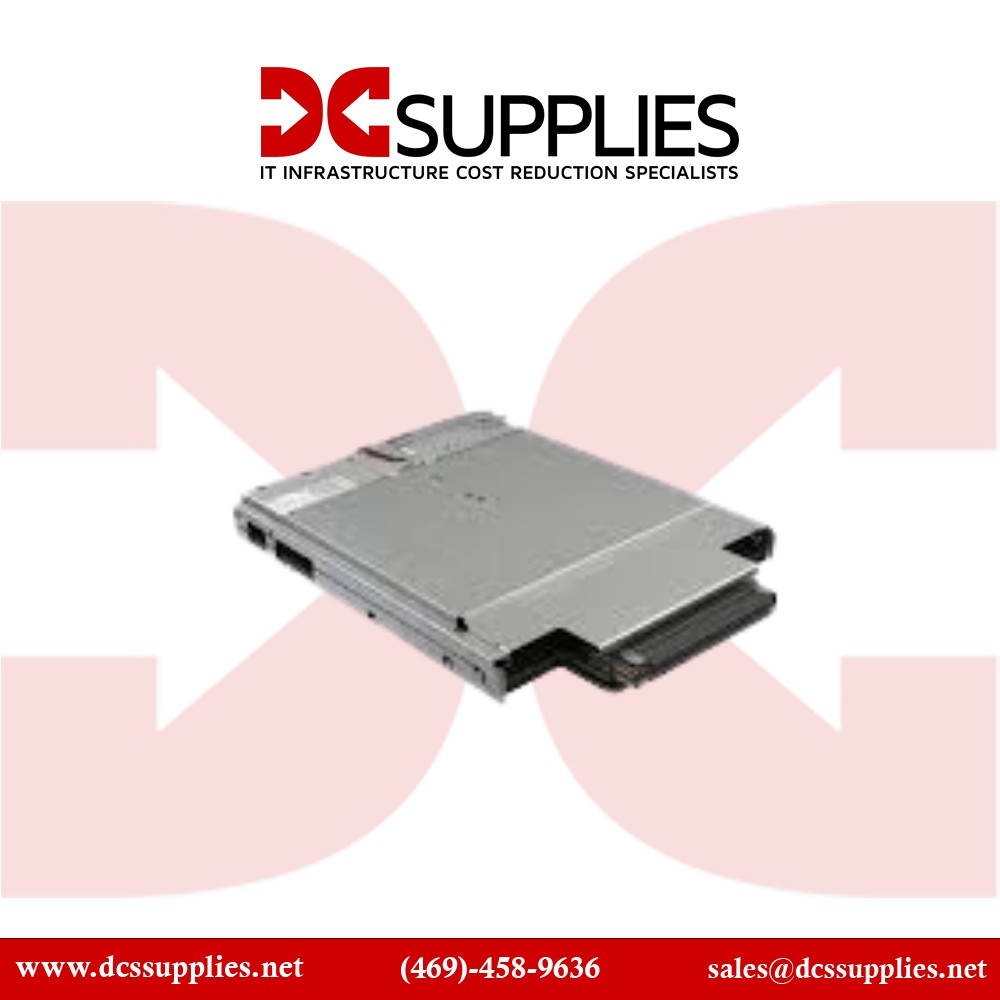

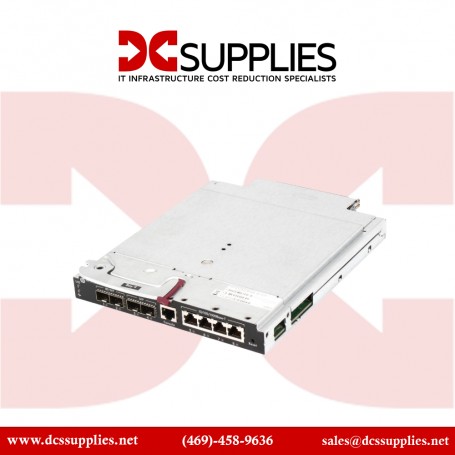

HPE 663656-001 6125G Ethernet Switch Networking Blade View larger

HPE 663656-001 6125G Ethernet Blade Switch

663656-001

New

1 Gb / 10 Gb blade‑switch module for c-Class chassis
×




Detailed Specifications

HPE 663656‑001 6125G Ethernet Blade Switch Module

Overview

The HPE 663656‑001 is a managed Ethernet blade switch module designed for HPE BladeSystem c-Class enclosures (c3000 / c7000). It provides a mix of copper and SFP ports, enabling flexible uplink or stacking configurations and supporting both 1 Gb and 10 Gb links. This module is suited for data‑center deployments where space is constrained and efficient network fabric is required. It supports Intelligent Resilient Framework (IRF) stacking for higher availability and simplified management.

Key Features

  • 8‑port managed switch for BladeSystem c-Class enclosures

  • Four 10/100/1000Base‑T RJ‑45 downlink ports

  • Two 1 Gb SFP uplink ports + two 1/10 Gb SFP+ ports

  • IRF stacking and virtual switch capabilities

  • Comware OS with Layer‑2/Layer‑3 routing and ACL support

Technical Specifications

SpecificationDetails
Brand HPE
Part Number 663656‑001
Product Type Blade switch module
Downlink Ports 4 × 10/100/1000Base‑T RJ‑45
Uplink Ports 2 × 1 Gb SFP; 2 × 1/10 Gb SFP+
MAC Address Table Size 32,000 entries
IGMP Group Capacity 1,024 groups
Jumbo Frame Support Up to 9,220 bytes
Memory 1 GB RAM; 256 MB flash; 2 MB packet buffer
Routing Protocols Supported OSPF, RIP‑1, RIP‑2, BGP, IGMP, PIM, VRRP, ECMP, PBR
Management Protocols SNMP v1/v2c/v3, HTTP, HTTPS, SSH‑2, CLI
Authentication RADIUS, TACACS+, SSH2
Stacking IRF (Intelligent Resilient Framework)
Power Consumption 41 W (max)
Standards Compliance IEEE 802.1D/Q/p, 802.3x/3ad, 802.1w/s, 802.1x, 802.3ae, 802.1ag
Dimensions (H × W × D in inches) ~3.74 × 11.57 × 11.54 in
Weight ~13.2 lbs
VLAN Support Up to 4,094 VLANs
OS Compatibility HPE c‑Class BladeSystem (c3000 / c7000)
