Detailed Specifications

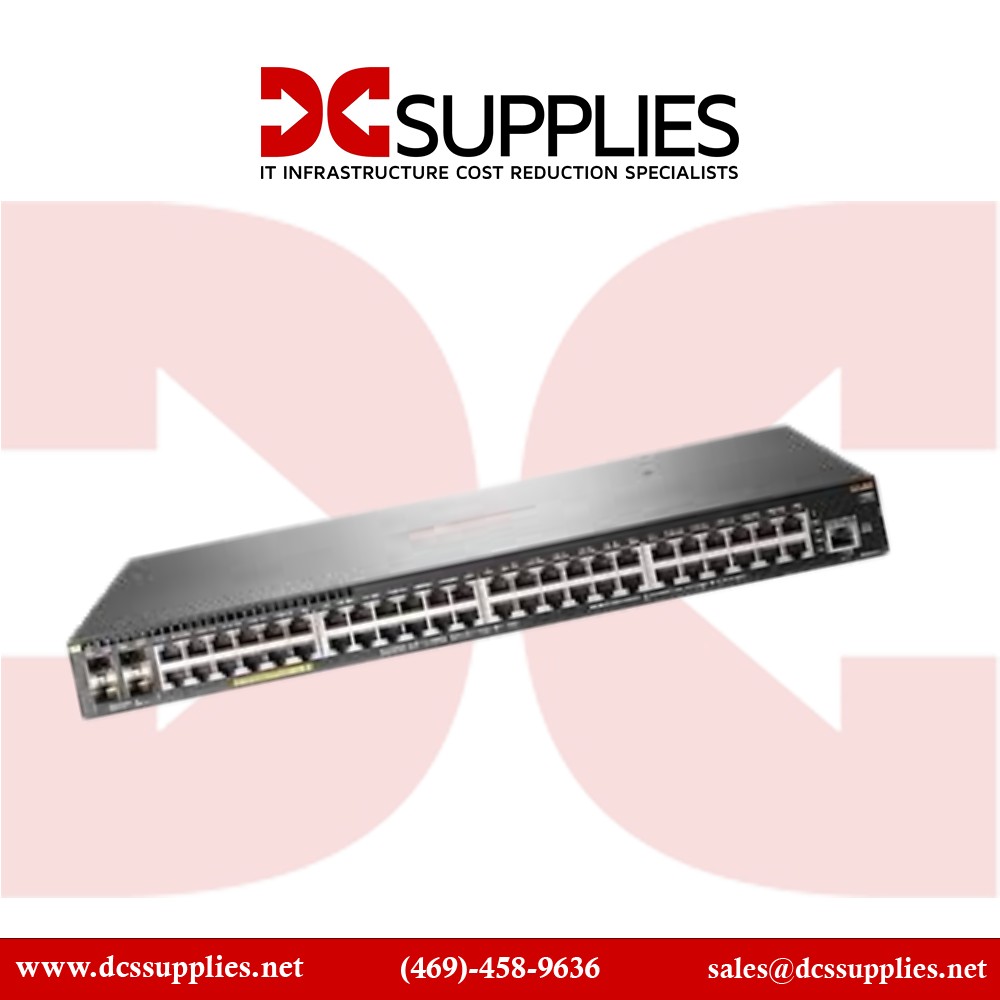

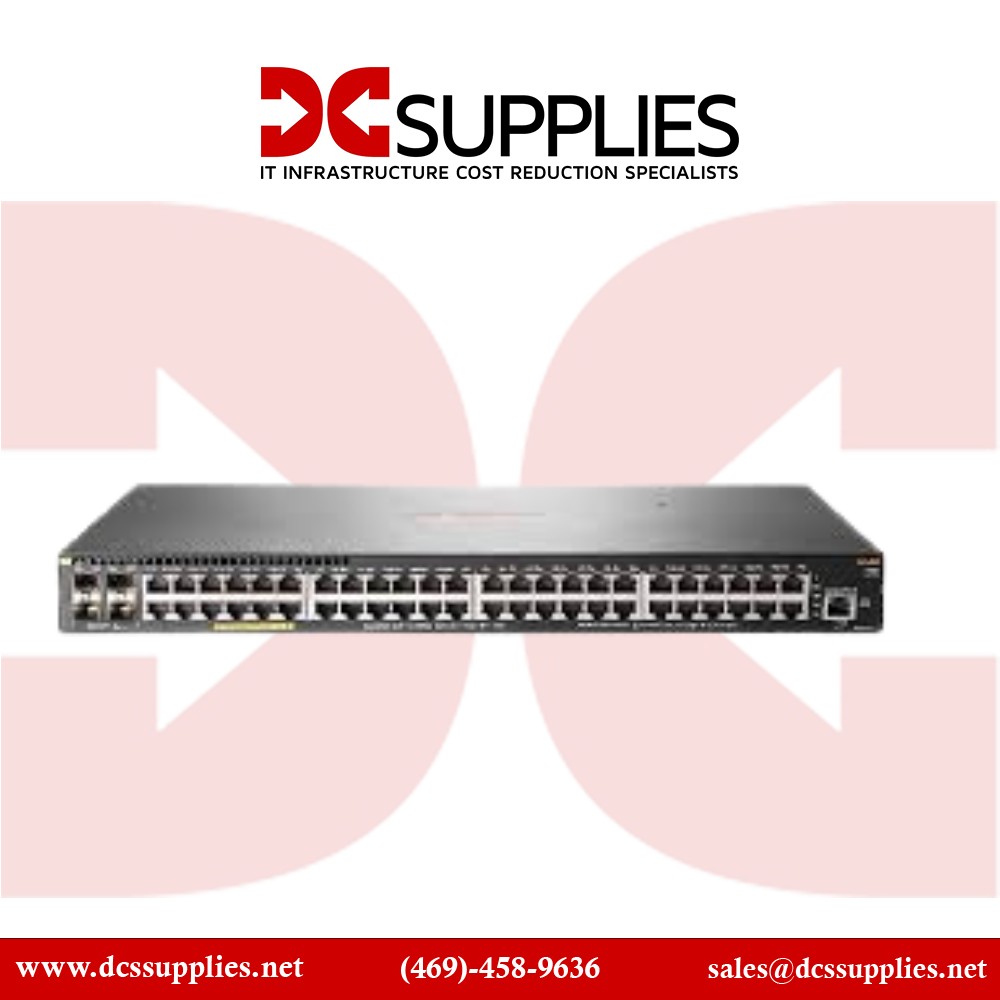

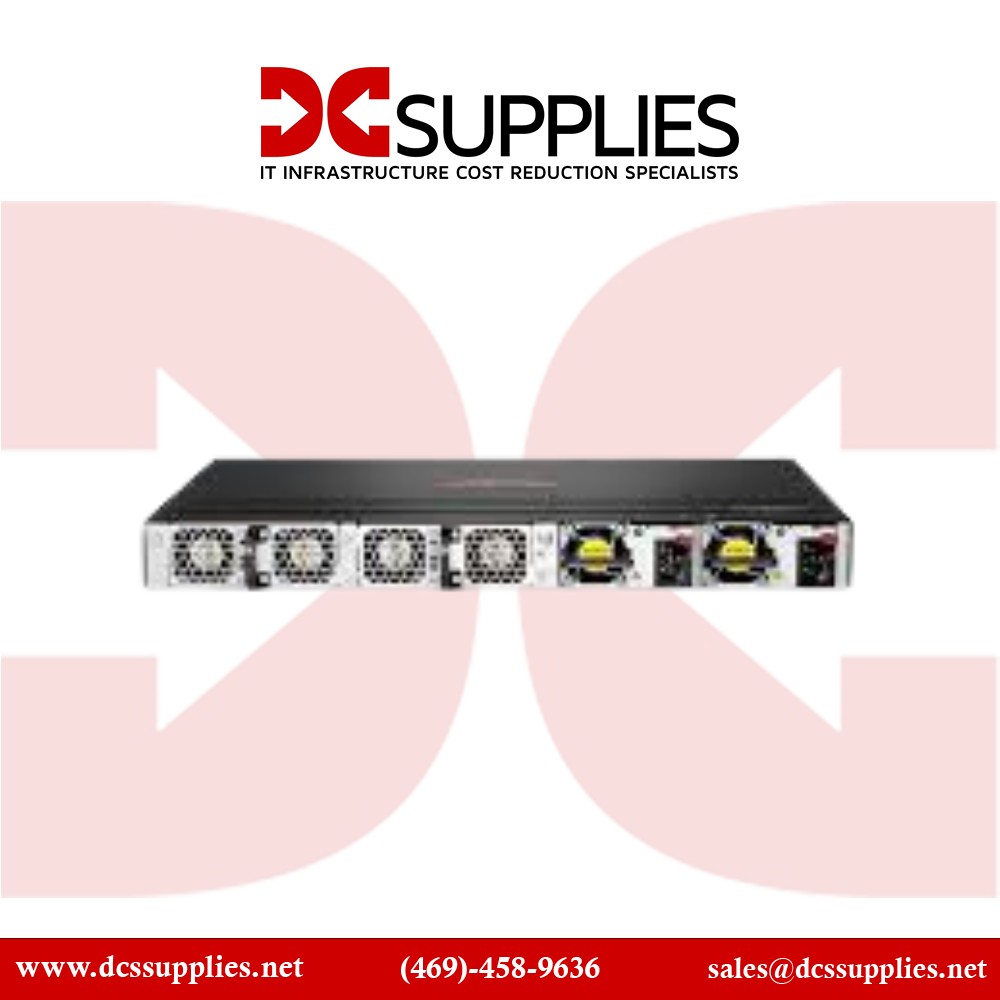

HPE S3L76-61001 Aruba 6300L 48p Smart Rate Switch
Overview
The S3L76-61001 is a layer-2 access switch offering 48 Smart Rate RJ-45 ports that support 100 Mb/s, 1 Gb/s, 2.5 Gb/s and 5 Gb/s speeds, ideal for aggregating high-performance devices such as Wi-Fi 6/6E access points and workstations. It includes two 50 Gb/s SFP56 uplink ports and two 25 Gb/s SFP28 uplink/stacking ports, enabling high-capacity backbone connectivity and future-proof scalability. The unit fits standard 19-inch racks and is targeted for campus edge and aggregation layers in enterprise networks. Management is via the Aruba AOS-CX operating system, offering automation, monitoring and stacking via Virtual Switching Framework.
Key Features
48 Smart Rate ports (100 M/1G/2.5G/5G) for modern client and AP aggregation
2 × 50 Gb SFP56 uplinks for high-capacity backbone links
2 × 25 Gb SFP28 ports support stacking or data-center uplinks
Aruba AOS-CX software with integrated analytics, automation and VSF stacking
Full rack-mount 1 U form-factor suited for campus edge or aggregation deployments
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | S3L76-61001 |
| Product Type | Layer-2 access switch, multi-gig Smart Rate |
| Processor Installed | Quad-core ARM Cortex A72 @ 1.8 GHz |
| Processor Supported (Max) | Same as installed (device-specific) |
| Memory Installed | 8 GB DDR4 |
| Memory Slots | Not applicable |
| Maximum Memory Supported | Not applicable |
| Drive Bays | Not applicable |
| Storage Controller | Not applicable |
| Network Adapter | 48 × Smart Rate 100 M/1G/2.5G/5G RJ-45 + 2 × 50 Gb SFP56 + 2 × 25 Gb SFP28 |
| Form Factor (H × W × D in inches) | 1.73 × 17.4 × 15.2 in |
| Weight (lbs) | 12.78 lbs |
| Power Supply | Internal fixed or optional redundant (model-dependent) |
| Rack Units | 1U |
