Detailed Specifications

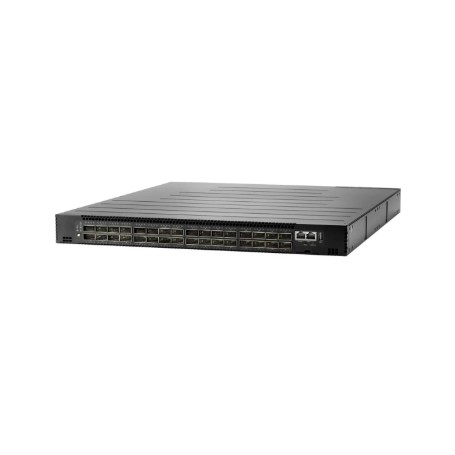

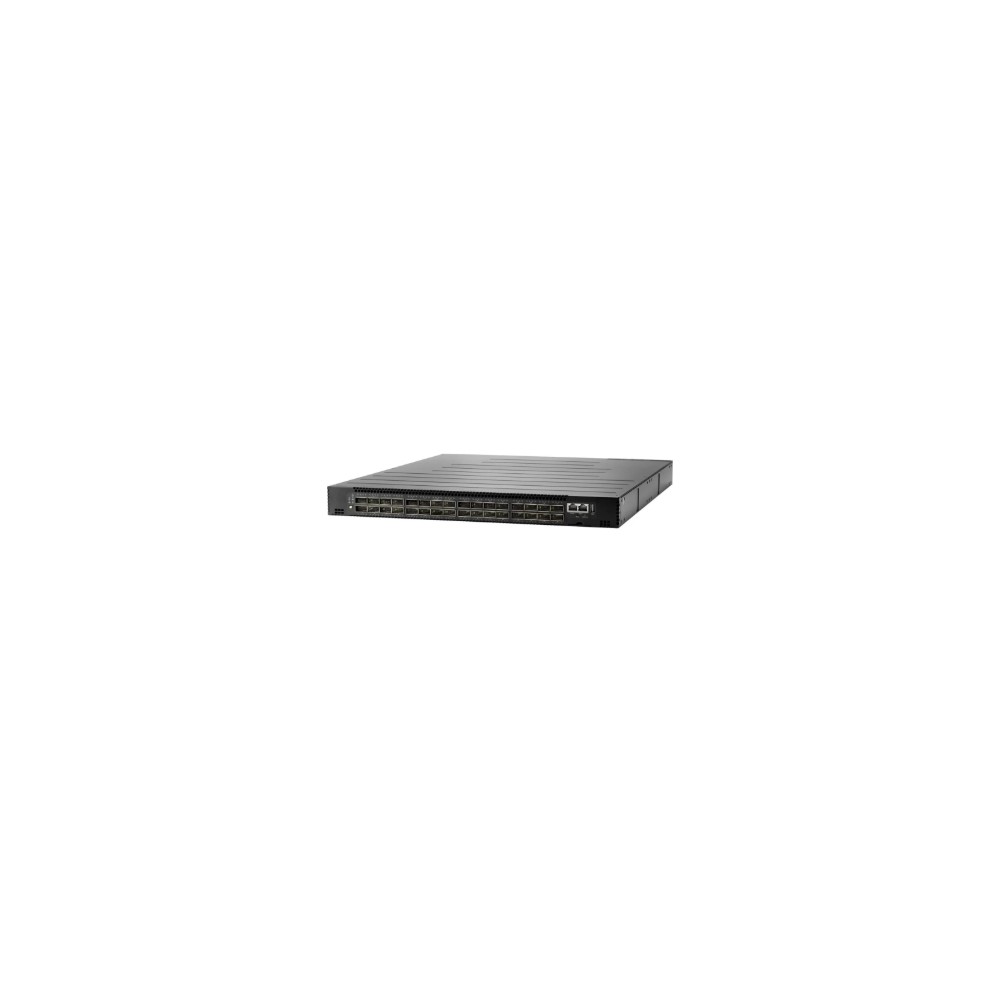

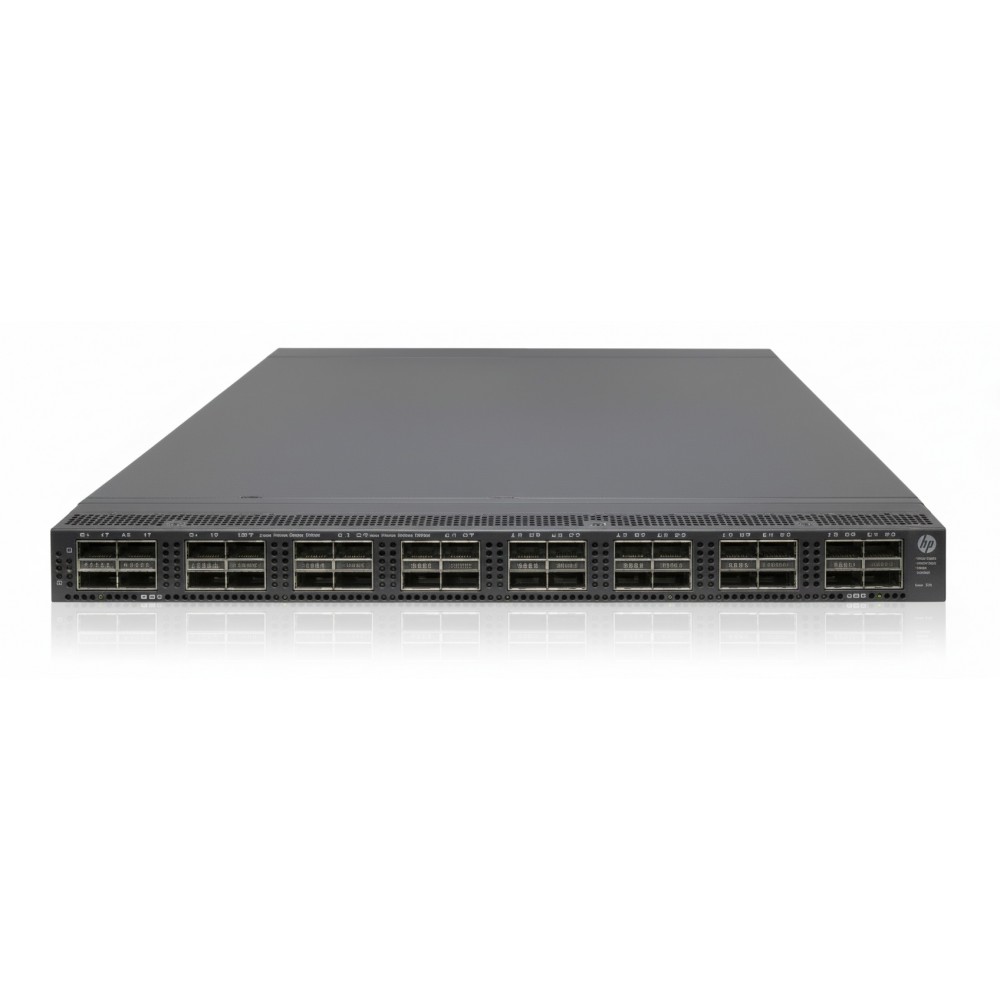

HPE JL280A Altoline 6960 32-Port QSFP28 Switch
Overview
The HPE JL280A is a high-density 1RU switch module designed for data-centre and cloud network fabrics where large-scale east-west traffic, high-speed uplinks, and disaggregated/open-network architectures are required. It features 32 QSFP28 ports, each capable of 100 Gbps, which can also support breakout configurations (for example 4 × 25 GbE) to cater for server-access or spine roles depending on the deployment. The design supports reversible airflow (back-to-front or front-to-back) to align with hot- and cold-aisle data-centre layouts and includes dual redundant power supplies and fan modules for high availability. The unit boots via ONIE (Open Network Install Environment) enabling deployment of a choice of network operating systems and integration with modern automation and orchestration frameworks. It is suited for spine, leaf or high-density aggregation tiers in hyperscale, enterprise or service-provider networks and supports VXLAN and overlay environments for flexible multi-tenant or multi-fabric operations.
Key Features
32 × 100 Gbps QSFP28 ports in 1RU form-factor
Supports open-network OS via ONIE loader
Reversible airflow (back-to-front or front-to-back) with redundant fans and PSUs
High-density east-west / spine-leaf design for modern data-centres
Breakout support for 4 × 25 GbE per QSFP28 for flexible port topology
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JL280A |
| Product Type | Altoline 6960 Series 32-Port 100 GbE Switch |
| Port Count | 32 ports |
| Port Type | QSFP28 (100 Gbps per port, breakout capable) |
| Switching Capacity / Layer | 3.2 Tbps switching capacity |
| Throughput | Up to ~2,400 Mpps (packets per second) |
| Form Factor (H × W × D) | 1.73 in × 17.26 in × 20.28 in |
| Weight | 18.52 lbs (8.4 kg) |
| Airflow Direction | Reversible (back-to-front or front-to-back) |
| Redundancy | Dual hot-swappable AC power supplies & modular fans |
| Networking Standards | 100 GbE, 50/25/10 GbE via breakout |
| Management Bootloader | ONIE (Open Network Install Environment) |
| Typical Use Case | Spine/leaf data-centre switch, open-network deployments |
