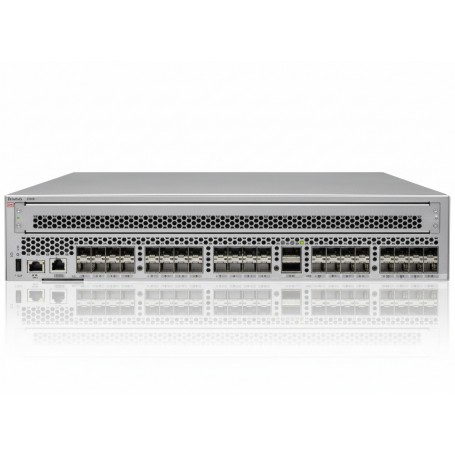

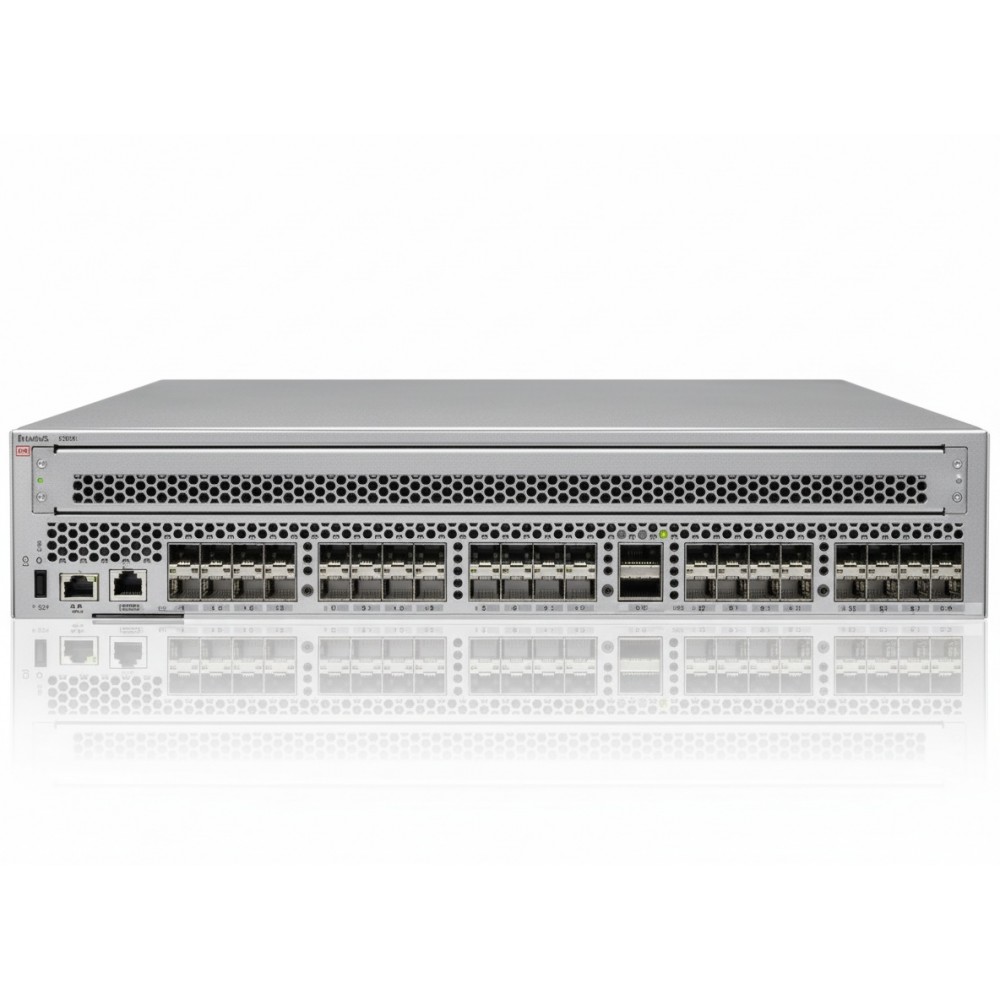

HPE E7Y73A SN4000B Extension Ethernet Switch 24 port View larger

HPE E7Y73A SN4000B Extension SAN Switch 24-Port 16 Gb Fibre Channel

E7Y73A

New

48-port SAN extension switch combining 16 Gb Fibre Channel
×




Detailed Specifications

HPE E7Y73A StoreFabric SN4000B 42-Port SAN Extension Switch

Overview

The HPE E7Y73A model of the StoreFabric SN4000B is a data-centre grade SAN extension switch designed for enterprise storage teams who manage Fibre Channel and Ethernet extension across sites and need sustained high throughput with low latency. It supports a mix of Fibre Channel, 1/10 GbE and 40 GbE interfaces and is engineered to link SAN fabrics across metro or WAN distances for backup, replication or migration usage. The chassis fits in a standard 19-inch rack and uses redundant hot-swappable power supplies and back-to-front airflow to suit dense data-centre racks. It is suited for centralised storage networks, disaster-recovery setups, and multi-site replication environments, and integrates with HPE’s Fabric OS and SAN Network Advisor tools for unified SAN management.

Key Features

  • Supports up to 42 ports including high-density Fibre Channel and Ethernet.

  • Mix of 24 × 16 Gb Fibre Channel, 16 × 1/10 GbE and 2 × 40 GbE ports.

  • Aggregate full-duplex bandwidth up to 384-768 Gbps for heavy SAN extension traffic.

  • Feature set includes AES-GCM-256 encryption on ISLs and Fabric Vision monitoring.

  • Redundant hot-swappable power supplies and 2U rack form-factor for data-centre use.

Technical Specifications

SpecificationValue
Brand HPE
Part Number E7Y73A
Product Type StoreFabric SN4000B SAN Extension Switch
Fibre Channel Ports 24 × 16 Gbps FC ports
Ethernet Ports 16 × 1/10 GbE ports
High-Speed Uplink Ports 2 × 40 GbE QSFP+
Aggregate Bandwidth Full duplex up to 384-768 Gbps
Latency Fabric latency around 700 ns
Jumbo Frame Support Up to 9,000 bytes
Form Factor (H × W × D) 3.2 in × 17.3 in × 24.0 in (2U rack)
Weight Approximately 42.0 lbs
Airflow Direction Back-to-front
Redundancy Features Dual hot-pluggable AC power supplies (1+1)
Input Voltage 85-264 VAC AC, 47-63 Hz
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Management Interfaces USB port, RJ-45 management port, serial RJ-45 port
