Detailed Specifications

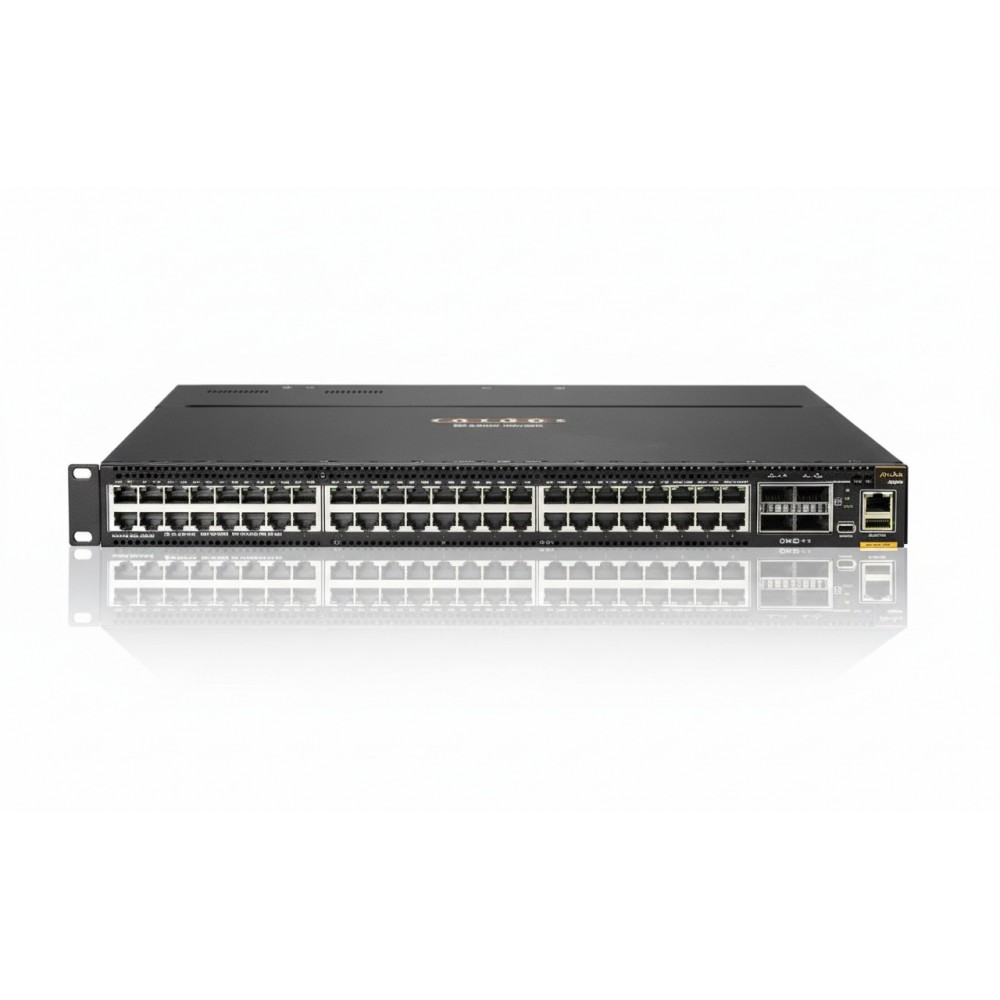

HPE JL707A Aruba CX 8360-48XT4C High-Performance Switch
Overview
The HPE JL707A is a fully managed, 1-rack-unit switch chassis designed for enterprise campus core or data-centre aggregation layers, addressing requirements for high throughput, flexible port configurations and advanced routing/security features for network engineers. The system provides 48 copper ports that support 100 M/1 G/10 G speeds and four QSFP-based uplinks capable of 40 G/100 G connectivity, enabling migration paths from legacy Gigabit environments through to next-generation fabric topologies. With a switching capacity up to 2.4 Tbps and forwarding throughput over 1.1 billion packets per second, the JL707A supports demanding layer-3 routing, multi-tenant virtualization and high-availability deployments. It fits in a standard 19-inch rack and integrates with the ArubaOS-CX software platform, offering unified automation, telemetry and API-driven operations. Designed for high-availability deployments, the unit supports redundant hot-replaceable power supplies and fan modules. It is suitable for campus and data-centre racks where 1 RU density, high port counts, and future-proof uplinks are needed under a consistent management domain.
Key Features
48 copper ports supporting 100 M/1 G/10 G speeds
4 QSFP uplink ports supporting 40 G/100 G bandwidth
Up to 2.4 Tbps switching capacity and 1.145 billion pps forwarding
Hot-swappable dual power supplies and modular fans for redundancy
Integrated ArubaOS-CX platform for automation and API-first operations
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JL707A |
| Product Type | Switch chassis - Aruba CX 8360 series |
| Copper Ports | 48 ports, 100 M/1 G/10 GBase-T |
| Uplink Ports | 4 QSFP ports, 40 G/100 G each |
| Switching Capacity | Up to approx. 2.4 Tbps |
| Forwarding Rate | ~1.145 billion packets per second |
| Form Factor | 1 RU, rack-mount |
| Dimensions (H×W×D) | 1.73 in × 17.4 in × 16.0 in |
| Weight | 18.85 lbs |
| Power Supplies | Hot-replaceable, dual redundant |
| Fan Modules | Field-replaceable modular fans |
| Operating Temp | 0 °C to 45 °C (32 °F to 113 °F) |
| Humidity | 15% to 95% non-condensing |
| Compliance | Industry safety and EMC standards |
