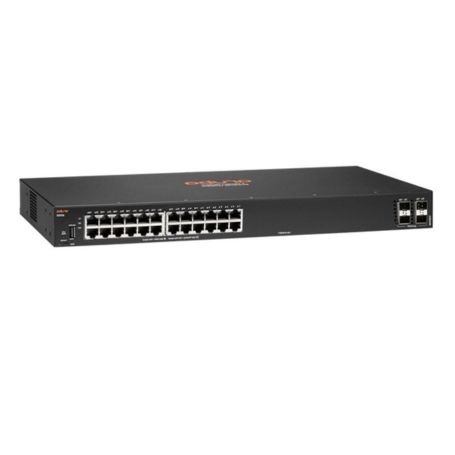

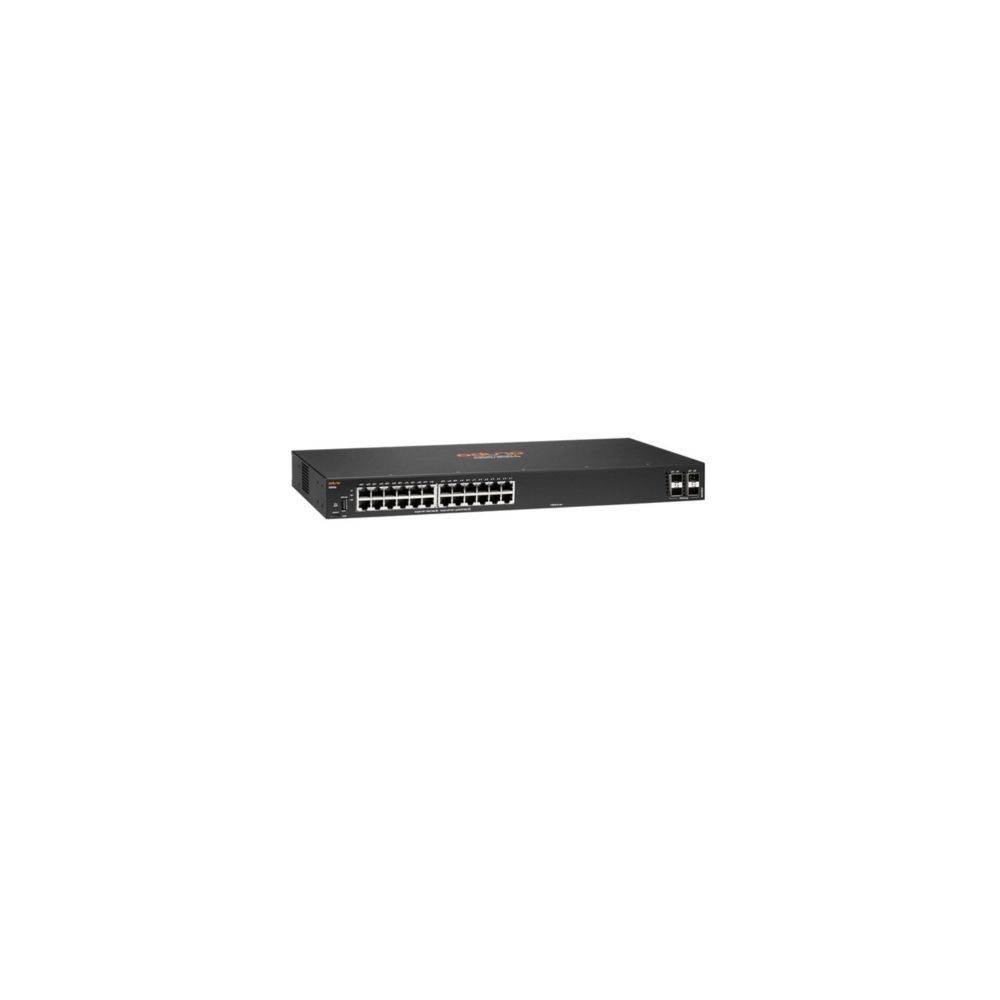

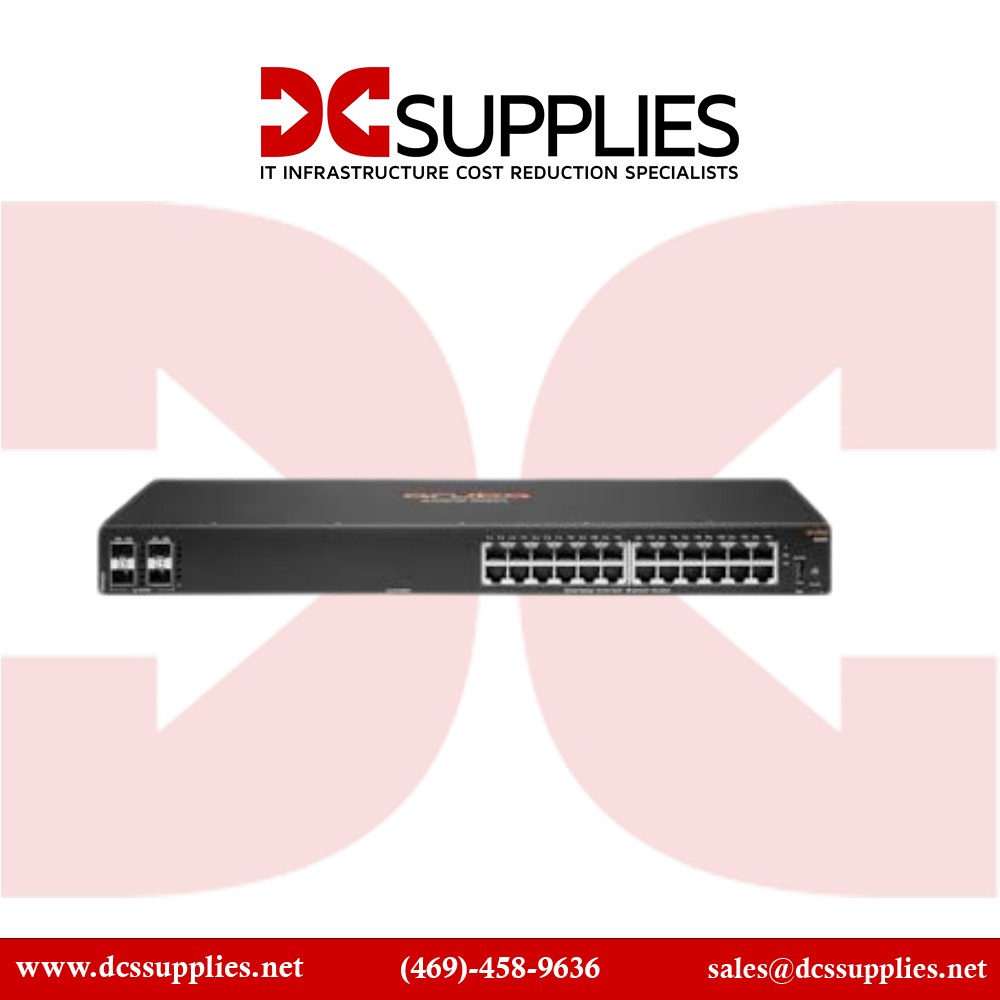

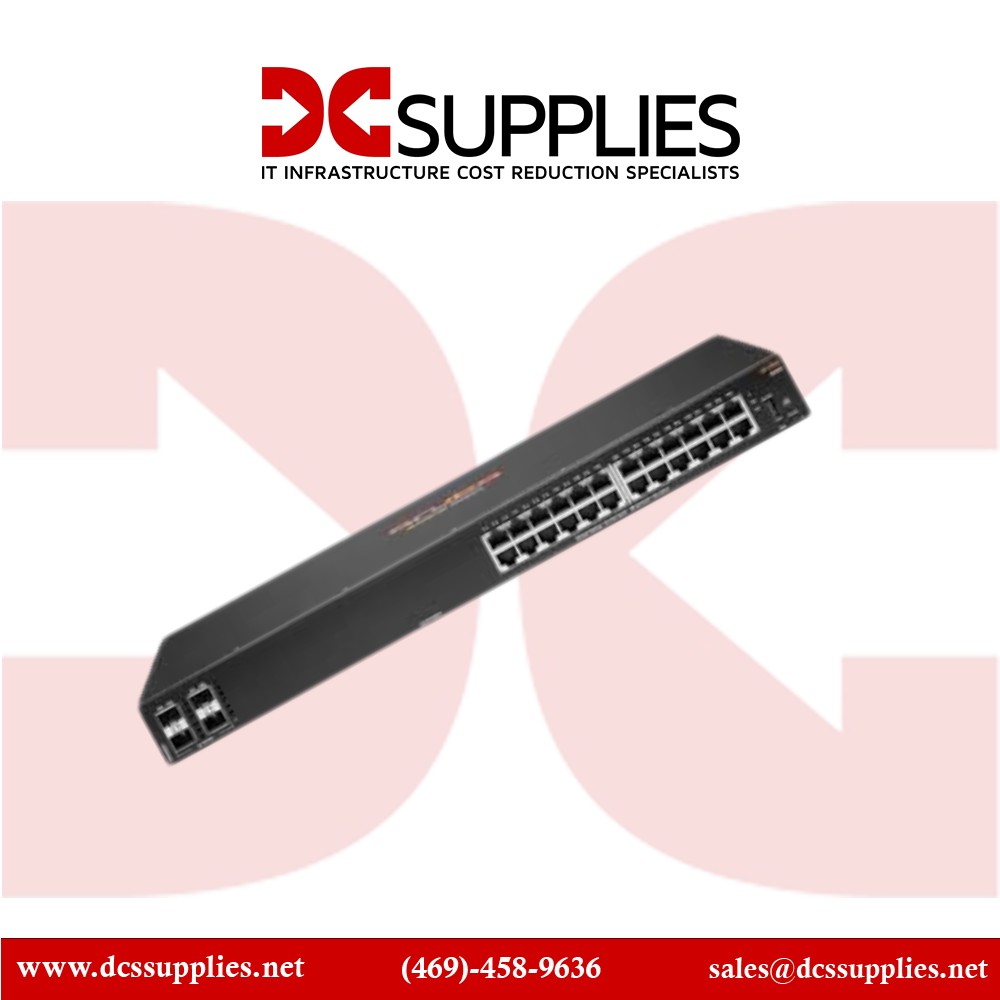

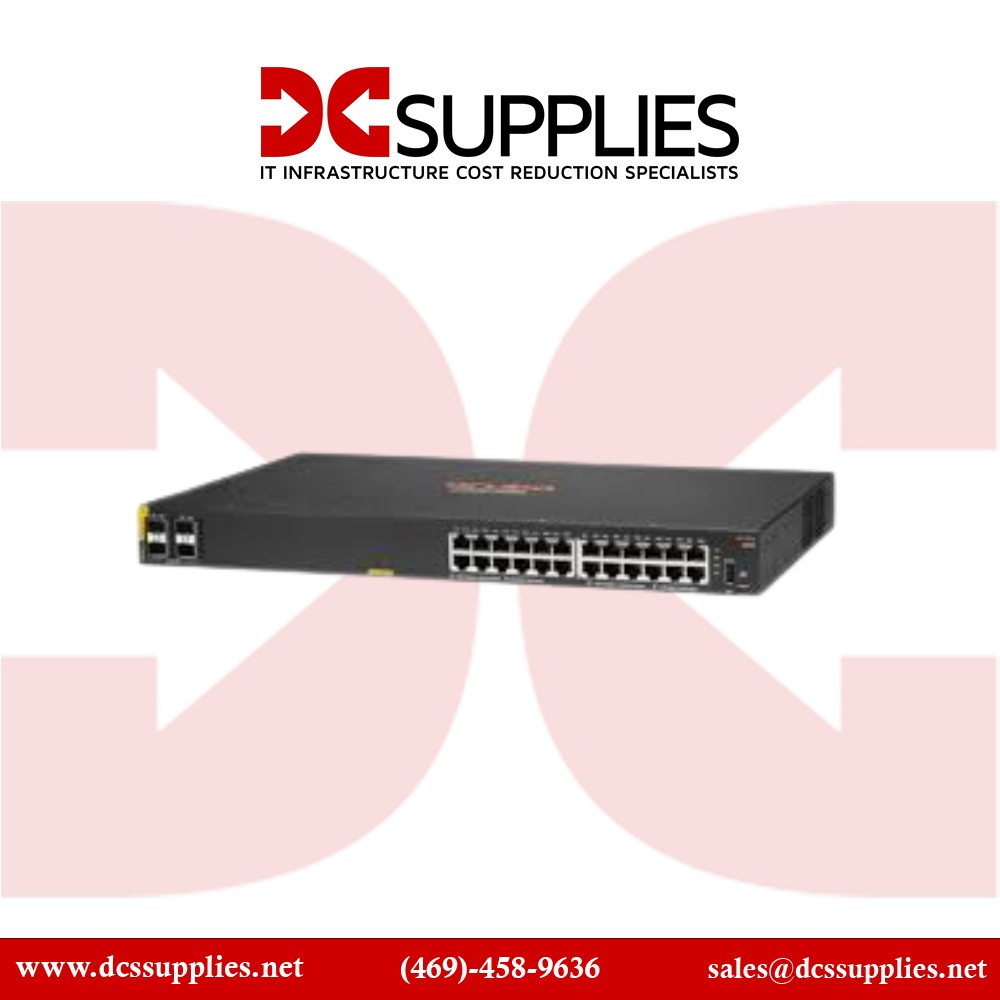

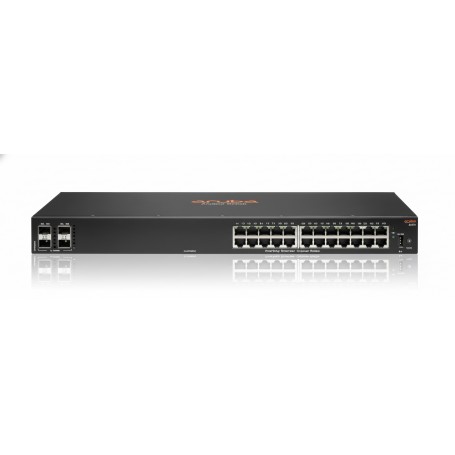

HPE R8N88-61021 Aruba 6000 24port 4Sfp Ethernet Switch View larger

HPE R8N88-61021 Aruba 6000 24port 4Sfp Ethernet Switch

New

HPE Aruba CX 6000 24G 4SFP Layer 2/3 Switch

...
×




  • New

Detailed Specifications

HPE R8N88-61021 Aruba CX 6000 24G 4SFP Switch

Overview

The HPE R8N88-61021 is an advanced entry-level access switch within the Aruba CX 6000 Switch Series, engineered to provide reliable, simple, and secure wired connectivity for modern network demands. This fully managed Layer 2/3 switch is ideally suited for deployment in enterprise branch offices, midsize businesses, and small enterprises that require a cost-effective yet high-performance solution for their access layer. It efficiently addresses the challenge of securely connecting an increasing number of IoT, mobile, and cloud-based applications, ensuring consistent network performance and availability. Built upon HPE Aruba's custom ASIC architecture and powered by the programmable AOS-CX operating system, the switch delivers a consistent and efficient operator experience across the entire Aruba CX portfolio. It provides robust Layer 2 capabilities, complemented by static routing support, Access Control Lists (ACLs), comprehensive Quality of Service (QoS), and IPv6 support. This ensures efficient traffic prioritization, network segmentation, and overall network health, effectively removing bottlenecks at the access layer where users and devices connect. Designed for flexible deployment in a standard 1U rack-mountable form factor, the Aruba CX 6000 24G 4SFP Switch offers versatile management options. Administrators can choose between an intuitive Web GUI, industry-standard Command Line Interface (CLI), Aruba NetEdit for automation, or future cloud-based management with Aruba Central. This range of management tools simplifies initial deployment, streamlines ongoing configuration changes, and enhances operational efficiency, providing a practical solution for evolving IT infrastructures.

Key Features

  • * Entry-level Layer 2 access with static routing capabilities.
  • * Aruba AOS-CX delivers consistent operational experience.
  • * Flexible management via Web GUI, CLI, and cloud integration.
  • * Integrated security features with ACLs and TPM for trusted boot.
  • * No additional software licensing or subscriptions required.

Specifications

SpecificationValue
Brand HPE
Part Number R8N88-61021
Product Type Managed Layer 2/3 Switch
Series Aruba CX 6000
Dimensions (H x W x D) 1.73 x 17.4 x 7.92 inches
Weight 5.78 lbs
Ports 24 x 10/100/1000BASE-T, 4 x 1G SFP
Switching Capacity 56 Gbps
Throughput 41.6 Mpps
Latency (1 Gbps) 1.5 µSec
Packet Buffer Size 12.38 MB
MAC Address Table Size 8192 entries
Jumbo Frame Support 9198 Bytes
Processor Dual Core ARM Cortex A9 @ 1016 MHz
RAM 4 GB DDR3 SDRAM
Flash Memory 16 GB eMMC
Input Voltage 100-127 VAC / 200-240 VAC
Max Power (without PoE) 33W
Routing Capabilities Static
Console Port 1 x USB-C
