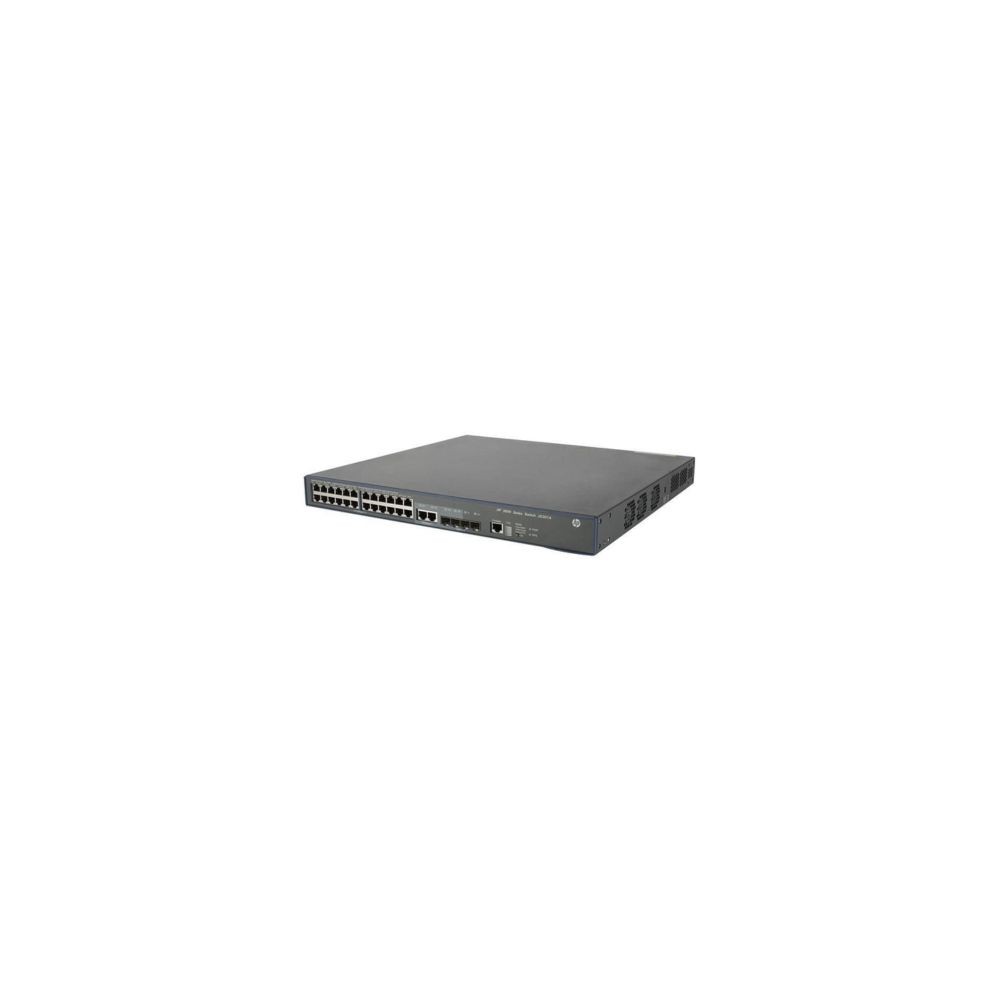

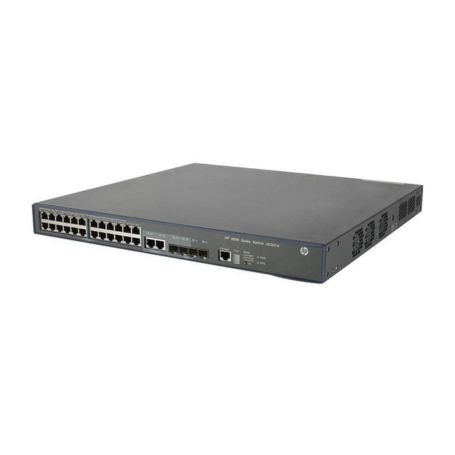

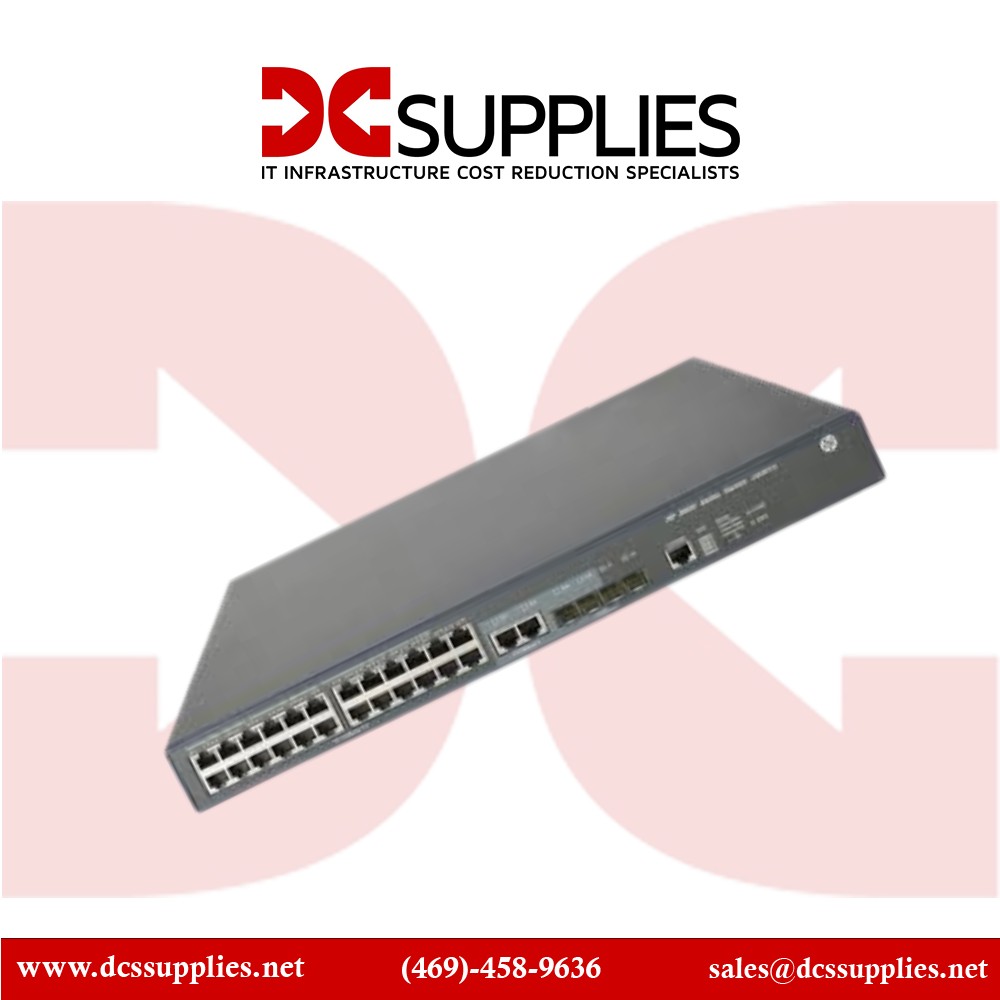

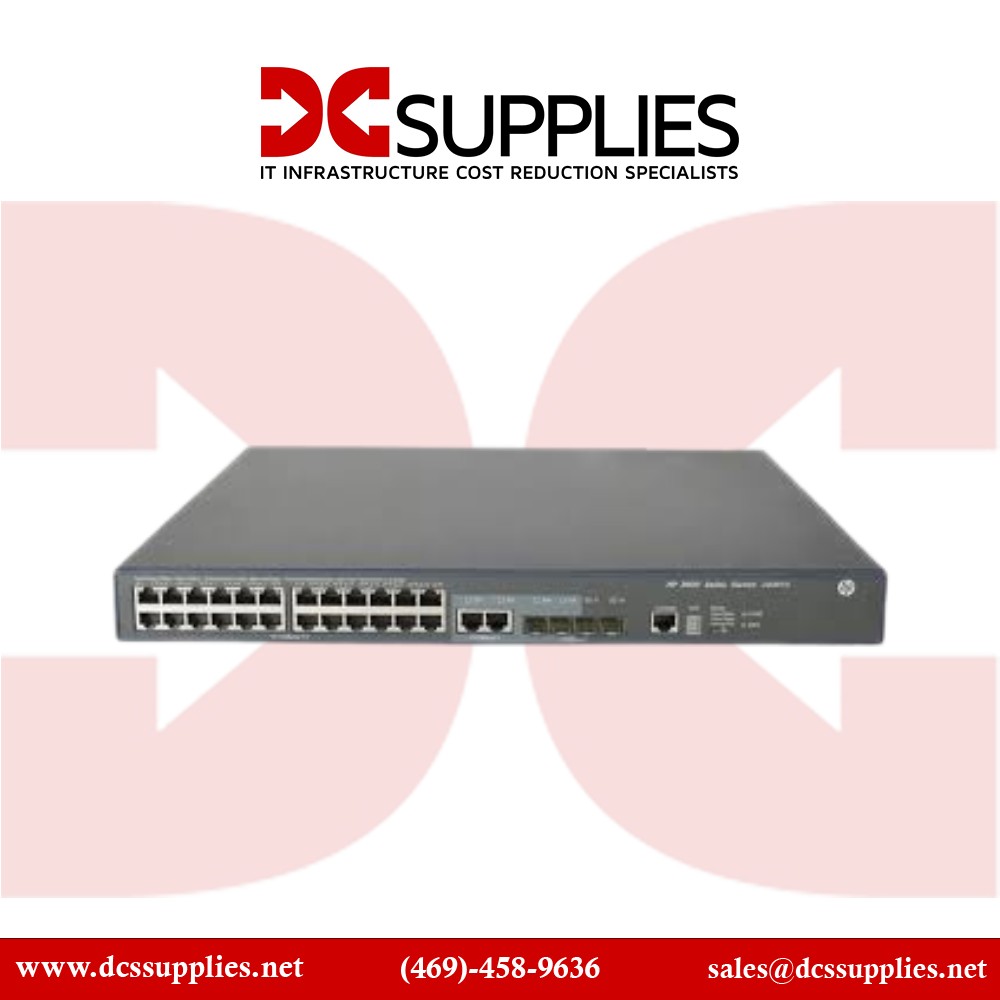

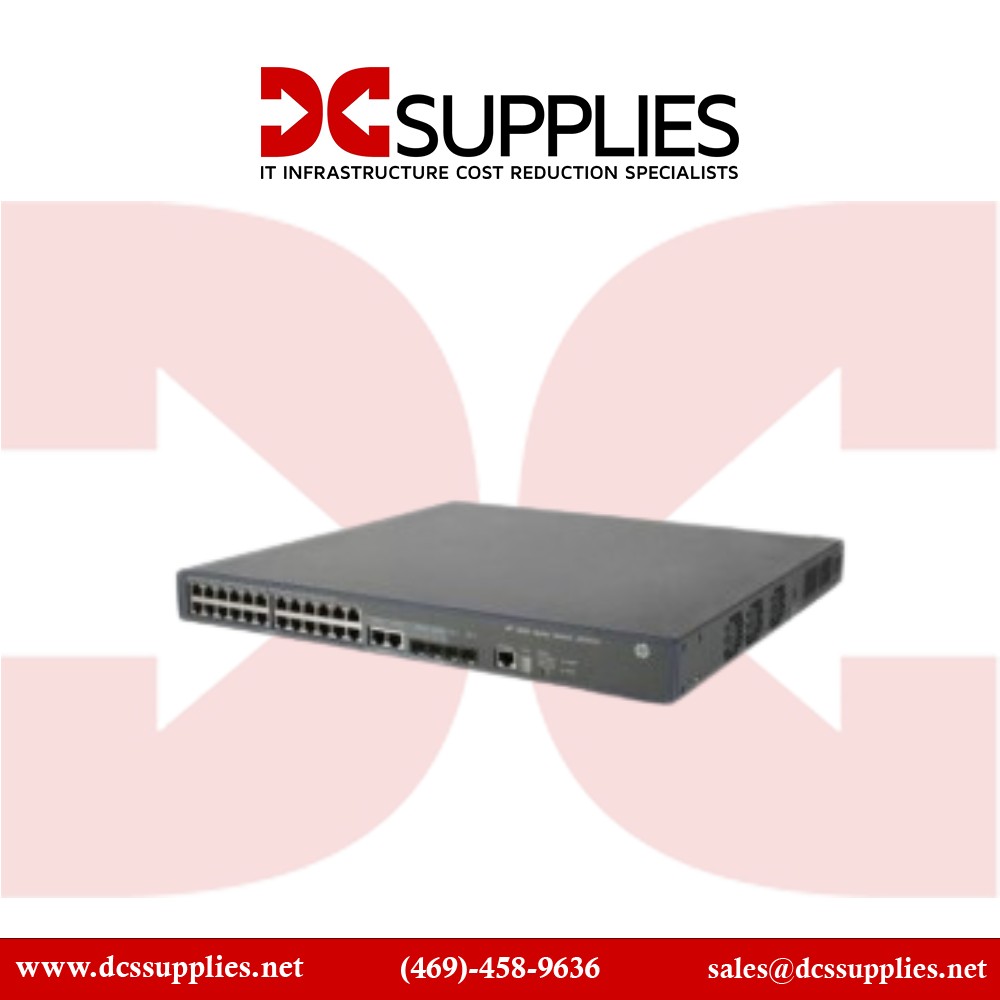

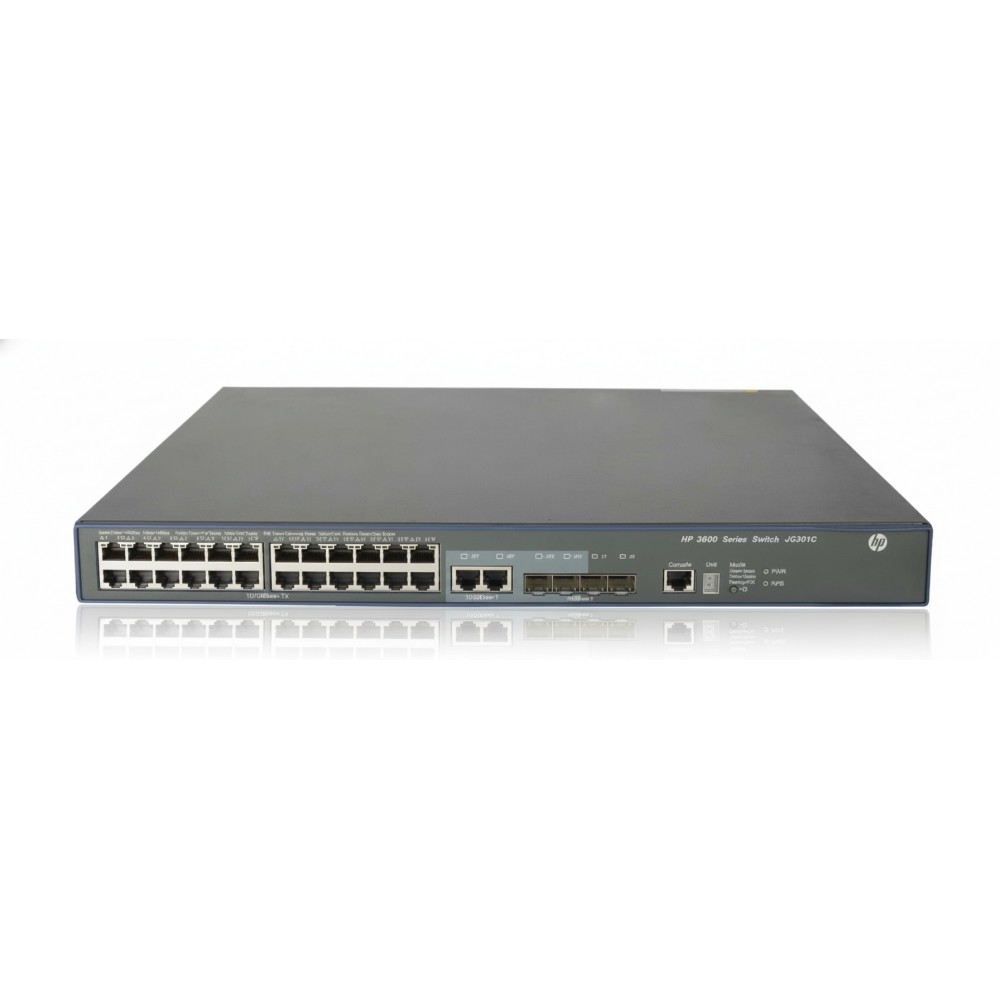

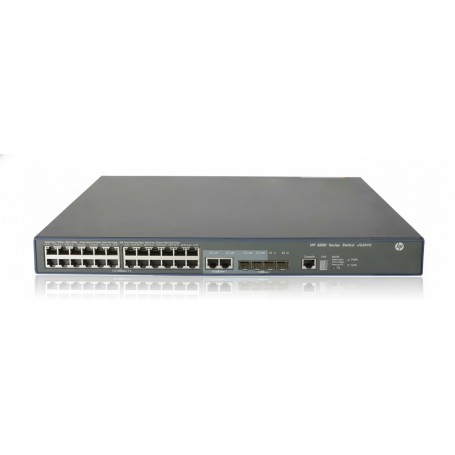

HPE JG301C Managed Rack-mountable Ethernet Switch View larger
Previous Next

HPE JG301C Managed Rack-mountable Ethernet Switch

New

in stock

48-port Gigabit Layer 3 managed rack-mountable

×




$3,298.00

  • New

Detailed Specifications

HPE JG301C

5120-48G-PoE+ EI Managed Rack-Mountable Ethernet Switch

The HPE JG301C 5120-48G-PoE+ EI Managed Rack-Mountable Ethernet Switch delivers high-density Gigabit connectivity, Power over Ethernet Plus (PoE+), and advanced Layer 3 routing for enterprise and campus networks. Ideal for high-performance network cores and aggregation layers, it supports business-critical applications with advanced security, traffic management, and redundancy features.

Features

Part of the HPE 5120 EI Switch Series, the JG301C offers 48 auto-sensing Gigabit ports with PoE+ support and 4 dual-personality ports for flexible fiber uplinks. Its managed Layer 3 architecture supports static routing, RIP, OSPF, and policy-based routing for efficient traffic flow across complex networks.

Advanced Options

The switch features an energy-efficient design, strong security protocols, and high resiliency through redundant power supply options and link aggregation. With its rack-mountable 1U form factor, the JG301C is well-suited for data centers, enterprise wiring closets, and large campus deployments.

Product Key Features

  • 48 × Gigabit Ethernet RJ-45 ports with PoE+ support

  • 4 dual-personality ports (RJ-45 or SFP) for uplinks

  • Managed Layer 3 switching with advanced routing

  • Rack-mountable 1U design

  • QoS, VLANs, ACLs, and robust security features

  • Energy-efficient operation with EEE support

Reliability & Performance

The HPE JG301C is built for continuous, mission-critical network environments. With PoE+ power delivery, it can run IP phones, wireless access points, and surveillance cameras directly through Ethernet cables. Combined with advanced traffic prioritization, redundancy features, and strong security controls, it ensures uninterrupted, high-speed network performance.

Key Features :

    • Managed Layer 3 Ethernet Switch

    • 48 × 10/100/1000 Mbps RJ-45 ports

    • PoE+ (802.3af/at) for powering connected devices

    • 4 × dual-personality uplink ports (RJ-45/SFP)

    • Static routing, RIP, OSPF support

    • IEEE 802.3az Energy-Efficient Ethernet

    • Rack-mountable (1U) form factor

    • Advanced VLAN segmentation and ACLs

SpecificationDetails
Model Number JG301C
Series HPE 5120 EI Switch Series
Product Type Managed Layer 3 Ethernet Switch
Total Ports 48 × RJ-45 Gigabit Ethernet
PoE Support PoE+ (IEEE 802.3af/at) on all RJ-45 ports
Uplink Ports 4 × dual-personality (RJ-45/SFP)
Switching Capacity 176 Gbps
Forwarding Rate 131 Mpps
Layer Support Layer 2 / Layer 3 (static, RIP, OSPF)
VLAN Support Yes (IEEE 802.1Q, up to 4094 VLANs)
QoS Features 802.1p, DSCP, traffic shaping, priority queues
Security Features ACLs, port security, RADIUS, 802.1X
Redundancy Link aggregation, optional redundant power
Mounting 1U rack-mountable
Power Supply Internal AC (optional RPS)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Dimensions 17.4 × 12.8 × 1.7 in (440 × 325 × 43.6 mm)
Weight Approx. 11 lbs (5 kg)
Warranty 1-Year (Refurbished)
