Detailed Specifications

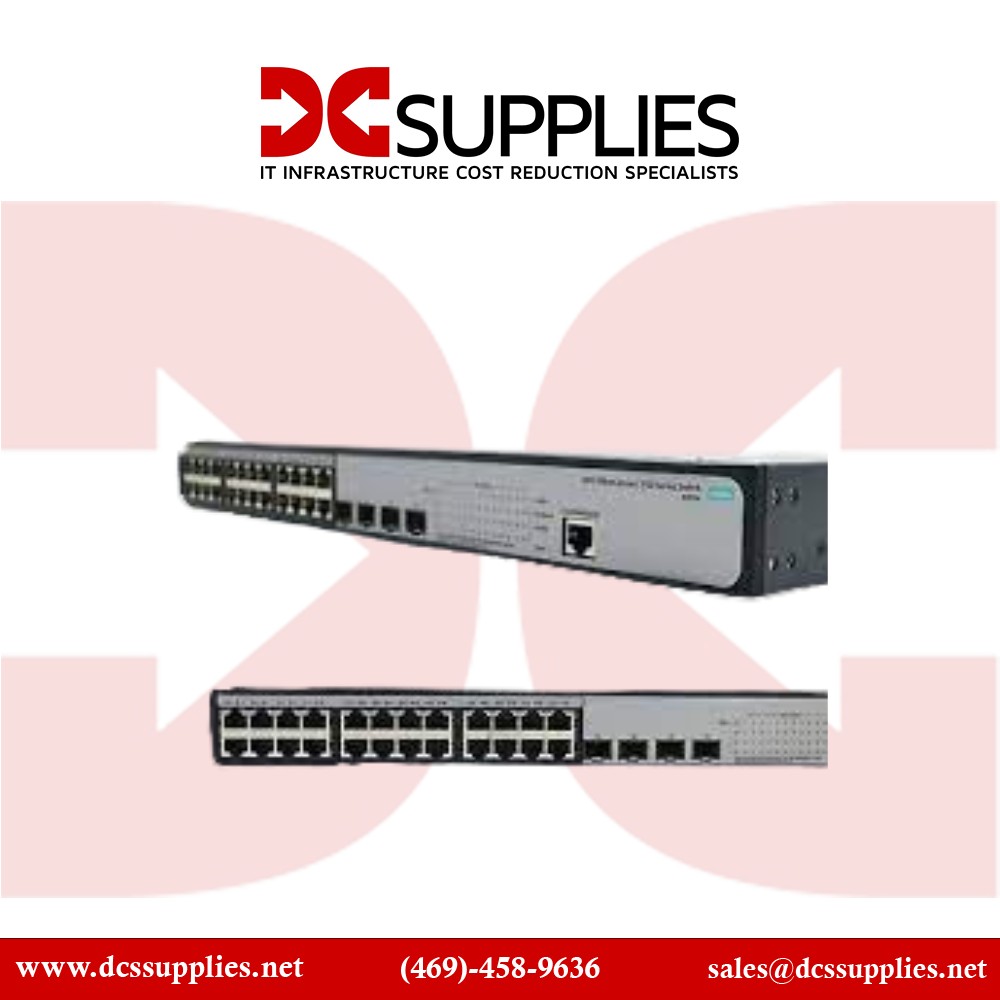

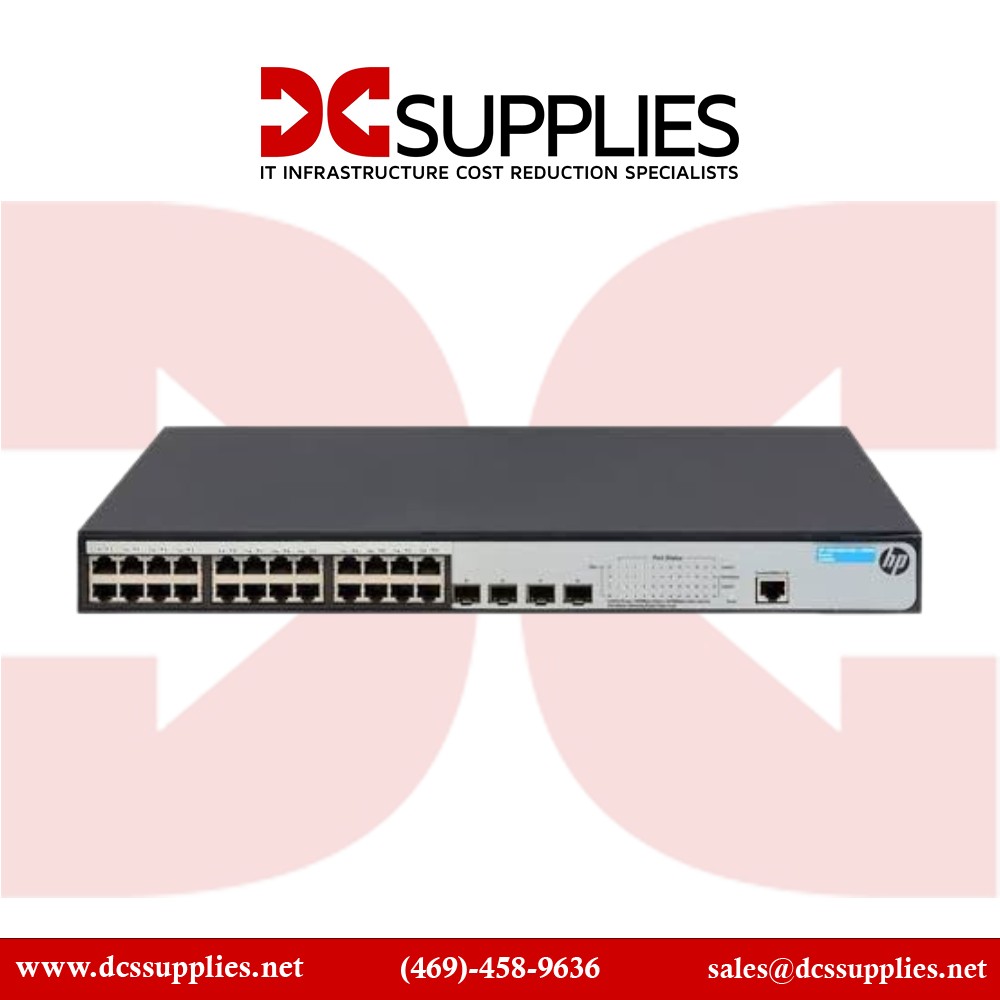

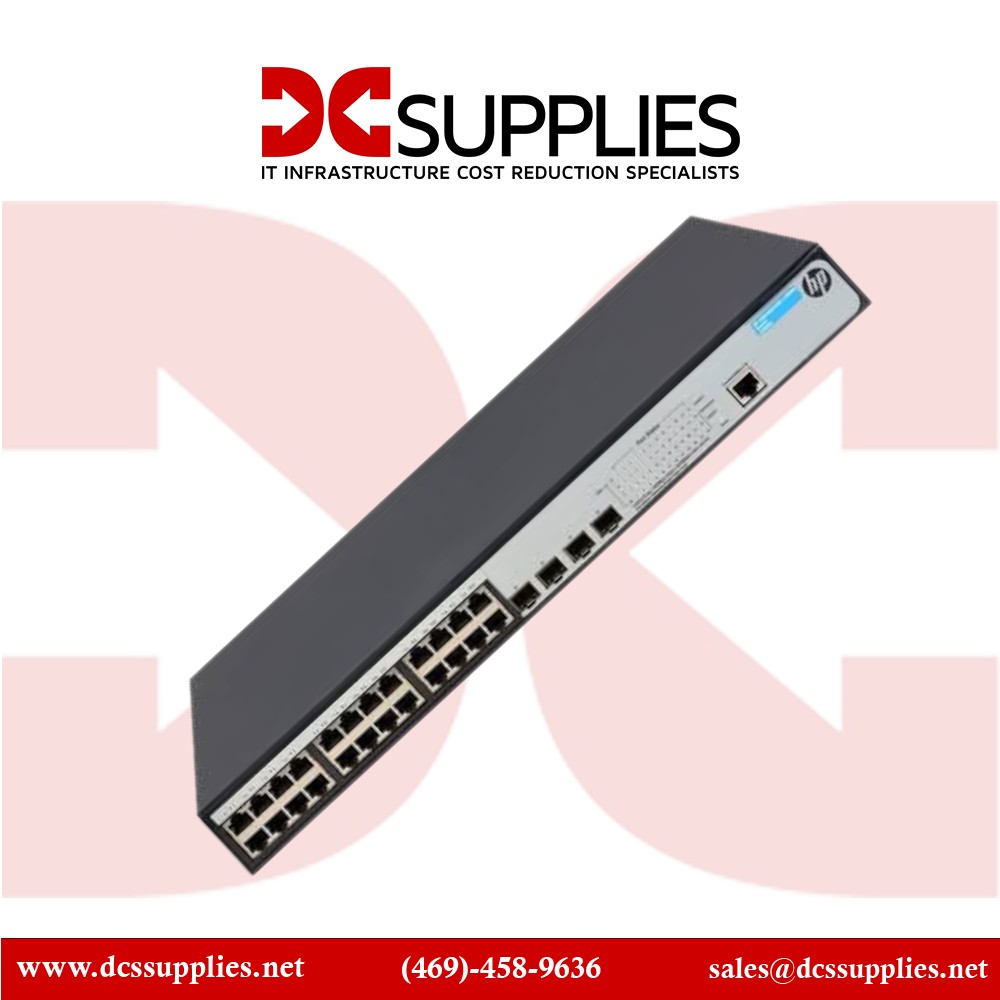

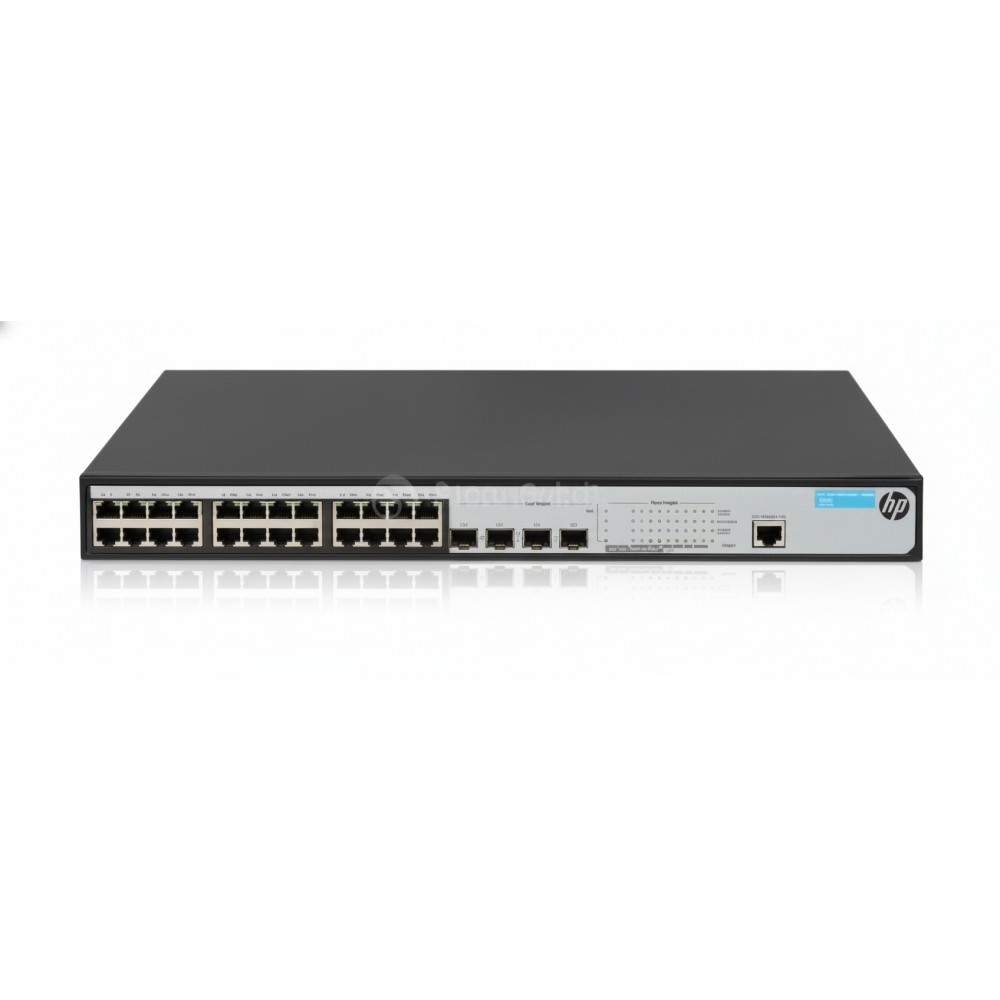

HPE JG925A OfficeConnect 1920-24G-PoE+ Managed Switch
Overview
The HPE JG925A is a 24-port Gigabit Ethernet switch with PoE+ capabilities, part of the OfficeConnect 1920 series. It provides a 180 W PoE power budget to power devices such as IP phones, access points, and cameras. Equipped with four SFP uplink ports and managed features including static routing, VLANs, and ACLs, this switch is suited for small to medium business deployments. It mounts in a 1U rack or can be used on a desktop, and integrates with HPE's smart management tools for configuration and monitoring.
Key Features
24 × 10/100/1000 RJ-45 PoE+ ports
180 W PoE+ power budget for powered devices
4 × 1000 Mb SFP uplink ports
Layer-3 static routing and advanced traffic control (ACL, QoS)
Managed via web GUI, SNMP, limited CLI, and IMC
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | JG925A |
| Product Type | Layer-3 managed Gigabit switch |
| Ports | 24 × 10/100/1000 RJ-45 (PoE+), 4 × 1 Gb SFP |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Budget | 180 W |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.7 Mpps |
| MAC Address Table | 8,192 entries |
| Routing Table | 32 IPv4, 32 IPv6 static routes |
| Latency | < 5 µs at 1 Gb |
| Processor / Memory | 500 MHz MIPS, 128 MB SDRAM, 32 MB Flash |
| Packet Buffer | 512 KB |
| Dimensions (H × W × D) | 1.73″ × 17.32″ × 9.37″ |
| Weight | ~7.5 lbs |
| Power Input | AC 120 / 230 V, 50/60 Hz |
| Operating Temp | 0 °C to 40 °C |
| Management Interface | Web GUI, SNMP v1/v2/v3, console, limited CLI |
