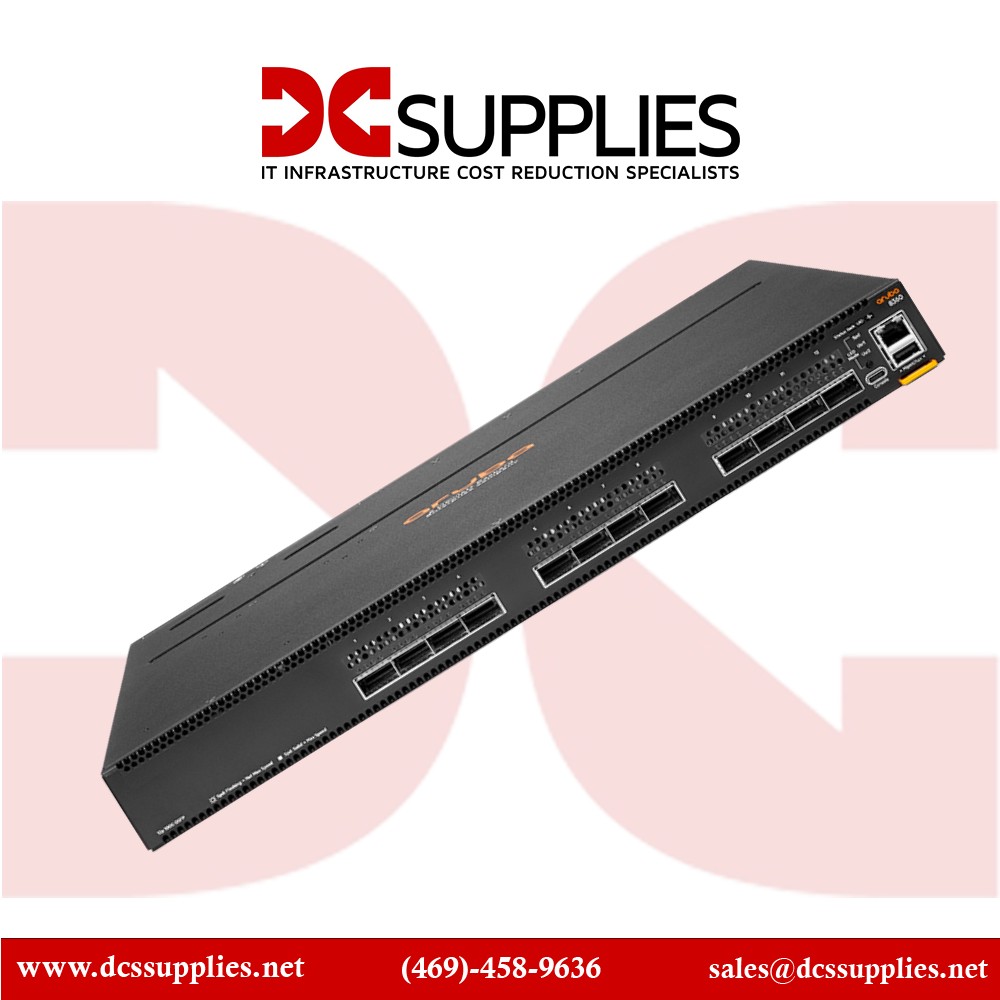

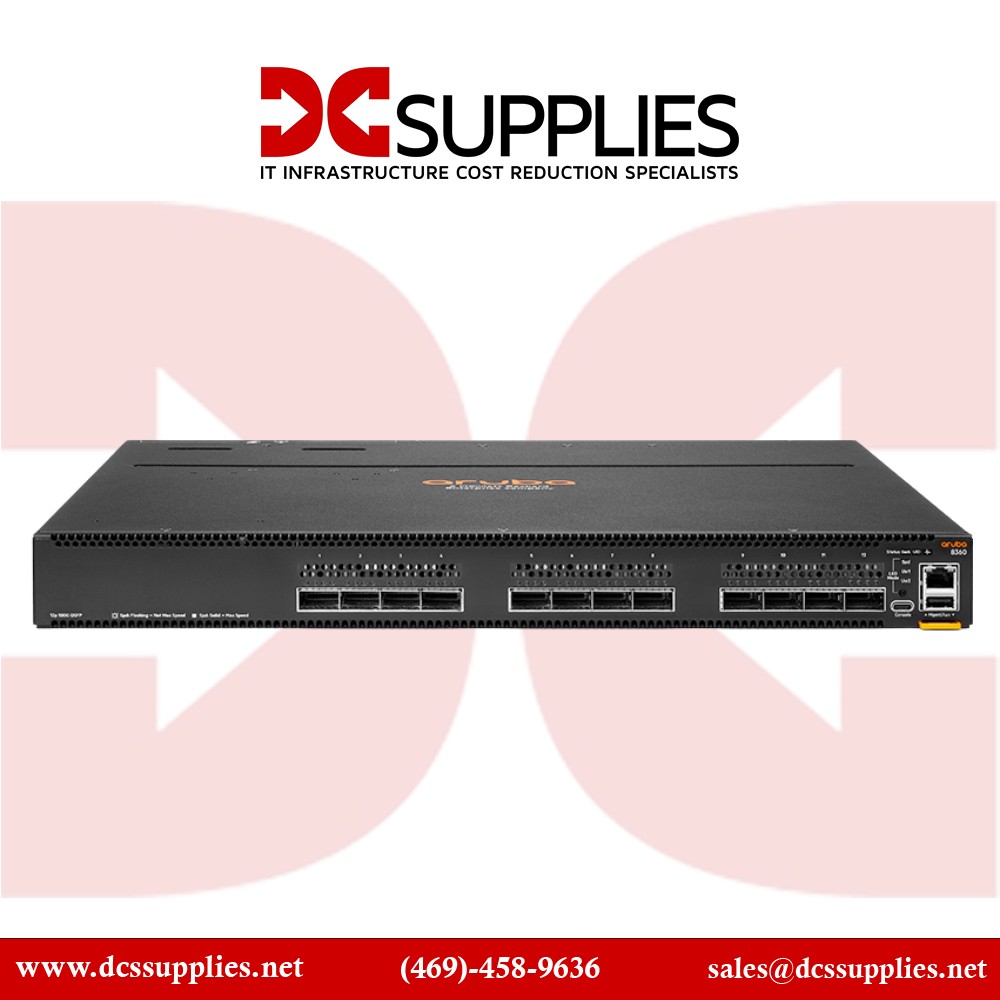

HPE JL709A Aruba 8360-12C Ethernet Switch – 12-Port 100Gb QSFP28 / 40Gb QSFP+

JL709A

New

High-performance Aruba 8360-12C switch with 12...

×




Detailed Specifications

HPE JL709A

Aruba 8360-12C Ethernet Switch – 12-Port 100Gb QSFP28 / 40Gb QSFP+

The HPE Aruba JL709A (8360-12C)Ethernet Switchis a compact, high-throughput network solution designed to meet the demands of next-generation enterprise and data center environments. Equipped with 12 high-speed QSFP28 ports, the switch supports 100GbE and 40GbE connectivity, delivering up to 2.4 Tbps of switching capacity. This powerful fixed-configuration switch ensures operational efficiency, high reliability, and advanced network automation, making it ideal for core, spine, or top-of-rack (ToR) deployments.

Features

Part of the Aruba CX 8360 series, the JL709A combines carrier-grade hardware with Aruba AOS-CX operating system for cloud-native programmability and intelligent analytics. The switch supports flexible port configurations—each QSFP28 port can run at 100GbE or break out into 4x 25GbE or 4x 10GbE, offering the scalability modern networks demand.

Advanced Options

With full Layer 2/3 capabilities, robust high availability, and integrated automation tools, the 8360-12C simplifies network operations and reduces manual intervention. Designed for performance-critical workloads, it’s optimized for virtualization, cloud, and edge data centers.

Product Key Features

  • 12 × QSFP28/QSFP+ ports supporting 100GbE or 40GbE

  • Up to 2.4 Tbps switching capacity

  • Cloud-native Aruba AOS-CX OS

  • VXLAN/EVPN for modern data center fabrics

  • High availability with redundant hot-swappable PSUs/fans

  • Ideal for enterprise cores and spine-leaf architectures

Reliability & Performance

The Aruba 8360-12C delivers exceptional performance with its non-blocking architecture and advanced feature set built for real-time analytics, high availability, and intent-based networking. AOS-CX ensures seamless policy enforcement, zero-touch provisioning, and dynamic traffic optimization—perfect for minimizing downtime and maximizing network agility in large-scale or virtualized environments.

Key Features :

  • 12 × QSFP28 ports (100/40GbE capable, breakout support)

  • Up to 48 × 10/25GbE using breakouts

  • 2.4 Tbps switching capacity

  • Cloud-native AOS-CX operating system

  • VXLAN, EVPN, BGP, OSPF, PIM, MPLS support

  • Dual redundant power supplies (hot-swappable)

  • Field-replaceable fan trays

  • 1U rackmount chassis

  • Front-to-back airflow

SpecificationDetails
Model Number JL709A
Part Number JL709A#ABA Ethernet Switch
Product Series Aruba 8360 Series
Form Factor 1U Rackmount
Port Configuration 12 × QSFP28/QSFP+(100GbE / 40GbE)
Switching Capacity 2.4 Tbps
Forwarding Rate ~1,190 Mpps
Breakout Support 4 × 25GbE or 4 × 10GbE per QSFP28 port
OS Aruba AOS-CX
Layer Support Layer 2 and Layer 3
Protocols BGP, OSPF, VXLAN, EVPN, PIM, MPLS
Redundancy Hot-swappable dual power supplies and fans
Airflow Direction Front-to-back
Dimensions 17.4 × 18.2 × 1.7 in (W × D × H)
Weight ~16.5 lbs (7.5 kg)
