Detailed Specifications

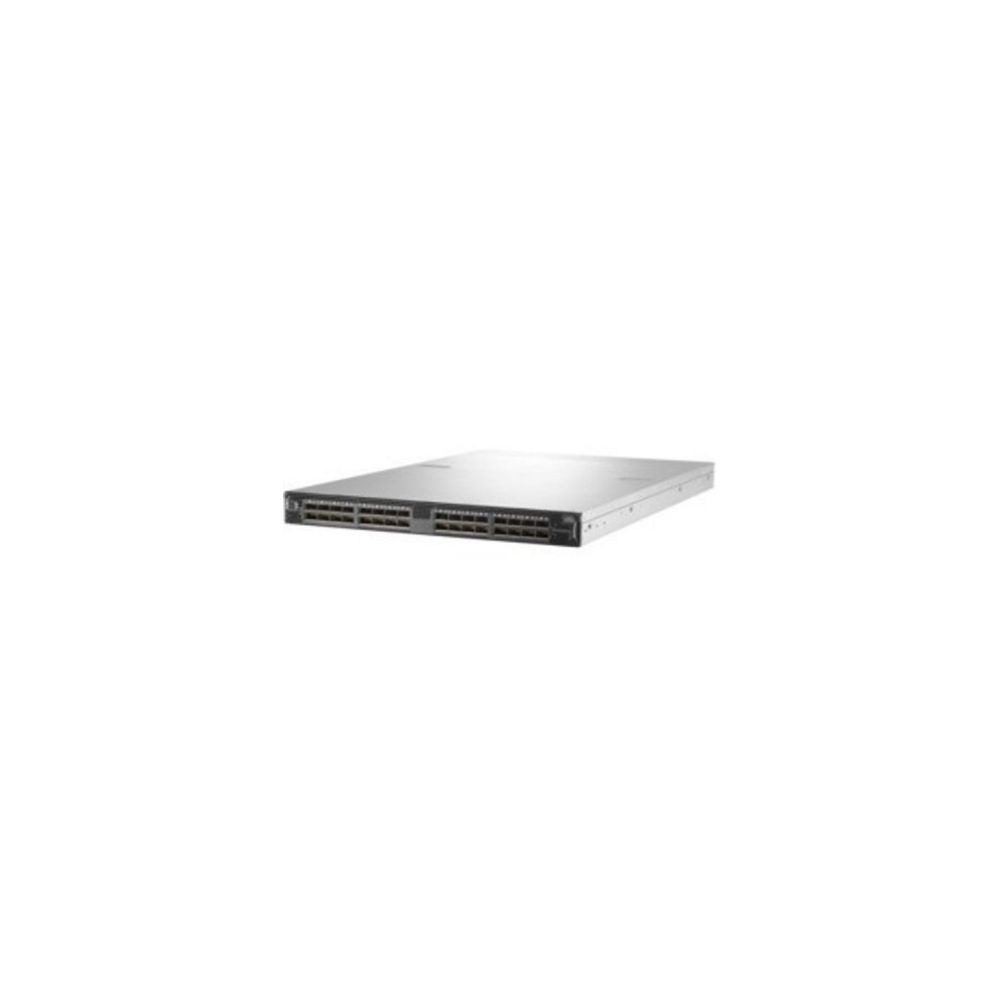

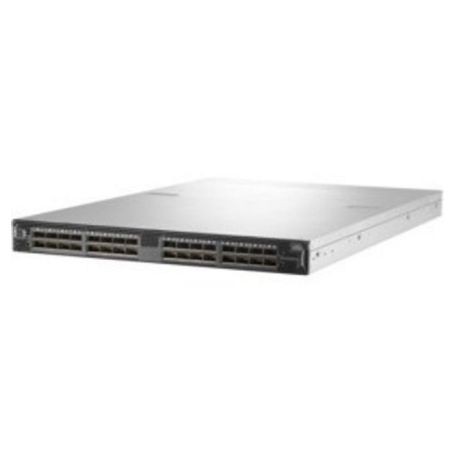

HPE P17524-001 SN2700M 100GbE 32-Port QSFP28 Switch
Overview
The HPE P17524-001 is a high-density data-centre rack switch designed for modern 100 GbE environments. With 32 QSFP28 ports it delivers up to 100 Gb/s per port, enabling massive east-west traffic flows and aggregation for storage, compute and cloud infrastructures. Built in a 1U form-factor with non-blocking architecture and an aggregate capacity of around 6.4 Tb/s, the switch supports breakout speeds, low latency forwarding and open-networking flexibility. It supports front-to-back (connector-to-power) airflow, redundant hot-swappable power supplies and fans, making it suitable for high-availability spine/leaf fabric roles in enterprise data-centres. Because it allows full-line-rate performance across all ports and supports multiple link-speeds and cable types, it fits deployments requiring scalable bandwidth and flexible optical or DAC uplinks.
Key Features
32 × QSFP28 ports supporting 100 Gb/s per port
Aggregate switching capacity up to ~6.4 Tb/s
Breakout support to 40/50/25/10 Gb from each QSFP28
1U rack-mount chassis with power-to-connector airflow and redundant subsystems
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | P17524-001 |
| Product Type | 100 GbE 32-Port QSFP28 Switch |
| Port Count | 32 |
| Port Type | QSFP28 |
| Maximum Link Speed per Port | Up to 100 Gb/s |
| Aggregate Switching Capacity | ~6.4 Tb/s |
| Supported Speeds per Port | 100/50/40/25/10 Gb/s |
| Form Factor | 1 U rack-mount |
| Airflow Direction | Connector-to-Power (front-to-back) |
| Typical Weight | ~13 lb |
| Switching Architecture | Non-blocking, full-line-rate |
| Suitable Use Case | Spine/leaf, storage fabric, high-density rack |
| Redundant Components | Dual hot-swappable PSU & fans |
| Bootloader / OS Support | ONIE (open-networking) |
