Detailed Specifications

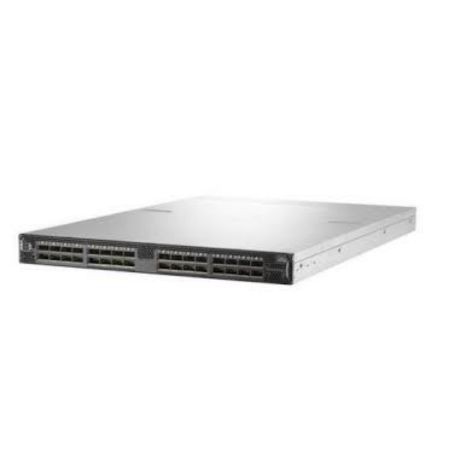

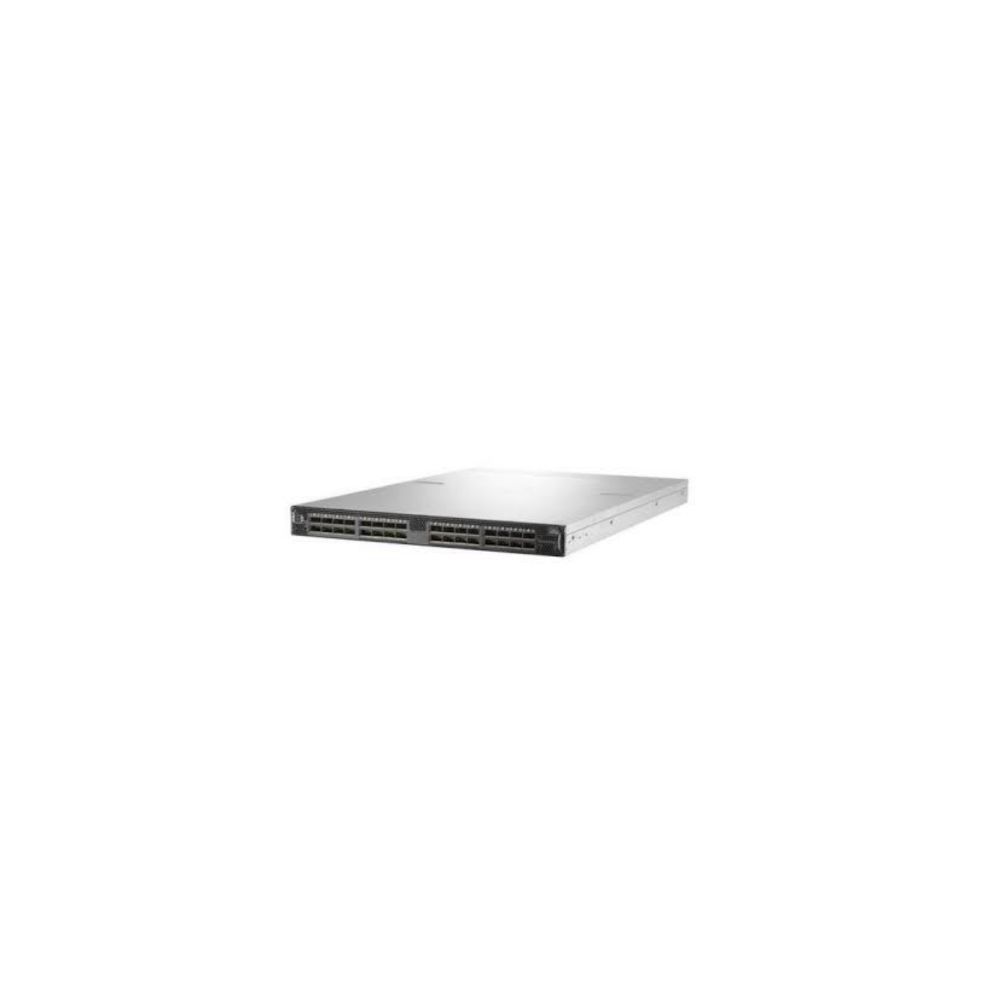

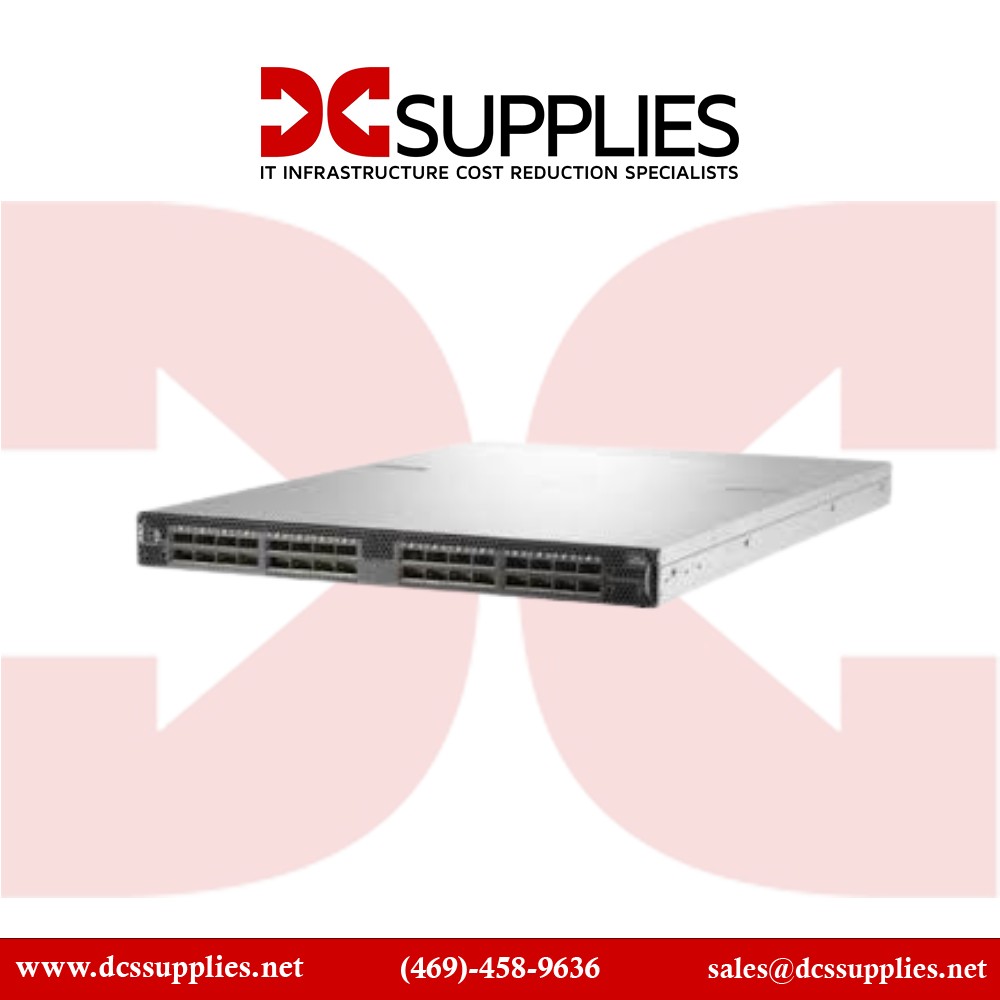

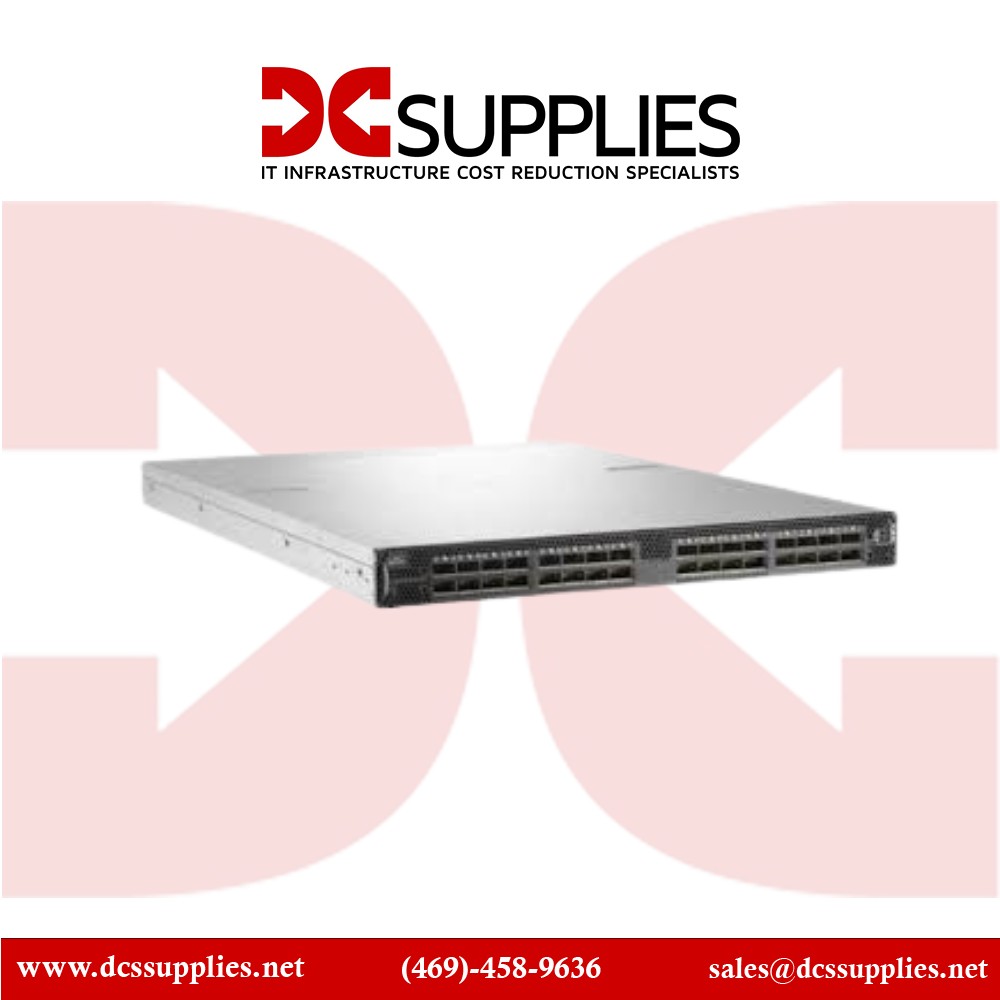

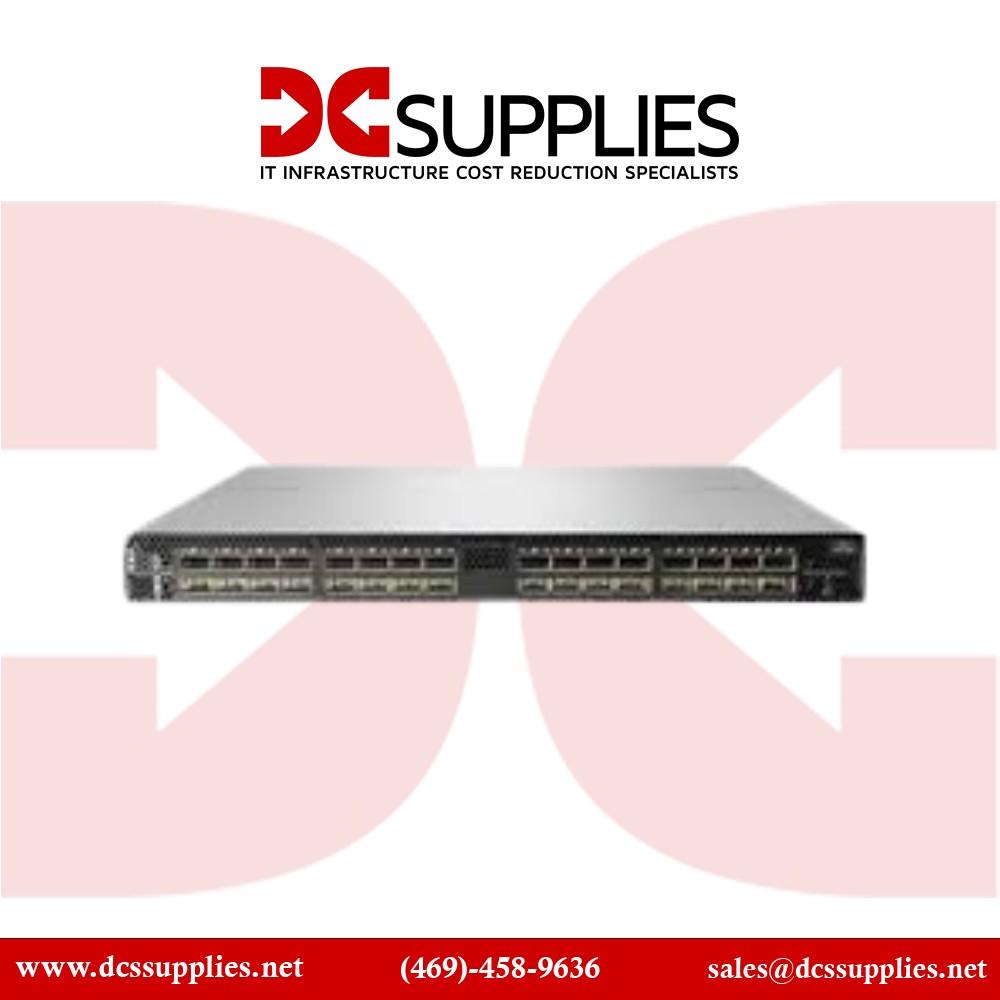

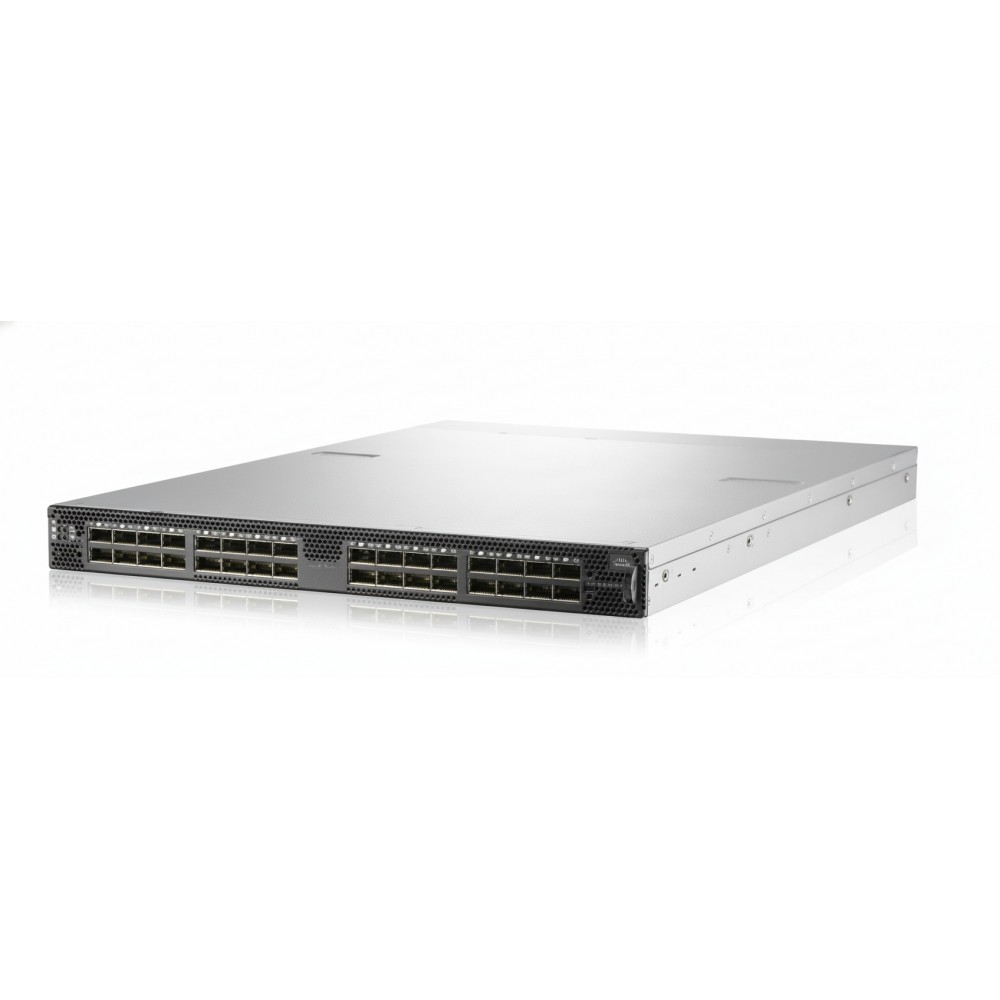

HPE R3B05-63001 SN2745M 100GbE 32-Port QSFP28 Switch
Overview
The HPE R3B05-63001 is a high-density 1U rack-mount switch engineered for data-centre spine-or-leaf fabrics, delivering 32 QSFP28 ports each capable of 100 Gb/s throughput. With an aggregate non-blocking switching capacity of 6.4 Tb/s, it supports full-line-rate forwarding across all ports and accommodates breakout configurations into 50/40/25/10 Gb/s speeds. The switch features a "power-to-connector" airflow design optimized for modern hot-aisle/cold-aisle data-centre cooling, dual hot-swappable power supplies and fans for redundancy, and open-networking readiness via ONIE bootloader. It is suited to high-performance computing, hyperscale cloud, storage-fabric or large-scale deployment environments where ultra-low latency, high throughput and flexible speed optics are vital.
Key Features
32 QSFP28 ports supporting up to 100 Gb/s per port
Aggregate switching capacity of 6.4 Tb/s with full line-rate performance
Breakout capability: 100/50/40/25/10 Gb speeds from each QSFP28
1U rack form-factor with power-to-connector airflow and redundant PSUs
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | R3B05-63001 |
| Product Type | SN2745M 100GbE 32-Port QSFP28 Switch |
| Port Count | 32 |
| Port Type | QSFP28 |
| Maximum Link Speed per Port | Up to 100 Gb/s |
| Aggregate Switching Capacity | 6.4 Tb/s |
| Supported Speeds per Port | 100/50/40/25/10 Gb/s |
| Form Factor | 1U rack-mount |
| Airflow Direction | Power-to-connector (front-to-back) |
| Typical Weight | ~13 lb |
| Compatible OS/Bootloader | ONIE (open-network install environment) |
| Use Case | Data-centre spine/leaf, storage & cloud fabrics |
| Redundancy | Dual hot-swappable power supplies and fans |
| Switching Architecture | Non-blocking full line-rate across all ports |
| Virtualization / Automation | Low-latency architecture, supports automation |
