Detailed Specifications

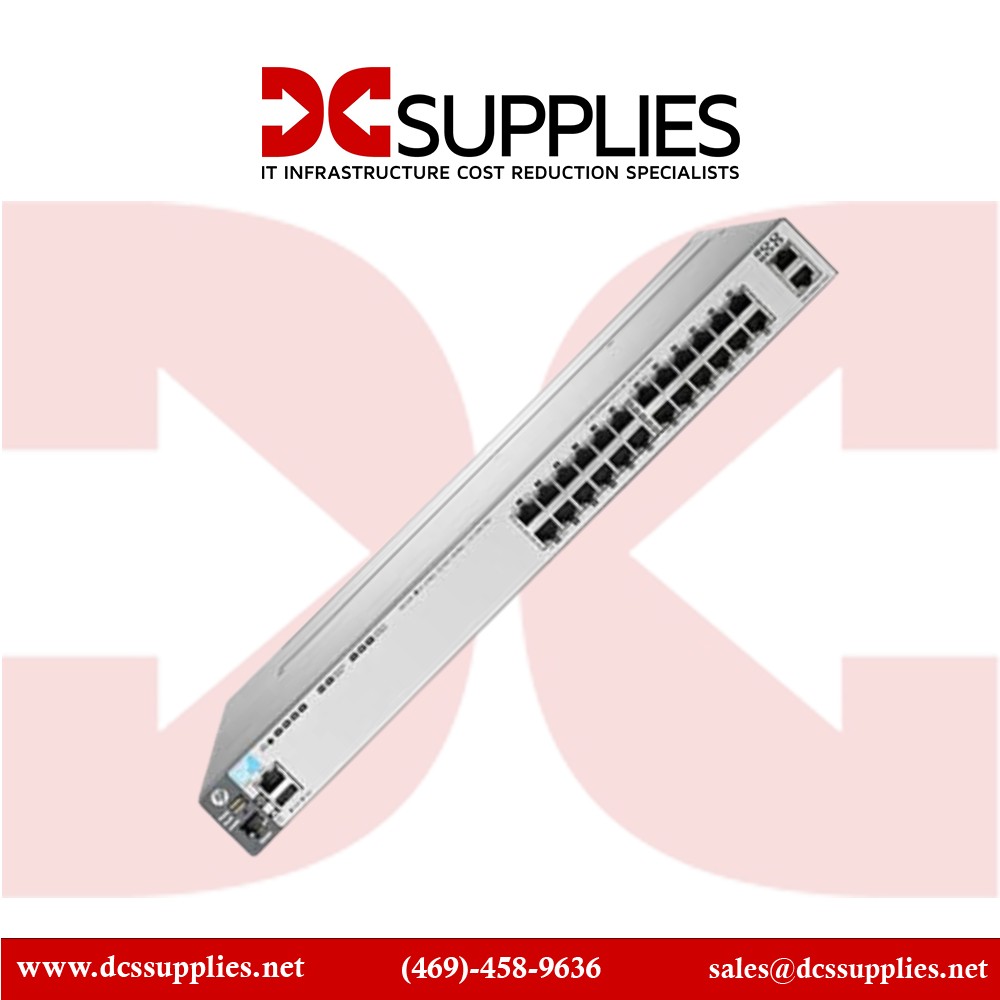

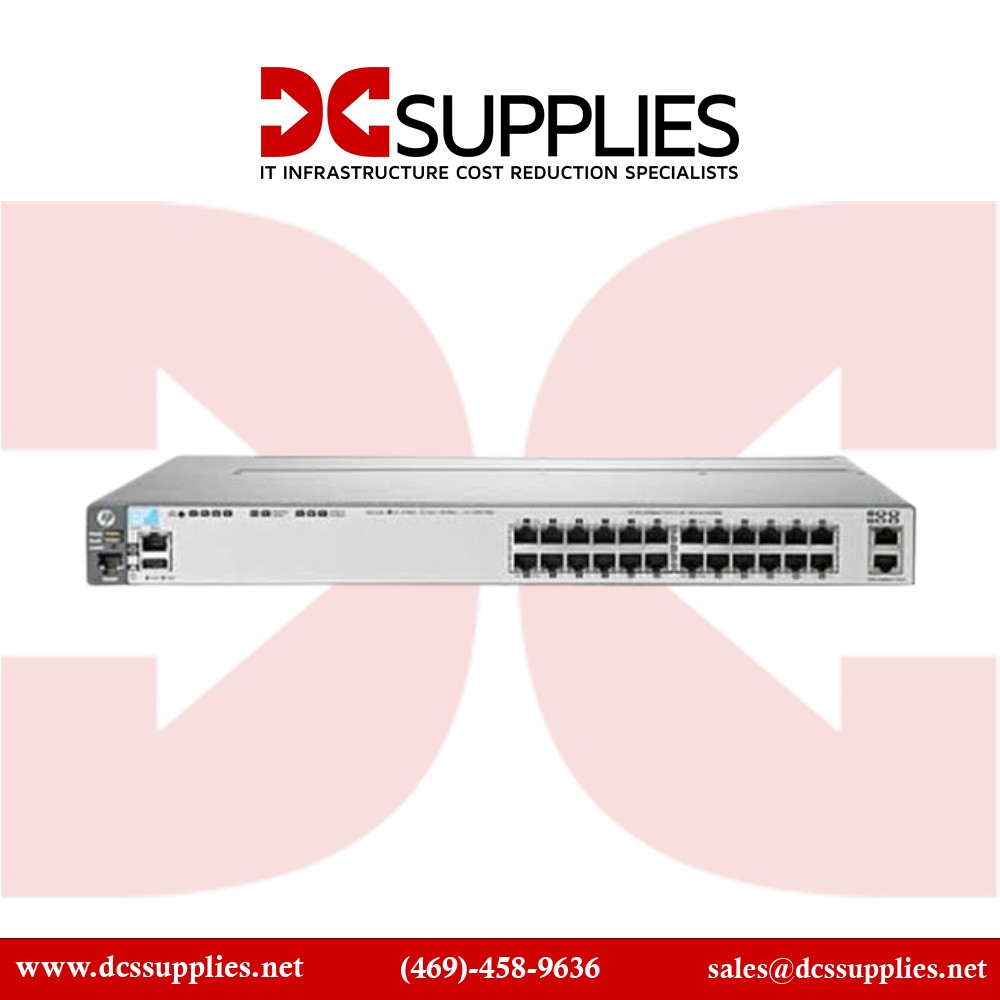

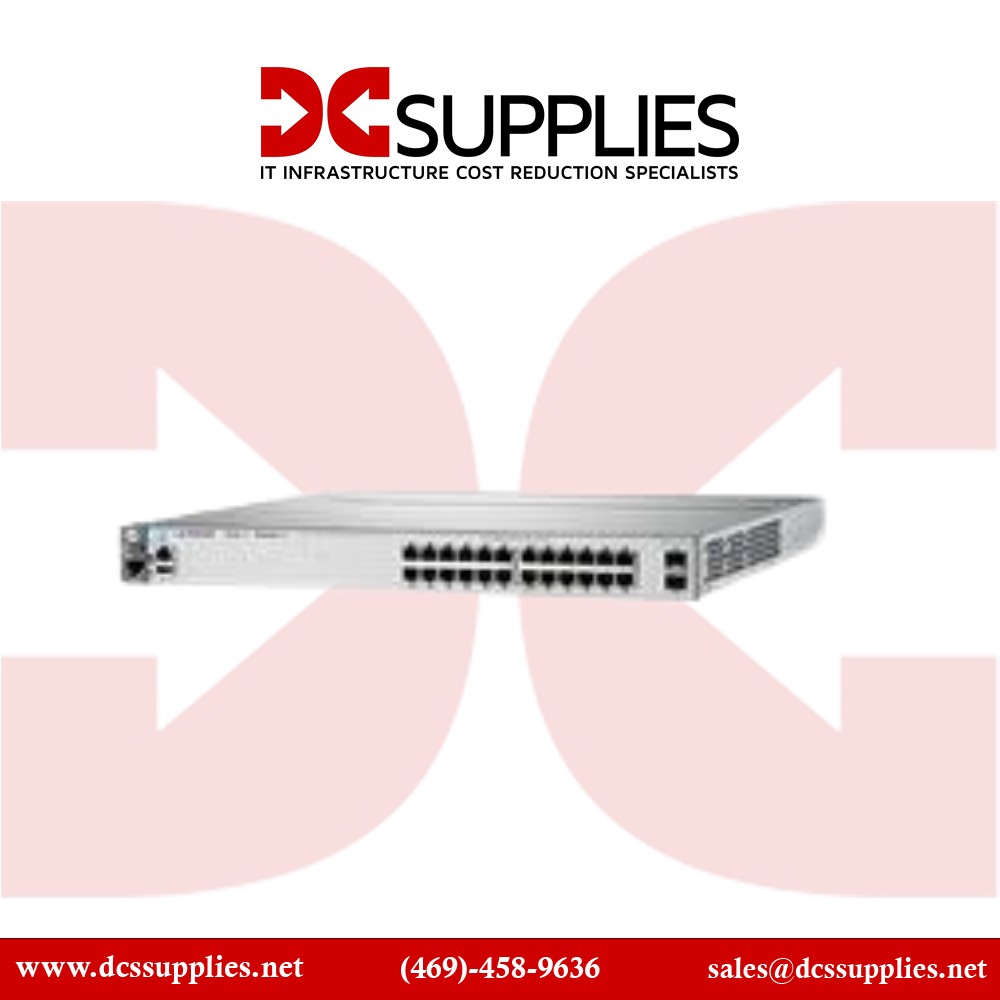

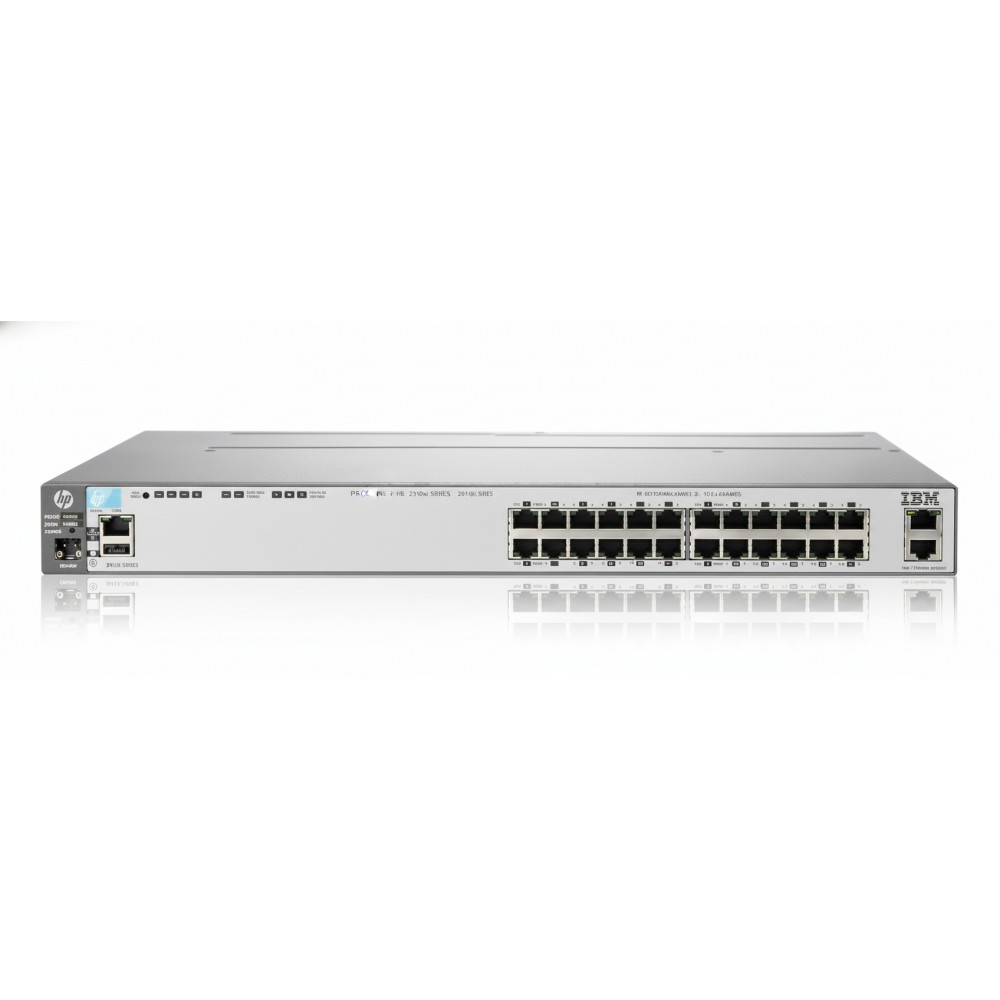

HPE Aruba J9585A 3800 24G 2XG Ethernet switch refurbished
Overview
The HPE Aruba J9585A is a fully-managed Layer 3 Ethernet switch intended for wiring-closet, branch or campus-access deployments. It offers 24 autosensing 10/100/1000 Mb/s RJ-45 ports and 2 fixed 10 Gb/s RJ-45 uplink ports, enabling seamless connectivity between high-density access and aggregation layers. With a switching capacity of 88 Gb/s and forwarding performance up to approximately 65.4 million packets per second, the unit supports advanced features such as static IPv4 routing, ACLs, QoS, IPv6 management and stack scalability. It installs in a 1U rack-mount chassis and supports optional redundant power supplies and fan trays for improved uptime. With enterprise-grade routing and switching capabilities in a compact form-factor, the J9585A is suited for data-centre edge, branch aggregation or campus access layers.
Key Features
24×10/100/1000 Mb/s RJ-45 access ports plus 2×10 Gb/s RJ-45 uplinks
Layer 3 routing, ACLs, QoS, IPv6 support and stacking ready
Switching capacity of 88 Gb/s with ~65.4 Mpps forwarding rate
1U rack-mount form-factor with optional redundant PSU/fan options
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | J9585A |
| Product Type | Managed Layer 3 Switch - 24G + 2×10G |
| Access Ports | 24 × RJ-45 10/100/1000 Mb/s |
| Uplink Ports | 2 × RJ-45 10 Gb/s |
| Switching Capacity | 88 Gb/s |
| Forwarding Rate (64-byte packets) | ~65.4 million packets/second |
| MAC Address Table Size | 65,500 entries |
| Dimensions (W × D × H) | 17.43″ × 18.4″ × 1.7″ (~44.27 cm × 46.74 cm × 4.32 cm) |
| Weight | ~15.8 lb (~7.17 kg) |
| Stacking Support | Yes - stacking module slot present |
| Minimum Power Supply | 400 W internal (model J9581A) |
| Operating Temperature Range | 0 °C to 55 °C |
