Detailed Specifications

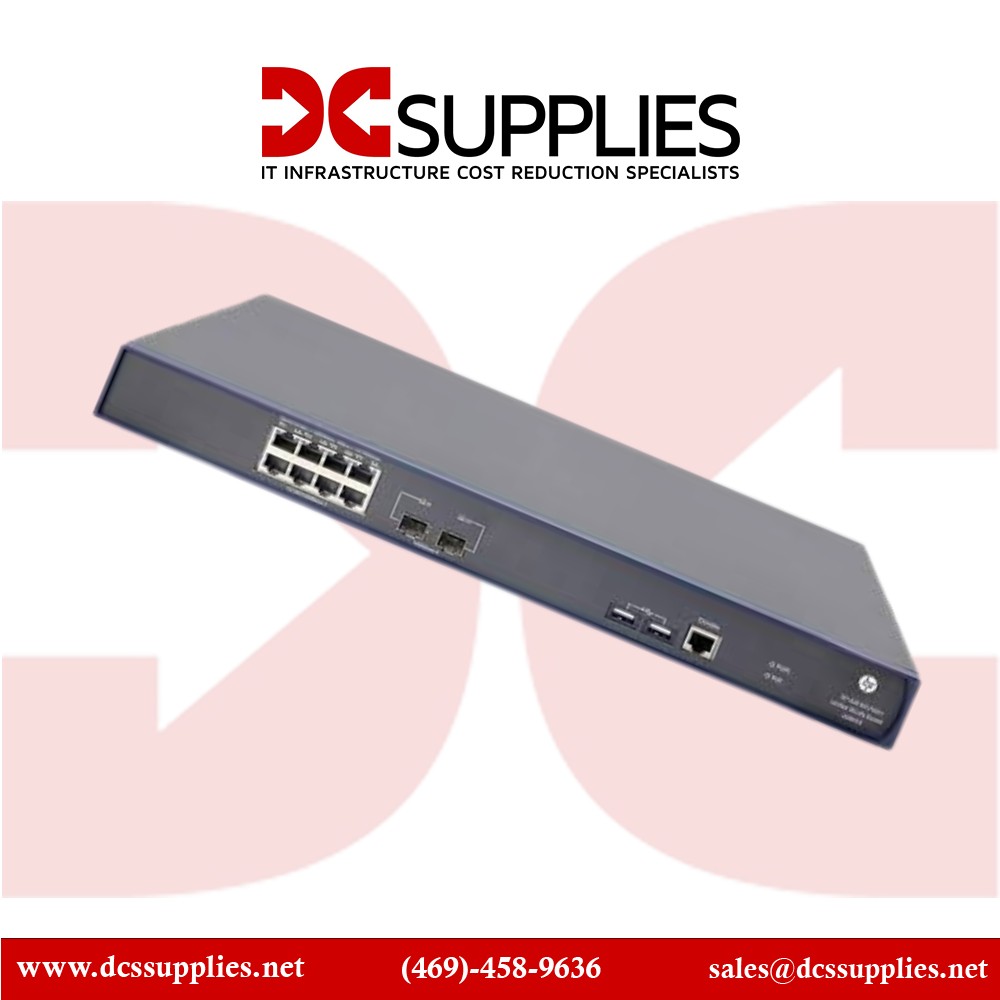

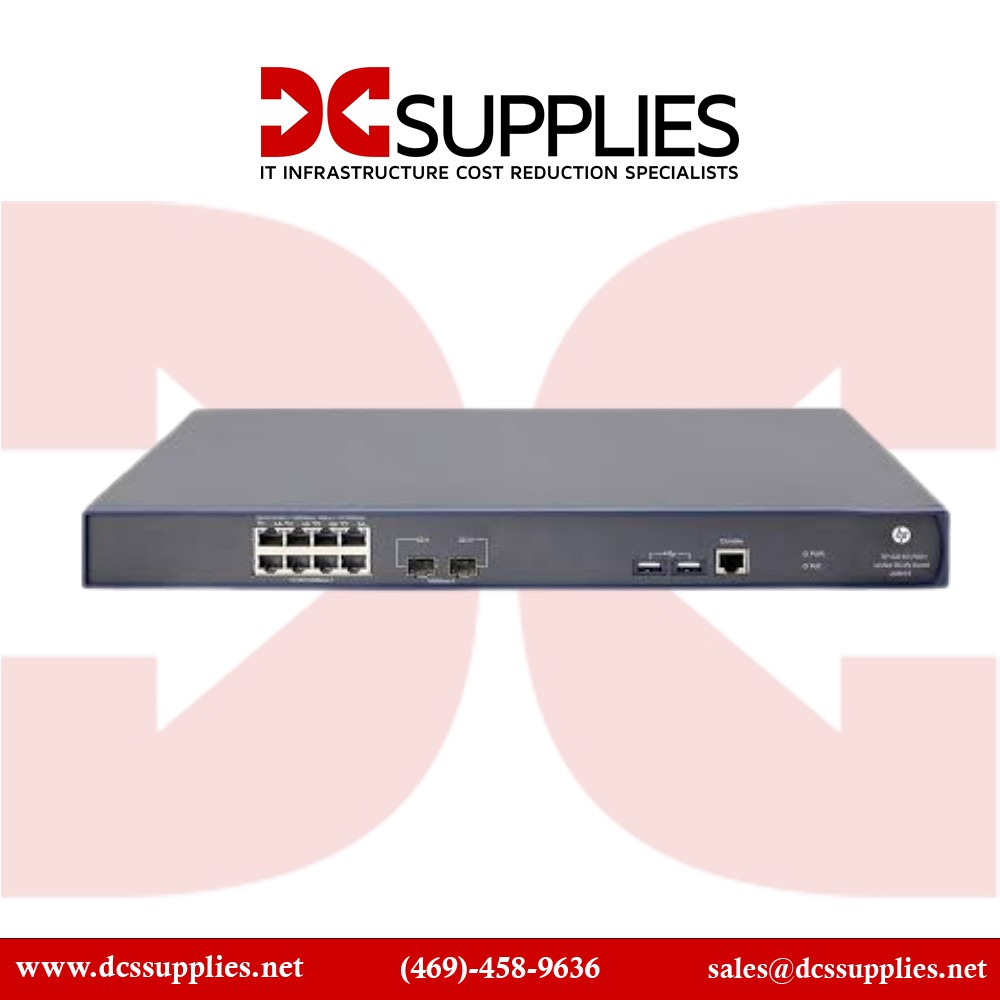

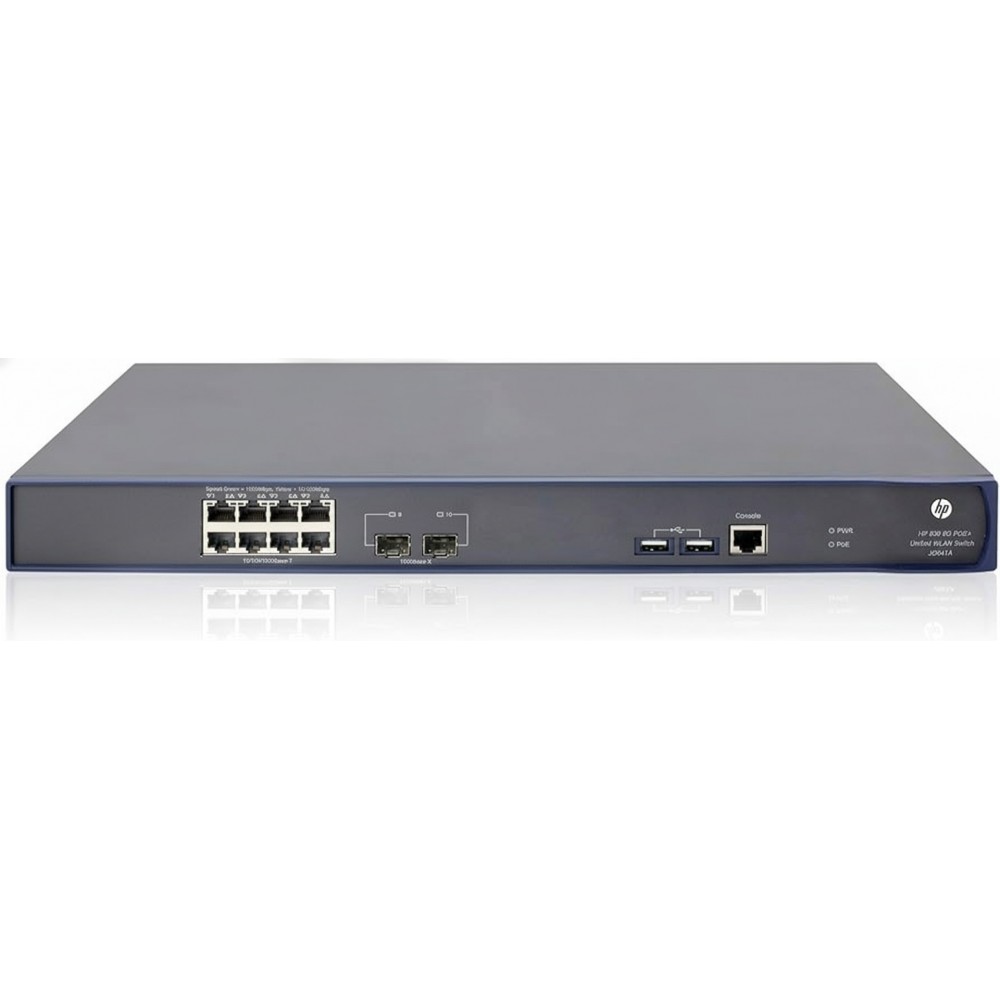

HPE JG641A 830 8P PoE+ Unified Wired-WLAN Switch
Overview
The HPE JG641A is an 8-port Gigabit switch with PoE+ designed for small-branch or campus deployments. It integrates wired client connections and acts as a controller for connected wireless access points, enabling unified wired and wireless policy enforcement. The device includes two SFP uplink ports for fiber connectivity, supports VLAN segmentation, ACLs, and IPv6 transition, and provides a PoE+ budget to power access points or other powered devices. This 1U rack-mountable switch is optimized for environments where space is limited and unified access management is required.
Key Features
8 × 10/100/1000BASE-T PoE+ ports with 2 × SFP uplinks
Built-in wireless controller for Aruba access points
PoE+ budget supports high-power devices
1U rack-mountable, suitable for small-branch deployment
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JG641A |
| Product Type | 8-Port PoE+ Unified Wired-WLAN Switch |
| RJ-45 Ports | 8 × 10/100/1000BASE-T |
| SFP Uplink Ports | 2 × 1 Gb/s SFP |
| PoE+ Power Budget | 180 W |
| Switching Capacity | ~20 Gb/s |
| MAC Address Table Size | 8,000 entries |
| Operating Temperature Range | 0 °C to 45 °C |
| Dimensions (W × D × H) | 17.32″ × 10.63″ × 1.72″ |
| Weight | ~8.82 lb (~4.0 kg) |
| Management Interfaces | Web GUI, CLI, SNMP, console RJ-45 |
| WLAN Controller Capacity | Up to ~1,000 users/connections |
| VLAN Support | Yes |
| Security Features | ACLs, 802.1X authentication, RADIUS |
