Detailed Specifications

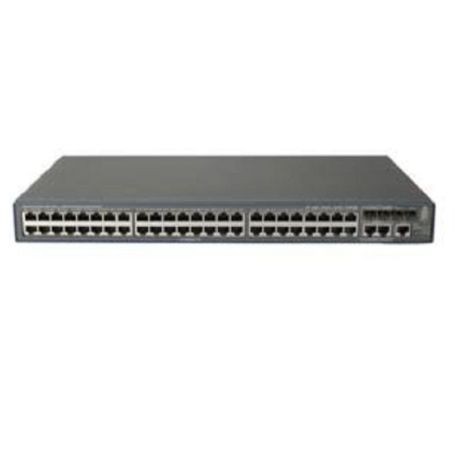

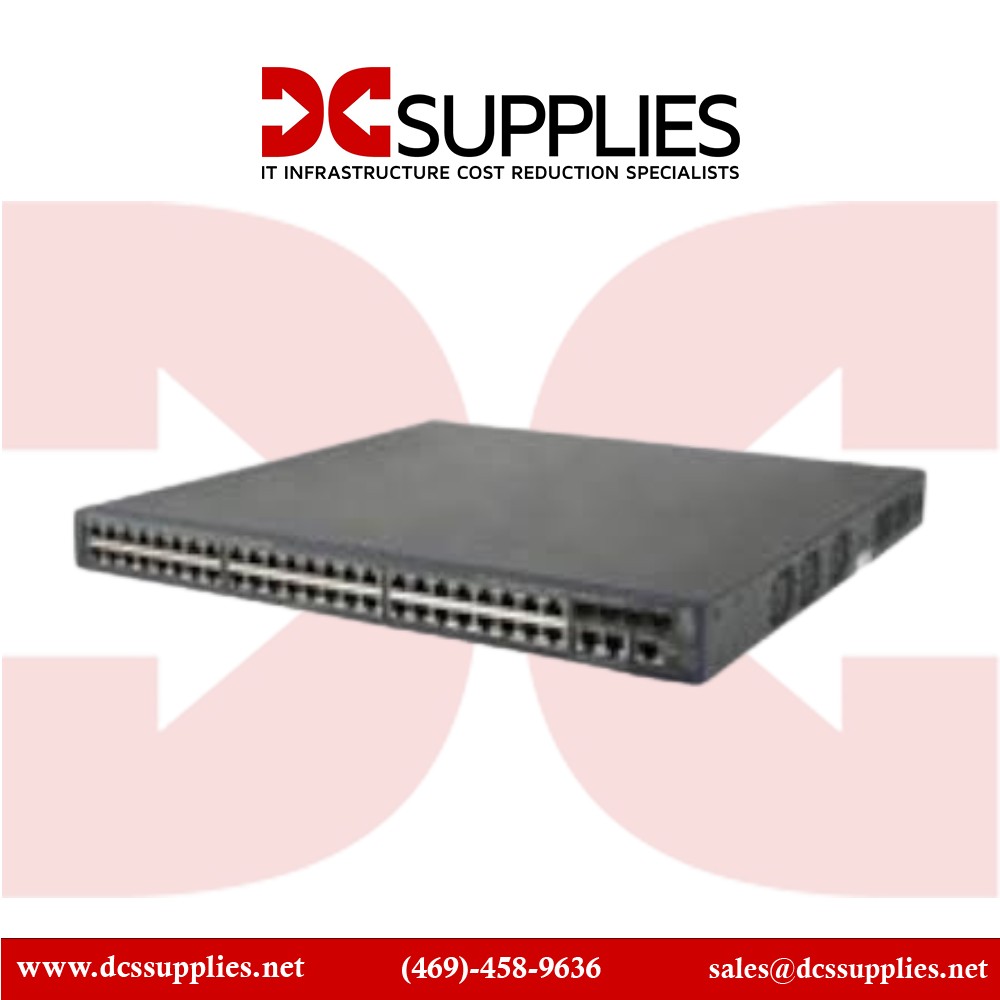

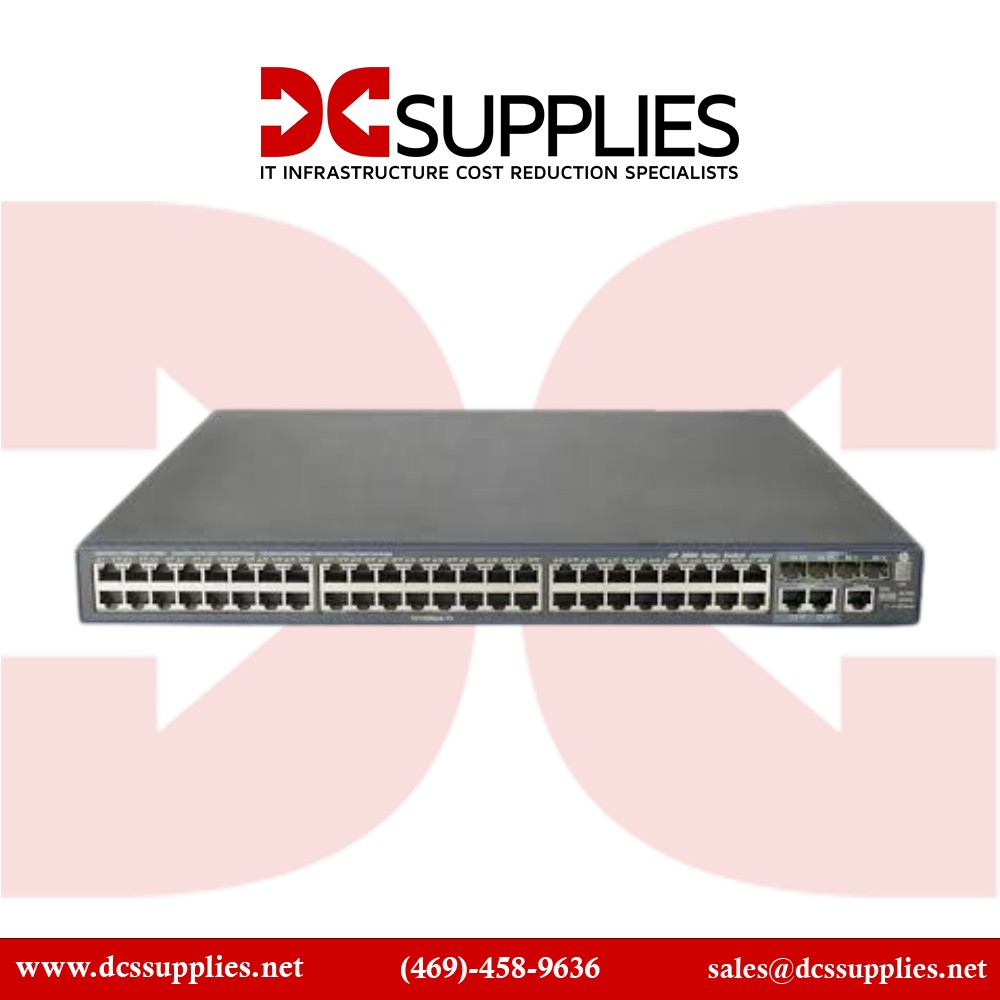

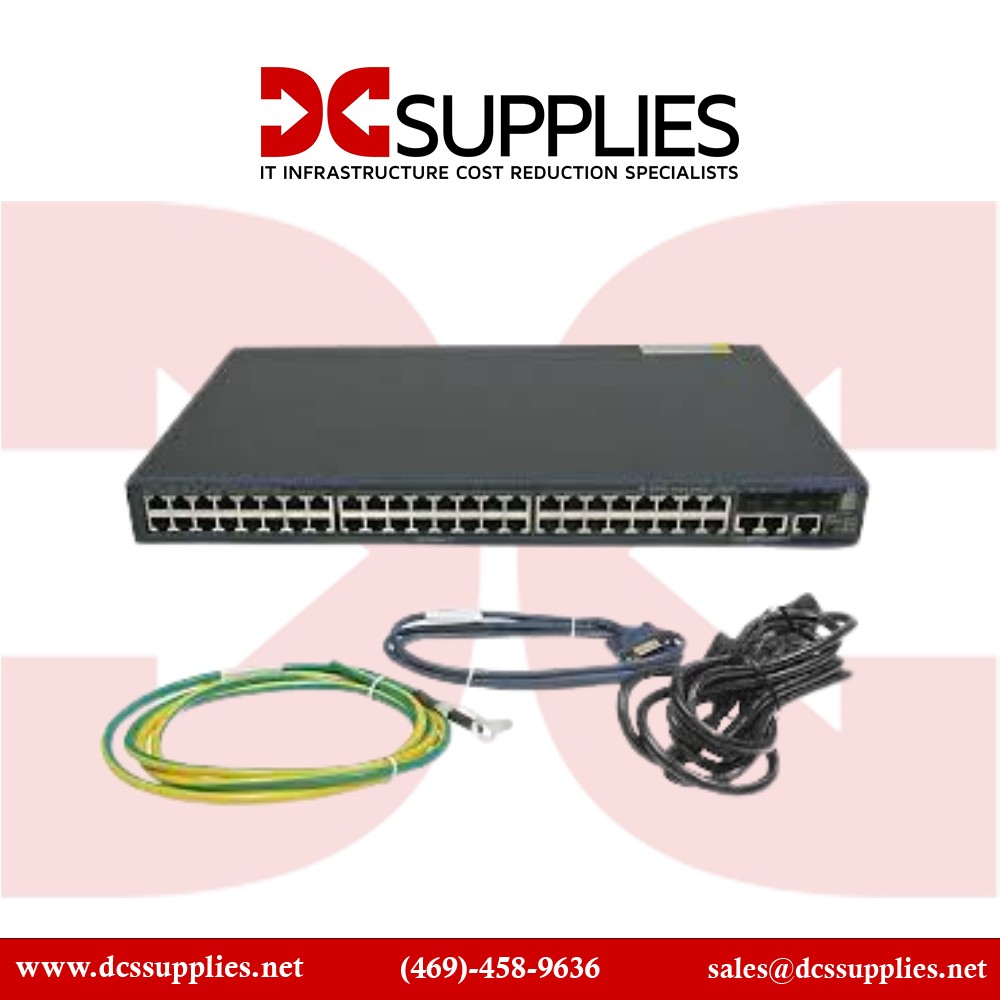

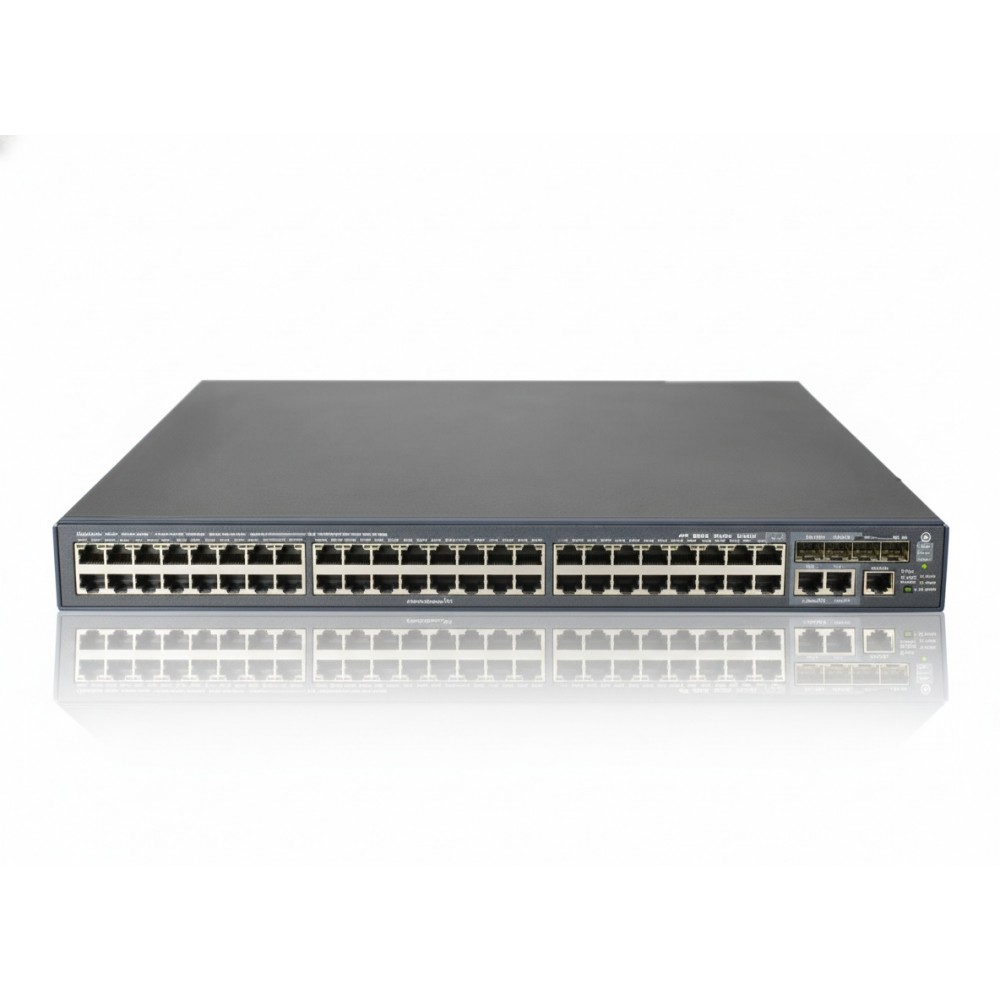

HPE JG302C FlexNetwork 3600-48-PoE+ v2 EI Switch
Overview
The HPE JG302C is a 1U rack-mount managed access switch designed for enterprise wiring-closet or campus edge deployments where high port-density and Power-over-Ethernet capability are required. It provides 48 autosensing 10/100BASE-T RJ-45 ports with PoE+ and includes 4 SFP uplink ports plus 2 dual-personality ports for fibre or copper, delivering flexible aggregation or uplink options. It supports Layer 3 routing features, stacking via HPE IRF (Intelligent Resilient Fabric), IPv4/IPv6, ACLs and advanced QoS × making it suitable for branch or campus deployments where both data-switching and powered endpoints (such as IP phones, cameras or access points) need to be served. The unit mounts in a standard 19-inch rack at 1U height, uses front-accessible controls and integrates into HPE management infrastructure for unified wired access network control.
Key Features
48 × 10/100 BASE-T PoE+ ports plus 4 × SFP uplinks and 2 dual-personality combo ports
PoE+ budget allowing powered endpoint deployment (320 W typical)
Layer 3 routing (static, OSPF, BGP, etc.), stacking via IRF up to 9 units
1U rack-mount form-factor with fibre/copper uplink flexibility
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JG302C |
| Product Type | Managed Access Switch - 48-port PoE+ |
| Ethernet Ports | 48 × 10/100 BASE-T RJ-45 |
| Uplink Ports | 4 × 1 Gb SFP + 2 dual-personality ports (combo) |
| PoE+ Power Budget | 320 W |
| Switching Fabric Speed | 55 Gb/s |
| Forwarding Performance | Up to ~13.1 Mpps |
| Maximum Power Consumption | Up to ~440 W (AC) |
| Dimensions (H×W×D) | 1.7″ × 17.3″ × 16.5″ |
| Weight | ~22.0 lb |
| Stacking Support (IRF) | Up to 9 units |
| Routing & Protocol Support | Static routing, OSPF, BGP-4+, ECMP, IPv6, ACLs |
| Operating Humidity Range | 5 % to 95 % non-condensing |
