Detailed Specifications

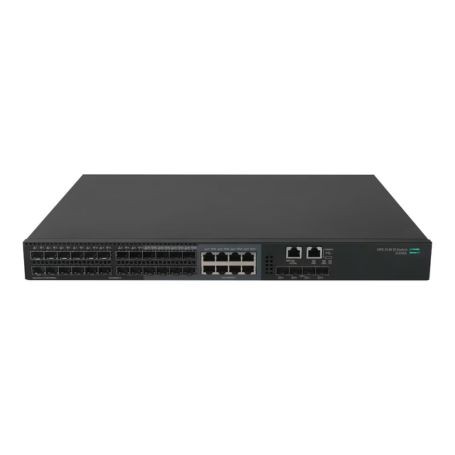

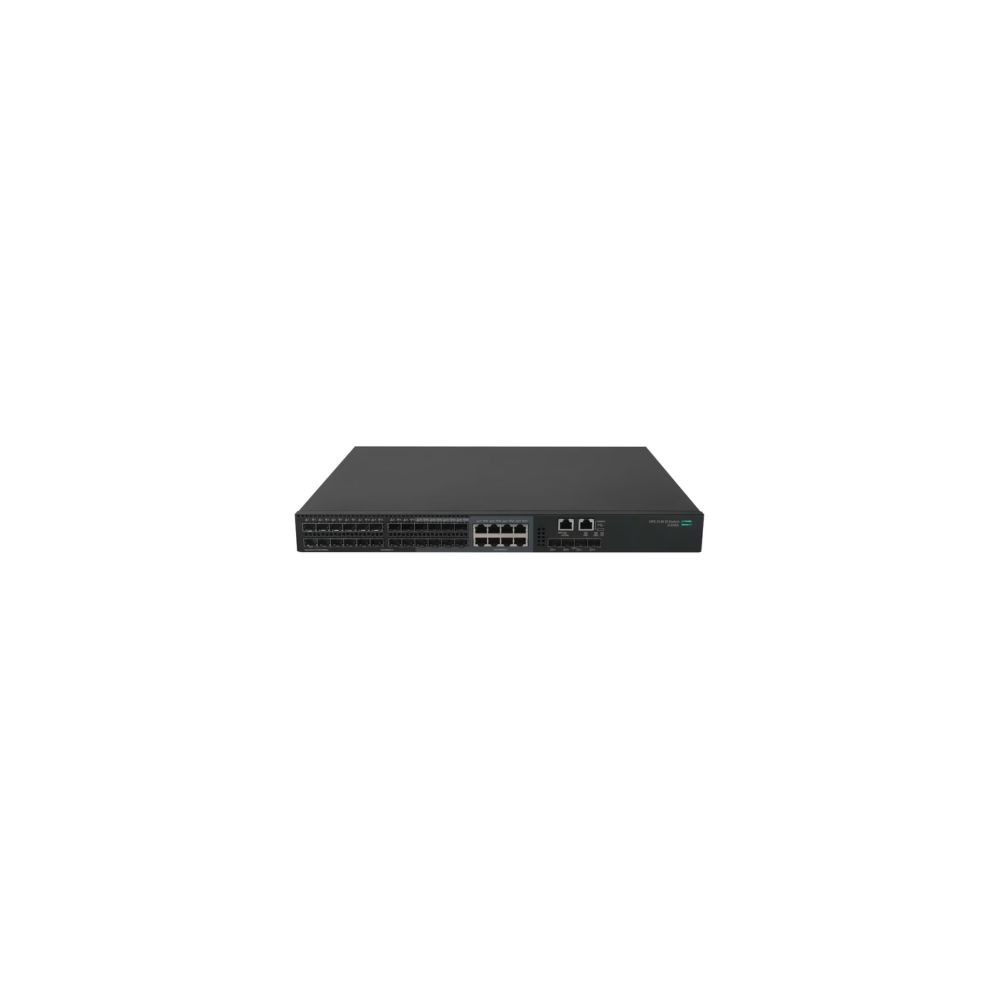

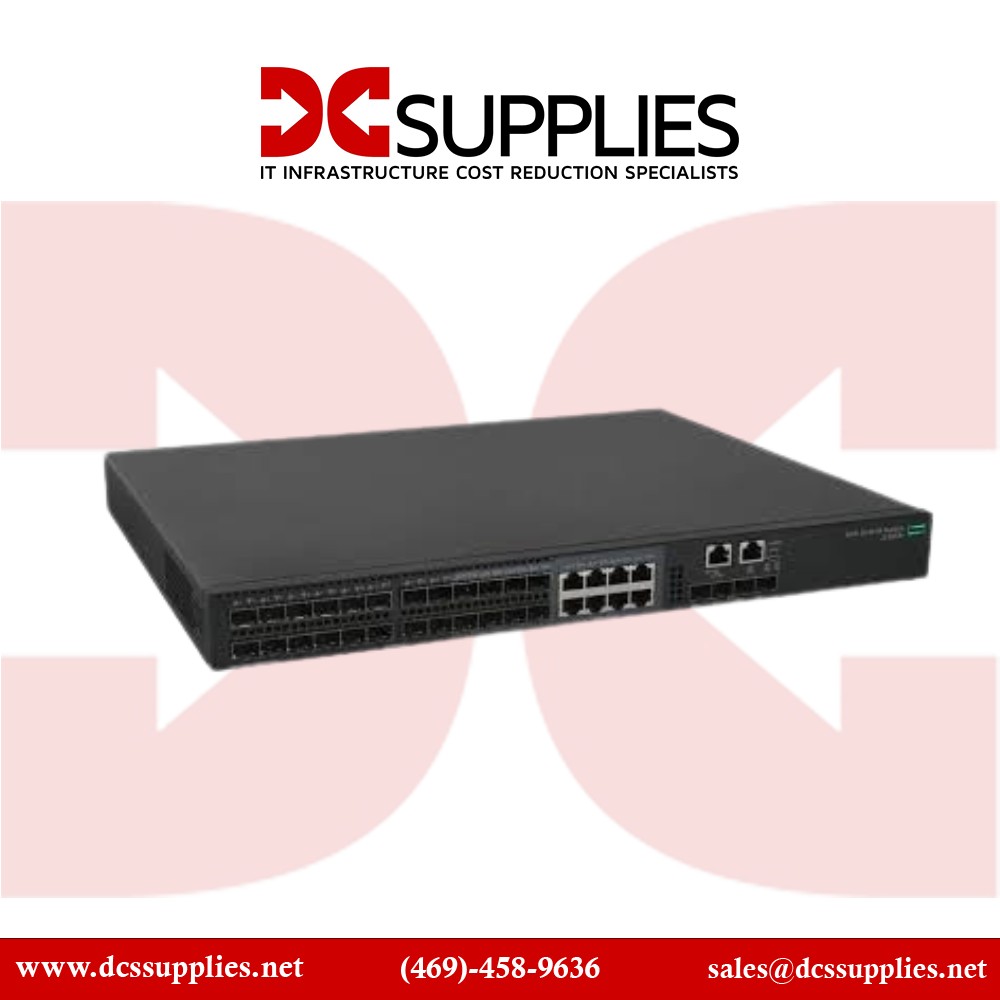

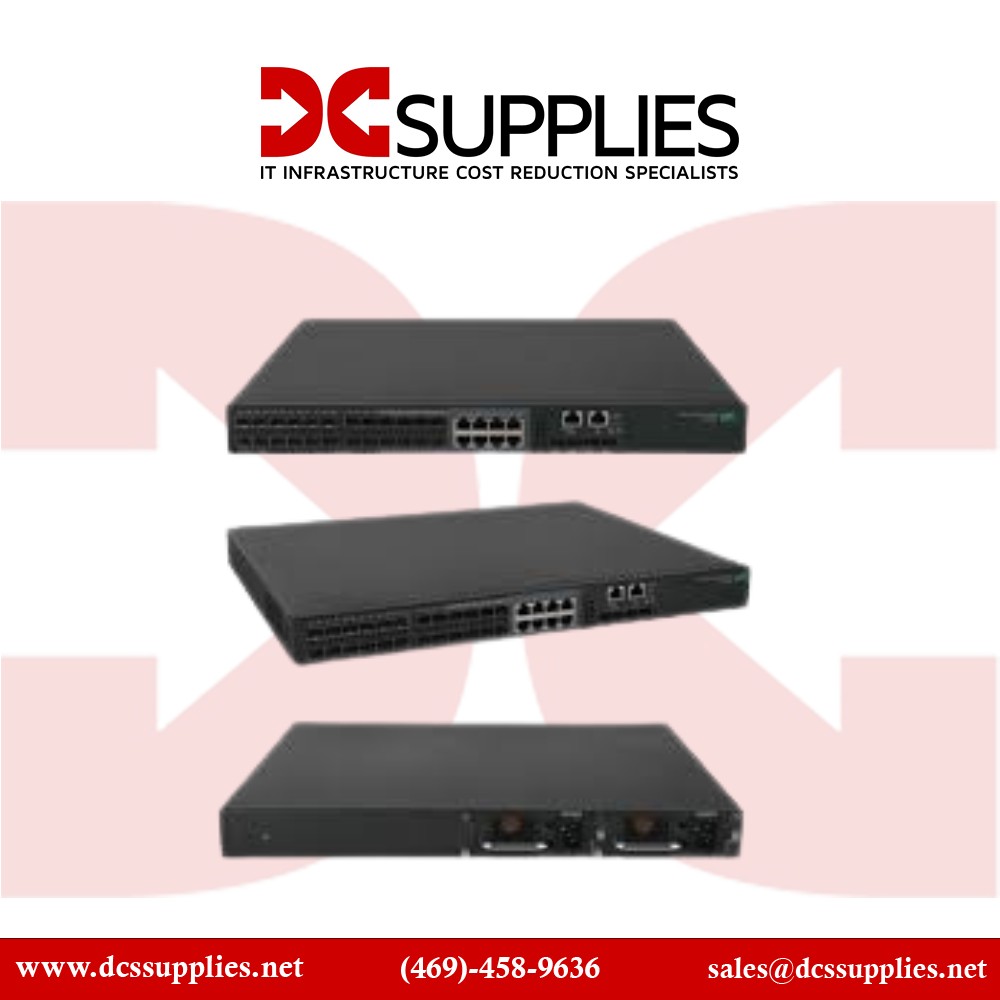

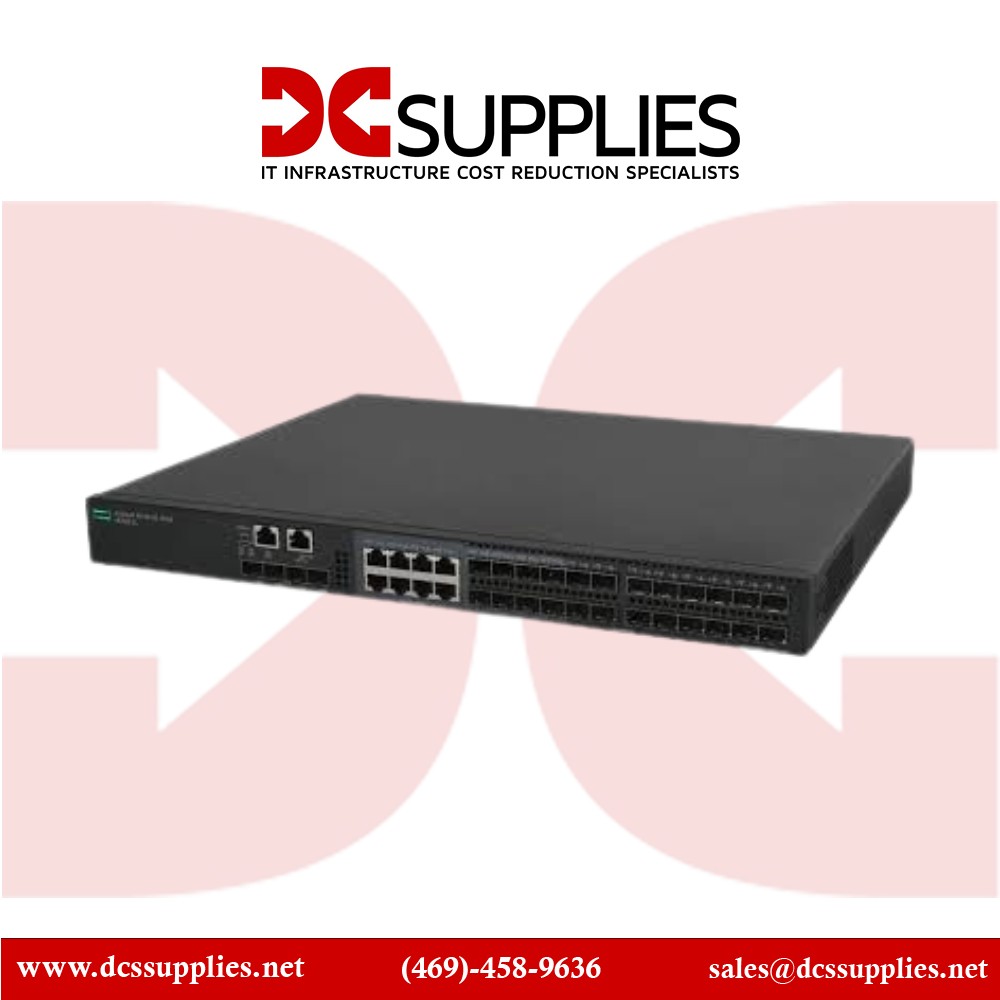

HPE JL826A FlexNetwork 5140 24G SFP w/8G Combo 4SFP+ EI Switch
Overview
The HPE JL826A is a fixed-port, enterprise-class access switch in a 1U rack form-factor designed for campus or edge deployments with fibre connectivity. It offers 24 SFP ports (8 of which are dual-personality combo ports supporting either 10/100/1000BASE-T or 100/1000BASE-X) and 4 fixed 10 Gb SFP+ uplinks, enabling high-density fibre access with aggregation capacity. It supports static Layer 3 routing, IPv6, ACLs and the HPE Intelligent Resilient Fabric (IRF) stacking technology to create a resilient, logical switch fabric across multiple physical units. Its dimensions are approximately 17.32″ W × 14.17″ D × 1.72″ H and its weight is around 13.23 lb. The JL826A fits standard 19-inch racks and is well suited for deployment in wiring closets, campus access layers, or data-centre edge where fibre access and 10 Gb uplinks are required.
Key Features
24 SFP ports (8 dual-personality combo ports) + 4 10 Gb SFP+ uplinks
Static Layer 3 routing, IPv6 support, ACL enforcement
IRF stacking support for multi-unit logical switch fabric
1U rack-mount design with fibre-first access connectivity
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JL826A |
| Product Type | Fixed-port Layer 3 Access Switch |
| Fibre/Combo Ports | 24 × SFP (8 dual-personality RJ-45/SFP combo) |
| Uplink Ports | 4 × SFP+ (10 Gb/s) |
| Switching Capacity | 128 Gb/s |
| Forwarding Rate | ~96 Mpps |
| Dimensions (W×D×H) | 17.32″ × 14.17″ × 1.72″ |
| Weight | ~13.23 lb |
| IRF Stacking Support | Up to 9 units |
| Operating Temperature | -5 °C to 45 °C |
| Power Consumption (Max) | ~60 W |
| MAC Address Table Size | 16,384 entries |
| Routing Table Size | Up to ~512 IPv4 entries, ~256 IPv6 entries |
| Fan Noise (High Speed) | ~47.7 dB |
