Detailed Specifications

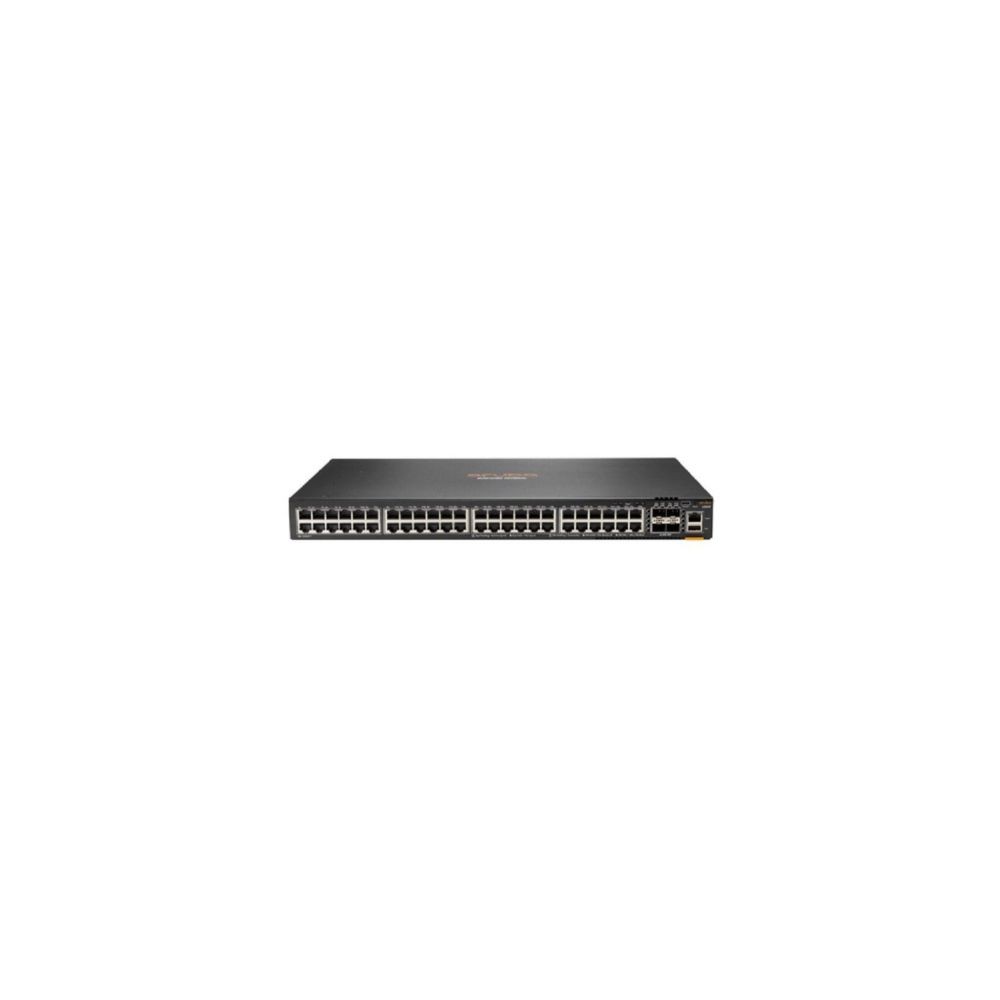

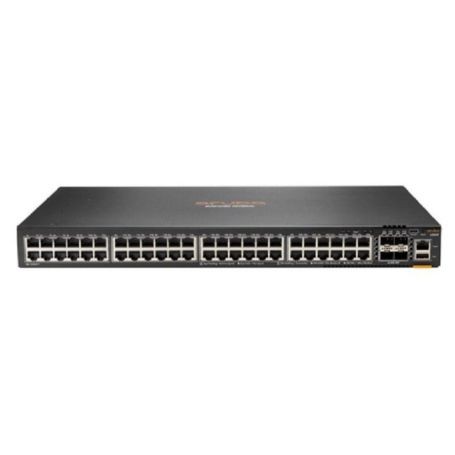

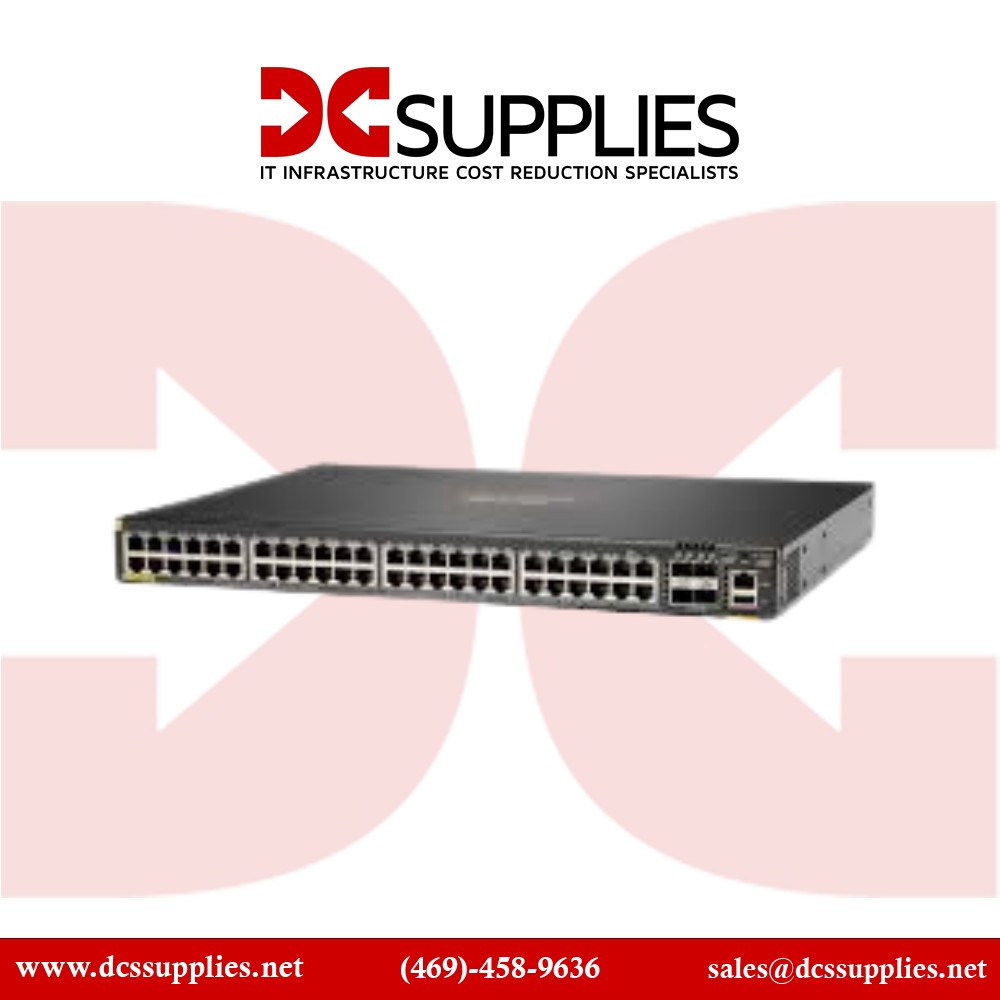

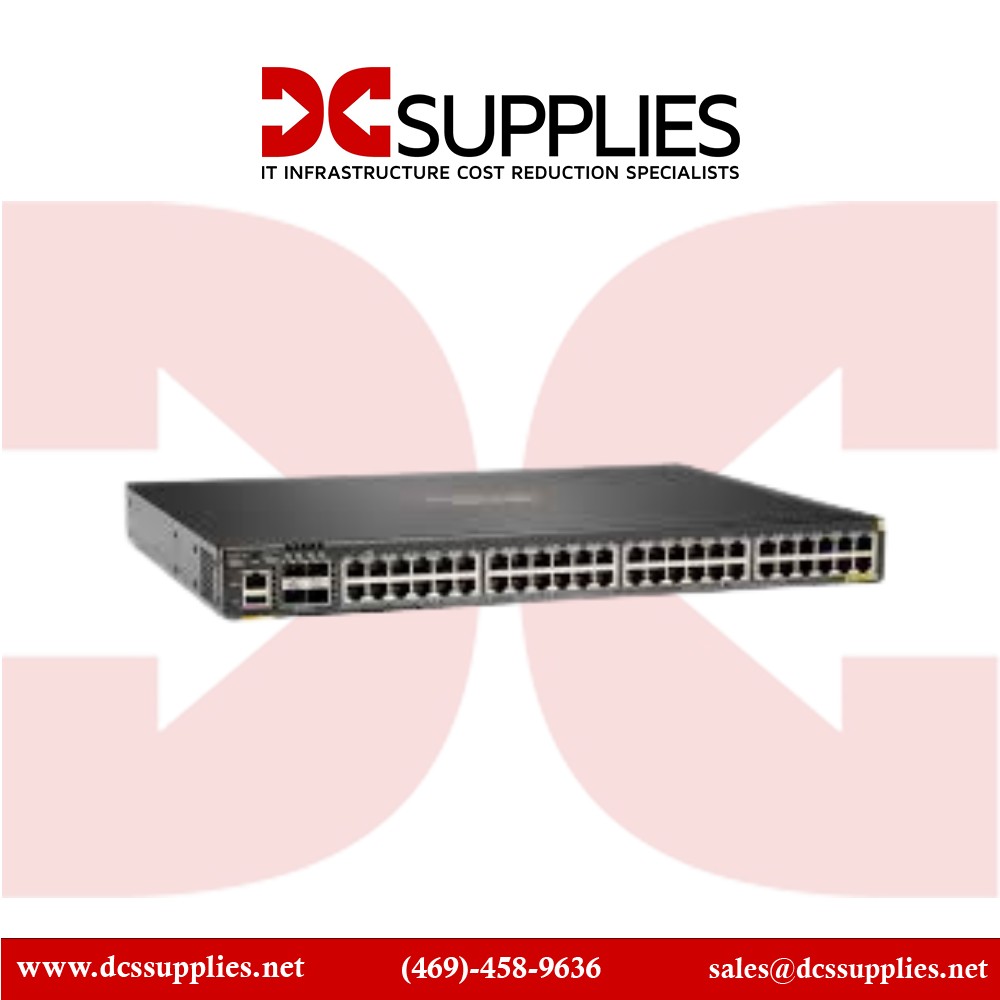

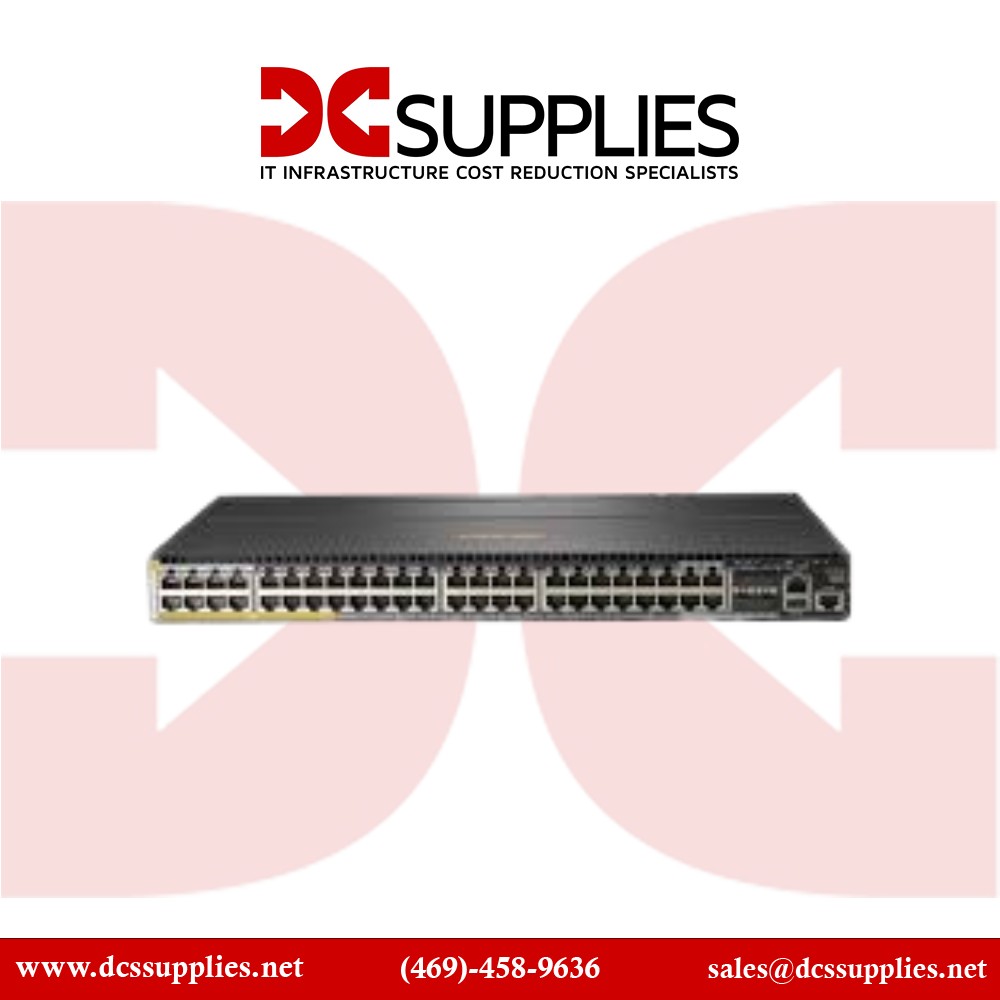

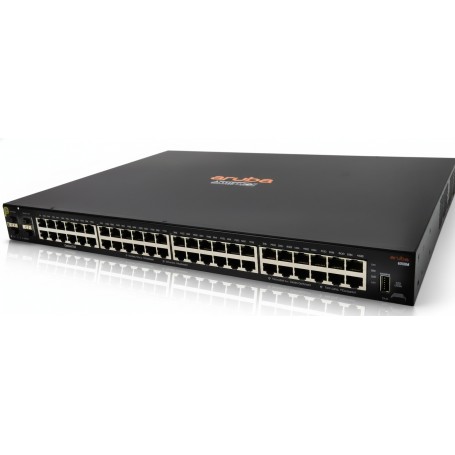

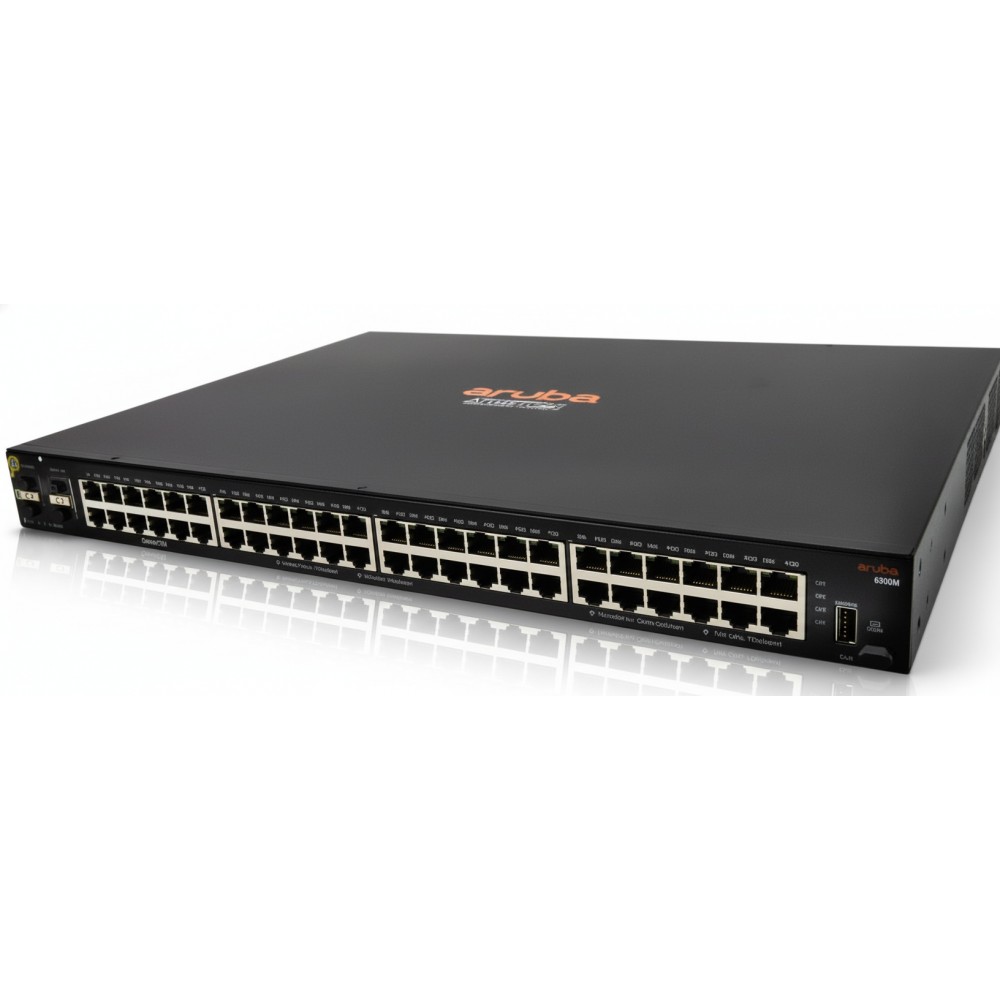

HPE Aruba R8N85-61001 48G Class4 PoE 4 SFP Access Switch
Overview
The HPE Aruba R8N85-61001 is a rack-mount 1U access switch tailored for enterprise edge or campus access environments where a large number of Gigabit wired endpoints and powered devices are required. It offers 48 RJ-45 10/100/1000 ports with Class 4 Power-over-Ethernet (PoE+) support and 4 × 1 Gb SFP uplink ports, enabling deployment of access points, IP cameras and IoT devices with built-in power and uplink connectivity. The switch fits into standard 19-inch racks and supports both conventional GUI and CLI management along with integrated management platforms. It integrates using the Aruba CX 6000 switch family architecture, making it suitable for distributed, branch or campus access layers under a unified wired-wireless infrastructure.
Key Features
48 10/100/1000BASE-T ports and 4 1 Gb SFP uplinks
Up to 370 W total PoE budget for Class 4 devices
104 Gbps switching capacity and 77.3 Mpps forwarding rate
1U rack form factor, ~17.4″ wide, designed for 19″ racks
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE Aruba |
| Part Number | R8N85-61001 |
| Product Type | Managed Gigabit PoE+ Access Switch |
| Ports | 48 × 10/100/1000BASE-T + 4 × 1 Gb SFP |
| PoE Budget | 370 W total |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.3 Mpps |
| Latency | 1.9 µs at 1 Gb/s |
| Input Voltage | 100-127/200-240 VAC |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Routing Capability | Static routing only |
| Memory / Processor | Dual-core ARM Cortex-A9 @1.016 GHz |
| Dimensions (H×W×D) | ~1.7″ × 17.4″ × 12.0″ |
| Weight | ~9.8 lb (~4.45 kg) |
| Management Interfaces | Web GUI, CLI, USB-C console, USB-A host |
